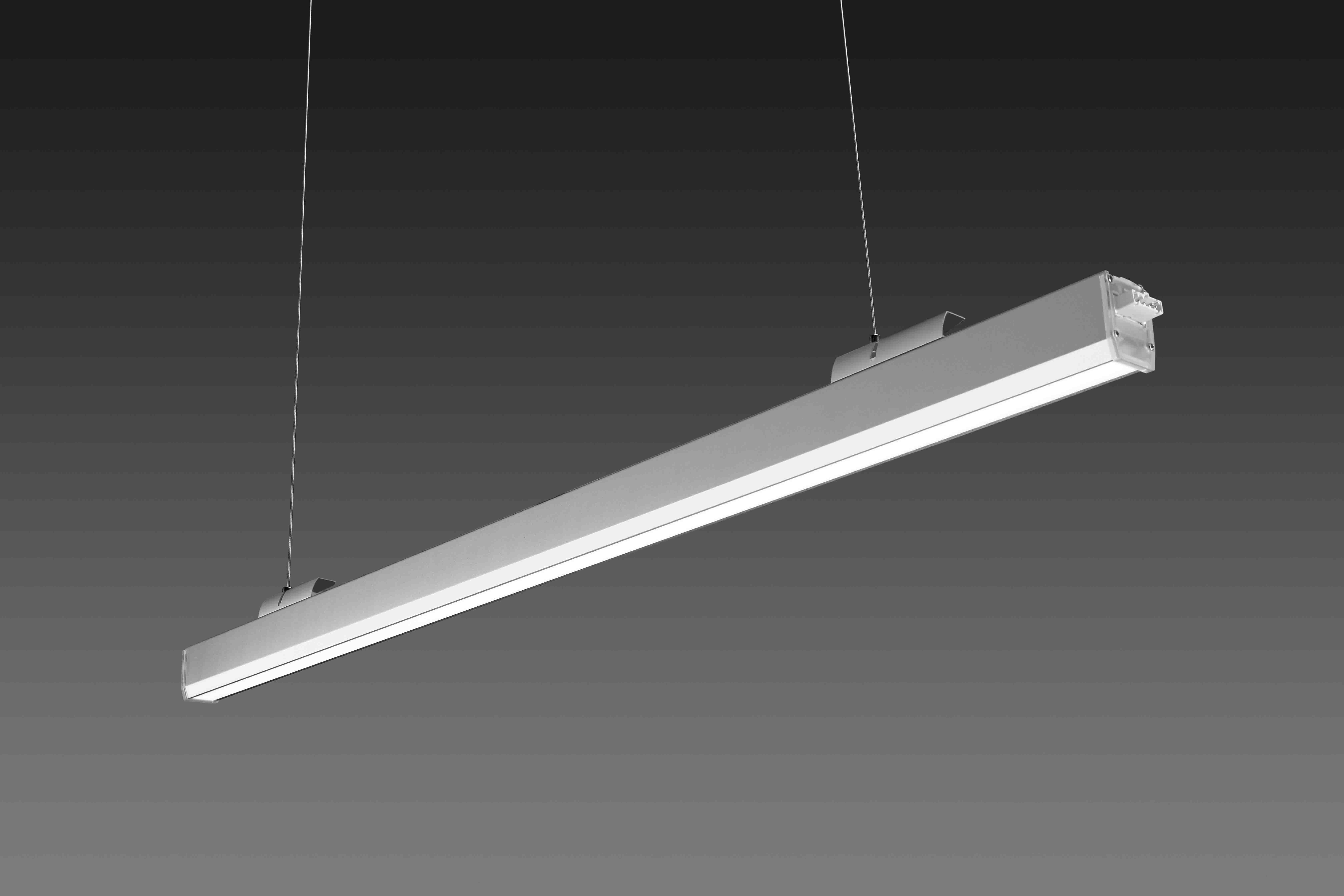

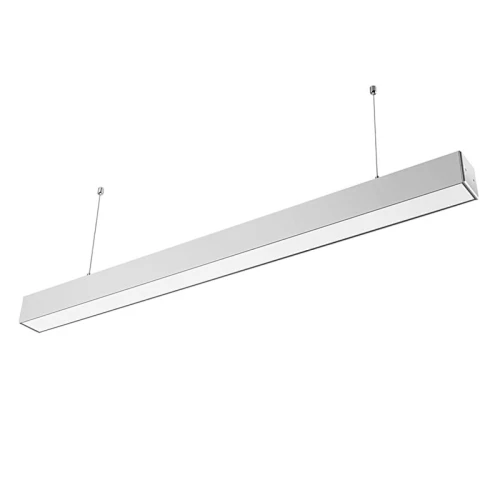

40W Dali Linkable supermarket light led linear trunking system

40W Dali Linkable supermarket light led linear trunking system

Model NO.: 20ST12-40W
Minimum order quantity: 1 piece

Quantity:

Product Description

Place of Origin:Guangdong, China
Color Temperature(CCT):5000K (Daylight), 2200K~6500K
Lamp Luminous Efficiency(lm/w):150
Color Rendering Index(Ra):80
Lighting solutions service:DIALux evo layout, auto CAD layout, Project Installation
Application:Supermarket
Lifespan (hours):50000
Working Time (hours):50000
Brand Name:Lumin
Model Number:20ST12-40W
Material:Aluminum
Light Source:LED
Number of Lights:276PCS SMD 2835
Lamp Luminous Flux(lm):6000
Working Lifetime(Hour):50000
Beam Angle(°):30/60/90/120
Input Voltage(V):85~265
CRI (Ra>):80/90/95
Support Dimmer:Yes
Warranty(Year):5-Year
Design Style:Modern
PF:>0.97
Dimmable type:DALI/0~10V
Certification:CE,Rohs
Length option:1.2/1.5m/4ft/5ft
Customized size:available
Installation:Suspendend/ wall mounted / vertical mounted
efficacy:150lm/w
Product name:IP65 Dali dimmable fast linkable trunking pendant led linear light
Main application:Shopping Mall

Product Description

40W Dali Linkable supermarket light led linear trunking system

-------------------chinese professional led linear light manufacturer,linear light solution offer

Model	LM-20ST12-18W	LM-20ST12-30W	LM-20ST12-40W
Input power	18w	30w	40w
Luminous Flux	2880LM	4800LM	6400LM
Input Voltage	100-277V AC	100-277V AC	100-277V AC
CRI	>80/95	>80/95	>80/95
CCT	3000,4000, 5000,6000K	3000,4000, 5000,6000K	3000,4000, 5000,6000K
Mounting	Surface mounted/Suspended	Surface mounted/Suspended	Surface mounted/Suspended
Lifetime	50,000 hours	50,000 hours	50,000 hours
Warranty	5 years	5 years	5 years
Size	11954357mm ( custom-make available)	11954357mm ( custom-make available)	11954357mm ( custom-make available)
Dimming Solution	Triac/0-10v/ DALI	Triac/0-10v/ DALI	Triac/0-10v/ DALI
Light efficacy	160LM/W	160LM/W	160LM/W
IP rating	IP65/IP20	IP65/IP20	IP65/IP20

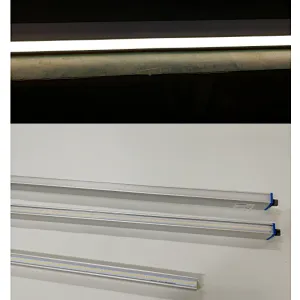

Non-Linkable single application

IP20 seamless connection

IP65 seamless connection

Detailed Images

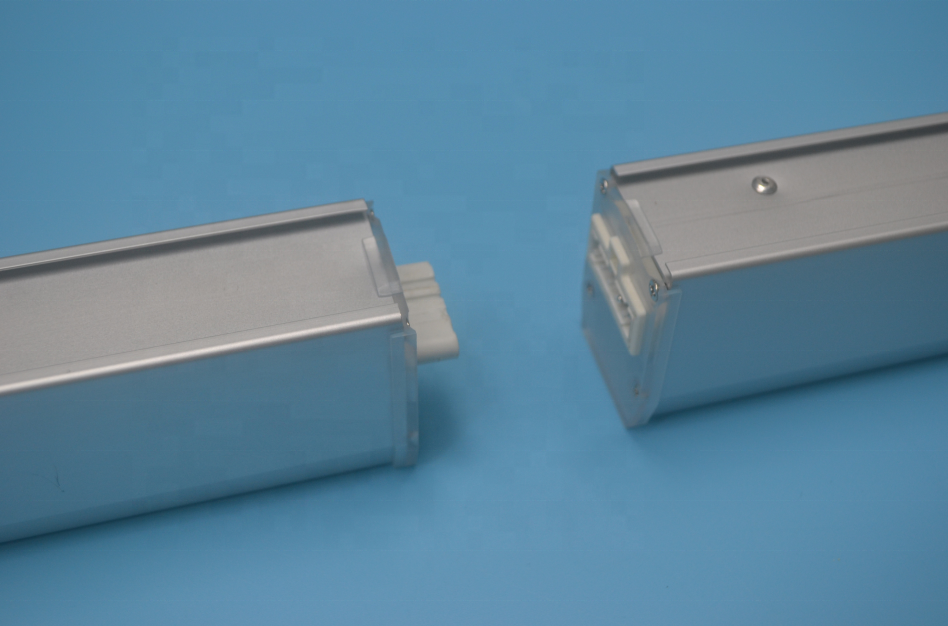

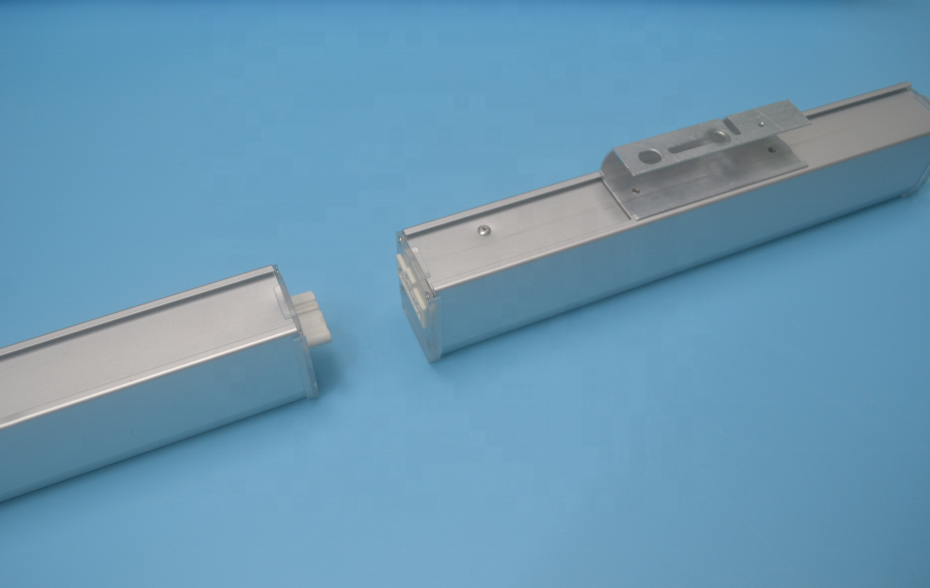

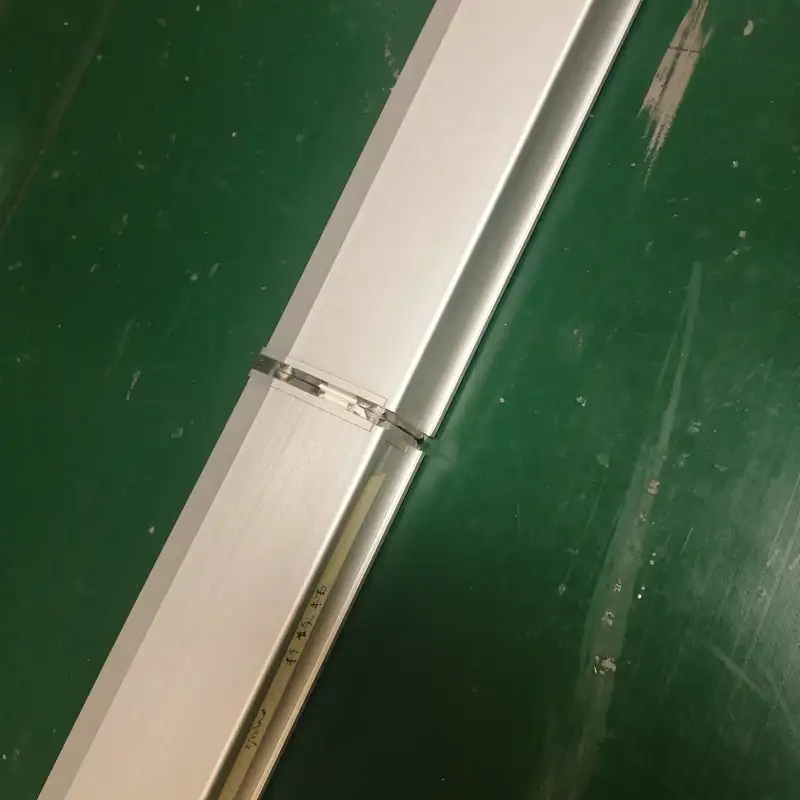

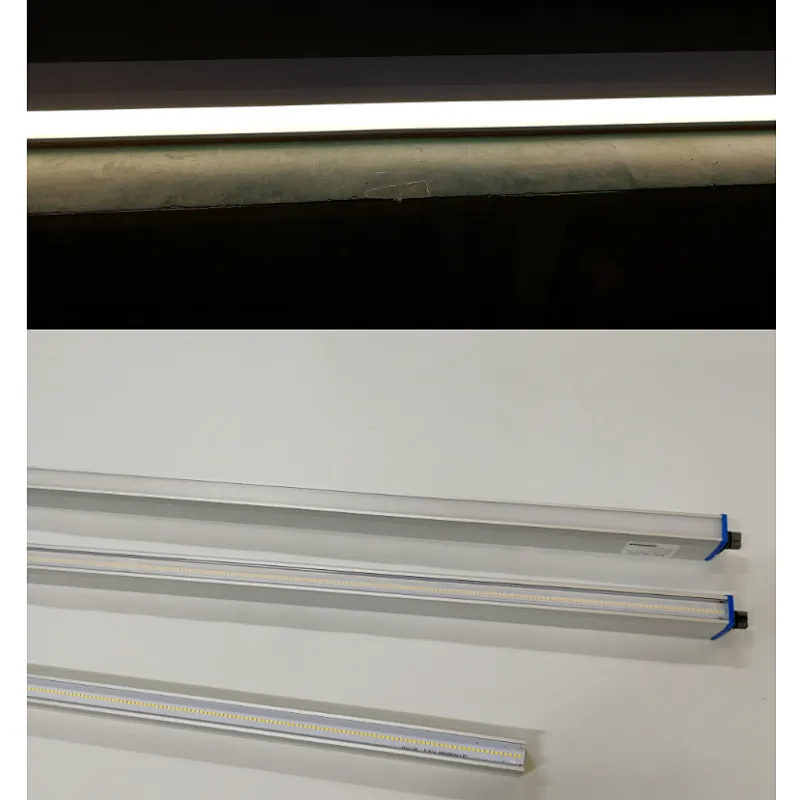

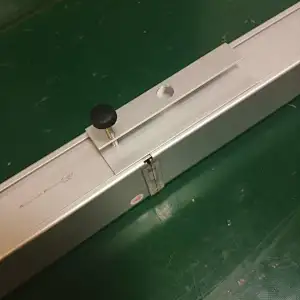

IP20 Seamless linkable solution

Advantage of the connection ?

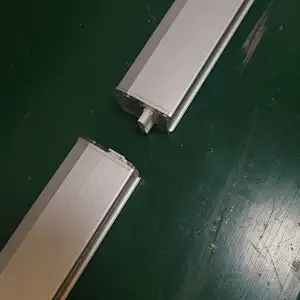

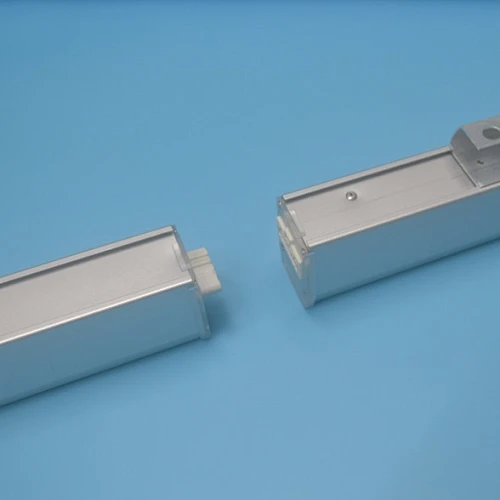

The two sides of lamp have a female-plug and a male plug,just push them together.

1.very Easy and Fast

2.Reduce the installation cost and time

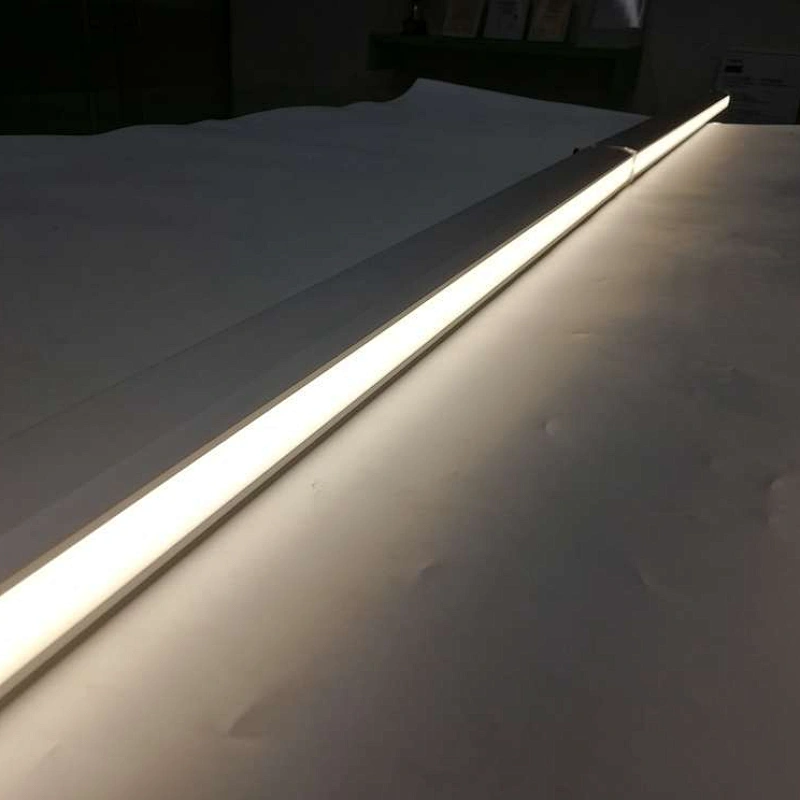

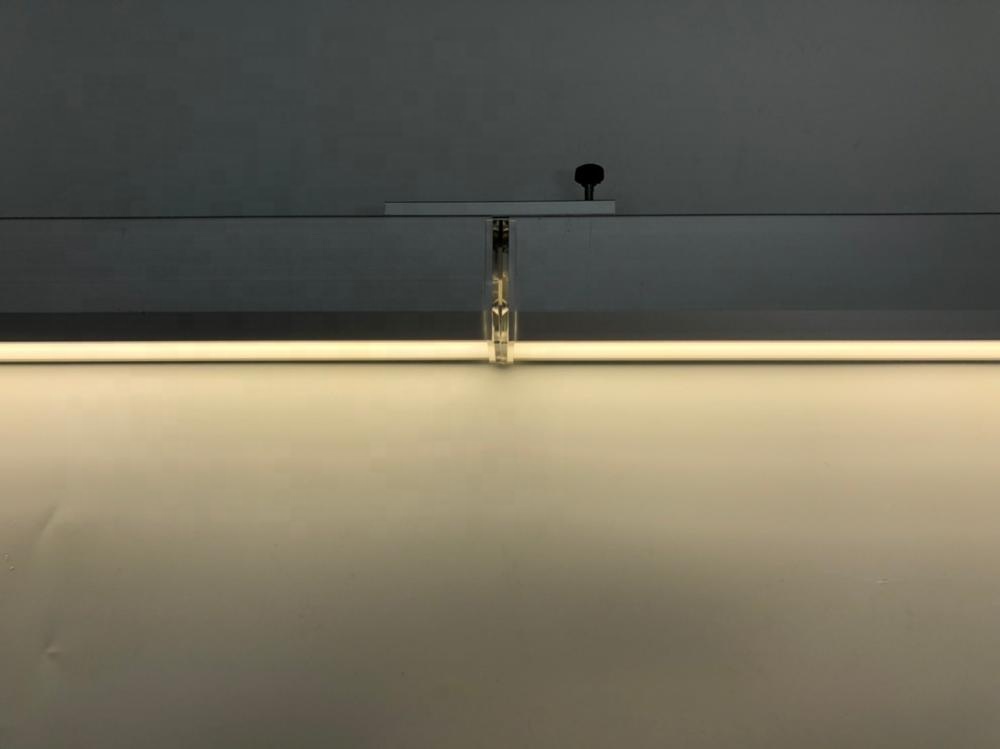

3.Very good light vision:you can see the light after connection,as the picture on the right

Light Distribution

-------widely beam angle for different project.

Thtere are 4 type beam angle you can choose:

30 60 90 120 degree.

For 120 degree,we use the PC diffuser.

For 30 60 90 degree,we use PMMA Lens

CCT 2700~6500K,others can be customized

CRI: Ra>83,>90 or 95

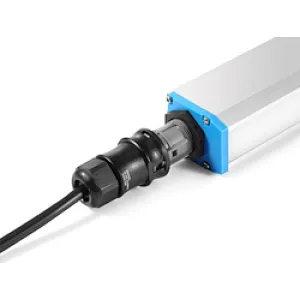

Connect solution

Flexible Length:

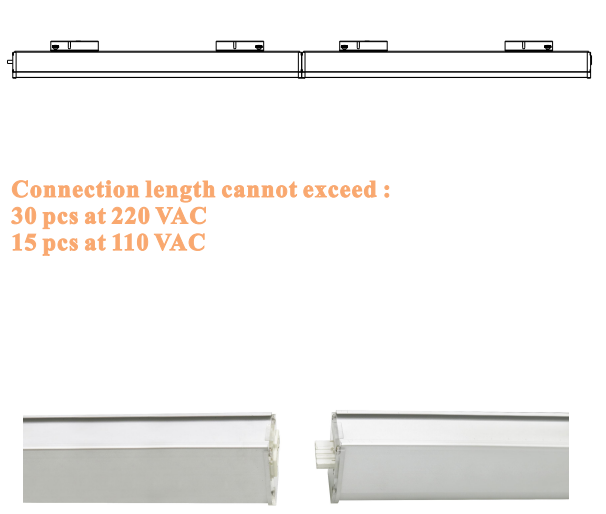

Serial connetions can not Exceed 30pcs at 220VAC and 15pcs at 110VAC.

Dimmable options:

Dali dimmable

0~10V dimmable

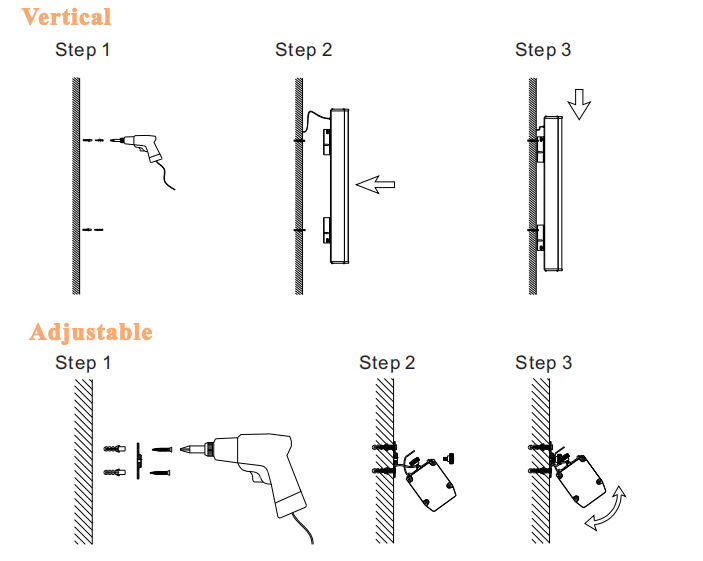

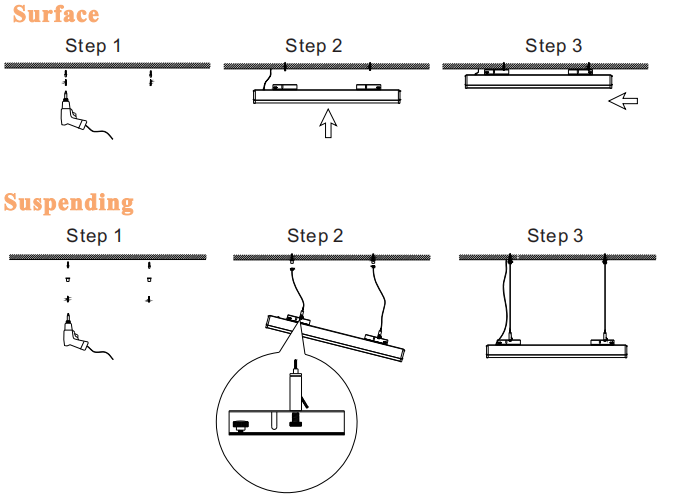

Installation Instructions

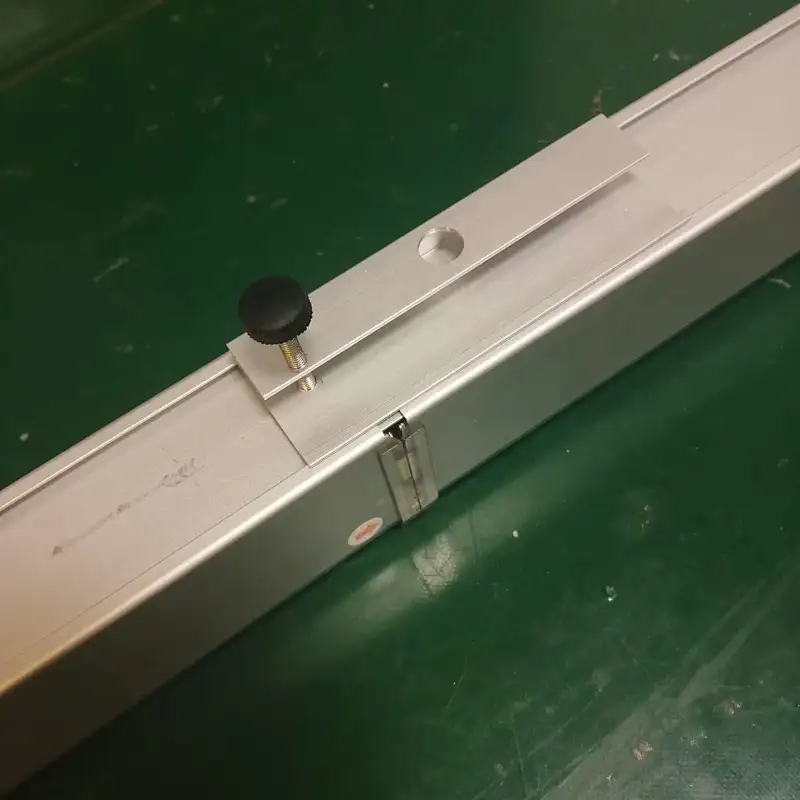

Installation details

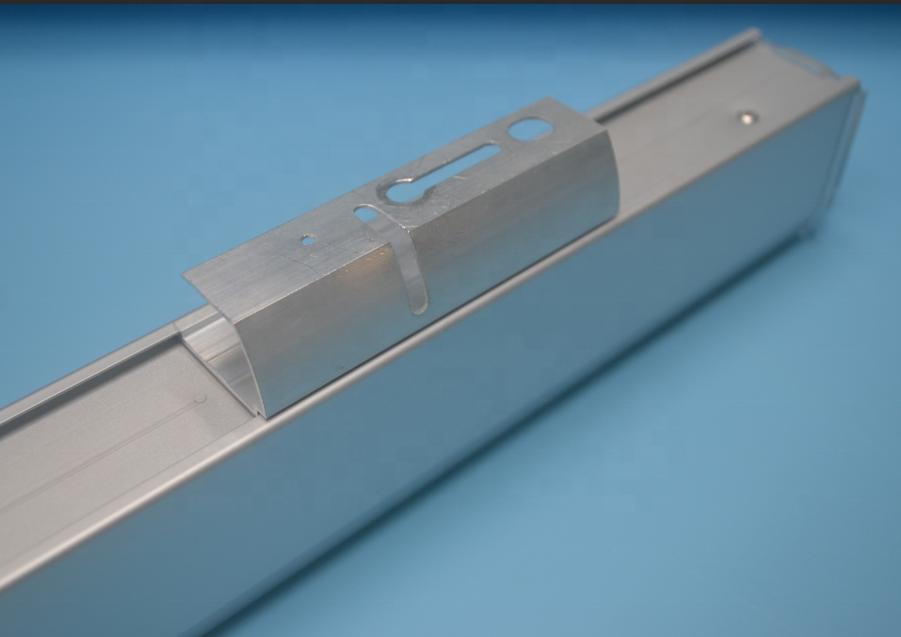

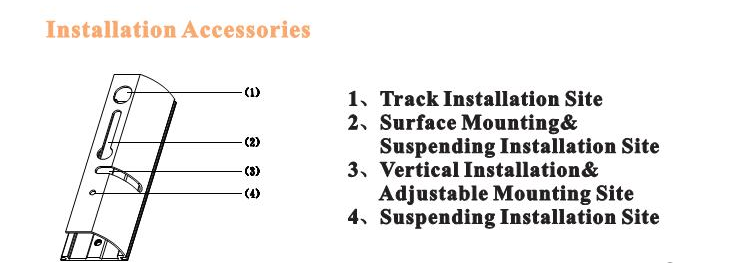

Every lamp will include two pcs this accessories.:

It can work with various installation ways.

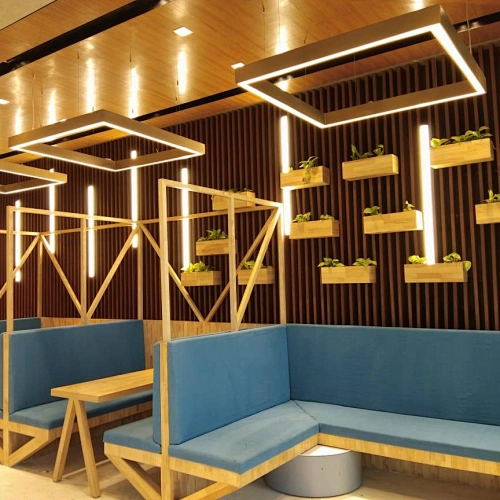

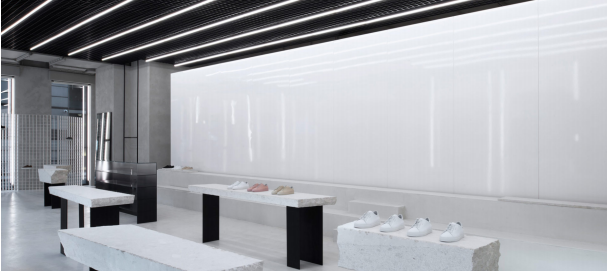

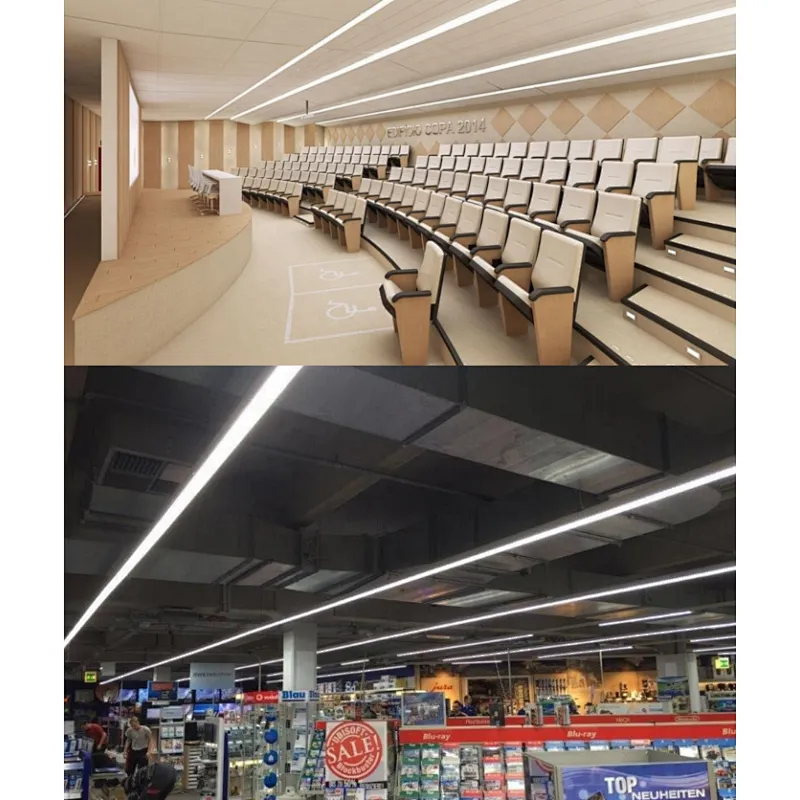

Application

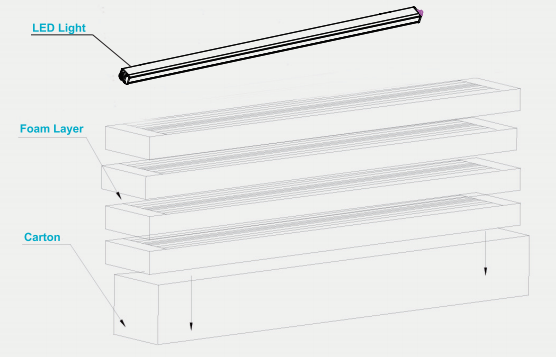

Packing&Shipping

Model No.	65ST12-40W-xxL-xxK
Carton Szie	1303725 CM
QTY/Layer	4pcs
QTY/Cartons	16pcs
Gross weight	26kg

Company Introduction

Lumin--Green lighting, brighten the world

Established on August 6, 2013, Shenzhen Lumin lighting Co., Ltd. is an industry-leading national high-tech enterprise integrating LED encapsulation, lamp design, production and sales. Lumin can provide customers with high quality customized LED lighting and lighting design solutions.

Our Products,led panel light,led linear light,led high bay light,etc
Espcially lumin frameless (trim-less) panel light and the IP65 led trunk linear light system.
And the smart lighting with Sensor,WIFI,Bluetooth,Remote,etc

Lumin's products have obtained TUV CE certification, CB certification, SAA certification, UL certification, FCC certification and ROHS certification issued by international authorities. Lumin’s excellent quality has won wide acclaim from customers and high recognition in the market.
