Lumin 2x2 40W Seamless Splicing Surface & Suspended Mount Frameless LED Panel Light
Product Overview
The Lumin 2x2 40W Frameless LED Panel Light redefines commercial and residential ceiling lighting with its innovative frameless design and seamless splicing capability. Unlike traditional panel lights with visible aluminum frames that create visual breaks and dark gaps between fixtures, this panel features a borderless construction that enables multiple units to be joined together without any visible seams. The result is a continuous, uninterrupted light surface that transforms ordinary ceilings into stunning architectural features — perfect for modern offices, retail spaces, showrooms, and contemporary interiors where aesthetics matter as much as illumination.
Product Description
Feature:
1. Optical PMMA LGP and PMMA diffuser fire resistant diffuser.
2. Special design: No aluminium frame.
3. Energy saving up to 80%
4. High brightness: > 100 LM /W
5. Nice lighting distribution: > 90 %
6. High color rendering index: Ra>80/90/95/98
7.Stable LEDs light source design solution: usethe best 2835LEDs----high CRI, high brightness, and low light decay.
8. Excellent circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
9. New high efficiency constant current driver: wide range of input voltage : AC85-265V.
10. Instant starting time: < 1.2 s, and no noise as it starts.
11. Environment friendly : No mecury, no harmness to human healthy and the earth.
12. Light color can change to be different CCT: 3000K,4000K,5000K,6000K.
Framless led panel light data list:
| Product number | Size | Wattage | LED QTY(pc) | LGP | diffuser |
| LM-PW-33-18 | 295X295X18mm | 18W | 108 | 3T PMMA | 5T PMMA |
| LM-PW-44-24 | 400X400X18mm | 24W | 192 | ||
| LM-PW-66-36 | 595X595X18mm | 40W | 192 | ||
| LM-PW-620-36 | 620X620X18mm | 40W | 192 | ||
| LM-PW-1203-36 | 1195X295X18mm | 40W | 216 | ||
| LM-PW-1202-36 | 1195X195X18mm | 40W | 216 | ||
| LM-PW-1201-36 | 1195X145X18mm | 40W | 216 |
1.Model No.:LM-PW66A-36
2.Power consumption:40W
3.Dimension:595*595*18 MM
4.Input voltage:AC85-265V
5.Color temperature:3000K(WW), 4000K(NW), 5000K(DW), 6000K(CW)
6.Lumen :4000LM
7.CRI: >80
8.Power factor:PF>0.95
9.Anti-electric shock rate:Class II
10.Temperature rising:<20
11.Protection class:IP40
12.Material:Aluminum alloy, PMMA

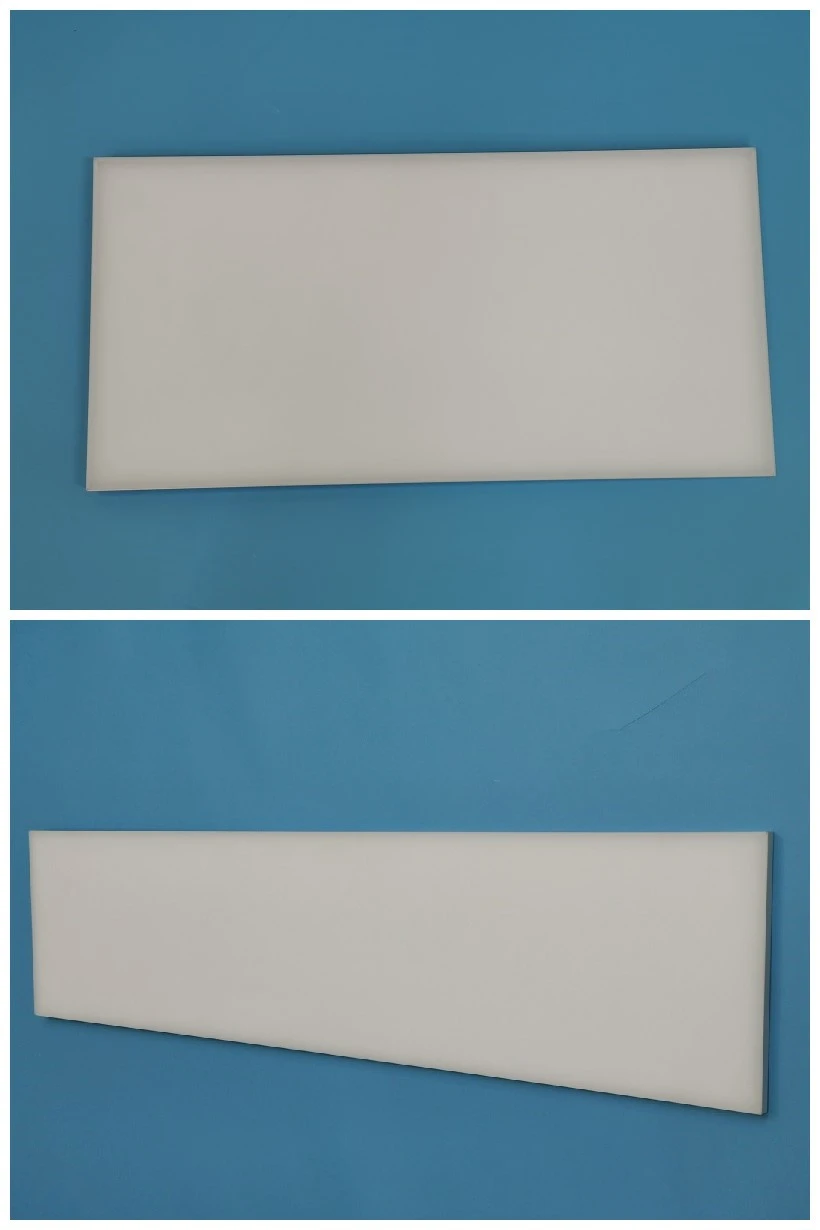

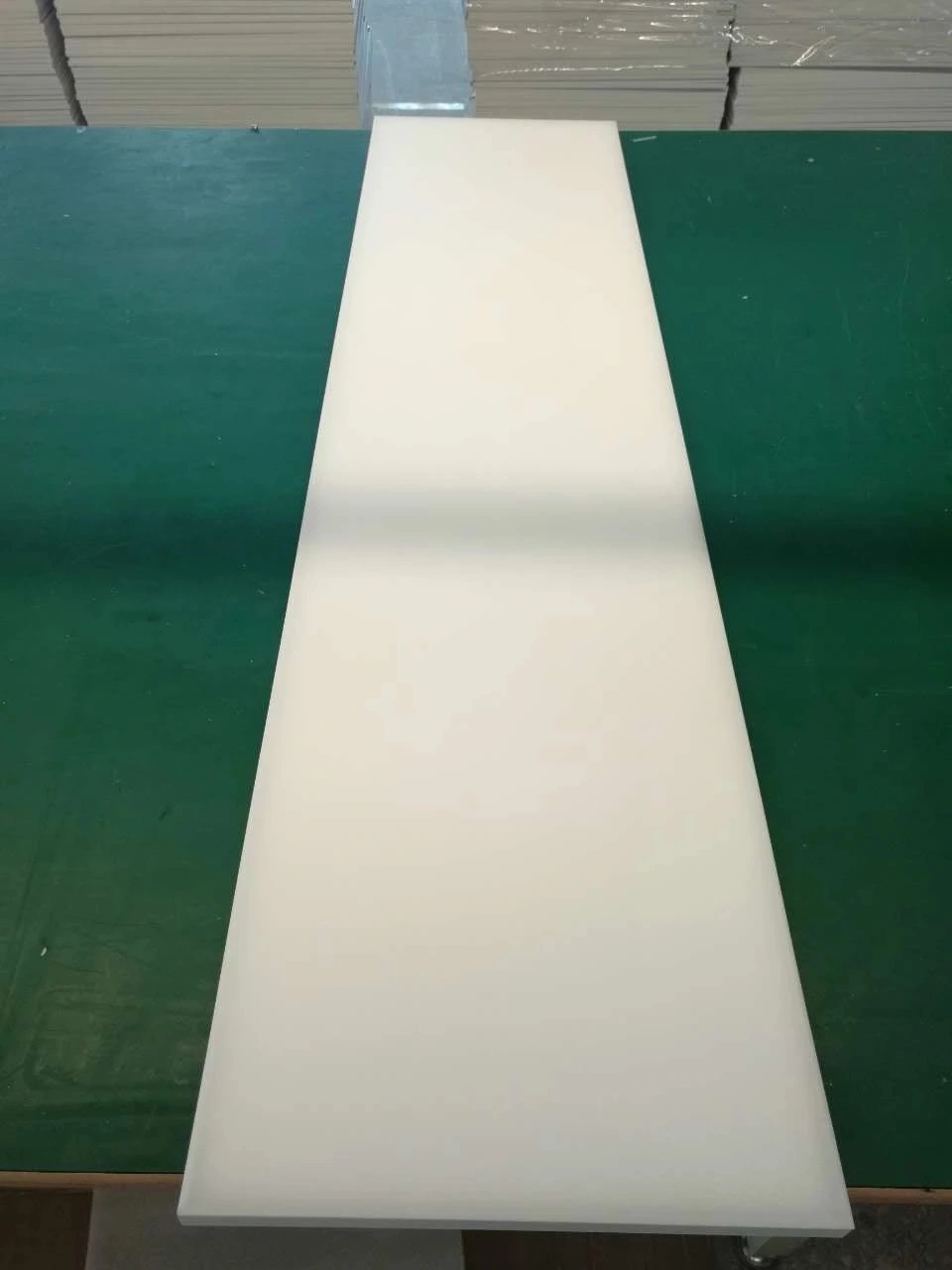

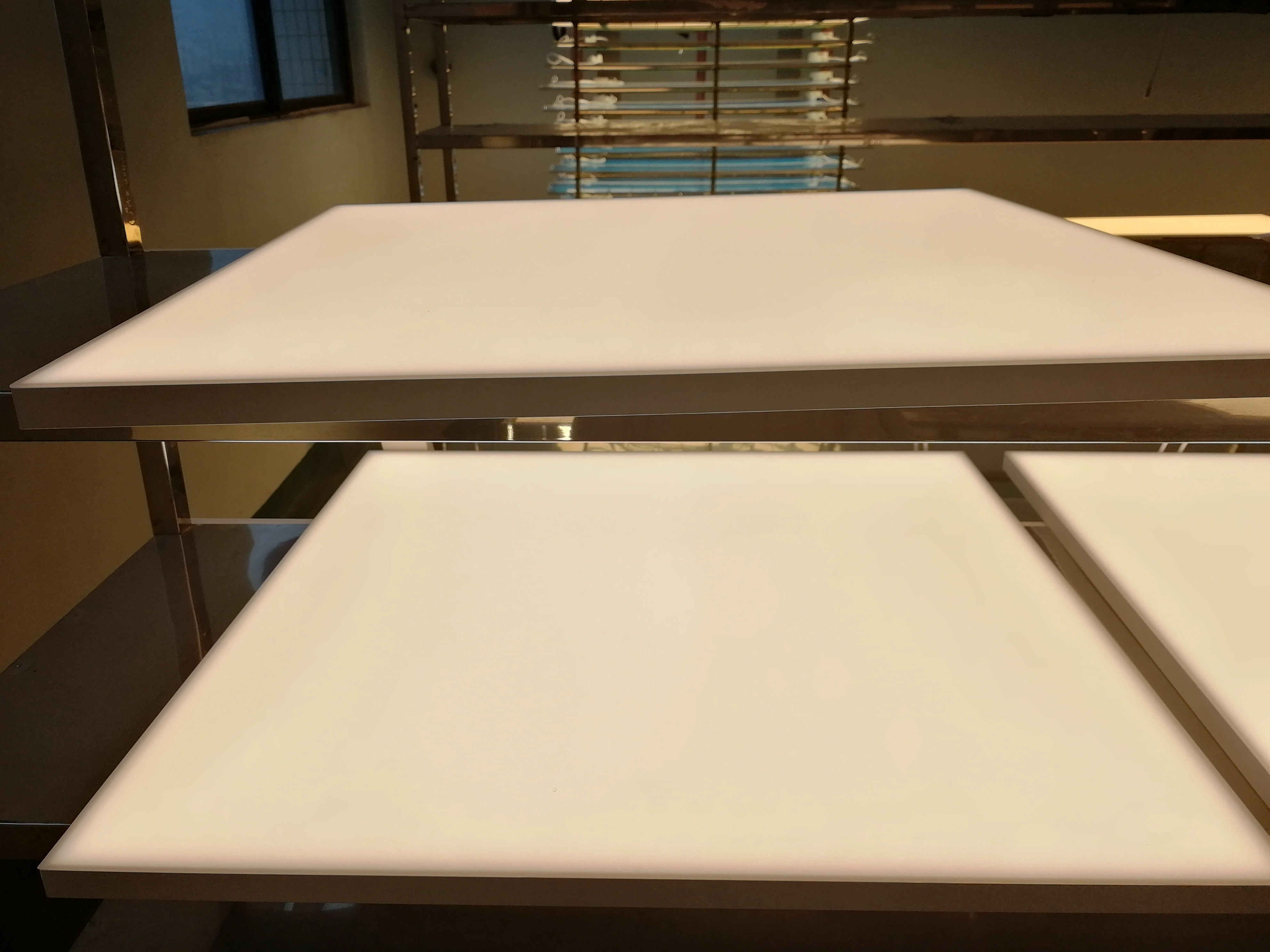

Frameless LED Panel Light Pictures:

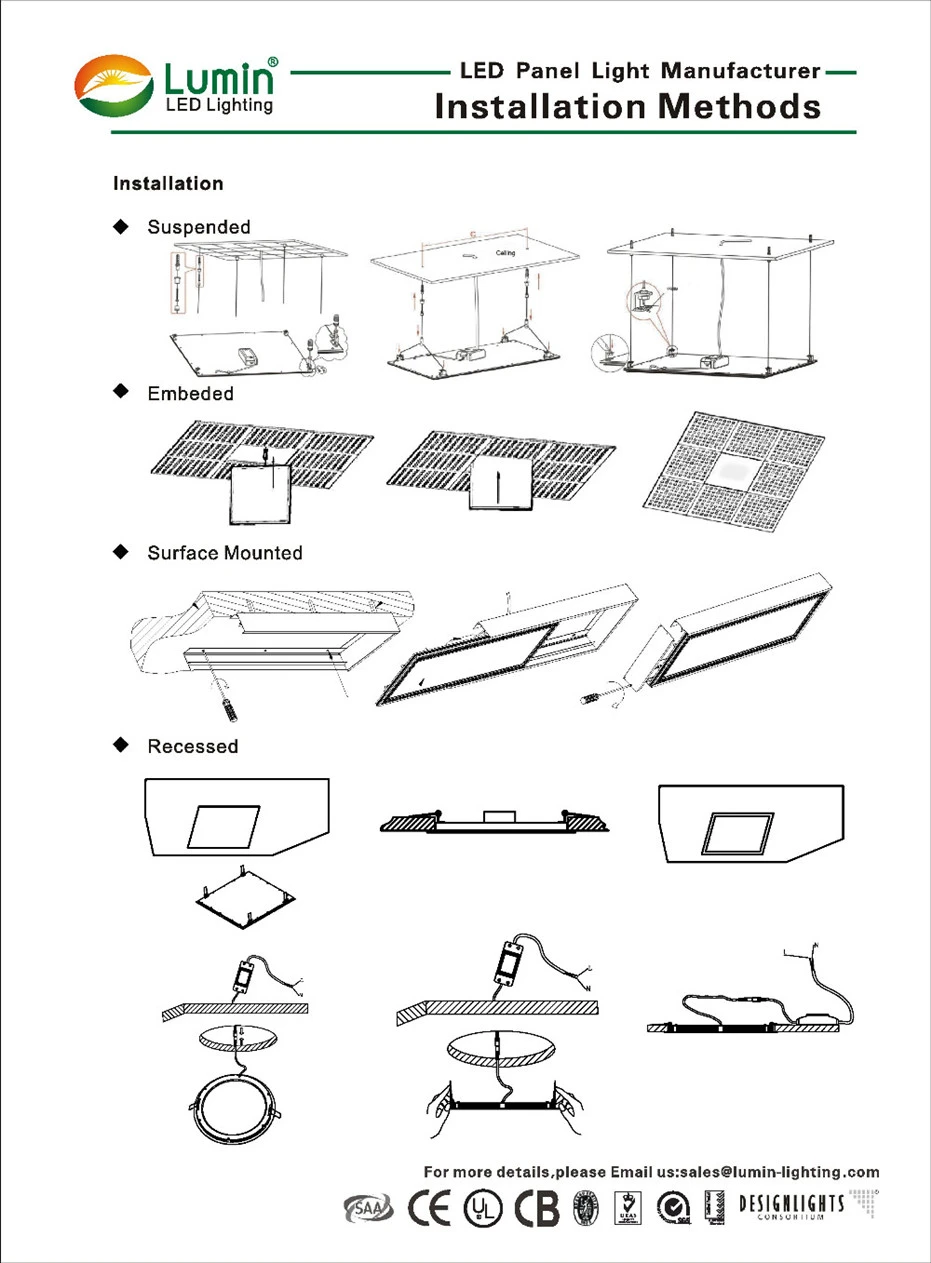

Installation
Installation Instructions:
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while wiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents. Lumin will not bear any responsibilities due to such deeds.

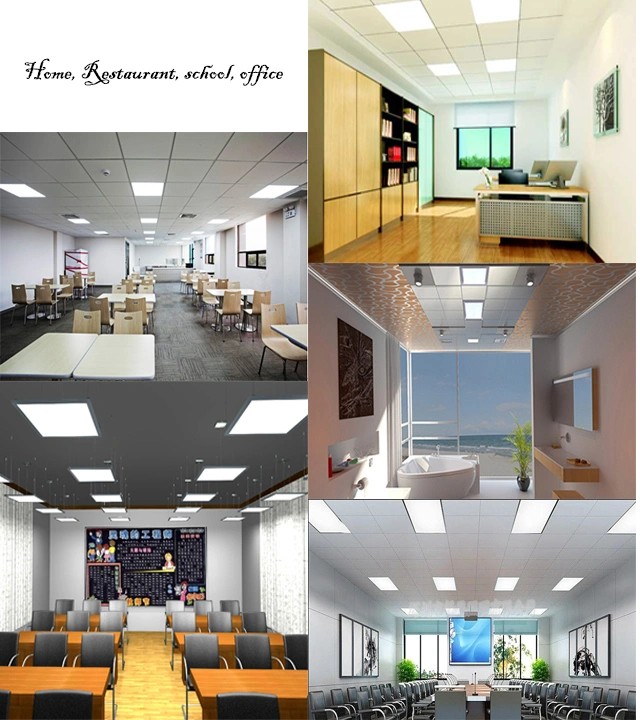

Application
Certifications
Packaging & Shipping
Company Information
Based in Shenzhen, Lumin is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin was founded on November 17, 2008. Since its founding, Lumin is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development.
Lumin's product lines mainly include LED panel light, LED linear light, LED downlight, LED track light, LED high bay light. Meantime, Lumin also provides customized solutions services to customers.
Lumin takes product quality as our lifeline. We focus on quality control during the whole production process by strickly carrying out ISO 9001 Quality System and ISO Environment Management System. And, we emphasize training of skills and capabilities of our workers and staff to improve production management.
The products have already been awarded with certificates of CE, RoHS, and UL . With good quaity control, our products are well received by customers throughout the world.
Lumin has an excellent research and development team. New products are launched every year.
At present, Lumin has been recognized as a leading LED lighting brand in the global market. Our products have been exported to over 30 countries and regions in the world such as Spain, France, Italy, Japan, and India, establishing close business relaton with local distributors, lighting consultants, building contractors as well as end users.
Facing severe global warming and energy crisis, Lumin would like to work with anyone who loves the earth and environment protection in order to make a better place for the human being.
Our Services
(1) Your inquiry will be replied within 12 hours;
(2) Fast sample delivery: 3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders;
(4) OEM/ODM services: All can be customized;
(5) Distributor, agent, investor and more are welcome;
(6) 3-5 years warranty: Spare parts can be offered along with orders.
FAQ:
Q1: Which certificates does your LED Panel light have?
A1 : TUV-CE,UL,CB,SAA,C-Tick.
Q2: What are your drivers and LED chip brand?
A2: Driver: Mean Well,Philips,Lyford. LED chip: Sanan,Samsung.
Q3: What are the LED Panel lights function?
A3: Such as Dimmable,Wifi,Emergency,Sensor motion ect.
LED panel varieties:Universal Standard LED Panel,Germany/USA Standard LED Panel,Triac Dimming LED Panel,0--10V Dimming LED Panel,DALI Dimming LED Panel,24V Consatnt Voltage LED Panel,CCT Dimmable LED Panel,RGB LED Panel, Wifi LED Panel,Invisible LED Panel,Frame LED Panel,Curve Design LED Panel,Emergency LED Panel,Waterproof IP65 LED Panel,Sensor LED Panel,Dual Emitting LED Panel,LED Troffer Light,Backlite LED Panel,Seamless Lighting System,Dual Wing LED Panel,Square LED Panel Downlight,Round LED Panel Downlight.
