- Color Temperature(CCT):6000K (Daylight Alert)
- Lamp Luminous Efficiency(lm/w):100
- Color Rendering Index(Ra):80
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design
- Application:Living Room, Office
- Design Style:Modern
- Lifespan (hours):50000
- Working Time (hours):50000
- Input Voltage(V):100-240V
- Lamp Luminous Flux(lm):4800
- CRI (Ra>):80
- Working Temperature(℃):-20 - 45
- Working Lifetime(Hour):50000
- Lamp Body Material:Aluminum alloy
- IP Rating:40
- Certification:ce, RoHS
- Place of Origin:guangdong
- Brand Name:Lumin
- Model Number:P600-48w
- Light Source:LED
- Warranty(Year):3-Year
- Power:48w
- CCT:3000K/4000K/6500K
- Installation:suspended/Surface mounted
- Beam angle:120 Degree
- Size:600*19mm
- Power Factor:PF>0.95
- Driver:Isolated Constant Current Driver
Features
(1)Real color makes true life
(2)Perfect light uniformity
(3)Surface and suspension mounting
(4)Dimming control by 1-10V/DALI/Triac/WIFI/tunable CCT
(5)Flicker free ,eye-care
(6) Long lifespan,low optical decay,more than 50,000h lifespan
(7) More sizes options: 400mm, 500mm, 600mm, 800mm, 1000mm, 1200mm

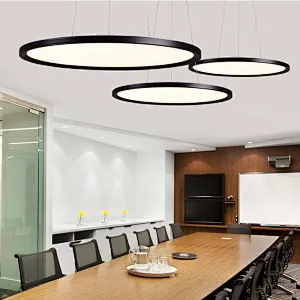

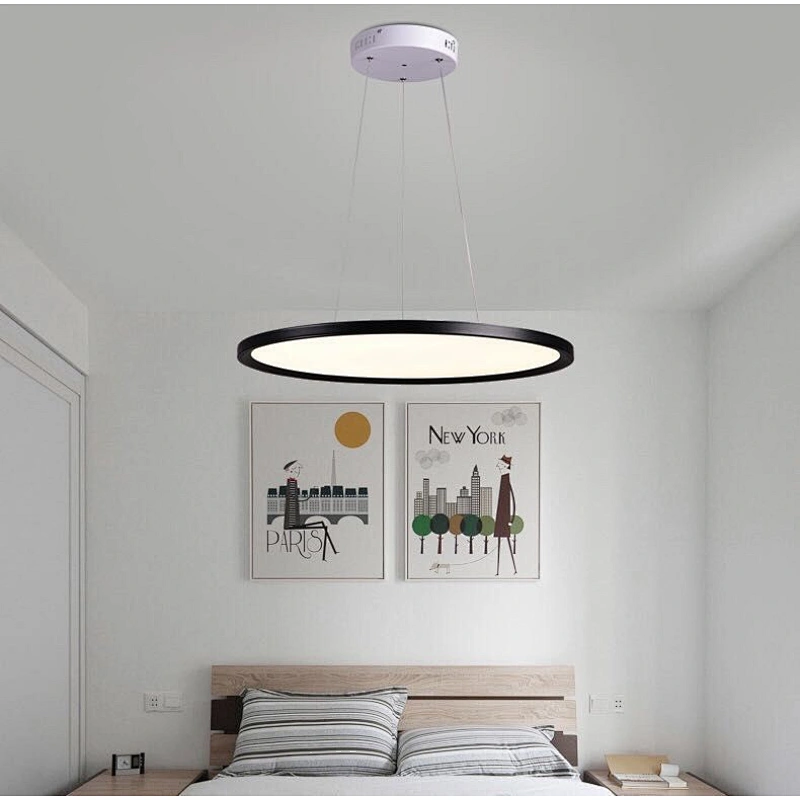

Application
Offices, workshops, shopping malls, schools, libraries, hospitals, hotels, retail outlets, living rooms, airports, entertainment spaces, etc.
Replacement
Replace Fluorescent tube and grille lamp with fluorescent tubes, saving 70% energy.
Parameter
| Model No.: | LM-P400-36 | LM-P500-42 | LM-P600-48 | LM-P800-72 | LM-P1000-96 | LM-P1200-120 |
| Size | 400*19mm | 500*19mm | 600*19mm | 800*19mm | 1000*19mm | 1200*19mm |
| Input Power | 36W | 42w | 48w | 72w | 96w | 120w |
| Luminous Flux | 3600LM | 4200lm | 4800lm | 7200lm | 9600lm | 12000lm |
| Input Voltage | 100-277VAC / 50-60 Hz | |||||
| CRI | >80 / >98 | |||||
| CCT | 3000K~6000K | |||||
| DIMMING | 0-10V DALI TRIAC tunable white CCT | |||||
| MOUNTING | SURFACE MOUNTED, SUSPENDED | |||||
| LIFE TIME | DESIGNED TO 50,000HOURS | |||||
| WARRANTY | 5 YEARS LIMITED | |||||
| IP RATING | IP40 | |||||
Specifications
Electrics
(1) High efficiency power supply
(2) Input Voltage: DC 36V
(3) Power Factor: >0.9
(4) Dimming solutions are customized
Environmentally friendly
(1) No glare, mercury, ultraviolet, infrared or other hazardous substances
(2) Working Temperature: -25℃ to 55℃
(3) Storage Temperature: -40 to +85 ℃
(4) Storage Humidity: 10% to 80%
(5) Operating Humidity: 10% to 80%
Benefits
(1) Longer lifetime than traditional light.
(2) 80% Energy-saving over traditional light .
(3) Minimum maintenance costs.
(4) Quick and easy installation to minimize retrofit costs
(5) Using aluminum alloy shell, with frosted poly cover, Have good heat dissipation ability and optical effects.
Other Products you may like:
Super LED Linear Light

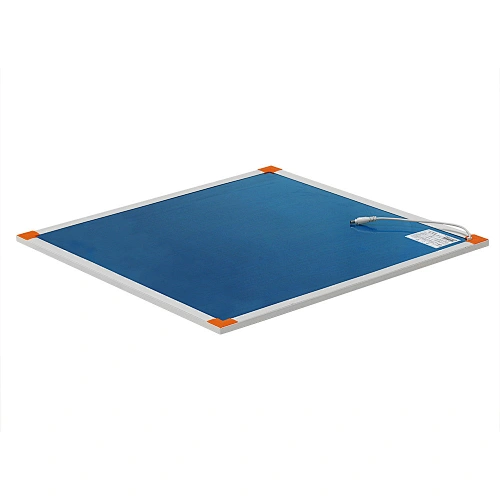

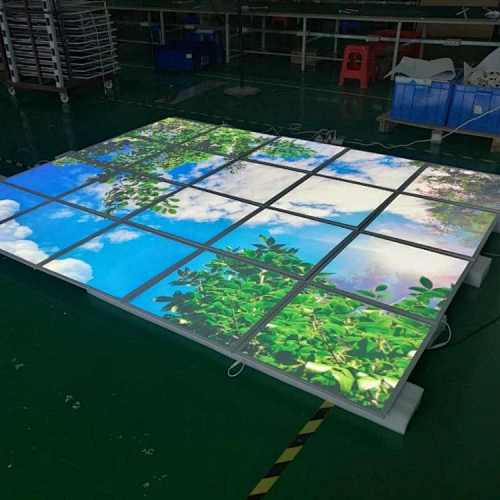

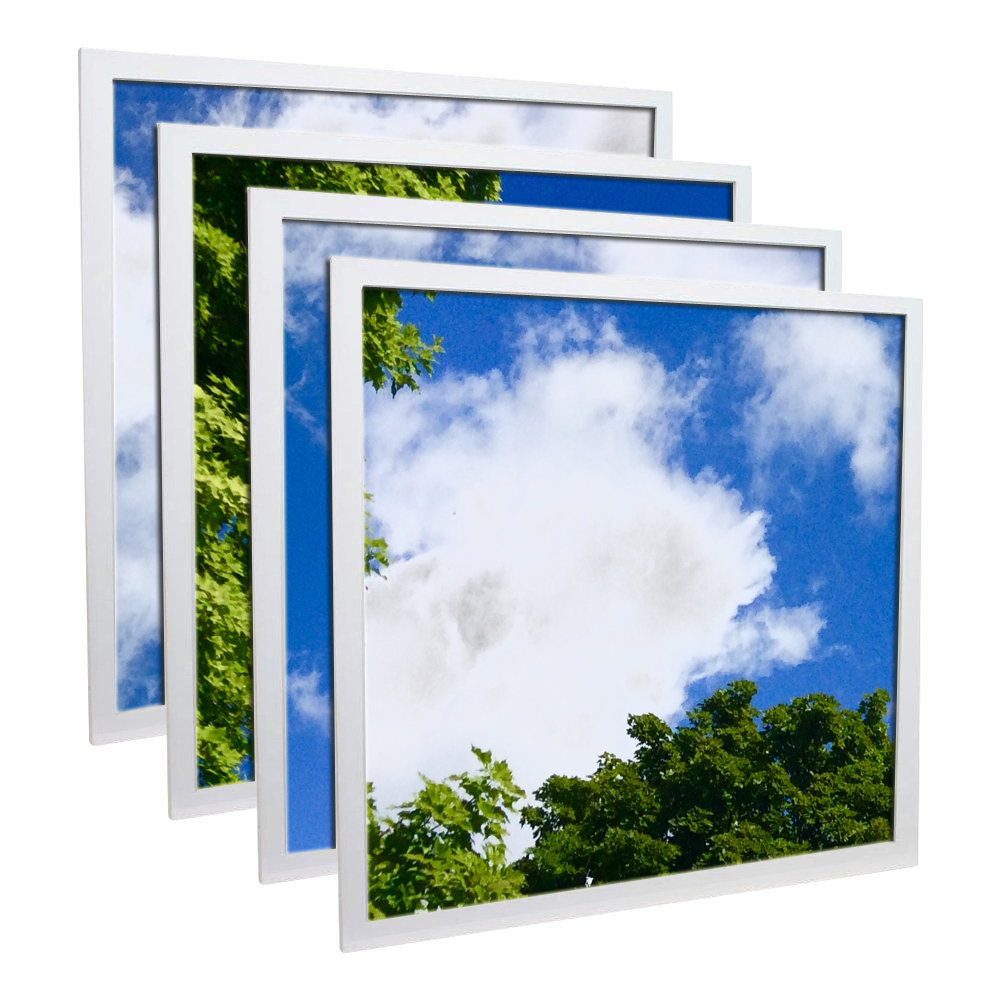

Blue Sky Frameless Led Panel Light

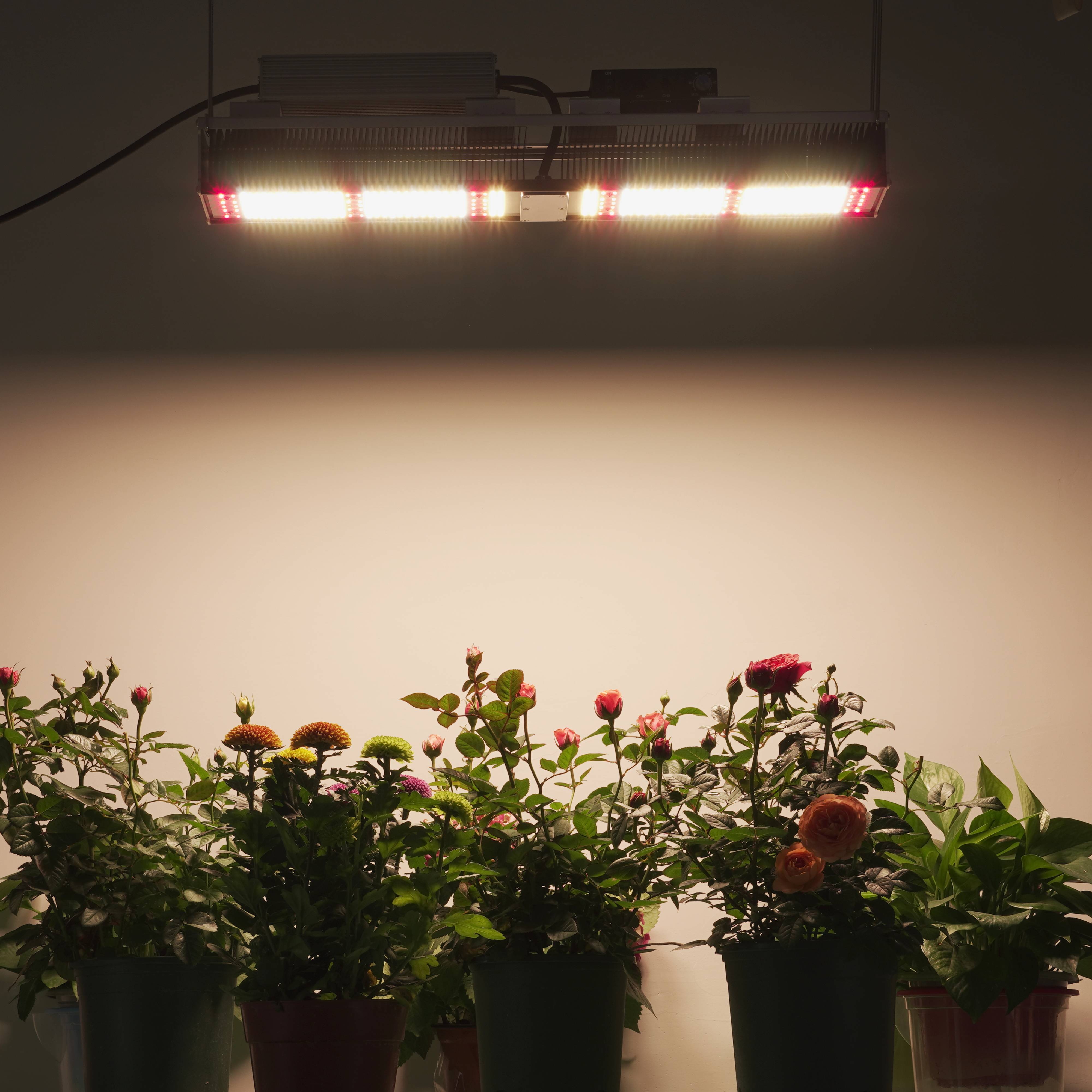

Full Spectrum LED Grow Light 800W

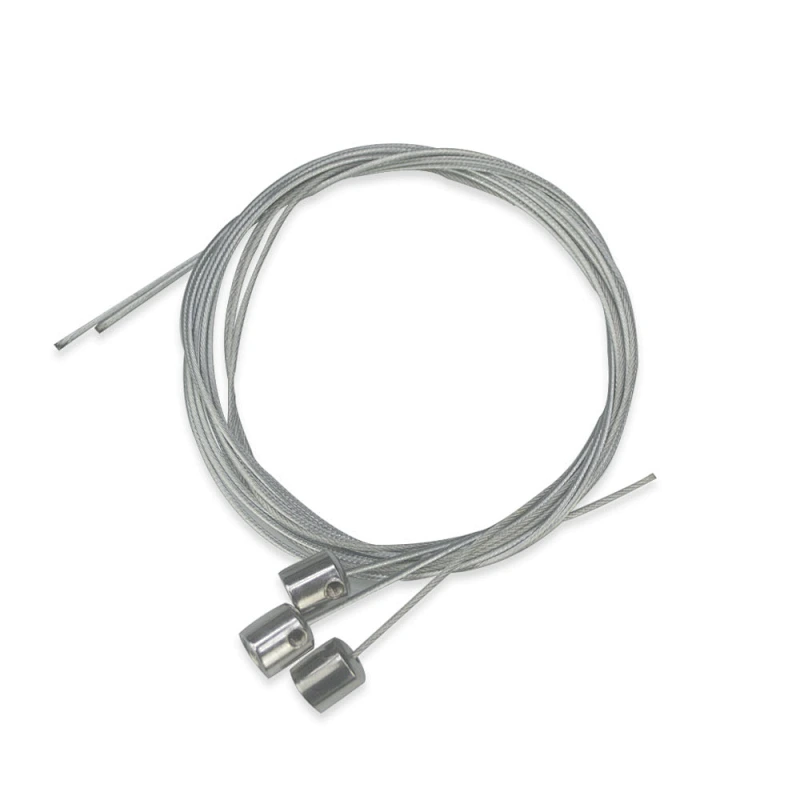

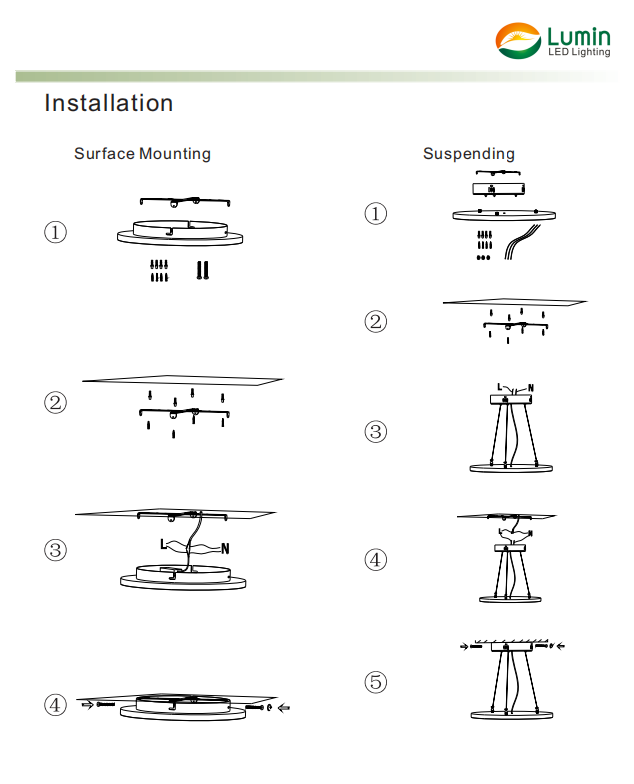

Installation Way:

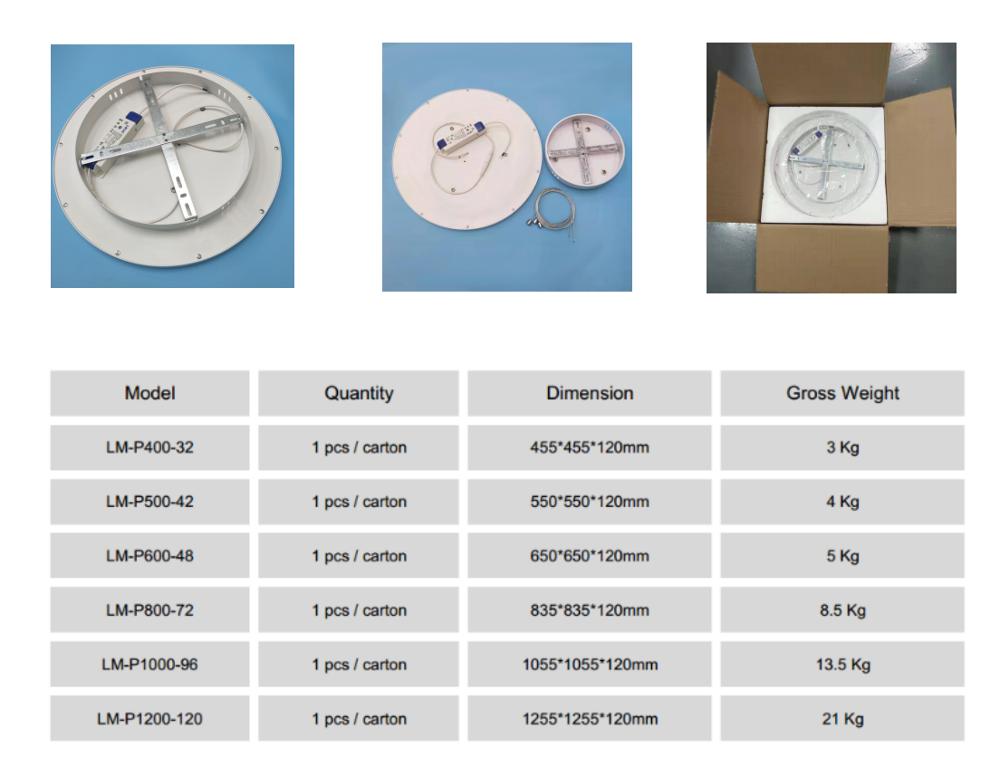

Packaging:
Shipping:
shipping ways: Express like Fedex, DHL, UPS, TNT. Air flight, Sea flight
(1) Your inquiry will be replied within 12 hours;
(2) Fast sample delivery: 3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders;
(4) OEM/ODM services: all can be customized;
(5) Distributor, agent, investor and more are welcome;
(6) 3 year limited warranty: spare parts can be offered along with orders.

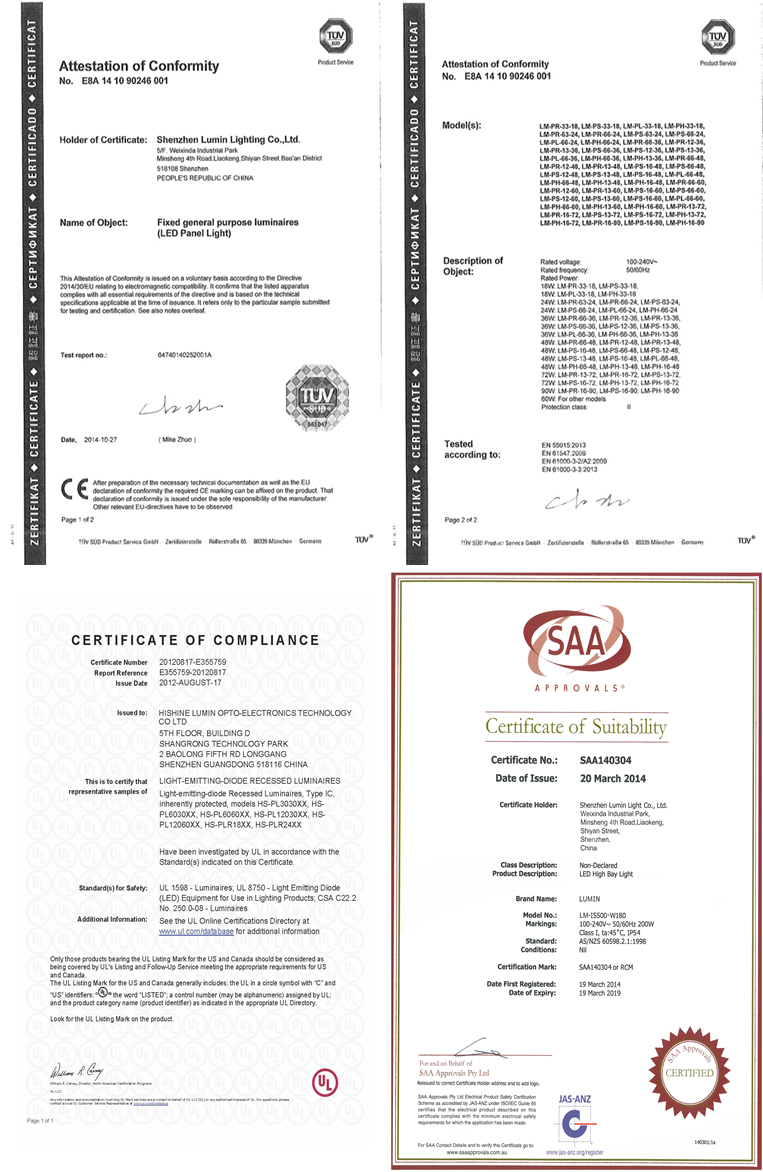

Certificate
About Product
(1)What’re the great advantages of Lumin Lighting LED panel light?
(2)What dimensions of LED panel light does Lumin Lighting sell?
(3)What is the frameless LED panel light?

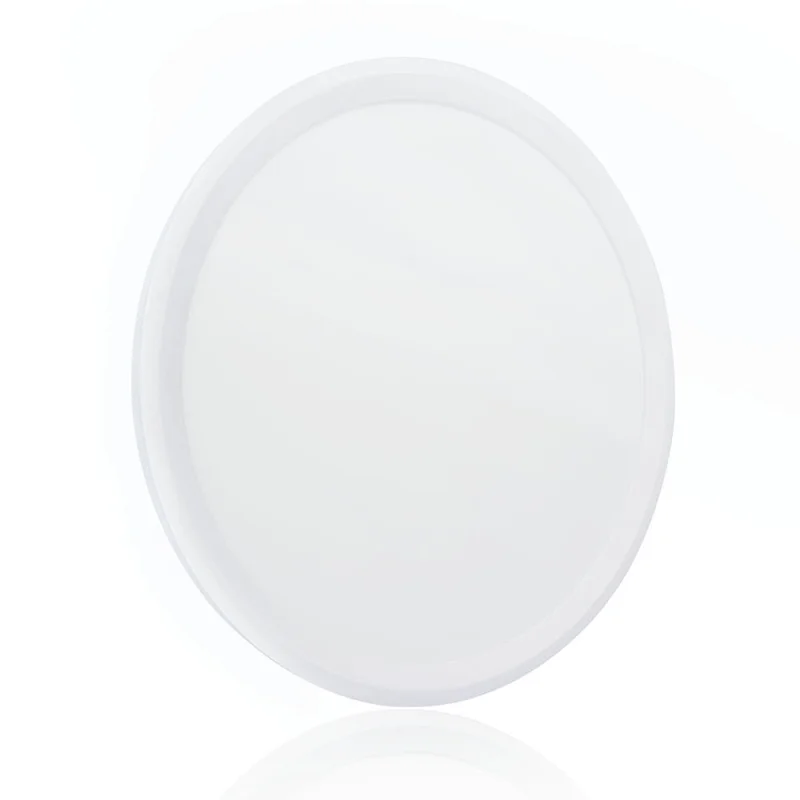

(4)Do Lumin Lighting have round LED panel light?
