Lumin 40W 4400lm Anti-Glare UGR19 600x600 PIR Motion Sensor LED Panel Light
Product Description

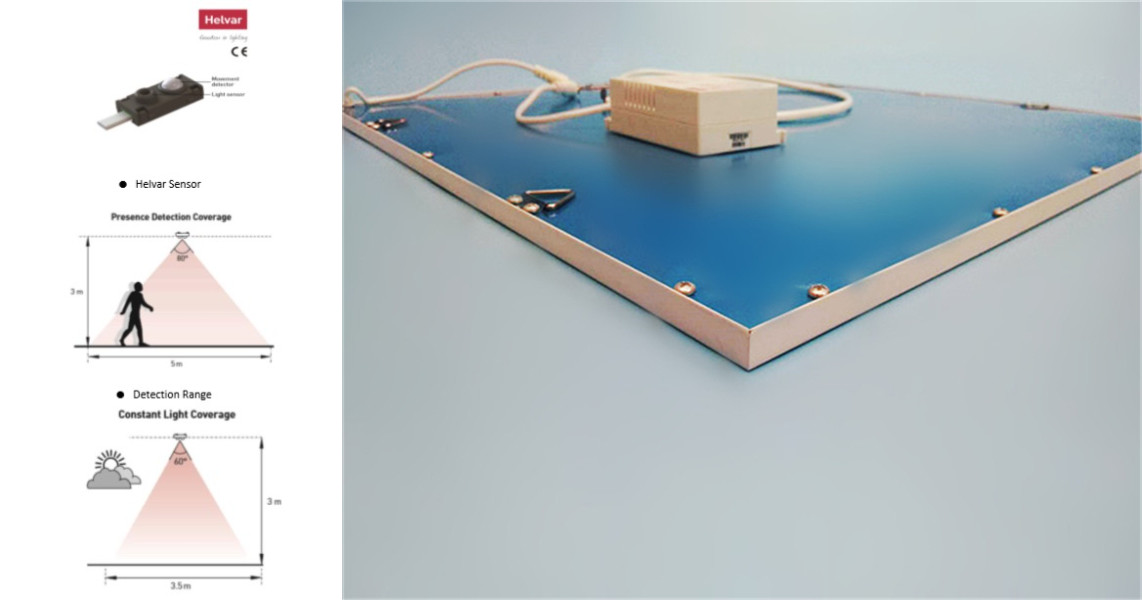

The Lumin 600x600 PIR Motion Sensor LED Panel Light is an intelligent lighting solution engineered for commercial and residential spaces where energy efficiency and automatic control are essential. Featuring a built-in PIR (Passive Infrared) motion sensor and daylight harvesting sensor, this panel automatically turns on when motion is detected and dims or switches off when the space is unoccupied or sufficient natural light is available — delivering up to 80% energy savings compared to traditional fluorescent fixtures.
Feature:
1. Intelligent control and energy saving to 95% at real time
2. Excellent environmental adaptability,application anywhere
3. Multiple working mode : Stand-by and / or dimming
4. Long life time : Zero Crossing Triggered Technology is applied
5. High Sensitivity for Occupancy detecting : Doppler radar technology application
6. Reliability : Detection range is less affected by temperature , wind, airflow,sound,light,fog,smoke,dust,ect
Motion Sensor LED Panel Light Parameter:
1.Model No.: LM-SM-66-36
2.Power consumption:40W
3.Dimension:595*595*9 MM
4.Input voltage:AC85-265V
5.Color temperature:3000K(WW), 4000K(NW), 5000K(DW), 6000K(CW)
6.Lumen :3240LM
7.CRI: >80
8.Power factor:PF>0.95
9.Anti-electric shock rate:ClassII
10.Temperature rising:<20
11.Protection class:IP44
12.Material:Aluminum alloy, PMMA, PC
Motion Sensor LED Panel light:
Model No. | Size(mm) | Power | Efficacy(lm/w) | CCT |
LM-MS-33-18 | 295*295*9 | 18W | 90 | 3000K(WW) 4000K(NW) 5000K(DW) 6000K(CW) |
LM-MS-33-24 | 295*295*9 | 24W | 90 | |
LM-MS-63-18 | 595*295*9 | 18W | 90 | |
LM-MS-63-24 | 595*295*9 | 24W | 90 | |
LM-MS-63-30 | 595*295*9 | 30W | 90 | |
LM-MS-66-36 | 595*595*9 | 36W | 90 | |
LM-MS-66-48 | 595*595*9 | 48W | 90 | |
LM-MS-66-60 | 595*595*9 | 60W | 90 | |
LM-MS-13-36 | 1195*295*9 | 36W | 90 | |
LM-MS-13-48 | 1195*295*9 | 48W | 90 | |
LM-MS-16-60 | 1195*595*9 | 60W | 90 | |
LM-MS-16-72 | 1195*595*9 | 72W | 90 | |
LM-MS-16-90 | 1195*595*9 | 90W | 90 | |
Note: CRI>80/90/95 OPTIONAL ,Efficacy>/90/100/130 OPTIONAL | ||||

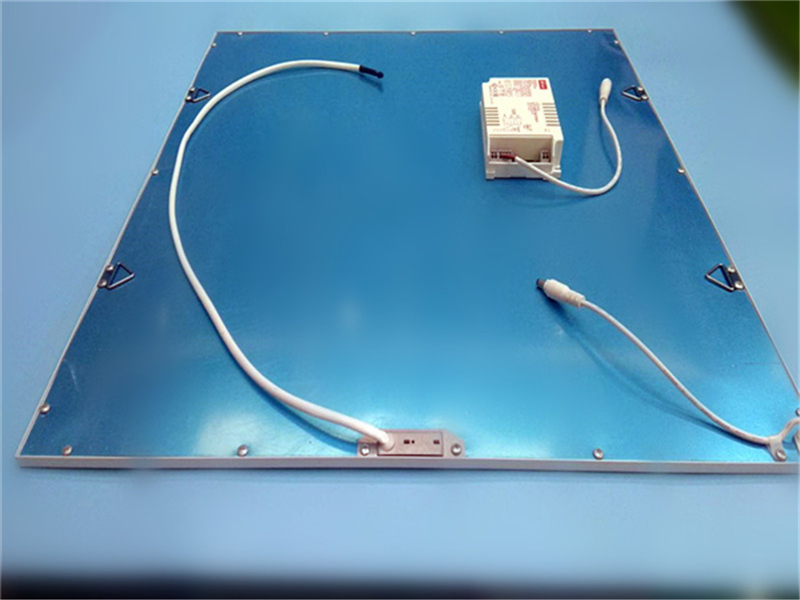

LED Panel Light Pictures:

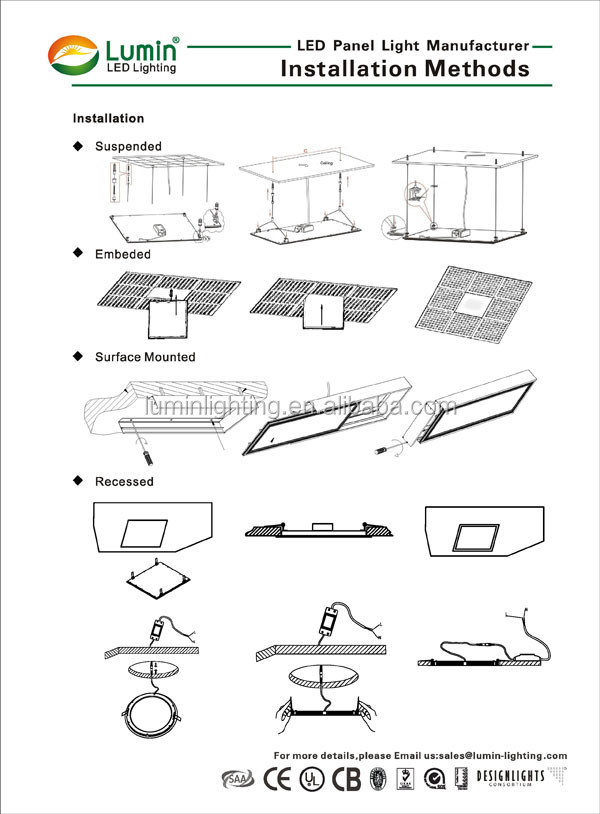

Installation

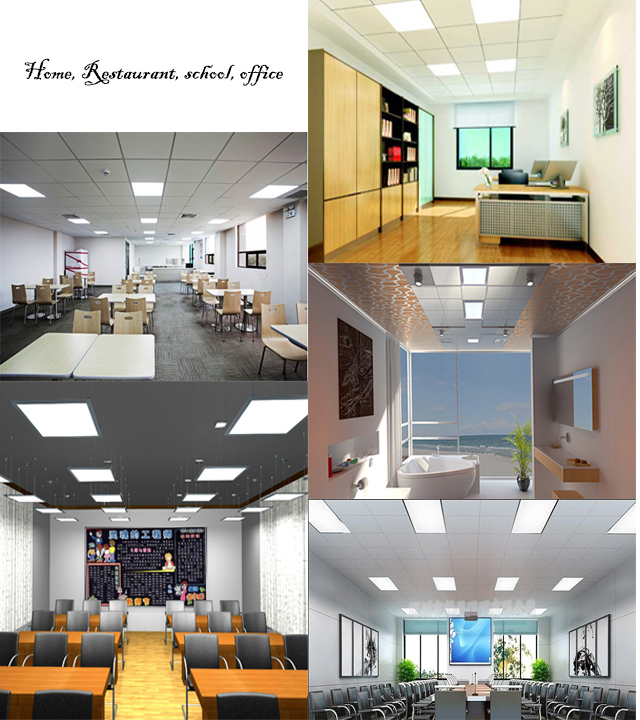

Application
Packaging & Shipping
Company Information
Based in Shenzhen, Lumin is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin was founded on November 17, 2008. Since its founding, Lumin is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development.
Lumin's product lines mainly include LED panel light, LED linear light, LED downlight, LED track light, LED high bay light. Meantime, Lumin also provides customized solutions services to customers.
Lumin takes product quality as our lifeline. We focus on quality control during the whole production process by strickly carrying out ISO 9001 Quality System and ISO Environment Management System. And, we emphasize training of skills and capabilities of our workers and staff to improve production management.
The products have already been awarded with certificates of CE, RoHS, and UL . With good quaity control, our products are well received by customers throughout the world.
Lumin has an excellent research and development team. New products are launched every year.
At present, Lumin has been recognized as a leading LED lighting brand in the global market. Our products have been exported to over 30 countries and regions in the world such as Spain, France, Italy, Japan, and India, establishing close business relaton with local distributors, lighting consultants, building contractors as well as end users.
Facing severe global warming and energy crisis, Lumin would like to work with anyone who loves the earth and environment protection in order to make a better place for the human being.
Our Services
(1) Your inquiry will be replied within 12 hours;
(2) Fast sample delivery: 3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders;
(4) OEM/ODM services: All can be customized;
(5) Distributor, agent, investor and more are welcome;
(6) 3-5 years warranty: Spare parts can be offered along with orders.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Comprehensive score
