Linear Lighting vs Troffer Lighting: Which Is Better for Commercial Projects? Complete Comparison Guide
If you're specifying lighting for a commercial project, you've likely encountered this question:
"Should I use traditional troffer lighting, or upgrade to more modern linear lighting?"
Troffer lighting (recessed grid-mounted fixtures) is one of the most common lighting types in commercial settings – widely used in offices, schools, hospitals, and retail spaces. But over the past decade, LED linear lighting has been rapidly displacing these traditional solutions.
This isn't a simple "which is better" comparison – it's a choice between two different design philosophies. Today, we'll break it down across five dimensions: efficacy, installation, aesthetics, cost, and application suitability.
1. Traditional Fluorescent Troffer Lighting: The Former "Industry Standard"
Troffer lighting (derived from "trough" + "offer") is a rectangular fixture designed to fit into standard suspended ceiling grids, typically using fluorescent lamps as the light source. For decades, it was virtually synonymous with commercial lighting.
Limitations of Troffer Lighting:
1. Low Efficacy, High Energy Consumption
Traditional fluorescent troffers achieve only 80-90 lumens per watt. A typical 2×4-foot fluorescent troffer consumes 80W or more, producing just 4,000-5,000 lumens.
2. Frequent Maintenance
Fluorescent troffers use multiple lamps – a single failed lamp affects both performance and aesthetics. Fluorescent lamp life is typically 10,000-15,000 hours, requiring frequent relamping that adds both material and labor costs.
3. Outdated Design
The grille-style appearance of troffers feels bulky in commercial spaces pursuing minimalism and modern aesthetics. They "hide" in the ceiling rather than becoming part of the architectural design.
4. Limited Dimming Capability
Most fluorescent systems do not support dimming, unable to flexibly adjust lighting levels based on space usage. In modern offices requiring scene-switching, this is a significant drawback.

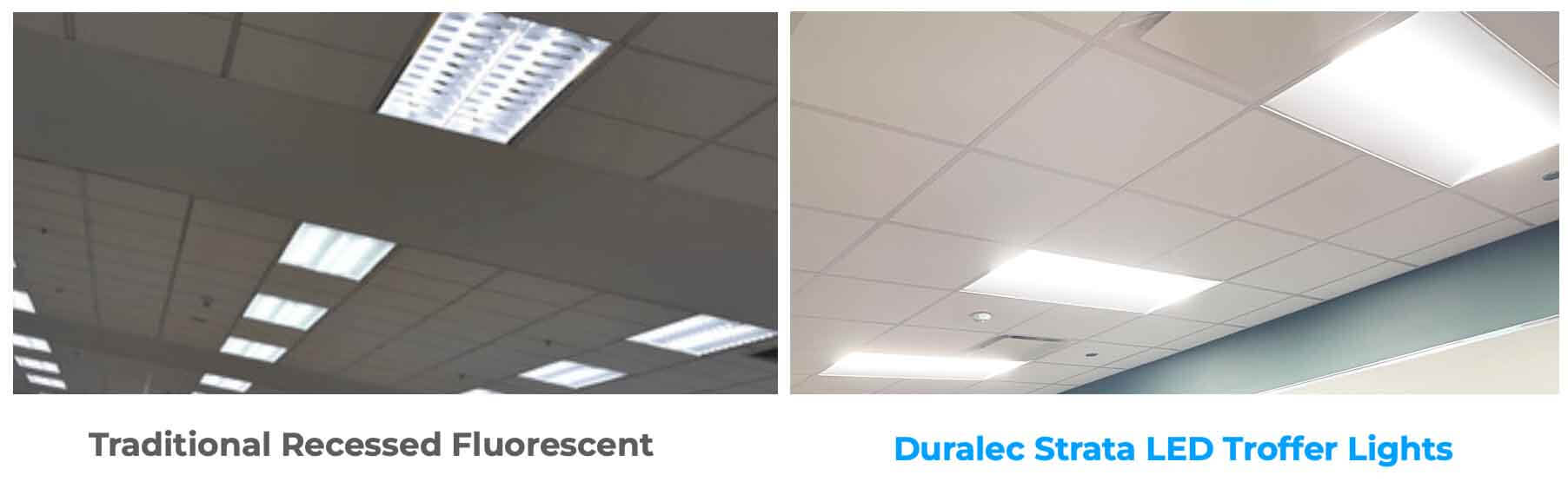

2. Modern LED Troffer: A "Transitional" Solution Between Traditional and Linear
Between traditional fluorescent troffers and modern linear lights lies a "middle option" – LED troffer lighting.

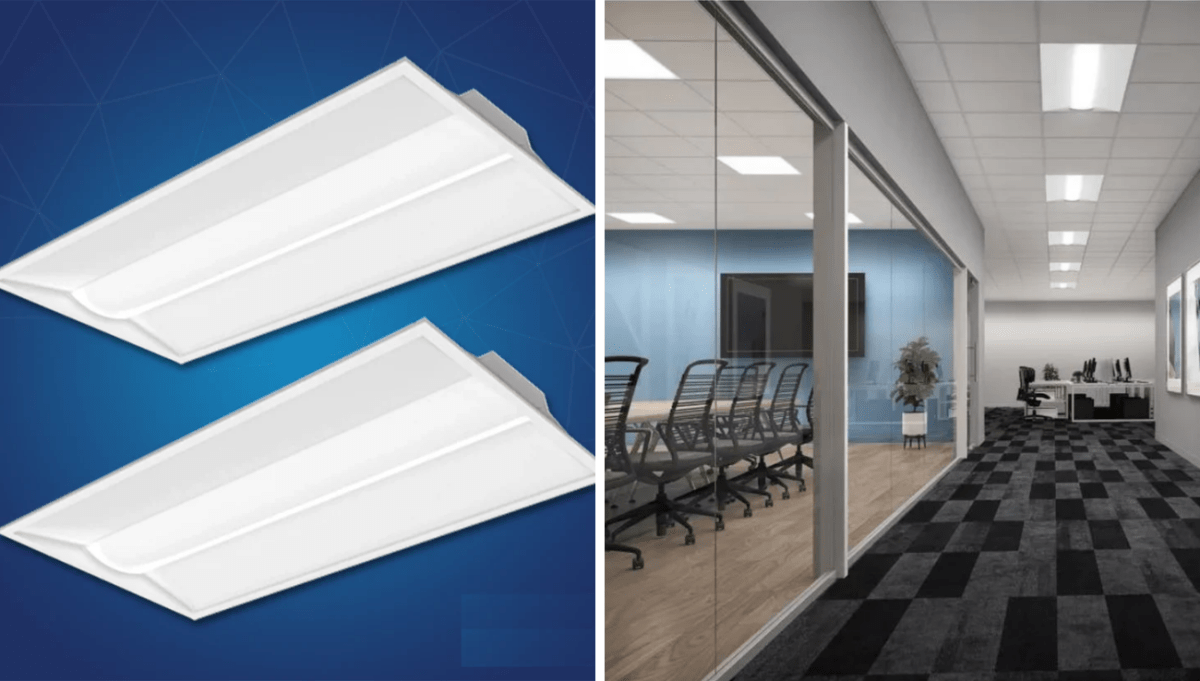

Lumin's LED troffer series retains the traditional recessed installation format of troffers but upgrades the light source from fluorescent tubes to high-efficiency LED chips, delivering comprehensive performance improvements while maintaining compatibility with standard ceiling grids.
Lumin LED Troffer Key Specifications:
| Parameter | Traditional Fluorescent Troffer | Lumin LED Troffer |
|---|---|---|
| Efficacy | 80-90 lm/W | ≥100 lm/W |
| Power Consumption (2×2 ft) | 50-60W | 30-40W |
| Power Consumption (2×4 ft) | 80W+ | 40-50W |
| Luminous Flux | 4,000-5,000 lm | 4,200-6,350 lm |
| Lifespan | 10,000-15,000 hours | ≥50,000 hours |
| CRI | 70-80 | ≥80 |
| Dimming | Limited or none | 0-10V dimming |
| Power Factor | ~0.7 | >0.95 |
| Voltage Range | Single voltage (e.g., 220V) | Wide voltage AC100-277V |
| Installation Time | Complex, multiple workers | 3-step, 2-minute quick install |
Key Advantages of Lumin LED Troffer:
1. Plug-and-Play Upgrade Path
Lumin LED troffers use dimensions fully compatible with standard ceiling grids (2×2 ft, 2×4 ft), allowing direct replacement of existing fluorescent troffers without ceiling structure modifications – offering significant cost advantages in retrofit projects.
2. 50%+ Energy Savings
Compared to traditional fluorescent troffers, Lumin LED troffers achieve over 50% energy savings. For example: the LM-050-TP-6012H series consumes only 50W while delivering 6,350 lumens (5000K), whereas a fluorescent troffer delivering equivalent brightness requires 80W or more. Each fixture saves approximately 100-150 kWh per year.
3. Low Heat Output, Reduced HVAC Load
The low heat output of LED troffers reduces air conditioning cooling loads during summer months – an indirect but significant saving for large commercial spaces.
4. Visually Uniform and Comfortable
Lumin LED troffers feature back-lit design with curved PC diffusers, producing soft, uniform, natural light that creates a comfortable lighting environment for offices and educational spaces.
5. High-Quality Construction and Safety
Built with powder-coated roll-formed steel housings and equipped with fireproof junction boxes on the rear for safe electrical connections. The milky-white PC diffuser ensures uniform light distribution.
Best Suited For:
-
Commercial projects with limited budgets seeking a low-cost upgrade
-
Retrofit projects where existing ceiling structures cannot be easily modified
-
Rapid deployment projects with high installation speed requirements
3. Modern LED Linear Lighting: Why Is It Displacing Troffers?
While LED troffers represent an "upgrade" over fluorescent solutions, linear lighting is more thoroughly redefining commercial lighting. Lumin's UltLine X2 series, a next-generation linear lighting system, features a slim, minimalist design with high lumen output (up to 130 lm/W) capable of illuminating the most challenging architectural spaces. At the same time, its low glare (UGR<19), zero flicker, and high CRI (up to 98) make it exceptionally eye-friendly and health-conscious.
Lumin X2 UltLine LED Linear Light1. Higher Efficacy, Lower Energy Consumption
Modern LED linear lights achieve 140-160 lumens per watt, far surpassing the 80-90 lm/W of fluorescent systems. The UltLine X2 series delivers 100-130 lm/W, with standard models consuming just 20-100W to produce 2,000-10,000+ lumens.
In real-world terms: LED fixtures save 40%-75% compared to fluorescent systems. At commercial electricity rates of $0.12/kWh, each fixture saves approximately $180-$280 annually. A 100-fixture facility saves $18,000 per year in electricity alone.
2. Uniform Illumination, Reduced Glare
The elongated design of linear lights provides more even light distribution. The Illuminating Engineering Society reports that linear layouts reduce shadows by up to 40% compared to traditional downlights. In office environments, linear lights can reduce eye strain by up to 35% compared to recessed downlights.
The UltLine X2 series offers 7 optical kit options (including prismatic, opal diffuser, louver grill, honeycomb, and more), allowing selection of the optimal beam angle (30°, 60°, 70°, 90°, 110°) and UGR rating (14, 19, 22) for different space requirements – minimizing glare while maintaining lighting performance.
3. Modern Aesthetics, Design Flexibility
Linear lights are no longer just functional devices "hidden" in the ceiling – they become part of the space's design. Whether as continuous "light bands," suspended artistic forms, or minimalist recessed lines, linear lighting integrates into the architectural language.
The UltLine X2 series offers multiple length options (from 575mm to 3151mm), multiple color finishes (white, black, silver), and magnetic seamless connection for perfect continuous light lines. Additionally, shape customization is available based on project requirements, offering designers unlimited possibilities.
4. Smart Control, Future-Ready
The UltLine X2 series supports DALI, 1-10V, Triac, wireless and other dimming protocols, with optional PIR sensors for intelligent occupancy sensing. Microwave sensors are also available for more demanding scenarios. Paired with emergency power options, critical area lighting remains secure.
These capabilities are difficult or impossible to achieve with traditional troffers.
4. Efficacy Comparison: See the Differences at a Glance
| Aspect | Traditional Fluorescent Troffer | Lumin LED Troffer | Lumin UltLine X2 Linear Light |
|---|---|---|---|
| Efficacy | 80-90 lm/W | ≥100 lm/W | 100-130 lm/W |
| 2×2 ft Power | 50-60W | 30-40W | N/A |
| 2×4 ft Power | 80W+ | 40-50W | N/A |
| Linear 4ft Power | N/A | N/A | 20-40W |
| Luminous Flux | 4,000-5,000 lm | 4,200-6,350 lm | 2,000-10,000+ lm |
| Energy Savings (vs fluorescent) | Baseline | 50%+ | 40%-75% |
| Lifespan | 10,000-15,000 hrs | ≥50,000 hrs | ≥50,000 hrs (L80B20) |
| CRI | 70-80 | ≥80 | >80 / >90 / >98 |
| Dimming | Limited or none | 0-10V | DALI/1-10V/Triac/Wireless |
| Glare Control (UGR) | Typically >22 | ~22 | 14 / 19 / 22 selectable |
| Installation Methods | Recessed only | Recessed | 5 types (suspended/surface/recessed/wall/track) |
| Design Style | Functional, industrial | Functional, clean | Minimalist, modern, customizable |
5. Installation Method Comparison
Troffer Installation (Both Fluorescent and LED):
Troffer lighting is designed specifically for standard ceiling grids, dropping directly into the grid. Installation is relatively straightforward, but limited by the ceiling structure – spaces without suspended ceilings cannot use them. Lumin LED troffers further simplify installation to just 3 steps in 2 minutes, significantly reducing labor costs.
LED Linear Light Installation Methods (UltLine X2 as example):
The UltLine X2 series offers 5 installation methods to flexibly adapt to various space requirements:
| Installation Method | Best For | Features |
|---|---|---|
| Suspended | High ceilings (4m+) | Creates floating effect, provides uplighting/downlighting |
| Surface Mounted | No ceiling, retrofit projects | Directly mounted on ceiling or wall |
| Recessed | Gypsum board, standard ceilings | Flush with ceiling, cleanest visual effect |
| Wall Mounted | Hallways, vertical applications | Wall-washing effect, spatial layering |
| Track Mounted | Flexible layout needs | Adjustable along track for repositioning |
6. Cost-Benefit Analysis: Initial Investment vs Long-Term Savings
Comparison of Three Options:
| Option | Initial Cost | Annual Energy Cost (100 fixtures) | Maintenance Frequency | 5-Year Total Cost |
|---|---|---|---|---|
| Fluorescent Troffer | Lowest | $1,800-$2,000 | Relamping every 3-4 years | Highest |
| LED Troffer (Lumin) | Moderate | $800-$1,000 | Nearly maintenance-free (50,000 hrs) | Moderate |
| Linear Light (UltLine X2) | Higher | $600-$800 | Nearly maintenance-free (50,000 hrs) | Lowest (long-term) |
Payback Period:
-
LED Troffer vs Fluorescent Troffer: Payback typically 12-18 months
-
Linear Light vs Fluorescent Troffer: Payback typically 18-24 months
7. How to Choose Based on Project Type
| Project Type | Recommended Solution | Reasoning |
|---|---|---|
| New standard office | LED linear lights | Uniform illumination, reduced eye strain, modern aesthetics |
| Existing ceiling retrofit | LED Troffer | Uses existing ceiling structure, lowest cost, fastest installation |
| Retail stores | LED linear lights | Flexible layout, highlights merchandise, dimmable for various displays |
| Schools/classrooms | LED Troffer or linear | High CRI (>80) for accurate colors; uniform lighting reduces eye strain |
| Hospitals/healthcare | LED linear (with smart control) | Supports circadian lighting, tunable white, high CRI for accurate color perception |
| Low-cost rapid deployment | LED Troffer | 3-step, 2-minute installation, lowest labor cost |
| High-end commercial/showrooms | Architectural linear (UltLine X2) | Strong design language, integrates with architecture, customizable shapes & colors |
8. Conclusion
Fluorescent troffers were once the "standard answer" for commercial lighting – but they belong to an earlier era.
Lumin LED troffers provide a cost-effective, rapidly deployable option for projects seeking to upgrade without changing existing ceiling structures – delivering 50%+ energy savings, 50,000-hour lifespan, and 3-step, 2-minute installation.
Lumin UltLine X2 linear lights go even further in efficacy, aesthetics, and design flexibility, offering the "ultimate linear lighting solution" for new construction projects and spaces demanding premium quality.
These are not replacements for each other – they are optimal solutions for different project needs:
-
Retrofit projects, limited budgets → LED Troffer (low-cost upgrade)
-
New projects, pursuing aesthetics → LED linear lights (design flexibility, modern feel)
-
High-end commercial, showroom spaces → UltLine X2 architectural linear (extreme efficacy and customization)
Whether you're a procurement professional, facility manager, or commercial property owner, Lumin offers a complete product matrix from troffer to linear lighting to meet diverse project requirements.
Want to learn more about Lumin LED Troffer and UltLine X2 linear light products? Download the Lumin product catalog or contact our sales team for professional recommendations.
