Lumin ST200-2 Red Light Therapy Panel | 5 Wavelengths 630-850nm Portable Device

LM-ST200-2

1. Ultra-High Intensity—90mW/cm² light intensity delivers accelerated results in just 5 minutes.
2. Compact and Powerful—200W LED output with a lightweight, portable design for precise targeted treatment.
3. One-Touch Operation—Simple 5-minute auto-timer, zero electromagnetic radiation, and flicker-free operation seamlessly integrate into daily routines.

minimum order

50 pieces

Supply Ability

2000pieces / Month

Quantity:

Contact Now

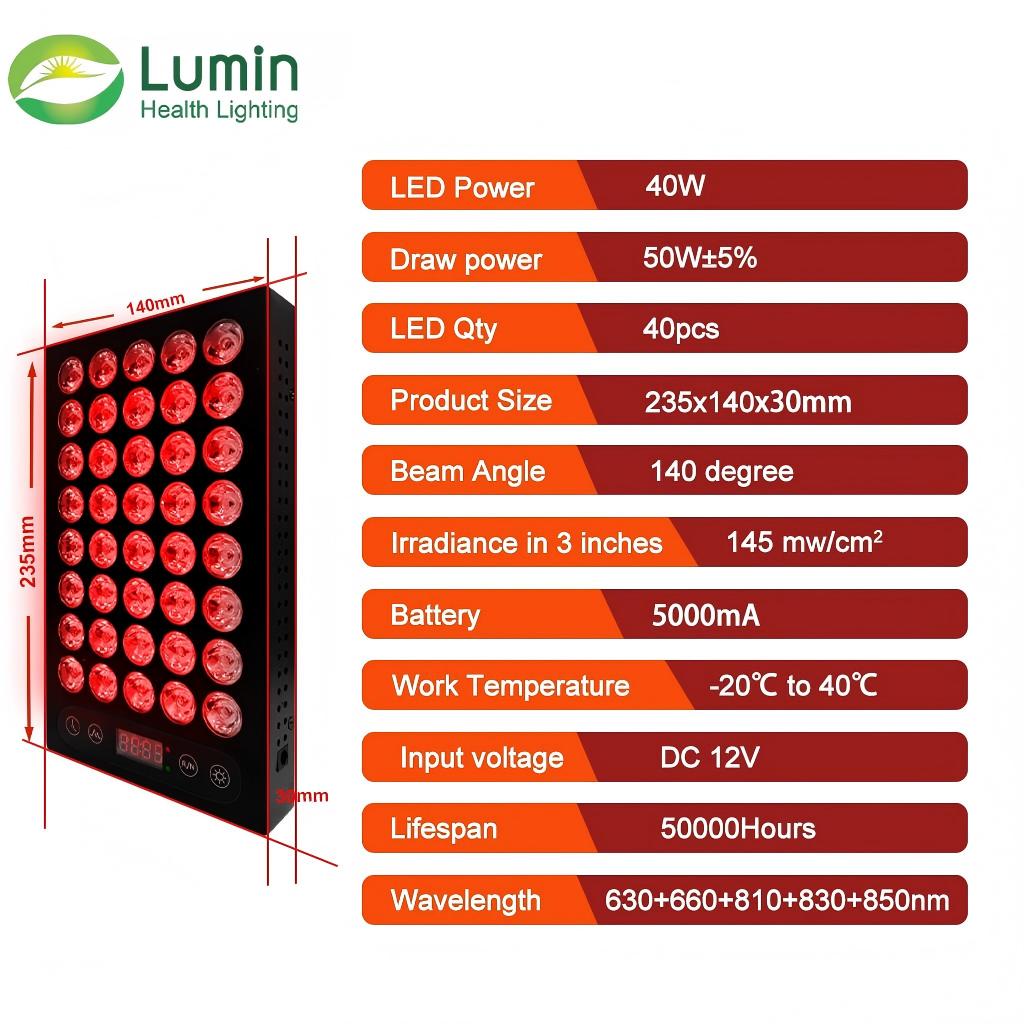

Lumin ST200-2 Red Light Therapy Panel Specifications - 40W Power, 5 Wavelengths 630-850nm, 145mW/cm² Irradiance, 40 LED Beads, Product Size 235x140x30mm

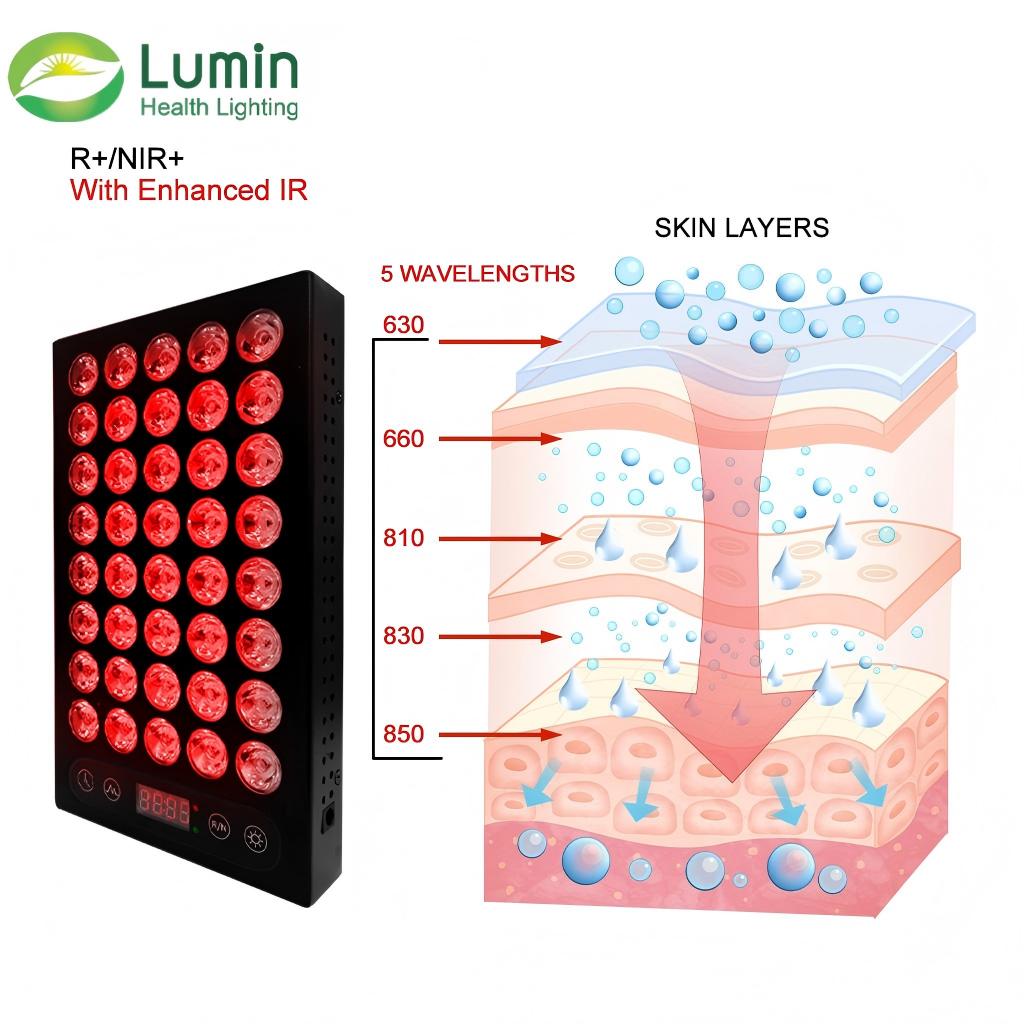

Lumin ST200-2 5-in-1 Red & Near-Infrared Wavelengths Penetrating Skin Layers Diagram - 630nm 660nm 810nm 830nm 850nm with Enhanced IR Technology

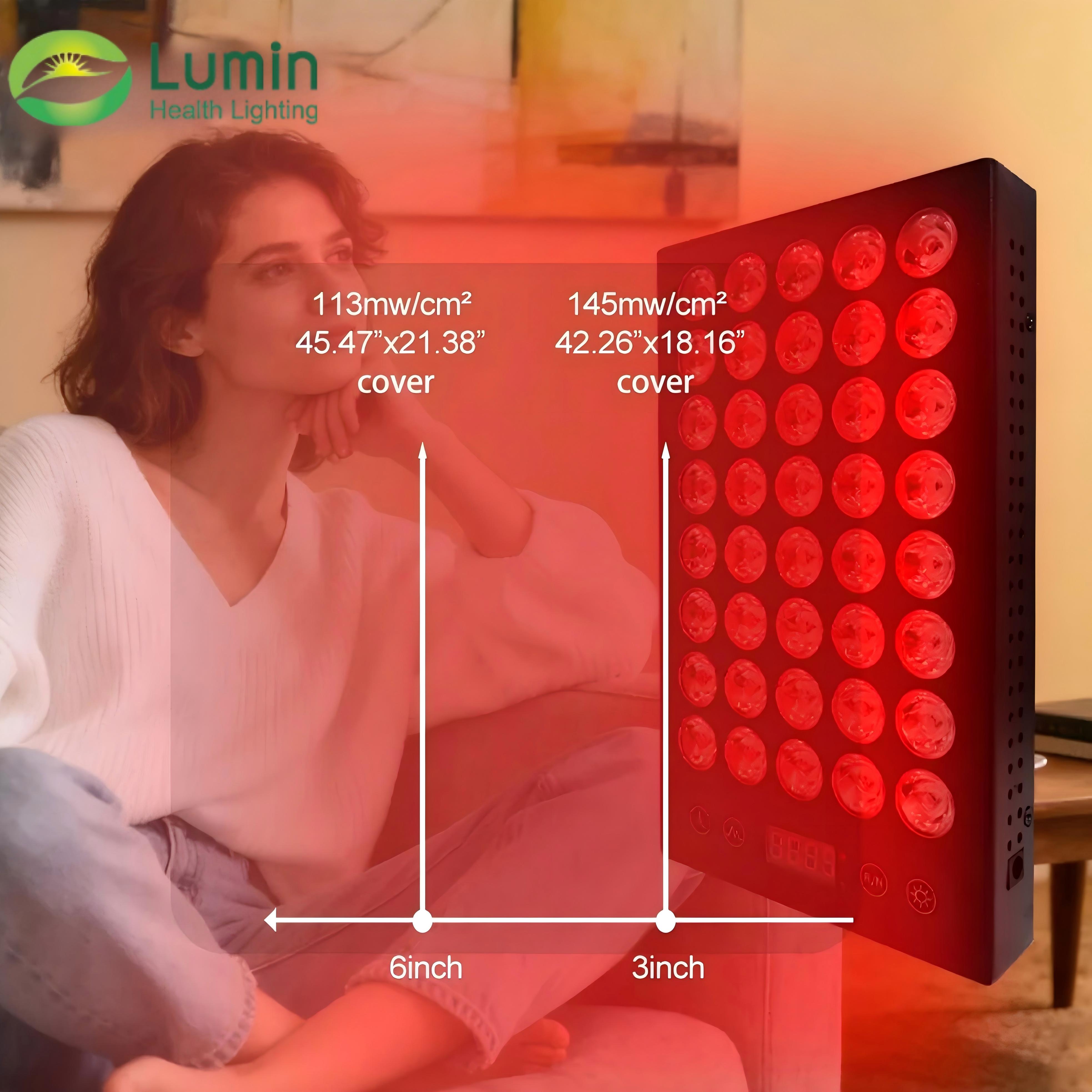

Lumin ST200-2 Irradiance & Coverage Comparison at Different Distances - 145mW/cm² at 3 inches, 113mW/cm² at 6 inches, Coverage up to 45x21 inches

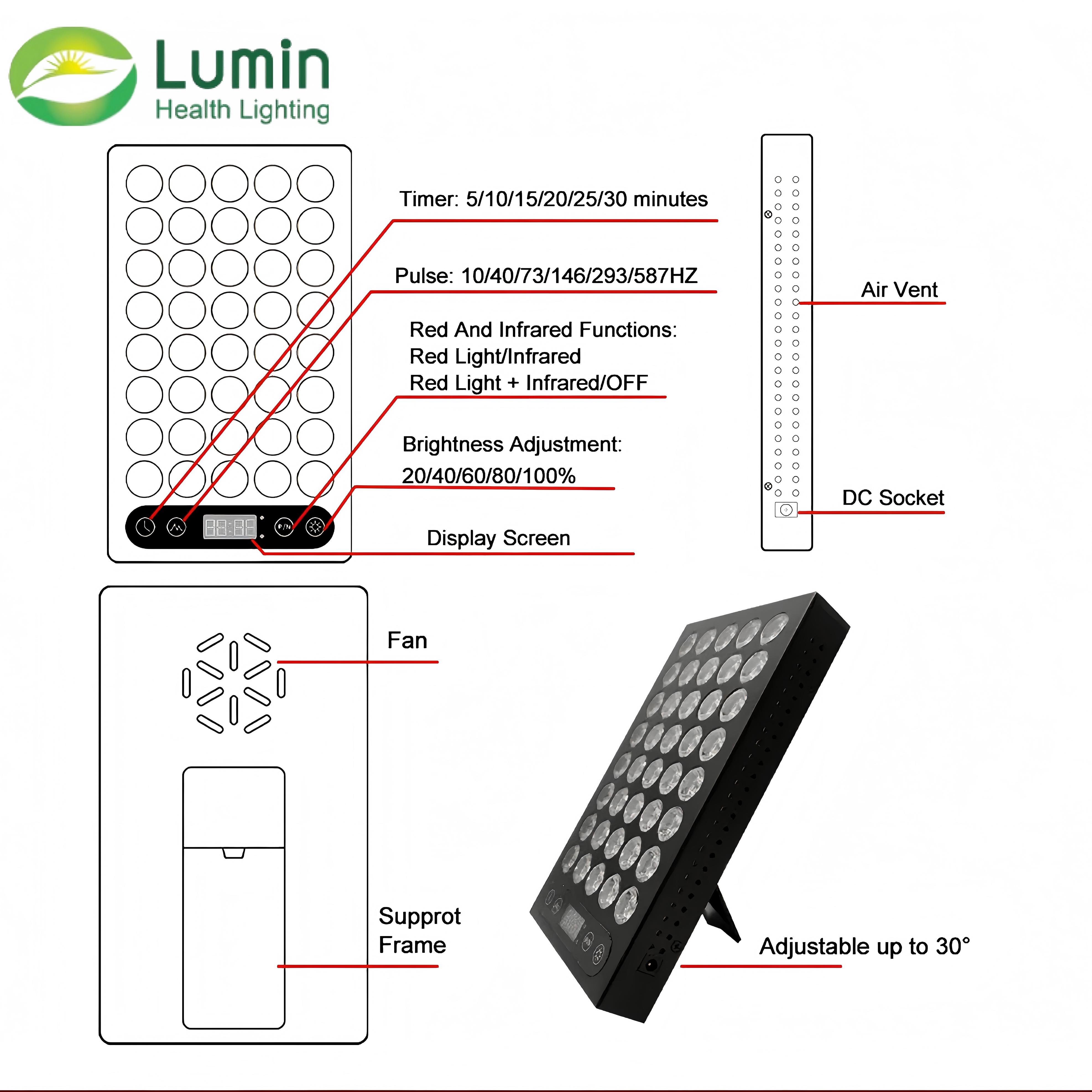

Lumin ST200-2 Control Panel & Features - Timer Settings, Pulse Frequency, Red/IR Modes, Brightness Adjustment, Air Vents, Display, Fan, Stand with 30° Tilt

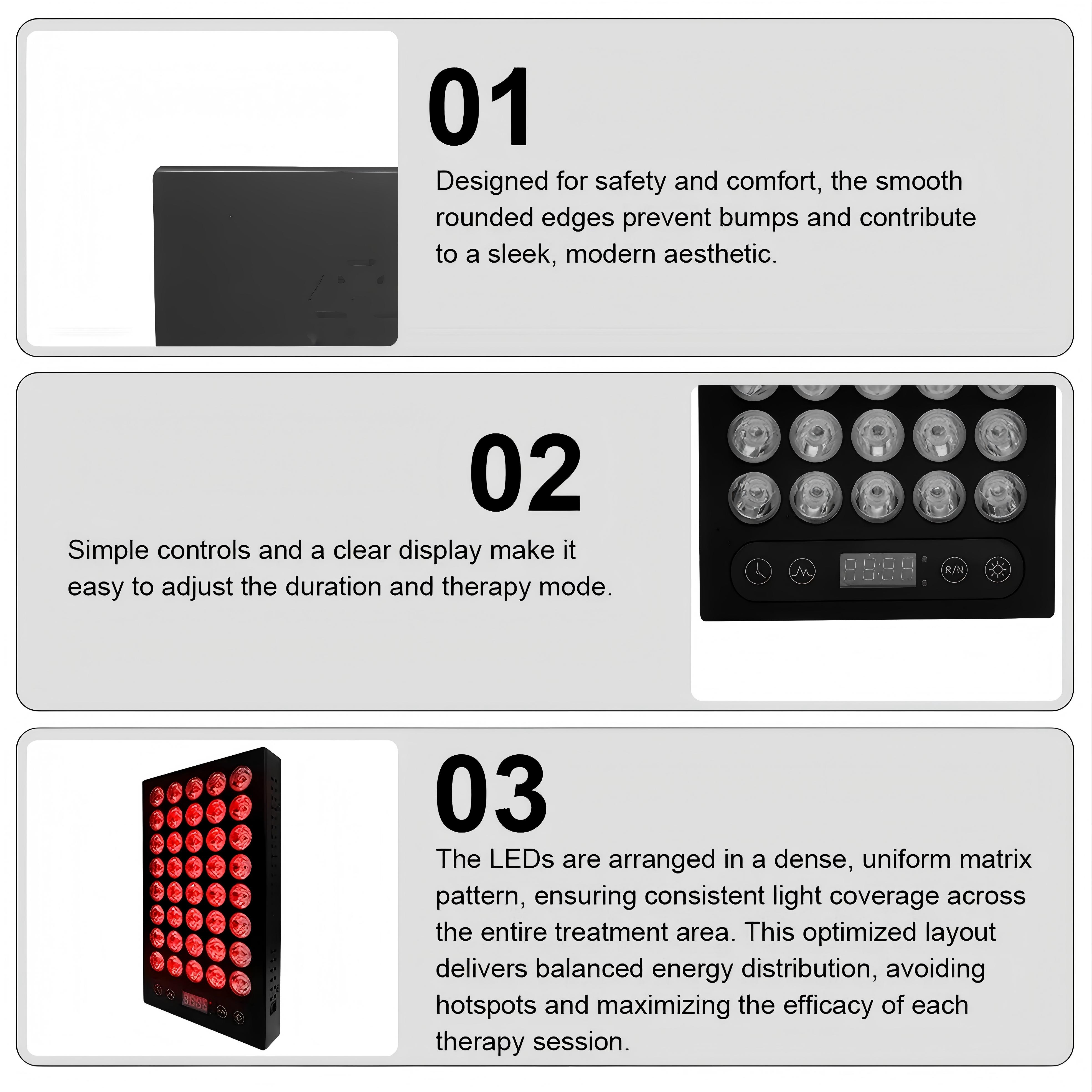

Lumin ST200-2 Design Highlights - Safety Rounded Edges, Intuitive Controls, Uniform LED Matrix for Consistent Light Coverage

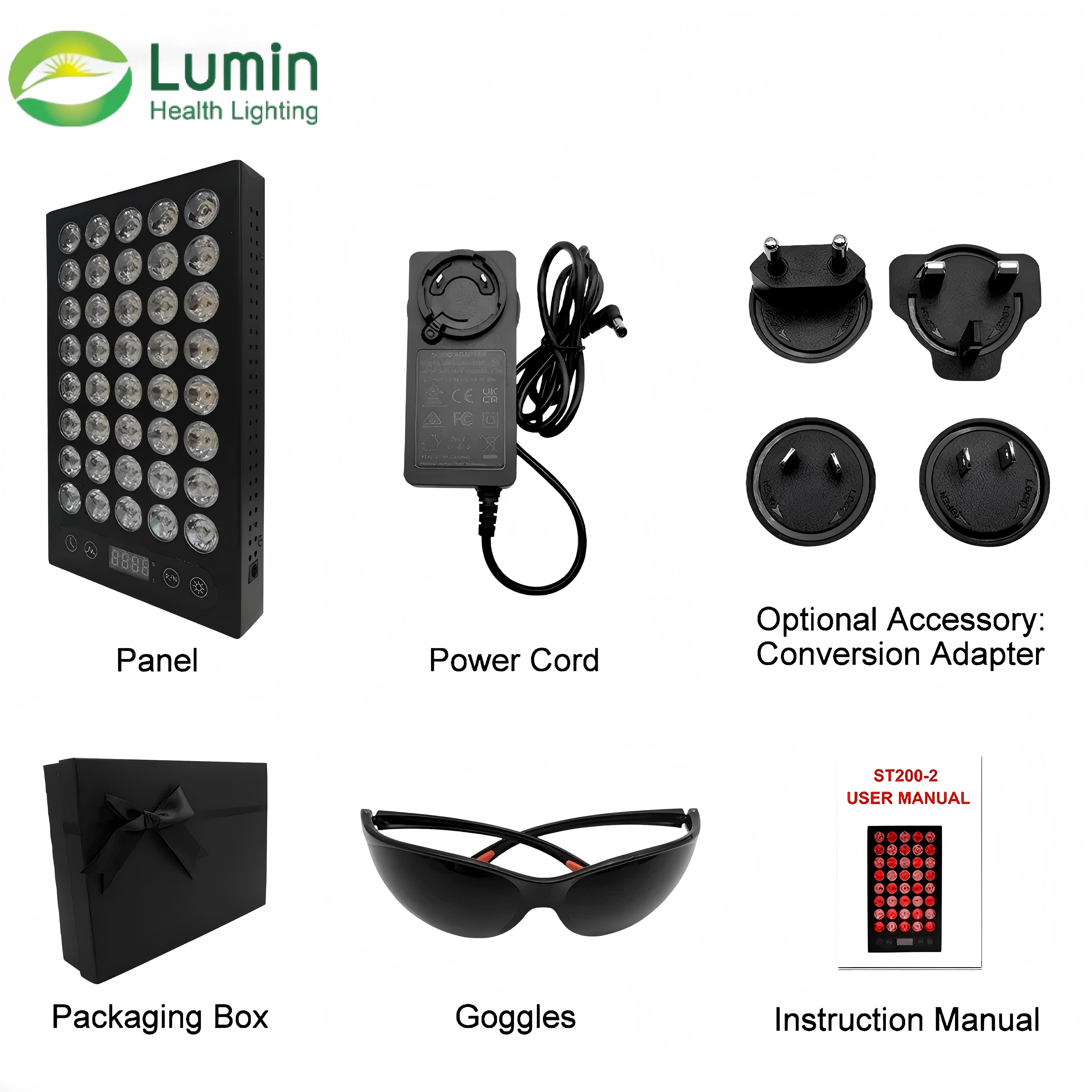

Lumin ST200-2 Package Contents & Accessories - Includes Panel, Power Cord, Adapter, User Manual, Goggles, Storage Box

Lumin ST200-2 Multi-Area Application Guide - Face, Neck, Wrist, Leg - Full Body Red Light Therapy

Q: What wavelengths does this device include and what are their benefits?
A: The device includes 630nm, 660nm (red light) and 810nm, 830nm, 850nm (near-infrared). 630nm improves skin texture and evens skin tone; 660nm penetrates deeper into the dermis, promoting recovery and reducing swelling; 810nm supports deep tissue repair and follicle stimulation; 830nm aids bone recovery and manages microbial environment; 850nm penetrates deepest, relieving muscle and joint discomfort, ideal for sports recovery.
Q: How many times per day can I use it and for how long per session?
A: It is recommended to use up to 3 times daily, with session durations adjustable from 5, 10, 15, 20, 25 to 30 minutes. You can repeat on the same area if desired.
Q: Do I need to wear goggles while using the device?
A: Although red light is generally safe for eyes, direct exposure to intense light may cause discomfort. The package includes protective goggles; we recommend wearing them, especially when treating the face.
Q: What is the optimal distance from the skin?
A: Recommended distance is 0-30 cm. At 3 inches (~7.6 cm), irradiance is 145 mW/cm²; at 6 inches (15 cm), it's approximately 113 mW/cm². Closer distance yields higher intensity; adjust based on comfort.
Q: How do I choose between red light, infrared, or combined modes?
A: The control panel has switches for "Red Light/Infrared" and "Red Light+Infrared/OFF". You can select red only (630+660nm), infrared only (810+830+850nm), or both simultaneously.
Q: What is the purpose of pulse frequency and how do I choose?
A: Pulse frequency can be set to 10/40/73/146/293/587 Hz. Different frequencies stimulate cells differently: lower frequencies (e.g., 10Hz) may promote relaxation, while higher frequencies (e.g., 587Hz) help activate deeper tissues. Experiment based on your comfort and needs.
Q: How is the device powered? Does it have a built-in battery?
A: The device can be used with the included DC 12V power adapter. It also has a built-in 5000mAh battery for cordless, portable use. Once fully charged, it can complete multiple sessions without being plugged in.
Q: Which body parts can I use the device on?
A: Besides the face, the lightweight design makes it suitable for the neck, wrists, legs, joints, back, and more. The diagrams show common application areas; you can flexibly target any area as needed.
Q: Is it normal for the device to get warm during use? Does it have cooling?
A: Yes, it's normal for LEDs to generate some heat. The device features air vents and a built-in fan to dissipate heat, ensuring it stays at a safe temperature during extended use for comfort and safety.
Q: How do I clean and maintain the device?
A: Wipe the surface gently with a soft, dry cloth. Avoid water or liquids contacting the device. Unplug when not in use and store in a cool, dry place away from heat sources.
Q: Can pregnant women or people with pacemakers use this device?
A: While red light therapy is generally safe, we recommend that pregnant women, individuals with electronic implants (e.g., pacemakers), or those with photosensitive conditions consult a doctor before use to ensure safety.
Q: What is the lifespan of the device and the warranty?
A: The LED beads have a lifespan of 50,000 hours. Based on 30 minutes daily use, that's approximately 273 years. For warranty details, please refer to the included warranty card or contact customer service.
