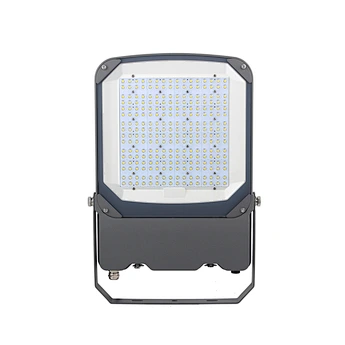

100W-200W IP66 Waterproof LED Flood Light Outdoor Spotlight

Basic Parameters

• Q: What power specifications does the L Series Flood Lamp have, and what is the corresponding net weight for each?
• A: This flood lamp is available in three core power specifications: 100W, 150W and 200W. The net weight of 100W is 2.8kg, 150W is 3.6kg, and 200W is 4.3kg. It features a lightweight design while ensuring structural stability.
• Q: What type of light source is used in the L Series Flood Lamp, and what is its luminous efficacy?
• A: It adopts professional SMD 3030 LED light source with a luminous efficacy of up to 120lm/w. The high luminous efficacy design effectively improves lighting brightness and reduces energy consumption at the same time.
• Q: What are the input and output voltages of this flood lamp, and is it compatible with a wide range of power grids?
• A: The input voltage is 100-277Vac, 50/60Hz, which is compatible with the power grid standards of many countries and has a wide application range; the output voltage is DC 48V, and low-voltage output is safer in use.
• Q: What are the optional color temperature and color rendering index of the L Series Flood Lamp?
• A: The color temperature is available in 3000K, 4000K, 5000K and 6000K, meeting the different lighting needs of warm light, neutral light and cool light; the color rendering index is Ra>80, which restores the true color of objects and delivers a more natural lighting effect.
• Q: What beam angles are optional for this flood lamp, and can it adapt to different lighting scenarios?
• A: The beam angles cover 15°, 30°, 60°, 90° and 120°. Narrow angles can achieve long-distance concentrated lighting, and wide angles can realize large-area flood lighting, adapting to the lighting needs of different scenarios.

Product Material & Structure

• Q: What is the main material of the L Series Flood Lamp, and what are its advantages?
• A: The main body of the lamp is made of ADC12 die-cast aluminum alloy, combined with a strong air convection design, which greatly improves heat dissipation efficiency and effectively extends the service life of the LED light source. At the same time, the die-cast aluminum material is corrosion and impact resistant, suitable for complex outdoor environments.
• Q: What materials are used for the mask and reflector of this flood lamp?
• A: The mask is made of thickened tempered glass, which is pressure, crack and high temperature resistant with good light transmittance, ensuring the lighting effect while improving protection; the reflector is made of PC material with excellent light reflection effect, making the light distribution more uniform.
• Q: What are the features of the bracket design of the L Series Flood Lamp, and can the installation angle be adjusted?
• A: It adopts bracket fixing installation, and the rotatable angle of the bracket is up to 270°, which allows free adjustment of the lighting angle to meet the lighting needs of different directions with simple installation operation.
• Q: What special structural designs does this flood lamp have to enhance the user experience?
• A: First, a built-in breather is equipped to effectively balance the internal and external pressure difference of the lamp body, prevent the generation of condensed water and protect internal components. Second, a snap-on design is adopted for more convenient disassembly in later maintenance. Third, an integrated power supply design makes the lamp body slimmer and more aesthetically pleasing while improving safety performance.

Protection & Performance

• Q: What is the protection grade of the L Series Flood Lamp, and what kind of environment can it adapt to?
• A: With a professional waterproof structure design, it reaches an IP66 dust and waterproof grade, and also has an IK07 mechanical impact protection grade and IEC Class I electrical protection grade. It can resist heavy rain, dust, slight impact, etc., and is suitable for various harsh indoor and outdoor complex environments.
• Q: What is the operating temperature and humidity range of this flood lamp?
• A: The operating temperature can adapt to a wide range of -25℃ to 45℃, and the relative humidity is suitable for 10% to 90% RH. It can work stably in different environments such as low temperature, high temperature and humidity.
• Q: What is the service life of the L Series Flood Lamp, and what warranty guarantee is provided?
• A: Under the L80B20 standard, the service life is ≥50000 hours with slow light decay and high durability; at the same time, a 5-year limited warranty is provided for more assured use.
• Q: What about the electrical performance indicators of this flood lamp to ensure stable use?
• A: It has a power factor >0.9, ripple <10% and total harmonic distortion (THD) ≤20%. With excellent electrical performance, it works more stably, is less prone to stroboscopic, power failure and other problems, and is more energy-saving.
• Q: What is the initial chromaticity deviation of this flood lamp, and how about the light color consistency?
• A: The initial chromaticity deviation is SDCM 6 with good light color consistency. The lighting effect of products in the same batch is uniform without color difference, suitable for batch installation and use.

Installation & Application

• Q: What is the installation method of the L Series Flood Lamp, and is the installation difficult?
• A: It adopts bracket fixing installation with supporting standard installation accessories. The installation steps are simple without complicated operations, and can be quickly completed by professional construction personnel.
• Q: What is the control method of this flood lamp, and does it support intelligent regulation?
• A: It currently adopts the basic on-off control method with simple and convenient operation, suitable for conventional lighting control needs.
• Q: What are the applicable scenarios of the L Series 100-150-200W Flood Lamp?
• A: It has an extremely wide range of applications, including indoor lighting of shopping malls, exhibition halls, parking lots, etc., outdoor lighting of sports fields, stadiums, billboards, parks, sculptures, building facades, etc., and can also be used for lighting in public areas such as national green lighting projects, public corridors, staircases and passageways.

Certification & Packaging

• Q: What international certifications has the L Series Flood Lamp passed, and does it meet export standards?
• A: The product has passed CE & RoHS dual certifications, complying with the product access standards of the European Union and many other countries, and can meet the certification requirements of foreign trade export and domestic high-end projects.
• Q: What are the packaging carton sizes of the L Series Flood Lamps with different powers?
• A: The packaging carton size of 100W is 450275100mm, 150W is 500325100mm, and 200W is 500375100mm. The standardized packaging can effectively protect the product from damage during transportation.
• Q: What are the overall dimensions of the L Series Flood Lamps with different powers?
• A: The overall dimension of 100W is 42527052mm, 150W is 47332051mm, and 200W is 47437052mm. The slim design saves installation space and is more aesthetically pleasing.
