Lumin RGB/RGBW DALI Dimmable 600x600 LED Panel Light with Motion Sensor – Full-Color Commercial Lighting

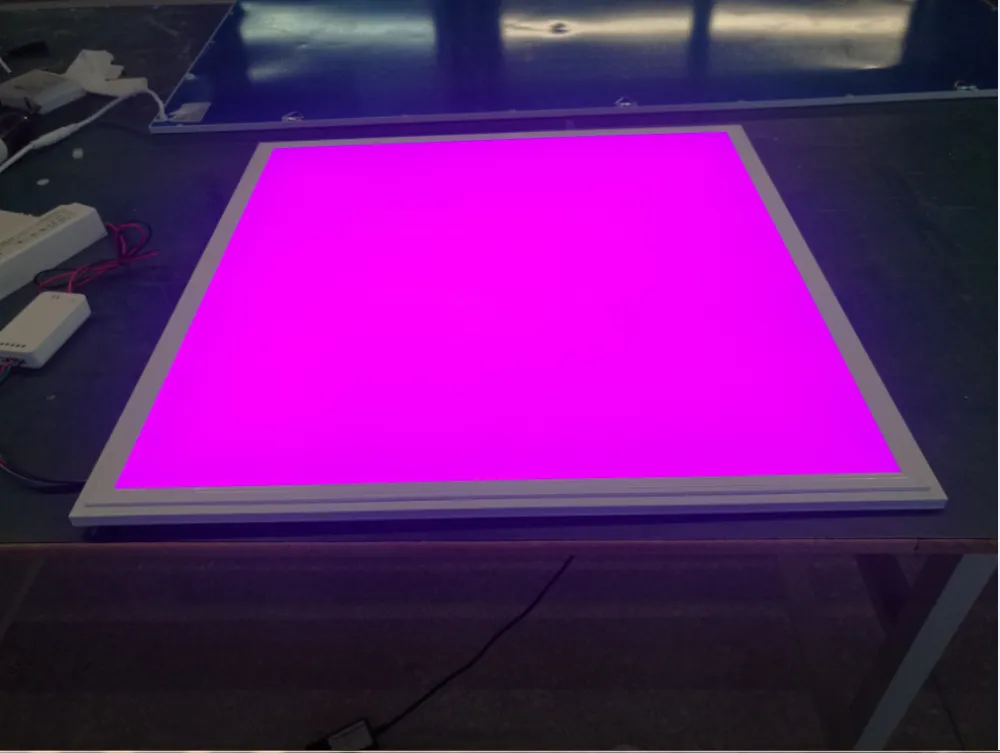

RGB/RGBW Full-Color Mixing – Create dynamic color scenes with 16 million color possibilities. RGBW version adds a dedicated white channel for true, clean white illumination when needed — perfect for hospitality, retail, and entertainment venues where both vibrant colors and professional white light are required.
Multiple Dimming Protocols – Fully compatible with Triac, DALI, and 0-10V dimming systems. Whether you‘re retrofitting an existing space or designing a new smart building, this panel integrates seamlessly with your preferred control architecture.
Built-in Motion Sensor – The integrated motion sensor enables automatic on/off control, reducing energy waste in low-traffic areas like corridors, storage rooms, and conference spaces. Save up to 80% energy compared to traditional fluorescent lighting.
Premium Samsung LED Chips – Powered by high-quality Samsung LEDs for superior luminous efficacy (>100 lm/W), low light depreciation, and consistent color quality over the full 50,000-hour lifespan. 6 times longer than fluorescent tubes.
Ultra-Slim 13mm Profile – The sleek 13mm thickness integrates seamlessly into any ceiling, creating a clean, modern aesthetic. Available in recessed, embedded, or suspended installation options.
Superior Color Consistency – SDCM<3 ensures imperceptible color variation between multiple panels — critical for large-scale installations where color uniformity matters.
High-Quality Materials – 3T CHIMEI PMMA light guide plate and fire-resistant PS diffuser ensure uniform light distribution with no hotspots. High hardness aero aluminum alloy frame with baked white finish for durability.
Global Certifications – CE, CB, EMC, RoHS, SAA certified. Quality guaranteed for international procurement.

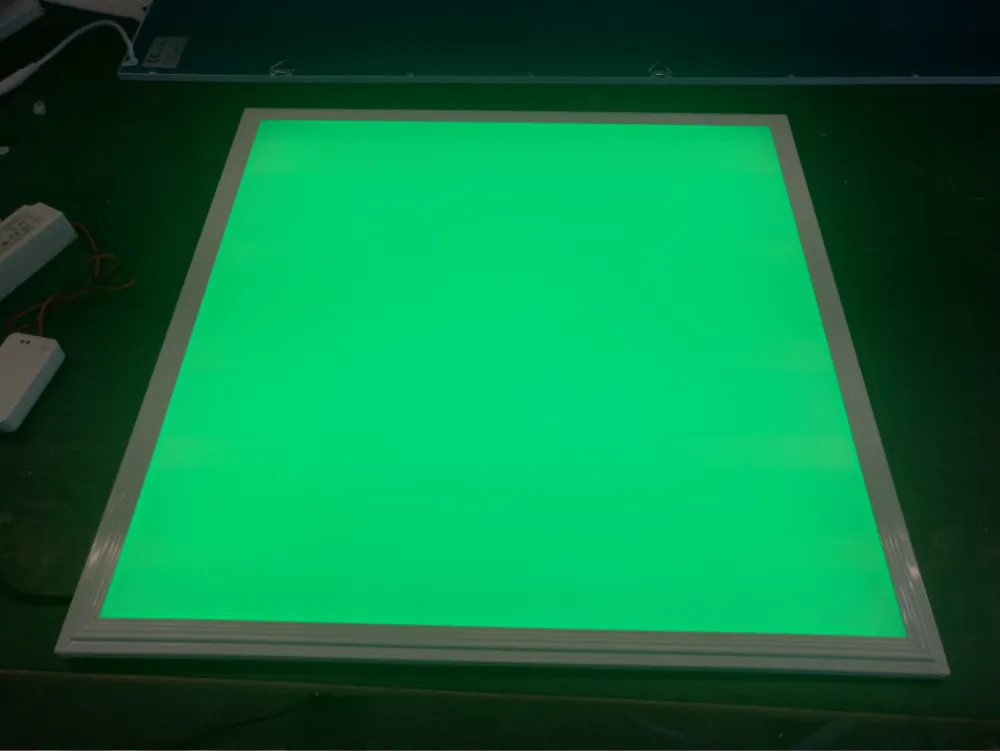

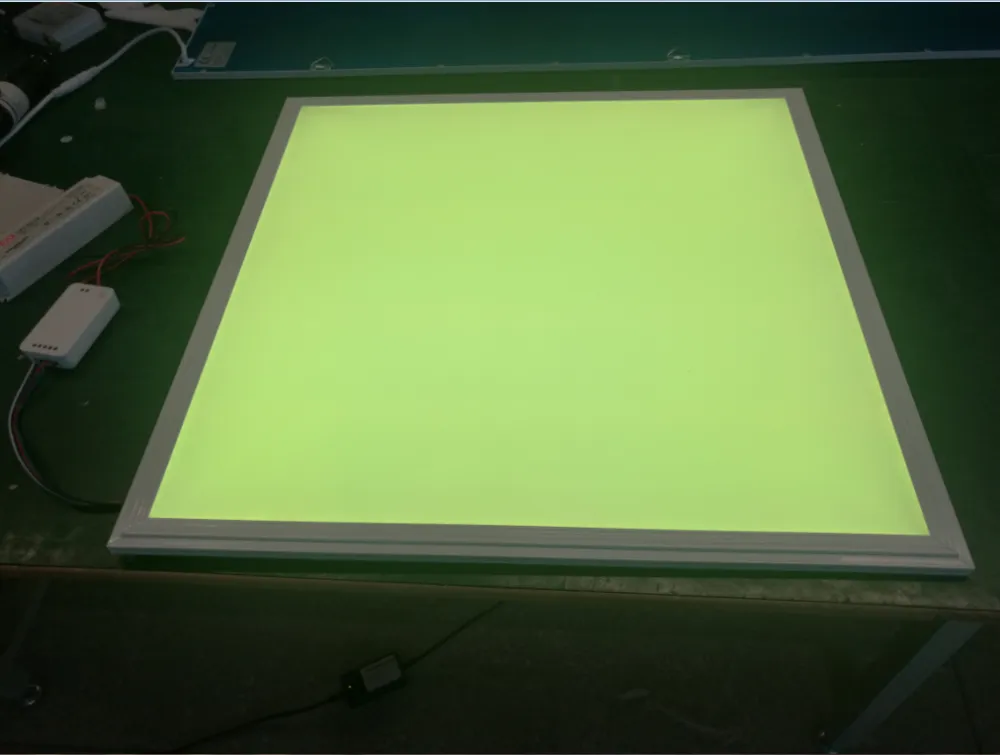

Product Description
Specification
| Parameter | Specification |
|---|---|
| Model | PRGB66A-36W |
| Power | 36W |
| Luminous Flux | 3600-4000 lm |
| Luminous Efficacy | 100 lm/W |
| LED Type | Samsung SMD |
| CCT Options | 3000K / 4000K / 5000K / 6000K |
| CRI | >80 |
| Dimming Protocols | Triac / DALI / 0-10V |
| Motion Sensor | Built-in (PIR) |
| Input Voltage | 100-277V AC, 50/60 Hz |
| Power Factor | >0.9 |
| Beam Angle | 120° |
| SDCM | <3 |
| UGR | 22 |
| Dimension | 595 x 595 x 13 mm |
| Material | Aluminum alloy + PMMA LGP + PS diffuser |
| IP Rating | IP40 (IP54/IP65 optional) |
| Lifespan | 50,000 hours |
| Warranty | 3-5 years |
| Certifications | CE, CB, EMC, RoHS, SAA |
Features
Construction & Material
(1) 13 mm thickness super design. Baked white frame
(2) High hardness aero aluminum alloy material
(3) Different sizes and wattages can be customized
(4) IP rating includes IP54 and IP65
LED & Optics
(1) Samsung LED is applied for high luminous efficacy & low light depreciation
(2) 50,000 hours lifespan, 6 times than fluorescent tube
(3) High transmittance PMMA Light Guide Plate
(4) Optical PC fire resistant diffuser
(5) Beam Angle: 120º
Electrics
(1) High efficiency power supply
(2) Input Voltage: AC100-240V, 50/60Hz
(3) Power Factor: >0.9
(4) Dimming solutions are customized
Environmentally friendly
(1) No glare, mercury, ultraviolet, infrared or other hazardous substances
(2) Working Temperature: -25℃ to 55℃
(3) Storage Temperature: -40 to +85 ℃
(4) Storage Humidity: 10% to 80%
(5) Operating Humidity: 10% to 80%
Benefits
(1) Longer lifetime than traditional light.
(2) 80% Energy-saving over traditional light .
(3) Minimum maintenance costs.
(4) Quick and easy installation to minimize retrofit costs
(5) Using aluminum alloy shell, with frosted poly cover, Have good heat dissipation ability and optical effects.

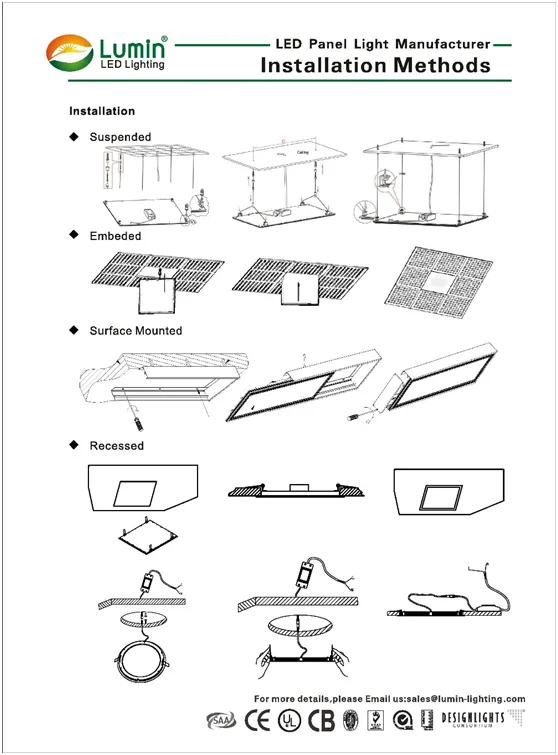

Installation
Installation
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while wiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents. Lumin will not bear any responsibilities due to such deeds.
Application
Application

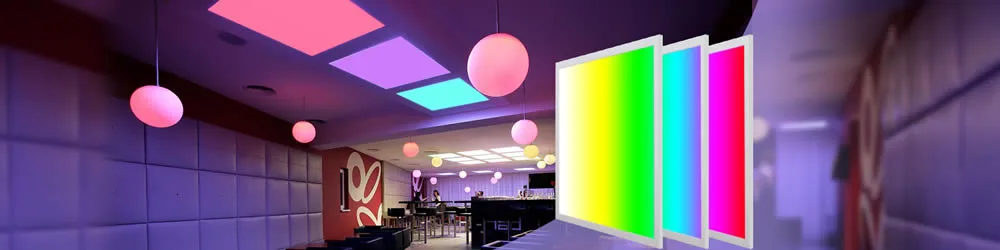

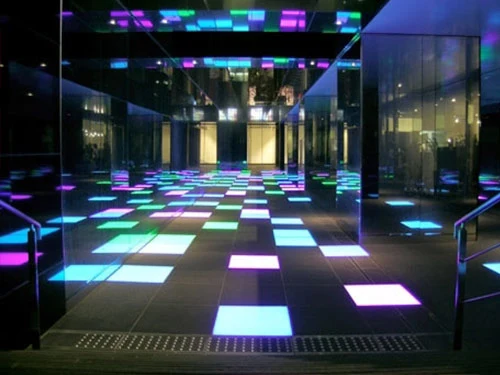

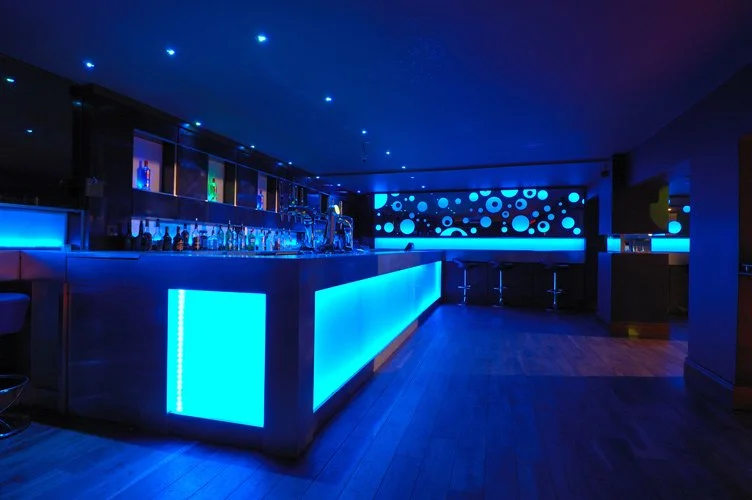

It is widely used in the offices, workshops, shopping malls, schools, libraries, hospitals, hotels,retail outlets, living rooms, airports, entertainment spaces, etc.
Certifications
Company Information
Shenzhen Lumin Lighting Co., Ltd, established in 2008, is a professional manufacturer of led lights, specialized in high power LED indoor and outdoor lighting, is committed to utilizing energy-efficient,eco-friendly LED panel lighting to replace the traditional inefficient lights.
The product line of Lumin include LED Downlights,LED bulbs,LED tubes,LED panels,LED stripe lights,LED high bay lights,LED underground lights,LED street lights,and customized LED lightings(OEM AND ODM )etc.

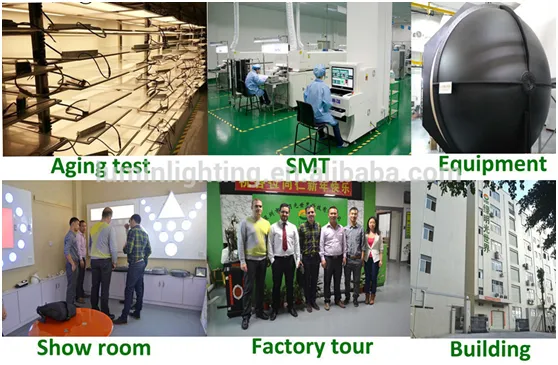

Lumin covers area of 1800 square meters,owing 5 sets of SMT machines and 3 production lines,and we launch new products every year with our experienced R&D team.We export quality LED lighting products to more than 150 countries and regions in the world,such as Spain,France Italy,Poland,Greece,Brazil,Mexico,Japan,Malaysia.,Italy,Poland,Greece,Brazil,Mexico,Japan,Malaysia.
We will continue to do our best to develop and produce high quality and competitive products to our clients. We sincerely hope to cooperate with more and more friends from all over the world to develop the brilliant led light industrial.
Packaging & Shipping
Packaging & Shipping
One panel in an inner box ,one master carton contain 5 inner boxes.
Inner carton size:74CM*68*CM*3.5cm
Inner carton GW:4.5KG
Master carton size:74.5CM*68.5CM*22CM
Master carton GW:23.5KG
Shipping by Fedex,DHL,TNT.Air,shipping is also avaliable
Our Services
Our Services
| 1.3-5 working days for samples; 7-10 working days for bulk orders normally. |
| 2. Production capacity: 100000 dwon lights, 20000 panel lights, 10000 flood lights, 10000 track lights |
| 3. Powerful R&D team, can provide good designs and lighting solutions. |
| 4. Quick and high efficiency after-sale team, your complaints will be solved with 24 hours by professional team. |
| 5. We supply OEM and ODM service, and only focus on high quality products. |
| 6. Our main products are panel lights, DOWN lights, Flood lights and Track lights. |
| 7. Payment terms: T/T, L/C, 30% deposit T/T, western union, paypal will be available in the future. |
| 8. Economic and fast delivery: Shipping by sea, air, railway. UPS, FedEX, DHL, TNT, ARAMEX etc. |
FAQ
FAQ
| Q1. Can I have a sample order for led light? |
| Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. |
| Q2. What about the lead time? |
| Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than . |
| Q3. Do you have any MOQ limit for led light order? |
| Low MOQ, 1pc for sample checking is available. |
| Q4. How do you ship the goods and how long does it take to arrive? |
| We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. |
| Q5. How to proceed an order for led light? |
| Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. |
| Q6. Is it OK to print my logo on led light product? |
| Yes. OEM/ODM are available. Please inform us formally before our production and confirm the design firstly based on our sample. |
| Q7: Do you offer guarantee for the products? |
| Yes, we offer 3-5 years warranty to our products. |
| Q8: How to deal with the faulty? |
| Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. |
| Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation. |
