Lumin VioClean Antibacterial LED Linear Light – UVA 405nm + 5600K Dual-Channel for Hospitals & Food Factories
Lumin VioClean Antibacterial LED Linear Light – UVA 405nm + 5600K Dual-Channel for Hospitals & Food Factories
25W UVA + 20W PROSUN | IP65 | CRI>98 | Flicker-Free | 3-Year Warranty | OEM/ODM Available
Key Features
Dual-Channel Antibacterial + Lighting – 25W UVA 405nm for continuous microbial control + 20W 5600K PROSUN for natural daylight illumination. Two functions, one fixture. Perfect for hospital lighting projects, food factory installations, and cleanroom environments.

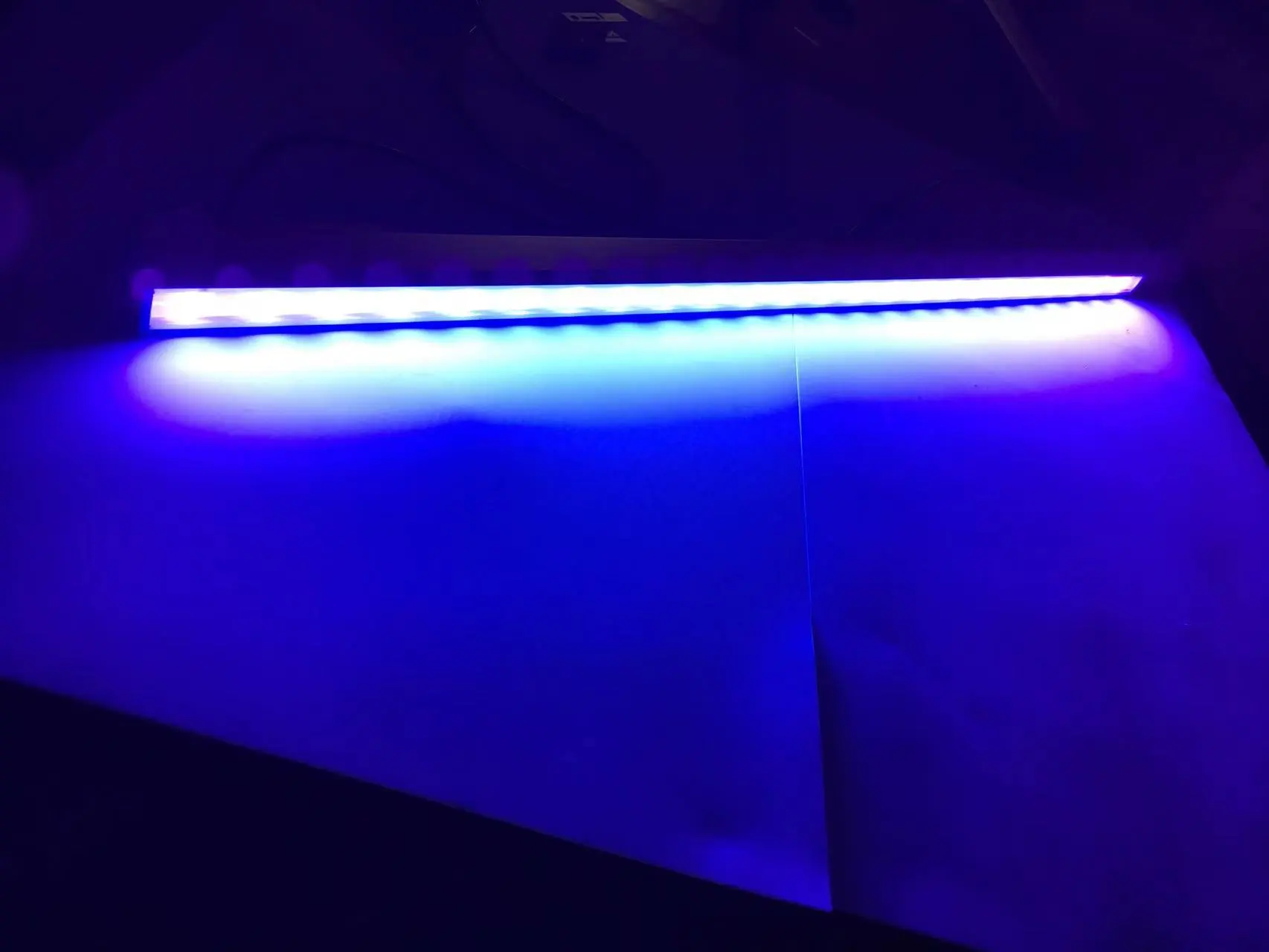

UVA 405nm Antibacterial Technology – Uses non-UVC near-UVA radiation at 405nm, proven effective against E. coli, S. aureus, L. monocytogenes, P. aeruginosa. Safe for continuous use in occupied spaces — no need to evacuate during operation.

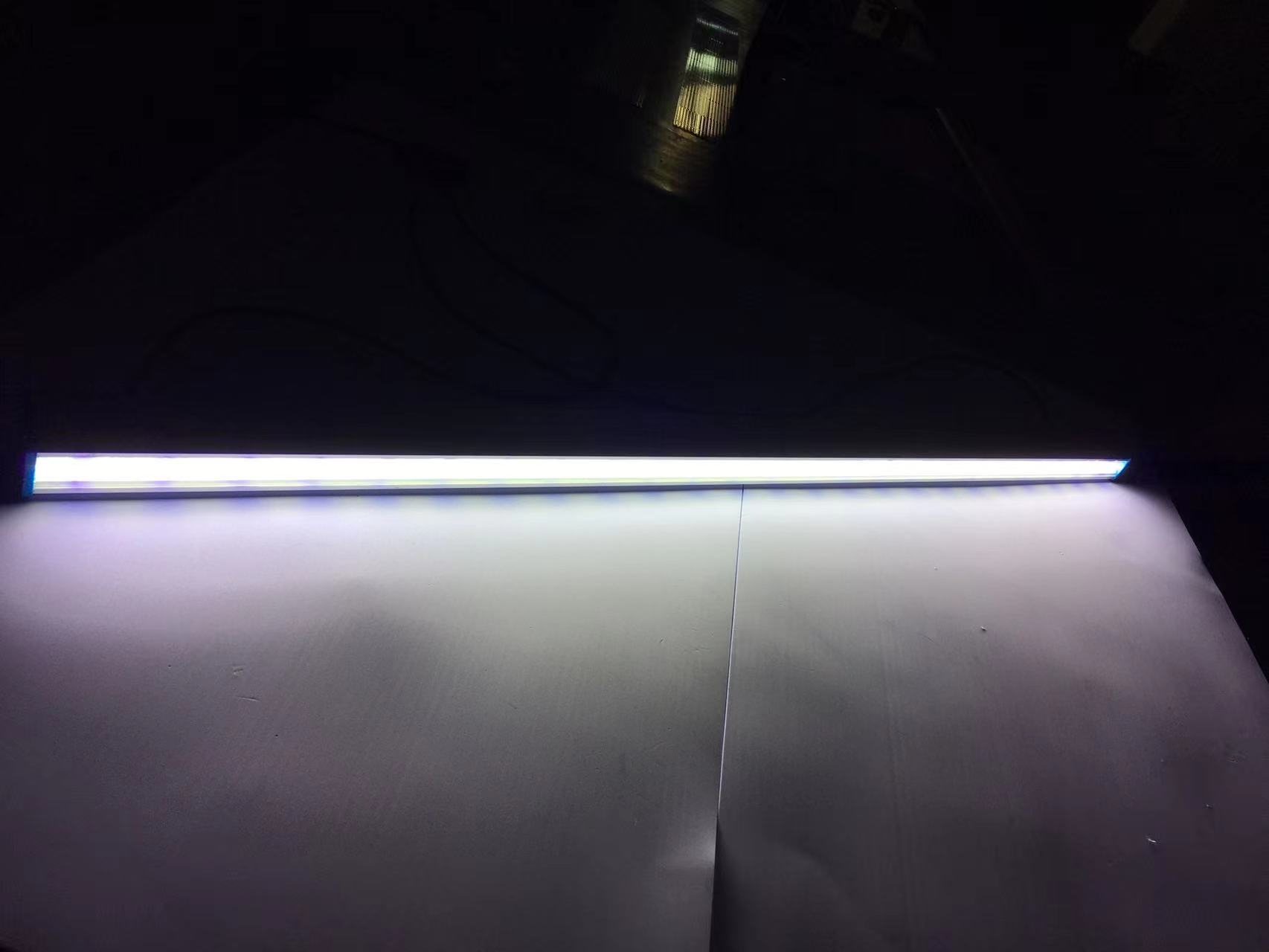

5600K PROSUN Natural Daylight (CRI>98) – Delivers sunlight-like illumination for accurate color perception. Essential for food inspection, medical examinations, and clinical environments where color accuracy matters.
IP65 Waterproof & Dustproof – Fully sealed design withstands high-pressure washdown and humid conditions. Meets HACCP hygiene requirements for food processing facilities.

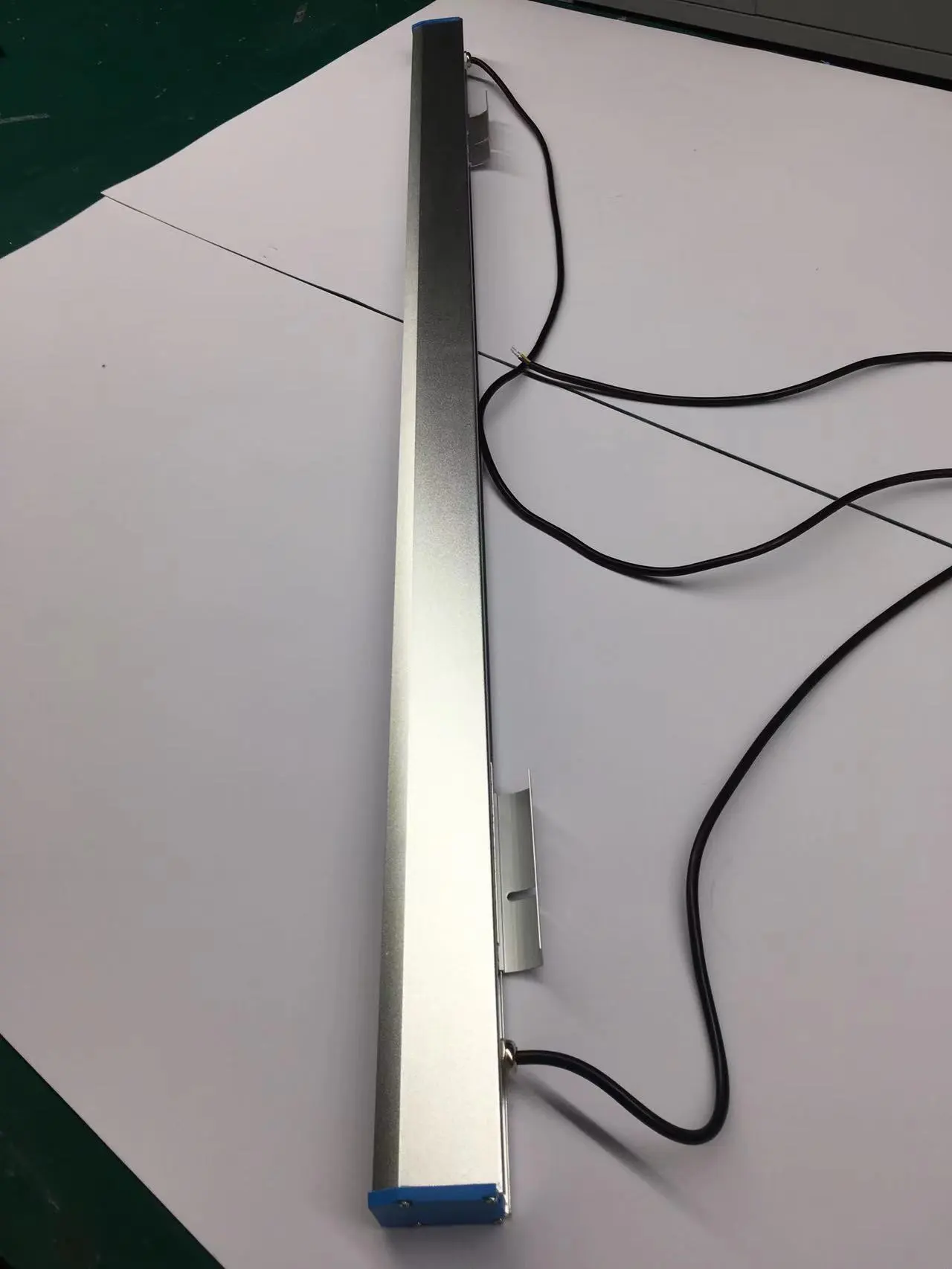

Anti-Bacterial Housing Design – Aluminum alloy 6063 housing with anti-bacterial surface treatment. No crevices where bacteria can harbor — hygienic by design.
Flicker-Free & Low Glare (UGR22) – High-quality ENEC-listed driver ensures completely flicker-free operation. Reduces eye strain for staff working long shifts.
Wholesale & OEM/ODM Available – As a direct manufacturer, Lumin offers competitive bulk pricing, custom lengths, UVC 280nm option, custom finishes, and DALI/0-10V dimming.
3-Year Warranty – Backed by comprehensive warranty coverage.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LM-V007 |
| Power | 25W (UVA) + 20W (White) |
| Luminous Flux | 1800 lm |
| Light Efficacy | 90 lm/W |

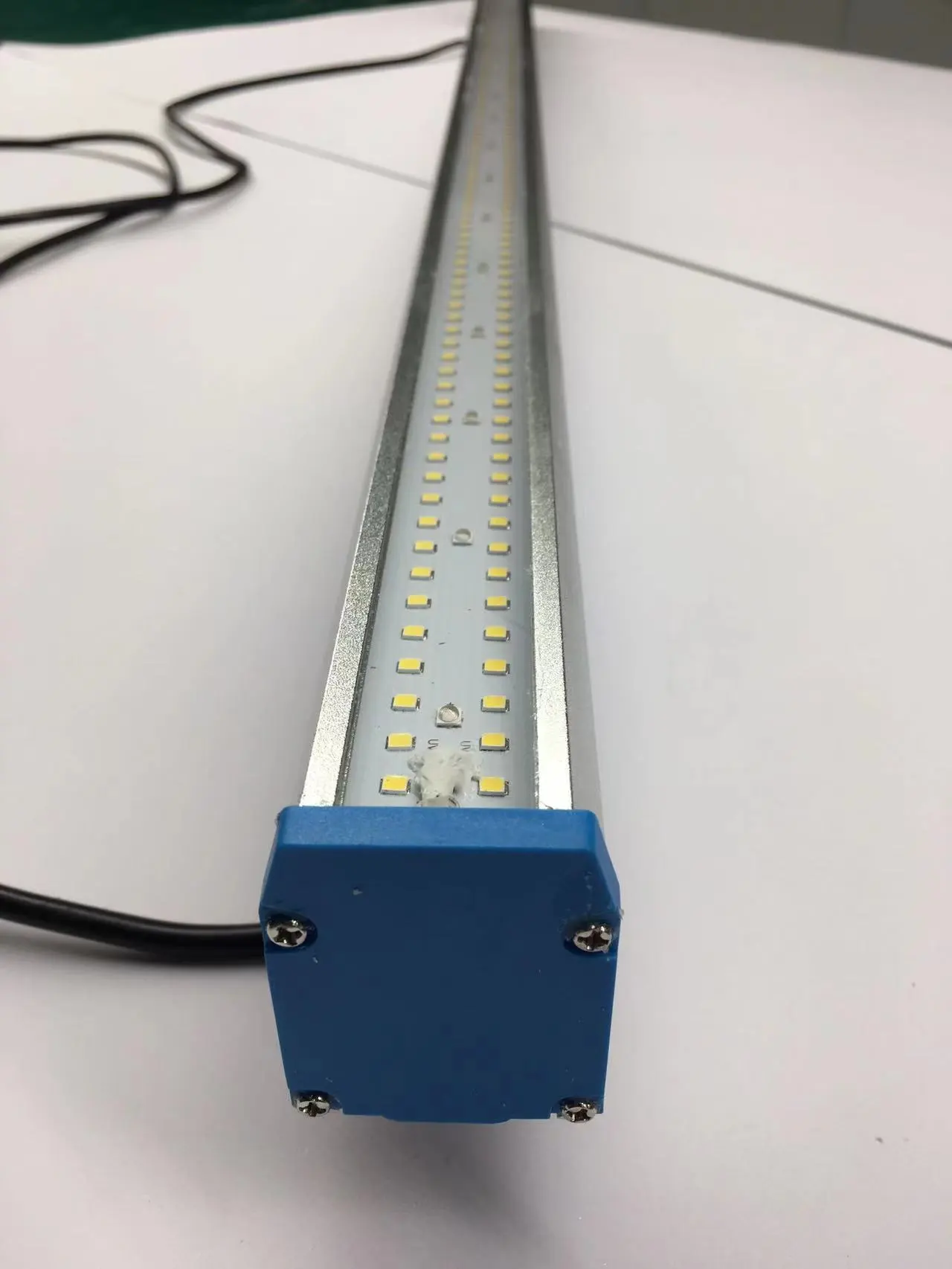

| LEDs | 0.5W SMD 2835 |
| CRI | Ra>98 (PROSUN) |
| CCT / Wavelength | UVA 405nm + 5600K PROSUN |
| UGR | 22 |
| Beam Angle | 110° |
| SDCM | <6 |
| Input Voltage | DC 36V |
| Working Voltage | 100-277V AC |
| Control | 2 Channels (UVA & 5600K) / On-off |
| Dimming Options | DALI / 0-10V (optional) |
| IP Rating | IP65 |
| Optical Material | PC Diffuser |
| Materials | Aluminum Alloy 6063 Housing + PMMA Diffuser |
| Finish | White / Silver |
| Dimension | 1195 × 43 × 57 mm |
| Installation | Suspending / Surface |
| Warranty | 3-Year Limited |
| Certifications | CE, RoHS, ENEC Listed Power Supply |
| MOQ | 10 pieces |
| Supply Ability | 20,000 pieces / month |
| Sample Lead Time | 5-7 days |
| Bulk Lead Time | 20-35 days |
Applications
| Application | Why Choose VioClean | Recommended Configuration |
|---|---|---|
| Hospitals & Clinics | Continuous UVA antibacterial function reduces surface pathogens; 5600K PROSUN supports clinical color accuracy | LM-V007 × N + DALI dimming |
| Food Processing Plants | IP65 withstands washdown; 405nm proven effective against foodborne pathogens; meets HACCP hygiene requirements | LM-V007 + Suspended mount + IP65 junction box |
| Pharmaceutical Cleanrooms | Sealed IP65 design prevents particle accumulation; anti-bacterial housing supports GMP compliance | LM-V007 + Recessed mount |
| Schools & Daycares | Continuous low-level antibacterial function in occupied spaces; flicker-free protects children‘s eyes | LM-V007 + Surface mount |
| Cold Storage & Warehouses | IP65 rated for humid and low-temperature environments; durable aluminum housing resists corrosion | LM-V007 + Suspended mount |
| Commercial Kitchens | Hygienic design with no crevices; safe for continuous use in food preparation areas | LM-V007 + Surface mount |
📌Need a project lighting plan?
We provide DIALux evo simulationandcustom lighting design services.
Send your floor plan to info@luminlight.com or click here and our engineering team will respond within 48 hours.
Related Products
📌Looking for a complete lighting solution? We offer one-stop supply from linear lights and panel lights to track lights. Contact info@luminlight.com for a product catalog.
FAQ
Q1: What is UVA 405nm and how does it kill bacteria?
A: UVA 405nm is a near-ultraviolet wavelength that excites endogenous porphyrins inside bacterial cells, producing reactive oxygen species (ROS) that damage cell walls and DNA. Unlike UVC 254nm, UVA 405nm is safe for continuous use in occupied spaces. Studies show significant inactivation of E. coli, S. aureus, and L. monocytogenes on surfaces under 405nm exposure.
Q2: Is UVA 405nm safe for humans?
A: Yes. UVA 405nm is non-UVC and does not cause acute skin or eye damage at normal exposure levels. It is safe for continuous operation in occupied environments such as hospitals, schools, and food processing areas. Our product complies with IEC/EN 62471 photobiological safety standards.
Q3: Can this light be used in food factories?
A: Yes. The IP65 rating withstands high-pressure washdown and humid conditions, meeting HACCP hygiene requirements. The 405nm wavelength is effective against common foodborne pathogens, and the 5600K PROSUN CRI>98 illumination supports accurate food inspection.
Q4: What is the difference between UVA 405nm and UVC 280nm?
A: UVC 280nm is a stronger germicidal wavelength but is hazardous to humans and must only be used in unoccupied spaces. UVA 405nm is a safer alternative that can operate continuously in occupied environments. We offer both options — UVA 405nm as standard, UVC 280nm available upon request.
Q5: Can the UVA and white light channels be controlled separately?
A: Yes. The LM-V007 has 2 independent channels — 25W UVA and 20W 5600K. You can operate them separately via on/off control, or request DALI/0-10V dimming for advanced control.
Q6: What is the minimum order quantity (MOQ) and lead time?
A:MOQ is 100 pieces. Sample lead time is 5-7 days. Bulk production lead time is 20-35 days depending on order quantity. We offer OEM/ODM customization including custom lengths, finishes, and dimming protocols.
Q7: Do you provide IES files and test reports?
A: Yes. We provide IES files for DIALux lighting design and antibacterial test reports. Contact info@luminlight.com or click here to request the complete documentation package.
Q8: What is the warranty and after-sales policy?
A: 3-year limited warranty. If any manufacturing defect occurs, we provide replacement components or discuss a solution based on the situation. Our after-sales team responds within 24 hours.
