Lumin 130 LPW 2X4 60W LED Panel Light for USA
Edge-lit Technology with Ultra-slim 9mm Design
Premium Materials
Long Lifespan & Reliable Warranty
Smart Dimming Compatibility
Superior Color Quality
Flicker-Free & Instant Start
High Power Factor >0.9
IP44 Rated
Product Description
| Parameter | Specification |
|---|---|
| Product Type | Edge-lit LED Panel Light (2x4 ft) |
| Model | LM-PL-2x4 (130 lm/W) |
| Size | 2x4 ft (approx. 600x1200mm) |
| Power | 60W |
| Luminous Efficacy | 130 lm/W |
| Luminous Flux | 7800 lm |
| CCT | 5000K (Daylight White), also available in 3000K, 4000K, 6000K |
| CRI | ≥80 (Ra>90 optional) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V, 50/60 Hz |
| Power Factor | >0.9 |
| Dimming Protocols | TRIAC, DALI, 0-10V, Wireless (Zigbee/Tuya optional) |
| Lifespan | ≥50,000 hours (L80B20) |
| LED QTY | 360 PCS SMD 2835 |

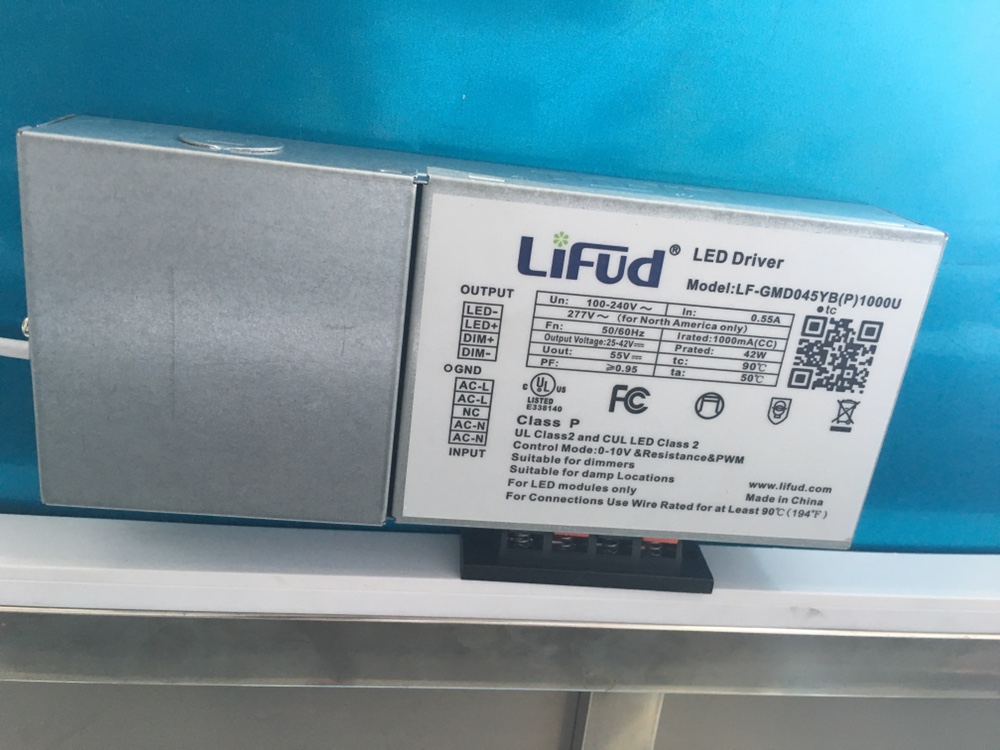

| LED Driver | Lifud (ENEC listed) |

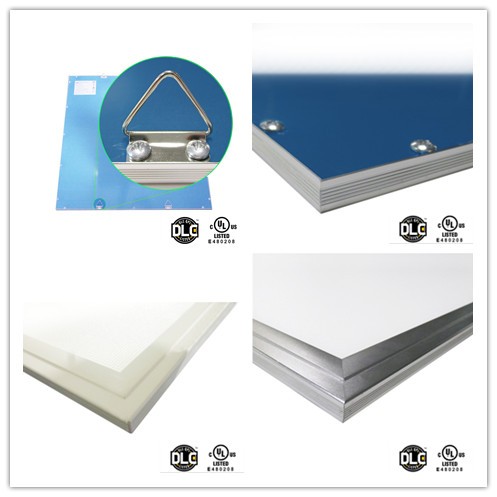

| Frame Material | 6063 Aluminum alloy |
| LGP Material | 3T CHIMEI PMMA |
| Diffuser Material | Fire-resistant PC |
| Thickness | 9 mm |
| Weight | Approx. 4.0 kg |
| IP Rating | IP44 |
| Color Tolerance | SDCM<3 |
| Certifications | DLC, ETL, CE, RoHS, SAA, VDE |
| Warranty | 5-year limited warranty |
| Operating Temperature | -20°C to +40°C |

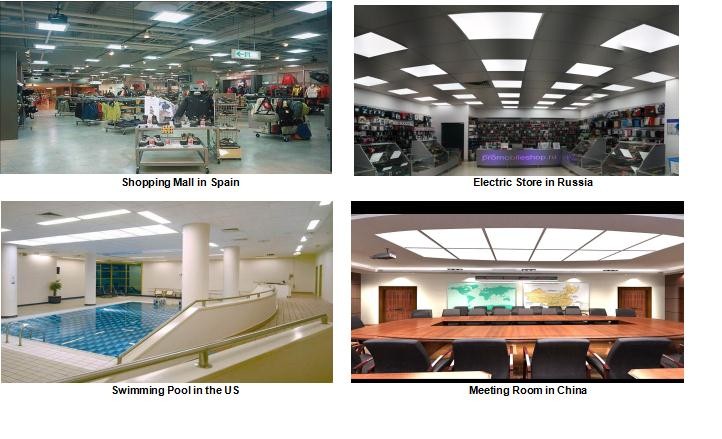

Application
Corporate Offices – Reduce eye strain with uniform, flicker-free lighting, enhance employee productivity
Schools & Universities – Compliant with classroom lighting standards, DLC/ETL certified for institutional projects
Healthcare Facilities – High CRI (optional Ra>90) available for accurate color perception in clinical settings
Retail Stores & Showrooms – 5000K daylight white makes merchandise colors pop, attracts customers
Hospitality – Hotels, restaurants, lobby areas benefit from the slim, modern aesthetic
Government & Municipal Buildings – DLC listed for energy incentive qualification
Residential – Home offices, basements, garages, kitchens

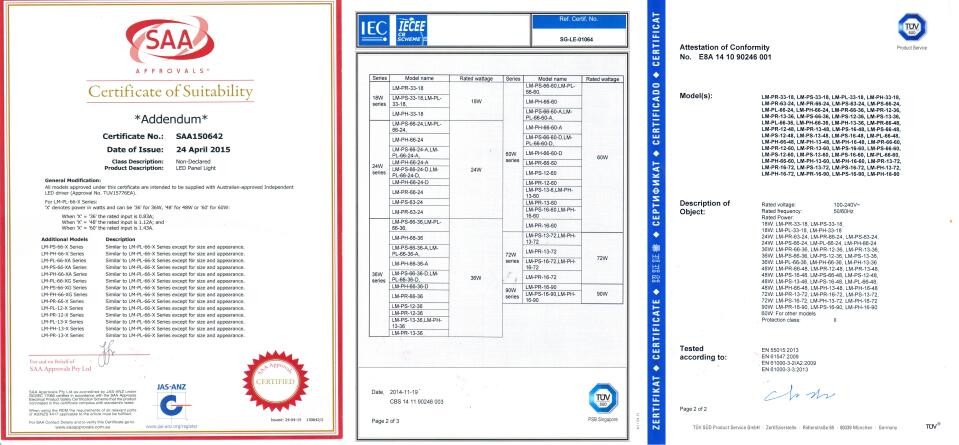

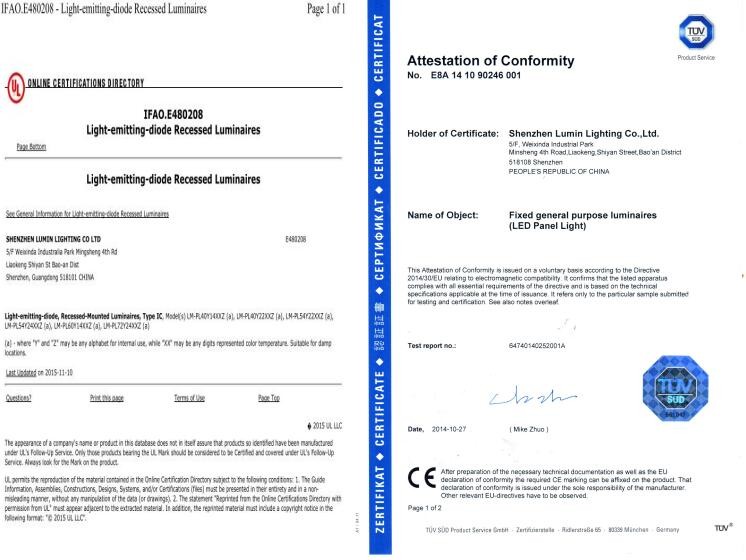

Certifications

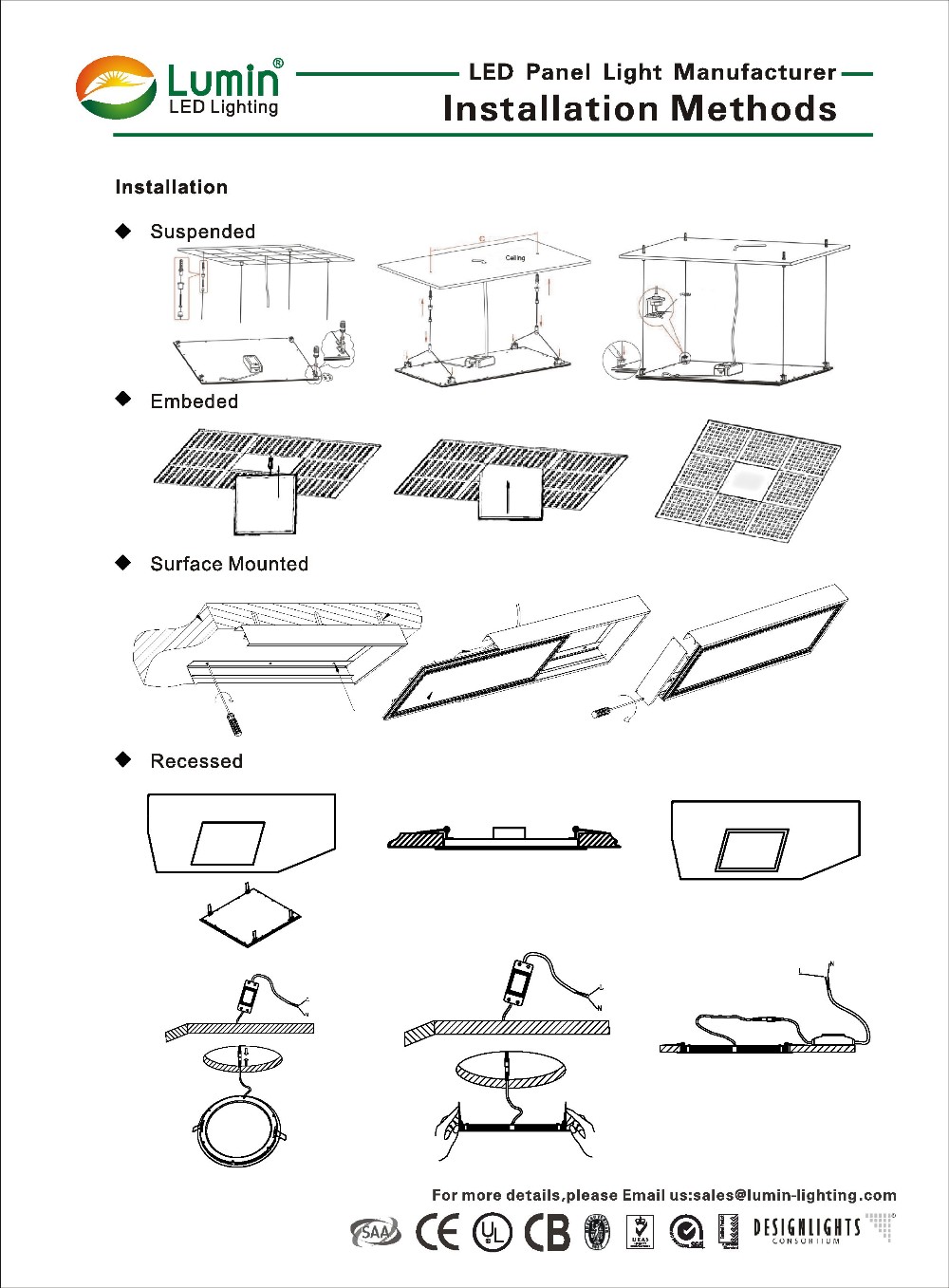

Installation
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while wiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents.
Lumin will not bear any responsibilities due to such deeds.

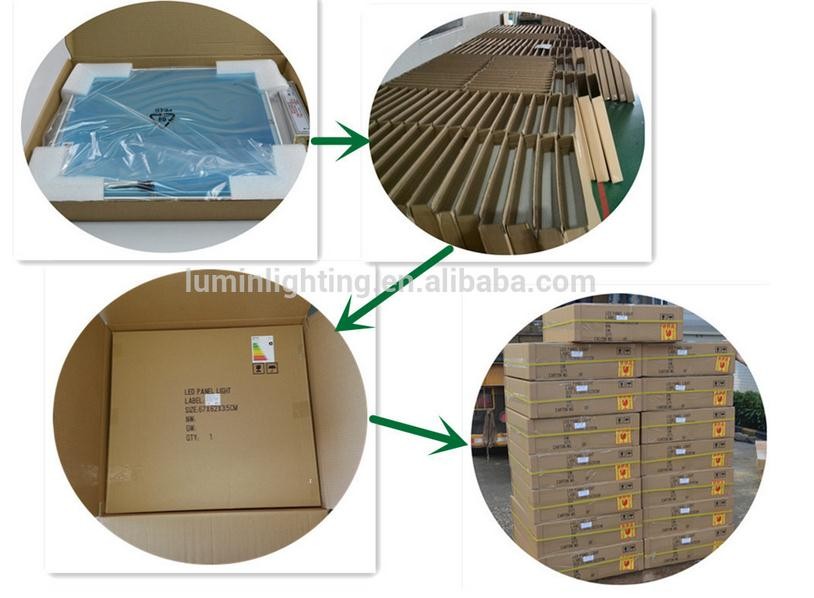

Packaging & Shipping
One panel in an inner box ,one master carton contain 3 inner boxes.
Inner carton size:128CM*63*CM*4cm
Inner carton GW:7.2KG
Master carton size:130CM*65CM*15CM
Master carton GW:39KG
Shipping by Fedex,DHL,TNT.Air,shipping is also avaliable

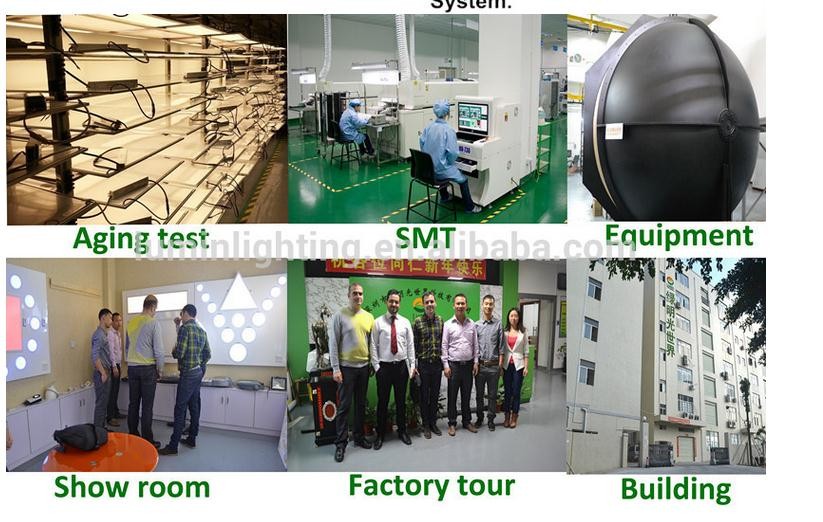

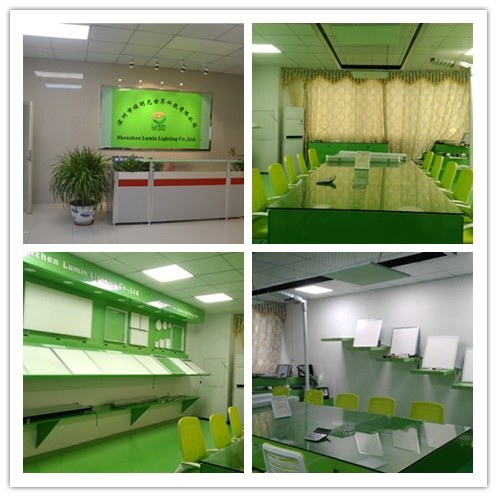

Company Information
