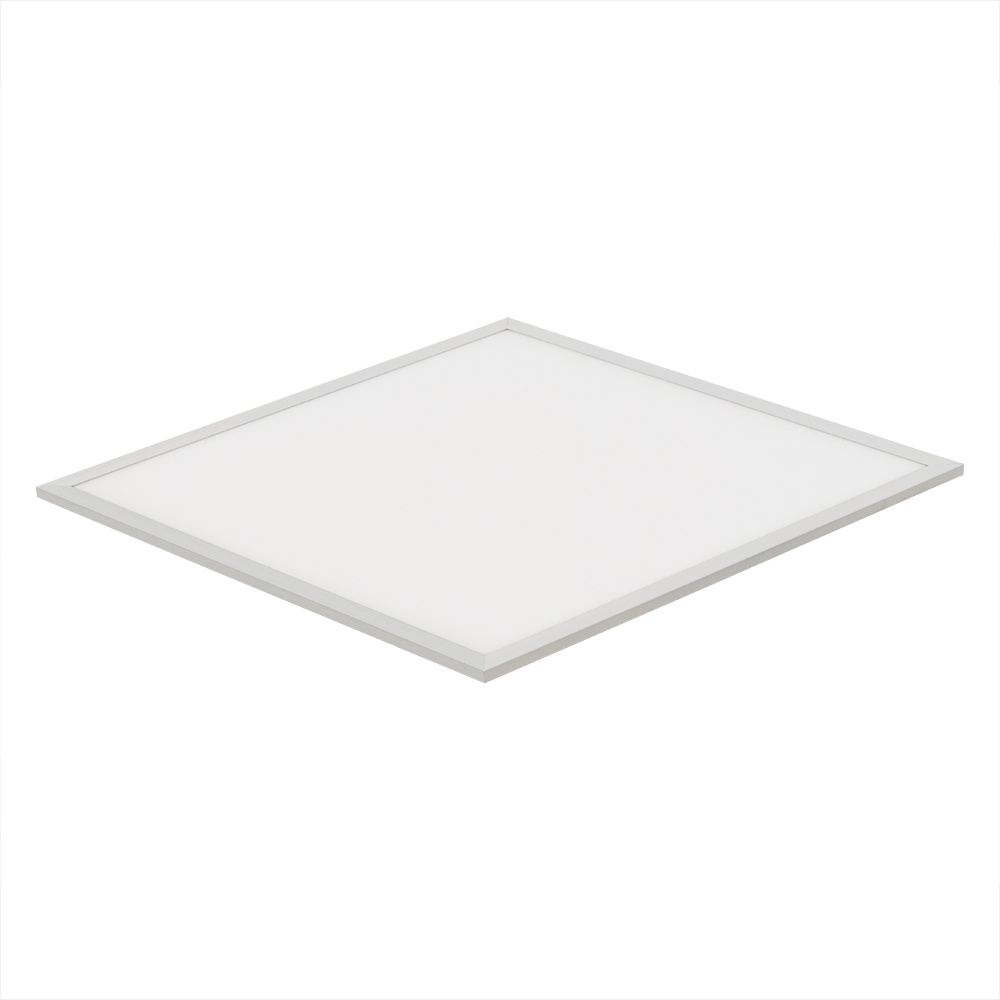

130 lm/W 40W Screwless Color Changing LED Panel Light 595x595 – Lumin
Product Description
Specification:
| Model | LM-PN66-36W | PN66-36WH | PN66-36W-CCT |
| Input power | 40w | 39w | 46w |
| Luminous Flux | 3600-4000LM | 4800 lm | 3200-4000 lm |
| Input Voltage | 100v-277v | 100v-277v | 100v-277v |
| CRI | >80 | >80 | >80 |
| CCT | 3000,4000, 5000,6000K | 4000K(NW) | 3000-6000k |
| Mounting | Surface mounted/Suspended | Surface mounted/Suspended | Surface mounted/Suspended |
| Lifetime | 50,000 hours | 50,000 hours | 30,000 hours |
| Warranty | 5years | 5years | 3years |
| Size | 595*595*12mm | 595*595*12mm | 595*595*12mm |
| Dimming Solution | / | / | Triac/0-10v/ DALI |
| Light efficacy | 95-110 lm/W | 130LM/W | 80-100 lm/W |
| IP rating | IP40 | IP40 | IP40 |
| Model | LM-PN1203-36W | LM-PN1203-36WH-NW | LM-PN1203-36W-CCT |
| Input power | 40w | 39w | 45w |
| Luminous Flux | 3600-4000LM | 4800 lm | 3200-4000 lm |
| Input Voltage | 100v-277v | 100v-277v | 100v-277v |
| CRI | >80 | >80 | >80 |
| CCT | 3000,4000, 5000,6000K | 4000K(NW) | 3000-6000k |
| Mounting | Surface mounted/Suspended | Surface mounted/Suspended | Surface mounted/Suspended |
| Lifetime | 50,000 hours | 50,000 hours | 30,000 hours |
| Warranty | 5years | 5years | 3years |
| Size | 595*595*12mm | 595*595*12mm | 595*595*12mm |
| Dimming Solution | / | / | Triac/0-10v/ DALI |
| Light efficacy | 95-110 lm/W | 120LM/W | 80-100 lm/W |
| IP rating | IP40 | IP40 | IP40 |
Can be custom-maked as led track panel light / dual emission panel
Features:
Screwless Snap-Fit Installation: Install in seconds without any tools, eliminating exposed screws for a clean and safe finish.
Tunable White (3000K-6500K): Switch seamlessly from cozy warm light to energizing cool daylight, adapting to any task or mood.
High Efficacy (130 lm/W): Delivers 3600 lumens of bright light at just 40W, drastically cutting your energy bills.
4-in-1 Mounting Flexibility: Versatile design supports surface-mounted, suspended, or recessed installation to match any project requirement.
Smart Dimming Ready: Fully compatible with 0-10V, DALI, and Triac systems for seamless integration with building automation.
Premium Build Quality: Crafted from high-grade aluminum alloy with an optical PMMA light guide plate for uniform, long-lasting performance.
Long Lifespan & Warranty: Rated for 50,000 hours of operation and backed by a 5-year warranty for peace of mind.

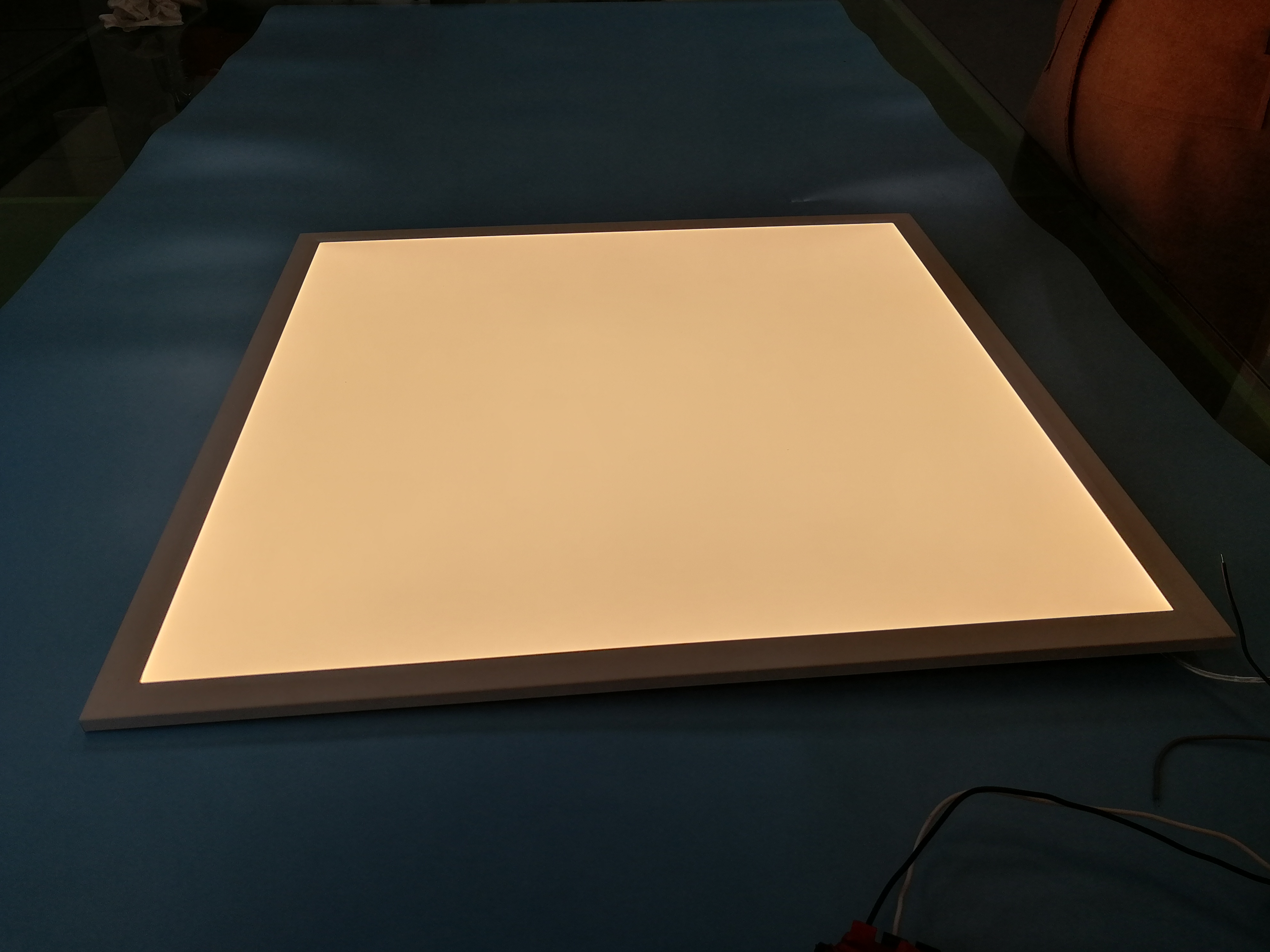

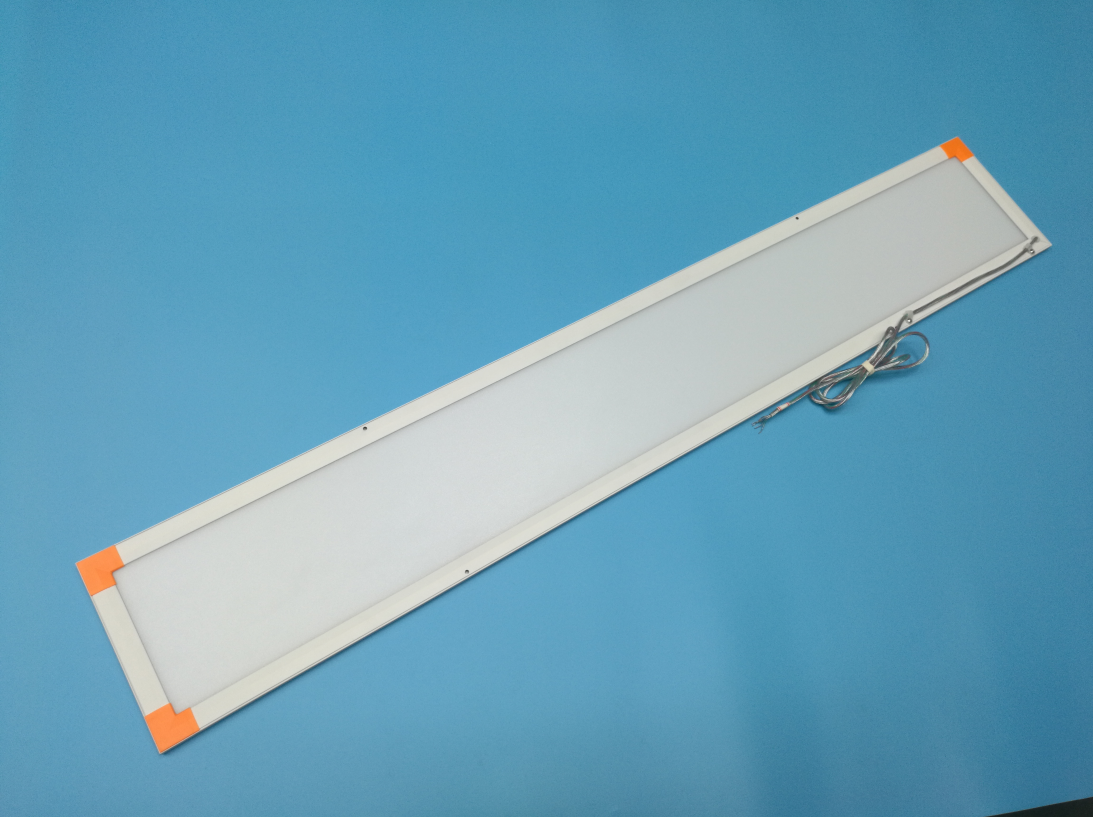

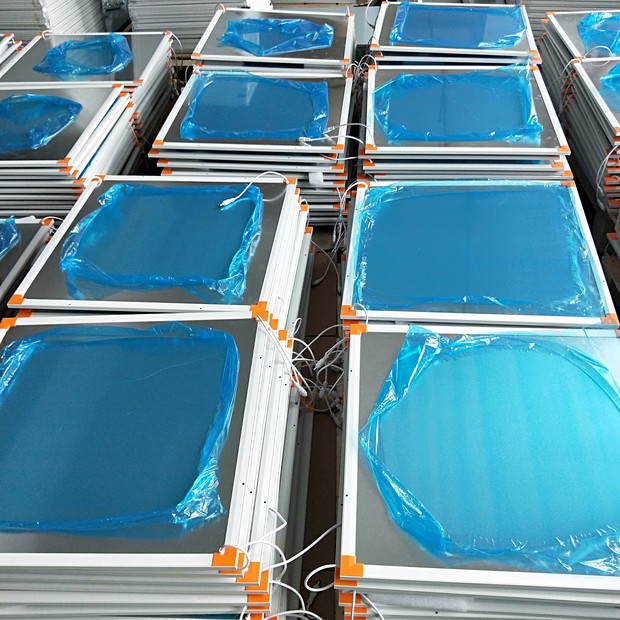

Product pictures



You may like
Frameless CCT dimmable panel light/ CRI95/ 130LM/W
Double-glow panel light / 120x20/ 120x30 CCT dimmable/ CRI95/ IP54/ IP44/ UGR19

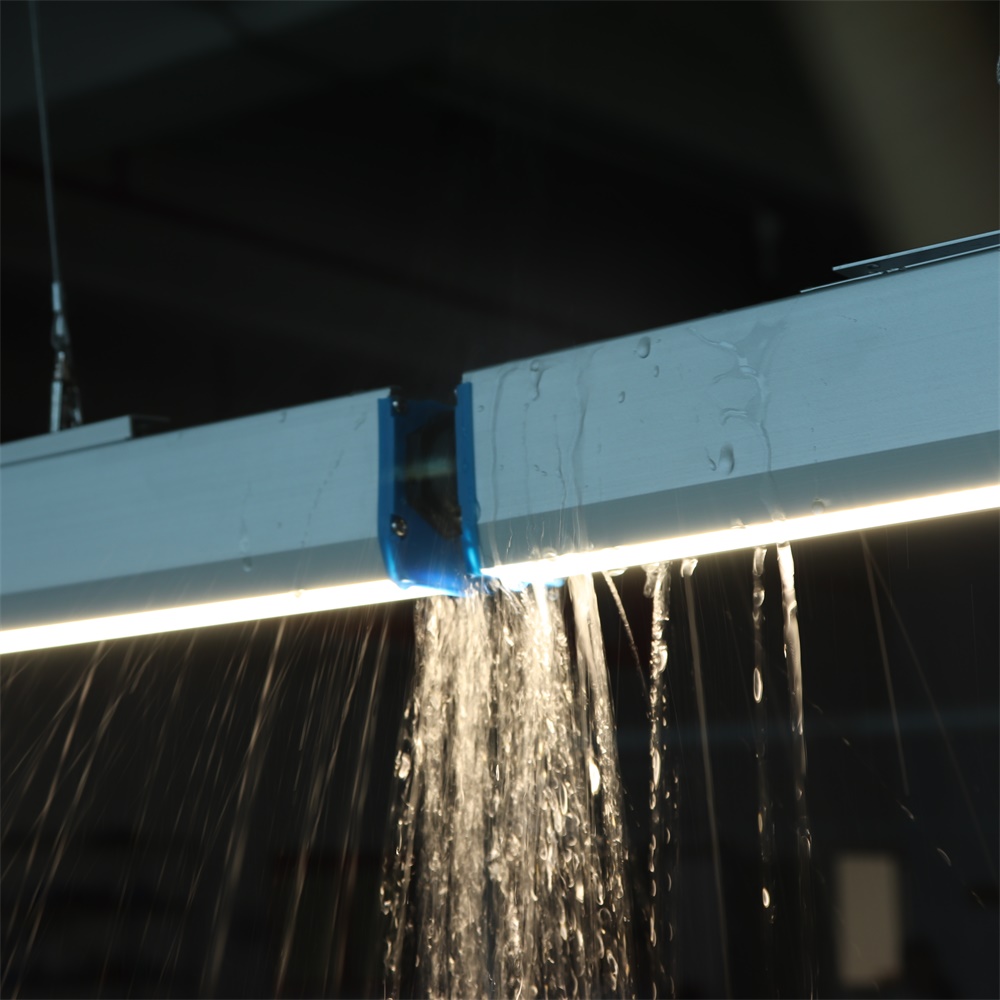

IP65 interconnected linear light ( can be designed as wall washer, glow light and non-connected type)
Beam angle from 30-120° optional

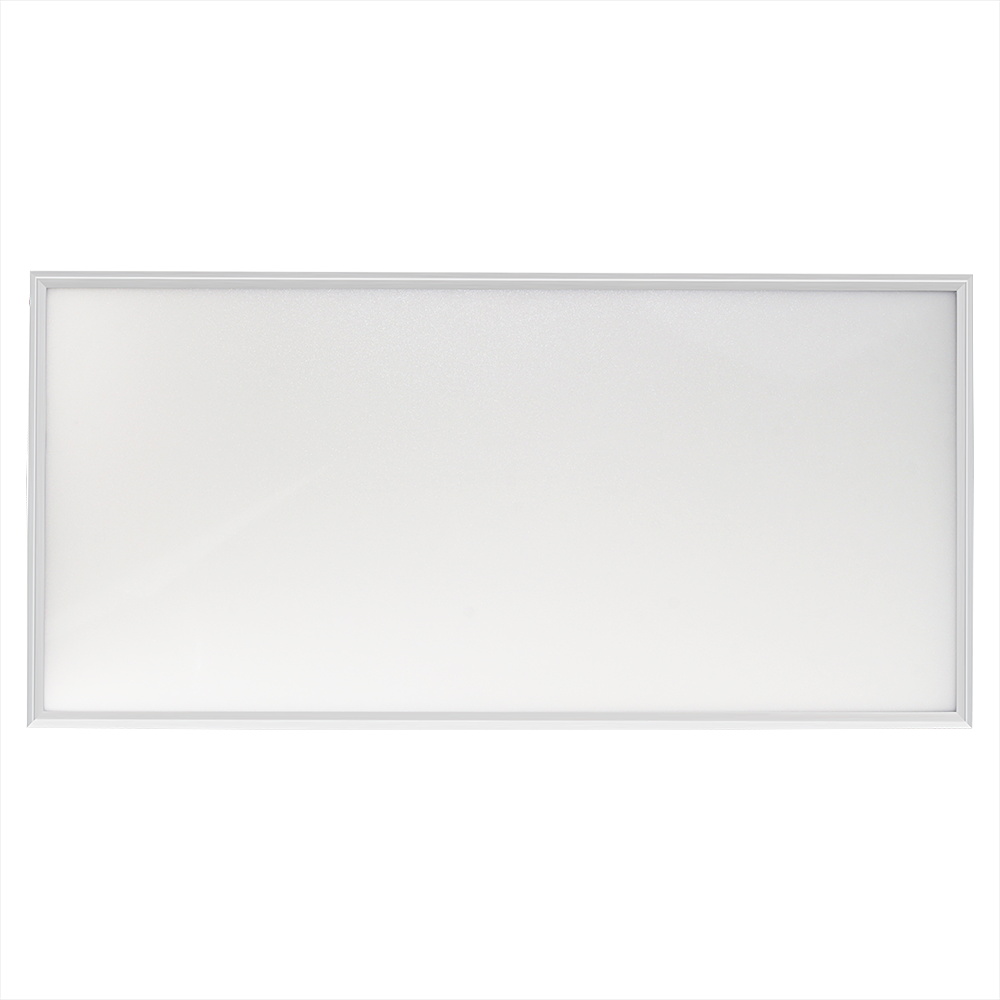

1200X600/ 2X4FT panel light / CRI90 / UGR19/ CCT dimmable

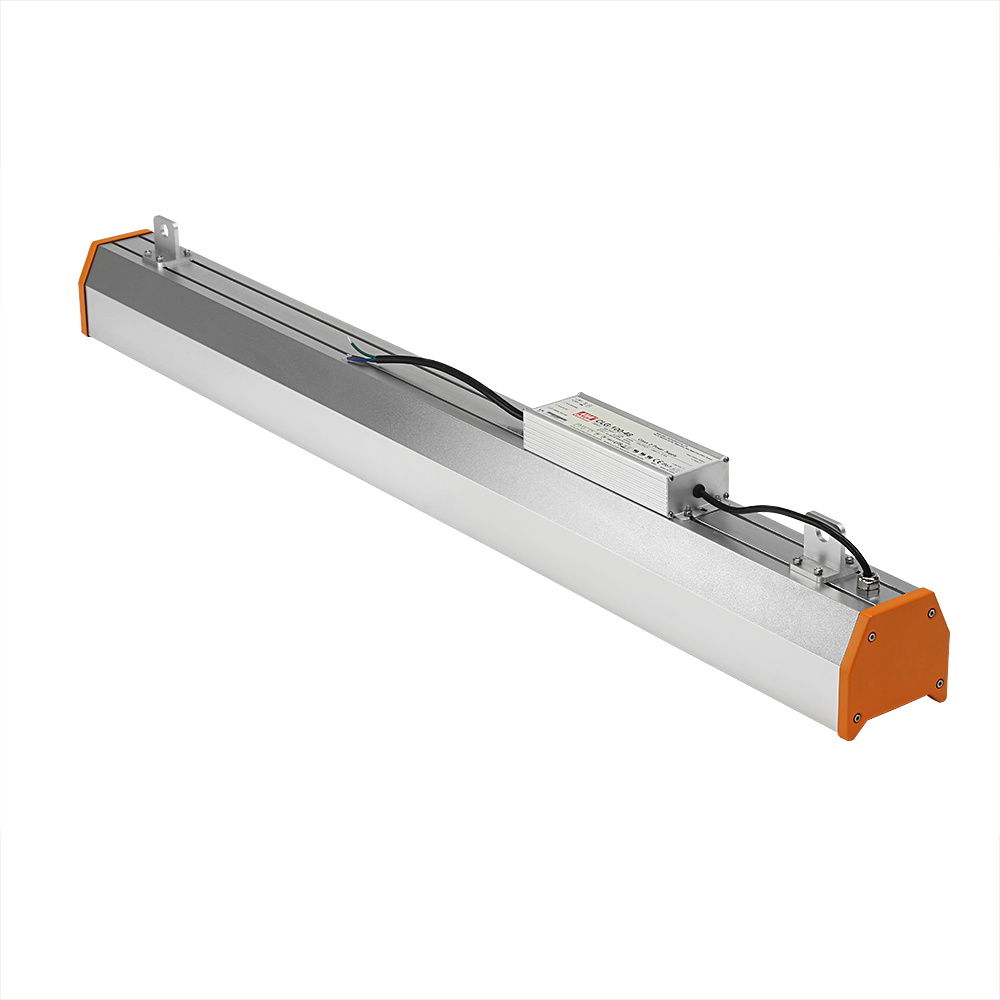

Linear high bay light from 60watt to 600 watt

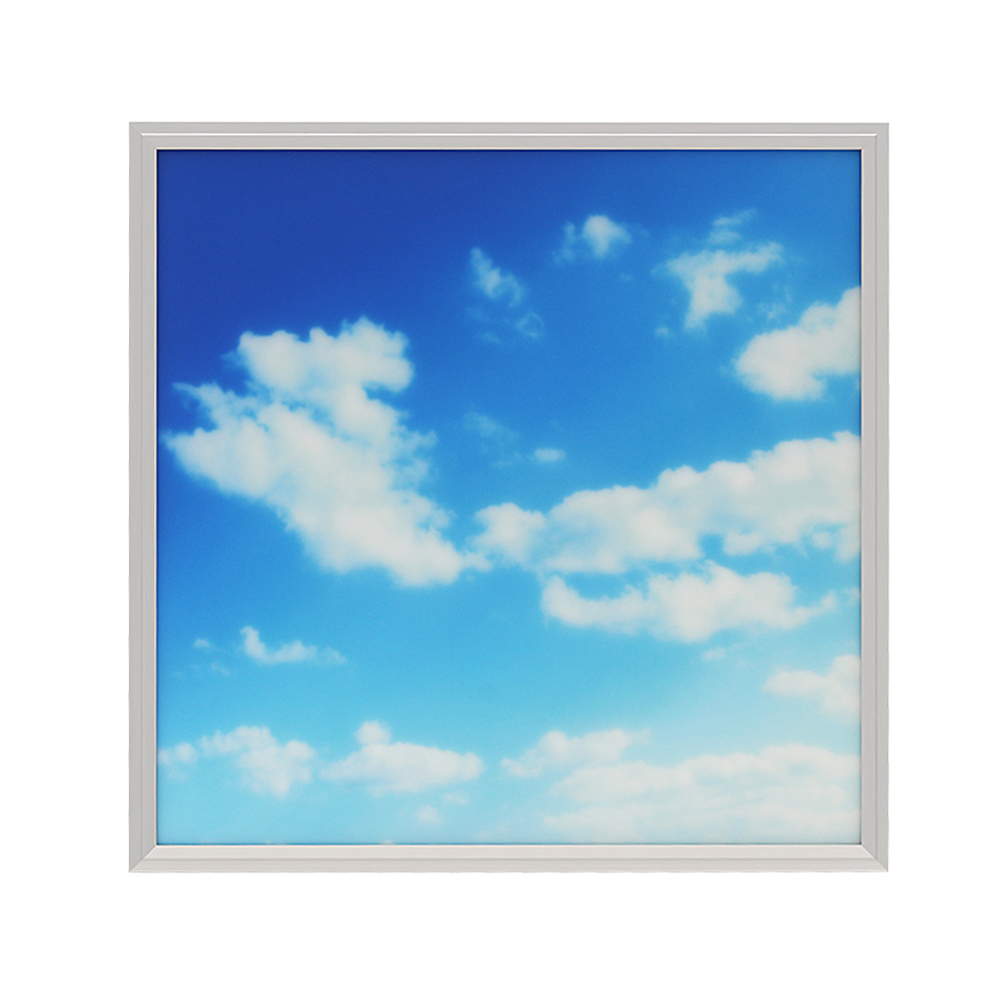

Graphic panel light / custom-make pics optional

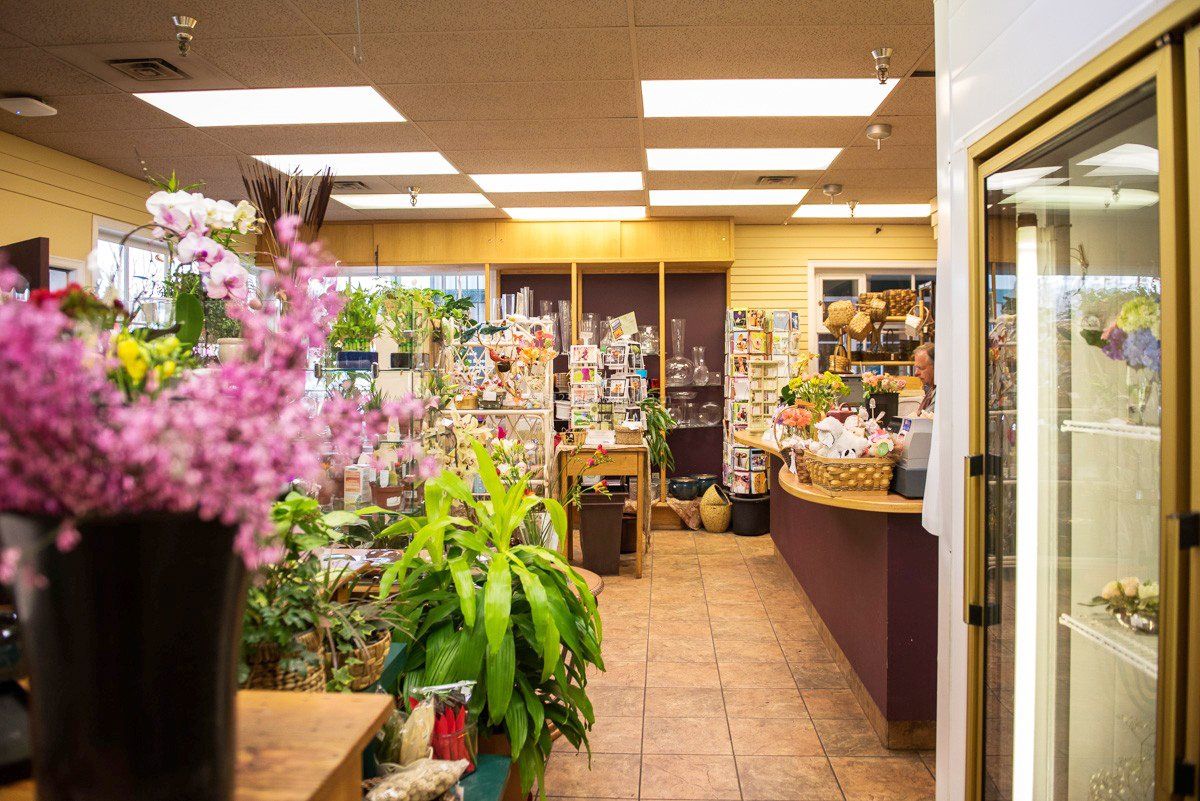

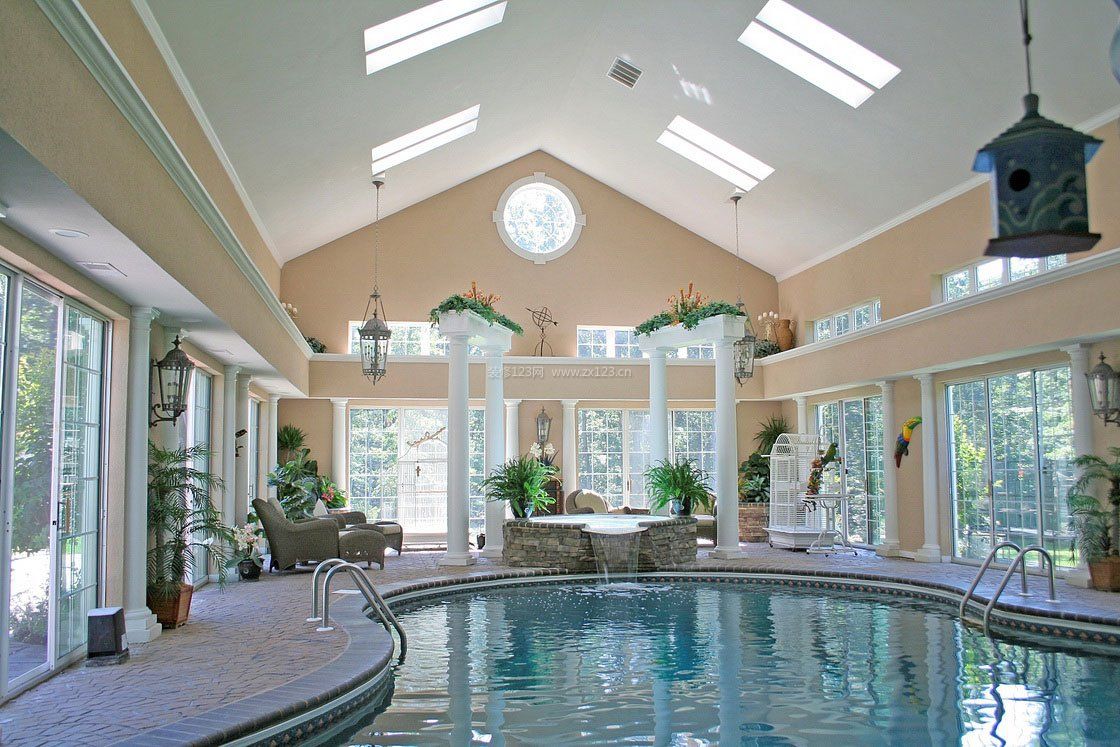

Applications
It is widely used in offices, workshops, shoppping malls, schools, libraries, hospitals, hotels, retail outlets, living rooms, airports, entertainment places etc.

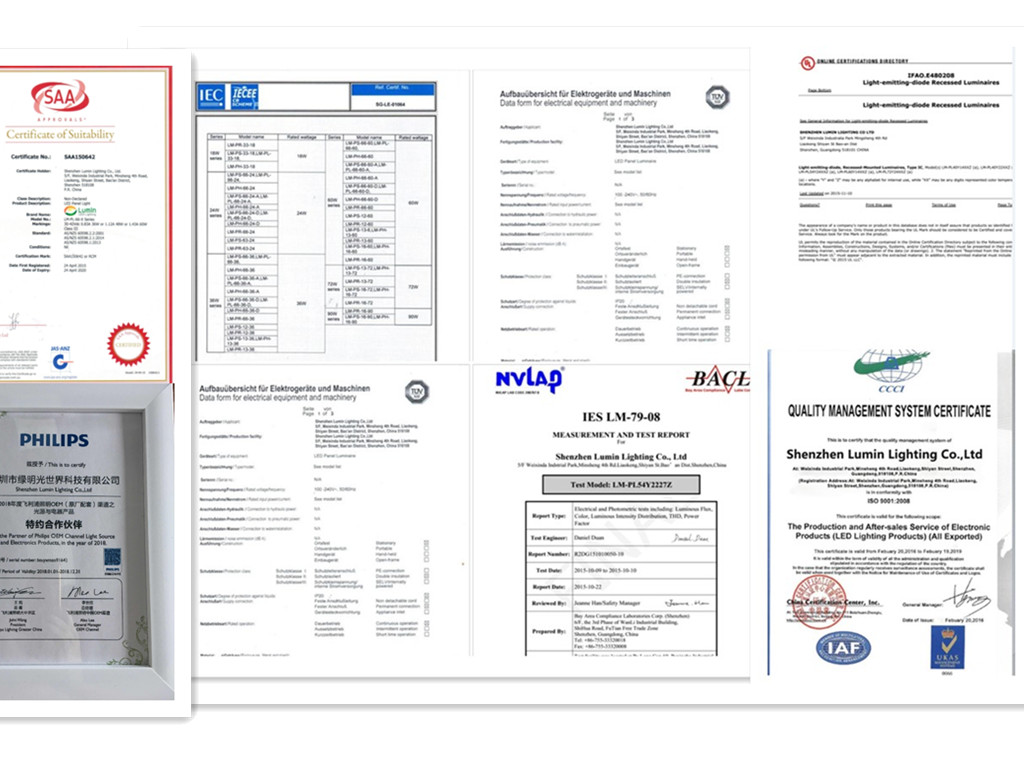

Certification

Packaging & Shipping
Packaging
595*595mm series super slim panel light are packaged with K= K solid carton & foams. It is save % solid for the long distance transportation.
| Item | Inner box | Outer box |
| QTY | 1PC/BOX | 6PCS/Carton |
| SIize | 68*62*3.5cm | 69.5*24*64cm |
| Weight | 3.5KG | 21KG |
Shipping
5-7 working days for sample ,15 days for the large quantity packaging

Company Information
Lumin Profile
Lumin product lines mainly include LED panel light, LED downlight, LED tube light, LED track light, LED bulbs, LED street light, LED industrial light & LED flood light. Besides, Lumin also privides customized lighting solutions to customers.
Lumin takes product QUALITY as our lifeline. We focus on quality control during the whole production process by strictly carrying out ISO9001 Quality System & ISO14001 Environment Management System. Meantime we emphasize training our workers & staff to improve production management & quality control. Our LED lighting products are awarded certificates of CE, RoHs & authoritative organizations. With good quality control, Lumin are well recieved by customers through the world.
Core Value
Loyalty, Action, Sustainablity, Responsebility
Business Philosopy
Lumin Lighting is devoted himself to providing quality LED lighting products & services to families, institutions & communitities through continuous innovation. We always believe that"the customer is always right". The customer complaint is always fast responded as long as any feedback comes back. Besides, we always believe that"win-win strategy"can help us keep longterm business relationship with customers.

Our Services
* Your inquiry will be replied within 24 hours.
*Customized specification can be accepted.
*Protection of your sales area, ideas of design & all your private information.
*Best-trained & experienced sales follow up with your inquiries & orders.
Indoor lighting solution: workshop lighting design, show room lighting design, government lighting project design, cafe bar lighting design, home lighting design, counter lighting design, restaurant lighting design, office lighting design, hospital lighting design, conference lighting design, school lighting design, hotel lighting design, supermarket lighting design, factory lighting design, warehouse lighting project design, indoor sports center design.
Outdoor lighting solution: high way lighting design, city night scenery lighting design, plaza lighting project design, community lighting design.
Q1.Can I have a sample order for LED light?
A:Yes.We welcome sample order to test and check quanlity.Mixed samples are acceptable.
Q2.What about the lead time?
A:Sample needs 3-5days,mass production time needs 1-2 weeks for order quantity more than.
Q3.Do you have any MOQ limit for LED light order?
A:Low MOQ 1pc for sample checking is avaiable.
Q4.How do you ship the goods and how long does it take to arrive?
A:We usually ship by DHL,FedEx or TNT.It usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q5:Is it ok to print my LOGO on LED light product?
A:Yes.Please inform us formally before our production and confirm the design firstly based on our samle.
Q6.Do you offer guarantee for the products?
A:Yes.We offer 2-5 years warranty to our producs.
If you want to well know more informations,feel free to contact us.
