led panel light

Lumin 36W 600×600 UGR17 Sun Spectrum LED Panel – Glare‑Free Office Lighting

LM-PL66-36WH
UGR17 – certified anti‑glare, no reflections on screens
CRI98 – sunlight spectrum, see true colors
Tunable white 2700‑5600K – supports human circadian rhythm
36W / 600×600mm – ideal for 2×2 ft ceiling grid
9mm ultra‑thin – seamless flush or surface mount
5‑year warranty – CE & RoHS certified
minimum order
10 pieces
Supply Ability
20000pieces / Month
Country of Origin
Shenzhen
Stock Time
20Day
Quantity:
Contact Now

Upgrade your office environment with the Lumin 600×600 UGR17 LED panel.

Designed specifically for workplaces where visual comfort is critical, this 36W edge‑lit panel combines a low UGR17 to eliminate screen glare,

a sun‑like spectrum (CRI98) for vivid color rendering, and tunable white (2700‑5600K) to align with your team‘s natural circadian rhythm.

Why choose this panel?

  • No more eye fatigue – UGR17 (Unified Glare Rating) keeps glare well below the discomfort threshold. Your employees can work under bright, flicker‑free light without screen reflections or headaches.

  • True sunlight, even indoors – With CRI98 and full‑spectrum LEDs, colors appear as they would under natural daylight. Perfect for design offices, medical rooms, or any space requiring high color accuracy.

  • Human‑centric lighting (HCL) – The tunable white function automatically shifts from cool (5600K) to warm (2700K) throughout the day, improving alertness, mood, and sleep quality.

  • Smart building ready – Integrated DALI and CASAMBI protocols (also 1‑10V, Triac, Zigbee, Tuya) allow seamless dimming, scene setting, and energy management.

  • Ultra‑thin & clean look – At only 9mm thick, this panel sits flush with T‑bar or drywall ceilings, giving a modern, frameless appearance.

Technical Highlights

SpecificationDetail
Size600 x 600 mm (2 ft x 2 ft)
Power36W (±5%)
Luminous efficacy110 lm/W
CCTTunable 2700K – 5600K (or fixed 3000K/4000K/5000K/6000K)
CRI≥98 (full spectrum)
UGR<17
Beam angle110°
Lifetime>50,000 hrs (L80B20)
Input voltage220‑240V AC / 100‑277V AC, 50/60 Hz
Dimming protocolsDALI, CASAMBI, 1‑10V, Triac, Zigbee, Tuya
MaterialAluminium alloy + PMMA light guide + PC diffuser
Thickness9 mm
IP ratingIP20 (indoor)
CertificationsCE, RoHS
Warranty5 years

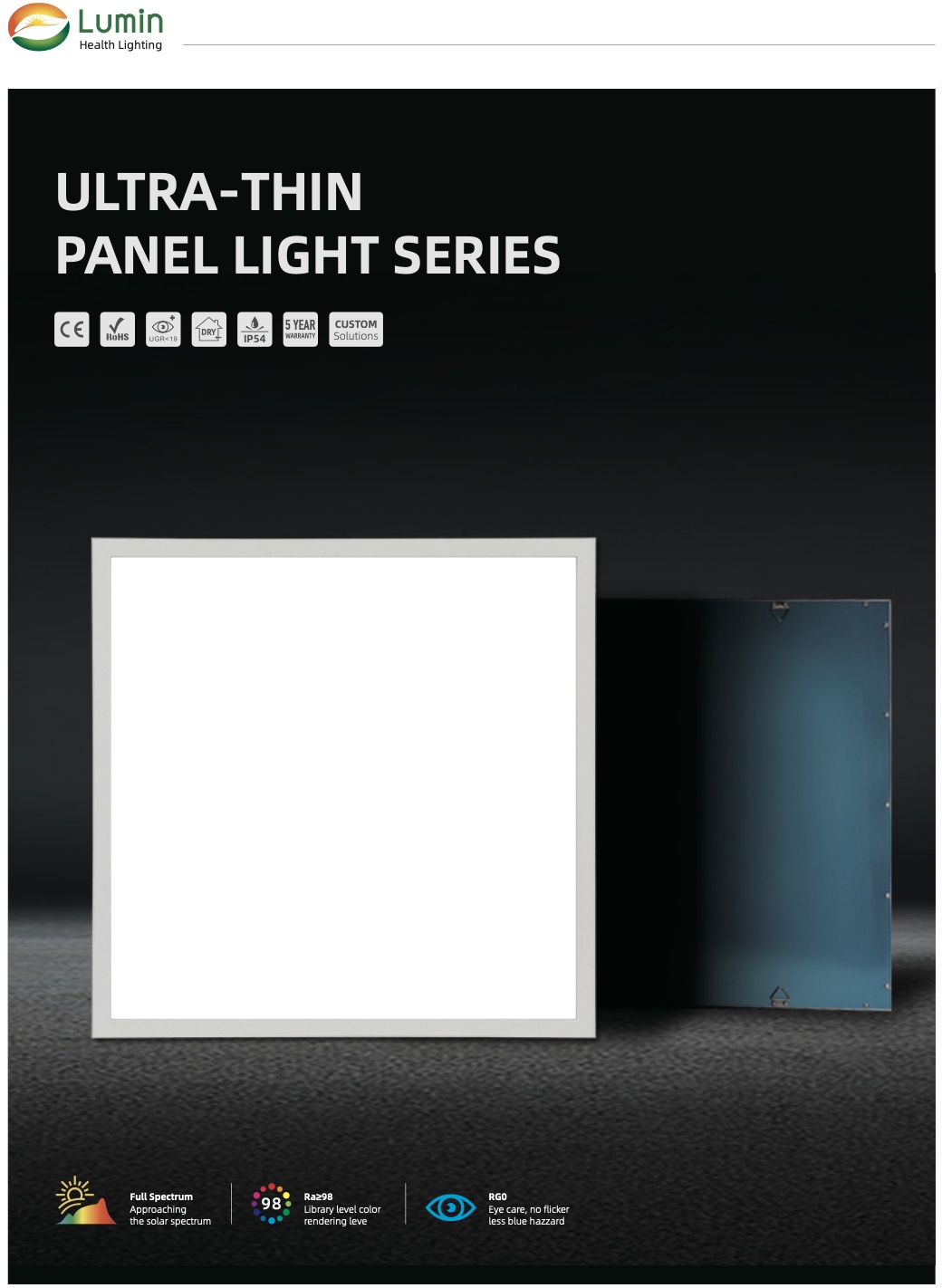

Lumin ultra-thin 9mm edge-lit panel design features CRI98 full spectrum and circadian rhythm lighting.
Lumin edge-lit panel light can work with Smart Control Casambi, Tuya, Zigbee, DALI, 0-10v


Where to use this 600×600 LED panel?

  • Open‑plan offices, meeting rooms, call centers

  • Schools, universities, libraries

  • Hospitals, clinics, therapy rooms

  • Retail stores, showrooms, art galleries

  • Any ceiling with standard 600×600 mm grid

Easy installation & B2B friendly

  • Mounting: Recessed (into T‑bar) or surface‑mounted (brackets included)

  • Wiring: Class II, driver integrated (no extra ballast)

  • Bulk order: MOQ 10 pieces, sample order available

  • Lead time: 15‑20 days for bulk, 3‑5 days for sample

  • Customization: OEM logo, special CCT/CRI, dimming protocol on request




Life can not without the Sun

The light of the sun affects the biology, psychology, and human body by regulating the circadian rhythm of human beings, bringing many health advantages to the human body.
But modern people who spend most of their time indoors use light that is completely different from this kind of sunlight and cannot get health benefits from the sun.
Sunlike is the natural light that reproduces the sun and brings the sun to our physiology, psychology, and human interest.
Lumin ede-lit panel light is designed with simulated sunlight.
What is Sunlike LED technology ?
As we known that traditional LED have blue light hazard,the Sunlike LED is a kind of Artificial sunlight,from seoul.

Lumin PRO-SUN LEDs VS Seoul sunlike LED

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Lumin PRO-sun light spectrum is better than Sunlike from SOUL
Advantage of lumin CRI98 LED panel light
Providing comfort for your eyes
Lumin led panel light is good for visual eyesight
Light close to sleep
Lumin full spectrum is good for sleep and health with circadian rhythm lighting solutions.
Keep away from those diseases
Lumin PRO-SUN led panel light can help people come over depression, obesity, and avoid from reducing memory and cancer.
