Lumin Frameless Suspended LED Panel CCT Tunable with Emergency Backup for Commercial Ceilings
Three Critical Features in One Panel: Frameless Design, Tunable White, and Emergency Backup
Modern commercial spaces demand more from lighting than just illumination. They need fixtures that look good, adapt to different activities, and perform reliably during emergencies. The Lumin Frameless Suspended LED Panel delivers all three in a single solution.
Frameless Design for Seamless Aesthetics
Unlike traditional panels with visible aluminum frames that create visual breaks, this panel features a borderless construction that blends seamlessly into any ceiling. The result is a clean, modern appearance that complements contemporary interiors — ideal for hotel lobbies, corporate offices, retail showrooms, and high-end residential spaces.
Suspended Mounting for Floating Effect
The suspended installation kit with adjustable steel cables allows the panel to float below the ceiling, creating depth and dimension. This design is particularly effective in high-ceiling spaces, open-plan offices, and architectural environments where a statement fixture is desired. The height and angle can be adjusted during installation for precise alignment.
CCT Tunable White 3000K to 6500K
One fixture, infinite possibilities. Adjust color temperature from warm 3000K for relaxing evenings and hospitality settings, to neutral 4000K for balanced office illumination, to cool 6500K for crisp daylight and high-focus environments. Compatible with DALI DT8, 1-10V, and wireless control systems for seamless integration into smart lighting networks.
Built-In Emergency Backup (3-Hour Runtime)
When power fails, the integrated emergency battery automatically switches on, providing 3 hours of illumination at reduced brightness (30% output). This ensures safe egress, maintains visibility in critical areas, and meets emergency lighting compliance requirements for hospitals, schools, and public buildings. The emergency module is self-contained within the panel housing — no external battery box required.
Key Features
Frameless Borderless Design – No visible frame creates a seamless, modern aesthetic that blends into any ceiling.
Suspended Installation – Adjustable steel cables create a floating effect, ideal for high ceilings and open spaces.
CCT Tunable 3000K-6500K – Adjust color temperature to match any activity, time of day, or mood.
3-Hour Emergency Backup – Integrated battery ensures illumination during power outages for safe egress and compliance.
Flicker Free and Eye Comfortable – High-quality driver eliminates visible and invisible flicker.
DALI DT8, 1-10V, and Wireless Control – Flexible control options for smart buildings and automation.
CRI>80 – Accurate color rendering for comfortable, natural illumination.
Easy Maintenance – Panel can be detached for driver or battery replacement without dismantling the entire ceiling.
Reliable and Certified – Produced in Lumin's ISO9001 certified workshop. CE, RoHS, and UL certified.
5-Year Limited Warranty – Comprehensive coverage for manufacturing defects.
Technical Specifications
Chat with Our Lighting Engineer
| Parameter | Specification |
|---|---|
| Product Type | Frameless Suspended CCT Tunable LED Panel with Emergency Backup |
| Model | LM-FS-SKY |
| Available Sizes | 595x595mm, 1195x295mm, 1195x595mm, 620x620mm, custom sizes |
| Thickness | 18mm (Frameless) |
| Power | 40W, 60W |
| Luminous Flux | 2000-3000 lm |
| Luminous Efficacy | 50 lm/W |
| CCT Range | 3000K / 4000K / 6000K / Tunable 3000K-6500K |
| CRI | >80 |
| Beam Angle | 120° |
| Input Voltage | 220-240V AC |
| Power Factor | >0.9 |
| THD | <15% |
| Control Protocols | DALI DT8, 1-10V, Triac, Wireless (Zigbee, WiFi, Bluetooth) |
| Emergency Runtime | 3 hours at 30% brightness |
| Emergency Module | Integrated, self-contained |
| Driver | Flicker free |
| LGP Material | PMMA |
| IP Rating | IP20 |
| Operating Temperature | -25°C to 55°C |
| Certifications | CE, RoHS, UL |
| Warranty | 5-year limited |
| MOQ | 1 piece |
| Lead Time | Sample 5-7 days, Bulk 15-25 days |
Applications
| Space | Benefit |
|---|---|
| Hospitals and Clinics | Emergency backup ensures egress lighting during power failures. Tunable white supports patient comfort and staff alertness. |
| Schools and Universities | 3-hour emergency runtime meets safety compliance. Tunable white adapts from focused study to relaxing break time. |
| Corporate Offices | Frameless suspended design creates a modern, professional ceiling aesthetic. Tunable white boosts productivity and wellbeing. |
| Shopping Malls and Retail | Floating visual effect draws attention. Emergency backup ensures safe evacuation during power outages. |
| Hotel Lobbies and Atriums | Seamless frameless design complements luxury interiors. Suspended installation creates a stunning architectural statement. |
| Airport Terminals and Stations | Emergency lighting compliance for public spaces. Tunable white maintains visibility and comfort throughout the day. |
| Conference Centers | Adjust CCT for presentations, meetings, and events. Emergency backup ensures safety in large assembly areas. |

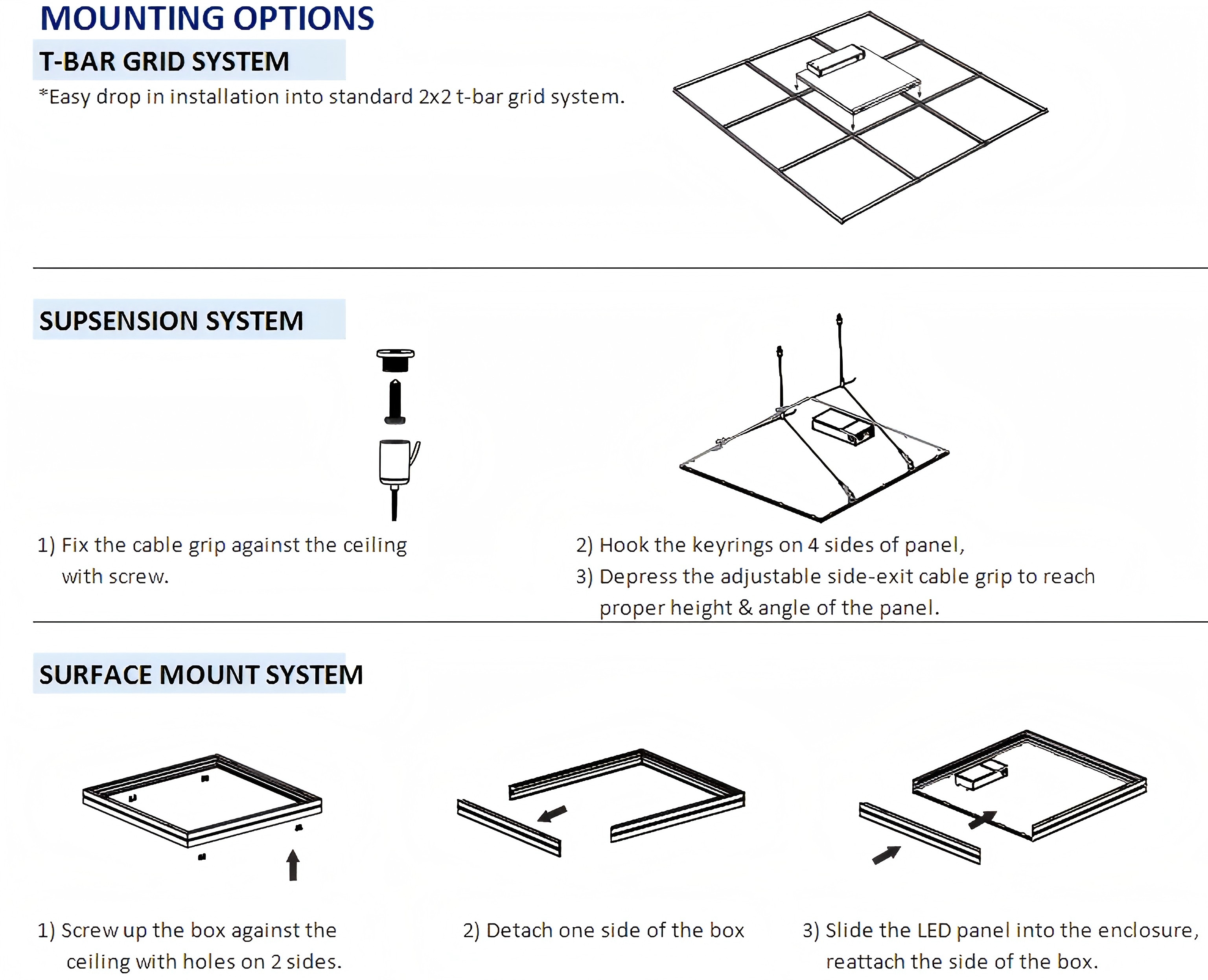

Installation Methods
Suspended Installation – Adjustable steel cables allow flexible height and easy alignment. Ideal for high ceilings and open spaces.
Recessed Installation – Drop-in installation into standard T-bar grid ceilings for a flush, integrated look.
Surface Mount – Optional surface mount enclosure available for ceilings without grid.
Must be installed by a licensed electrician. Keep away from water and extreme heat (indoor use only).
FAQ
Q: How does the emergency backup work?
A: The integrated emergency module automatically switches on when main power fails, providing 3 hours of illumination at 30% brightness. No external battery box is required.
Q: What is the difference between this panel and a standard LED panel?
A: This panel combines three features in one: frameless design for seamless aesthetics, CCT tunable white for flexible lighting, and emergency backup for safety compliance. Standard panels typically offer only one or none of these features.
Q: Can I control the CCT and dimming separately?
A: Yes. The panel supports DALI DT8, 1-10V, and wireless control for independent CCT and brightness adjustment.
Q: What is the emergency runtime and brightness?
A: 3 hours at 30% brightness. Custom emergency runtime and brightness levels are available upon request.
Q: What sizes are available?
A: Standard sizes include 595x595mm, 1195x295mm, 1195x595mm, and 620x620mm. Custom sizes available upon request.
Q: What is the MOQ and lead time?
A: MOQ is 1 piece. Sample lead time is 5 to 7 working days. Bulk production is 15 to 25 working days.
Q: Do you provide IES files and test reports?
A: Yes. We provide IES files for DIALux and CE, RoHS, UL test reports. Contact us to request them.
Q: What is the warranty?
A: 5-year limited warranty for manufacturing defects.
Request Bulk Quote for Your Project
info@luminlight.com
WhatsApp: +86 15875556677
We will respond within 24 hours with pricing, IES files, and test reports.
