Modular Artificial Sky Ceiling System for Large Commercial Ceiling Installations
Create a Large, Continuous Sky Ceiling with Modular Panel Splicing

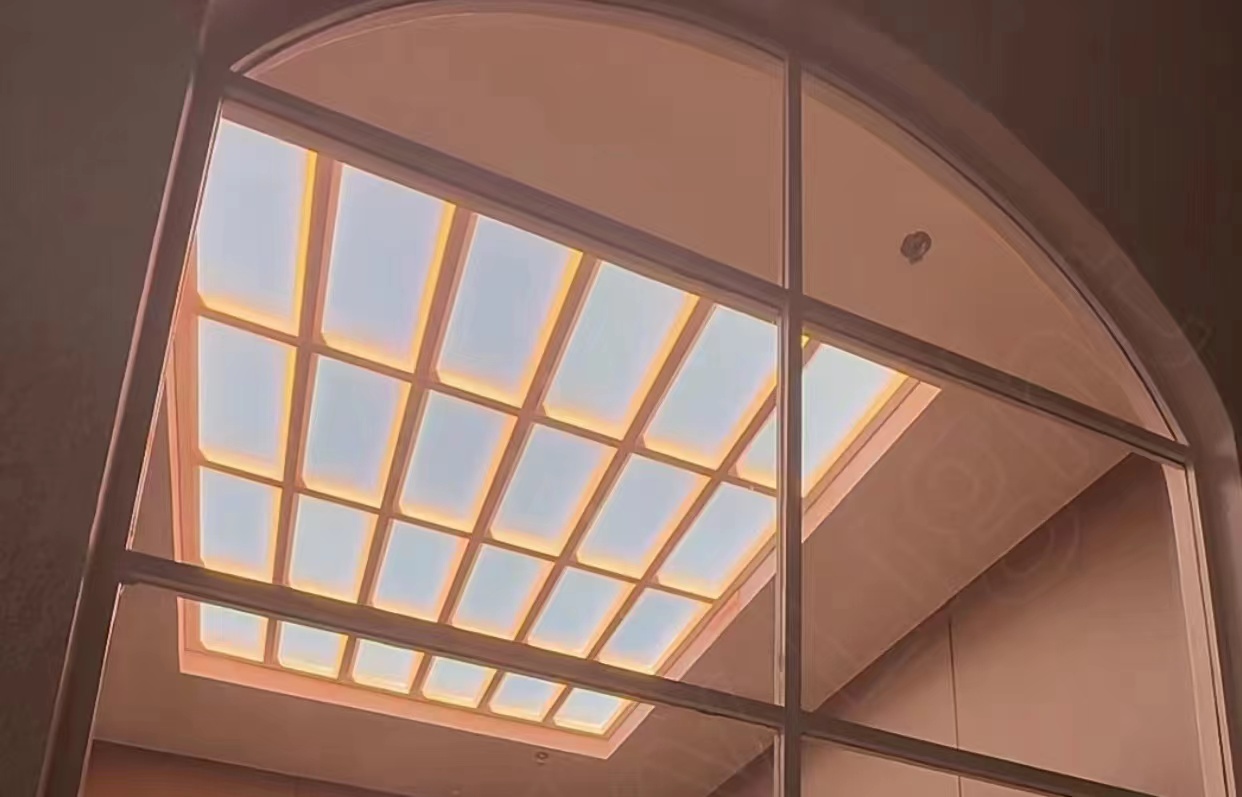

Large commercial spaces often lack natural light, resulting in a dull, enclosed atmosphere. Traditional single skylights are too small to make an impact. The Lumin modular artificial sky ceiling system solves this by allowing multiple ultra-thin LED skylight panels to be joined together, forming a large, continuous sky ceiling that transforms the entire space.
Whether you are designing a hotel lobby, an exhibition hall, a shopping mall, or an airport terminal, this modular system lets you create a sky ceiling of virtually any size. The rectangular panels (300×600mm, 600×600mm, 300×1200mm, 600×1200mm) can be spliced edge-to-edge to form a large visual sky surface. Please note that a fine seam line is visible where panels meet. The circular Ø1200mm panel cannot be spliced and is used as a standalone centerpiece.
How Modular Splicing Works
Each panel has a slim 50mm aluminum frame that allows edge-to-edge alignment. When panels are joined, the sky image continues across the surface, creating the impression of a large sky. A fine seam line is visible between panels. The border of each panel emits tunable white light, providing general illumination while the center displays the blue sky. The result is a dual-function ceiling: a large sky view and a functional light source in one integrated system.
The panels can be spliced in linear rows, grids, or custom configurations. A typical installation might use a 4×4 grid of 600×600mm panels to create a 2.4m × 2.4m sky ceiling, or a 2×6 array of 300×1200mm panels for a long corridor. Custom sizes and shapes are available upon request.
Key Features
Modular Splicing System – Join multiple panels to create a large sky ceiling of any size. A fine seam line is visible between panels.
Ultra-Thin 50mm Profile – Fits low-ceiling spaces and simplifies transportation.
Rayleigh Scattering Technology – Simulates the physics of the real sky for a deep, realistic blue effect.
Tunable White Border (2000K-10000K) – The frame provides functional illumination that adjusts from warm to cool.
CRI>90 – Accurate color rendering for comfortable, natural light.
Flicker-Free Eye-Care Design – Eliminates visible and invisible flicker.
OSRAM LEDs – High efficacy, low optical decay, lifespan ≥30,000 hours.
Smart Control Ready – DALI DT8, Zigbee, Casambi, Tuya, Wi-Fi, Bluetooth, 2.4G/RF remote.
Recessed or Suspended Mounting – Flexible installation for different ceiling types.
5-Year Limited Warranty – Reliable performance for commercial projects.
Technical Specifications
Chat with Our Lighting Engineer
| Parameter | TS3060 | TS6060 | TS30120 | TS60120 | TSD120 (Round) |
|---|---|---|---|---|---|
| Power | 60W | 60W | 120W | 120W | 120W |
| CRI | >90 | >90 | >90 | >90 | >90 |
| CCT | 2000K-10000K | 2000K-10000K | 2000K-10000K | 2000K-10000K | 2000K-10000K |
| Beam Angle | 110° | 110° | 110° | 110° | 110° |
| Luminous Flux | 4800LM | 4800LM | 7600LM | 7600LM | 7600LM |
| Control | DALI DT8 / Zigbee / Casambi / Tuya / Wi-Fi / Bluetooth | Same | Same | Same | Same |
| Input Voltage | 36V DC | 36V DC | 36V DC | 36V DC | 36V DC |
| IP Rating | IP40 | IP40 | IP40 | IP40 | IP40 |
| Dimension | 300×600×50mm | 600×600×50mm | 300×1200×50mm | 600×1200×50mm | Dia1200×50mm |
| Material | Aluminium + Nano PMMA | Aluminium + Nano PMMA | Aluminium + Nano PMMA | Aluminium + Nano PMMA | Aluminium + Nano PMMA |
| Mounting | Recessed / Suspended / Surface | Recessed / Suspended / Surface | Recessed / Suspended / Surface | Recessed / Suspended / Surface | Recessed / Suspended / Surface |
| Warranty | 30,000 hrs | 30,000 hrs | 30,000 hrs | 30,000 hrs | 30,000 hrs |
Applications
| Space | Benefit |
|---|---|
| Hotel Lobbies | Creates a grand, welcoming atmosphere with a large sky ceiling. |
| Exhibition Halls | Provides an immersive, natural backdrop for displays and events. |
| Shopping Malls | Adds visual openness and a refreshing sky effect to commercial spaces. |
| Airport Terminals | Brings natural light sensation to large, windowless waiting areas. |
| Conference Centers | Creates a calming, inspiring environment for meetings and presentations. |
| Museums and Galleries | Enhances exhibition spaces with a dynamic, realistic sky ceiling. |
| Corporate Atriums | Transforms open interior spaces into inspiring, light-filled environments. |
FAQ
Q: Can the panels be spliced together without visible seams?
A: No. The rectangular panels can be joined edge-to-edge to create a large sky effect, but a fine seam line is visible where panels meet. They are not welded into a seamless single piece. Circular panels cannot be spliced at all.
Q: How many panels can be spliced together?
A: The system is modular and scalable. Typical configurations include 4×4 grids, 2×6 arrays, and custom layouts. There is no strict limit — the size depends on your ceiling structure and power supply planning.
Q: What is the difference between the rectangular and circular panels?
A: Rectangular panels are designed for edge-to-edge splicing into large sky ceilings. Circular panels are standalone fixtures and cannot be spliced.
Q: What control options are available?
A: DALI DT8, Zigbee, Tuya, Wi-Fi, Bluetooth, Casambi, and 2.4G/RF remote. The light can automatically adjust CCT throughout the day via app.
Q: What sizes are available?
A: Rectangular: 300×600mm, 600×600mm, 300×1200mm, 600×1200mm. Circular: Ø1200mm. Custom sizes available upon request.
Q: What is the MOQ and lead time?
A: MOQ is 1 piece. Sample lead time is 5 to 7 working days. Bulk production is 15 to 25 working days.
Q: Do you provide IES files and test reports?
A: Yes. We provide IES files for DIALux and CE, RoHS test reports. Contact us to request them.
Q: What is the warranty?
A: 3-year limited warranty for manufacturing defects.
