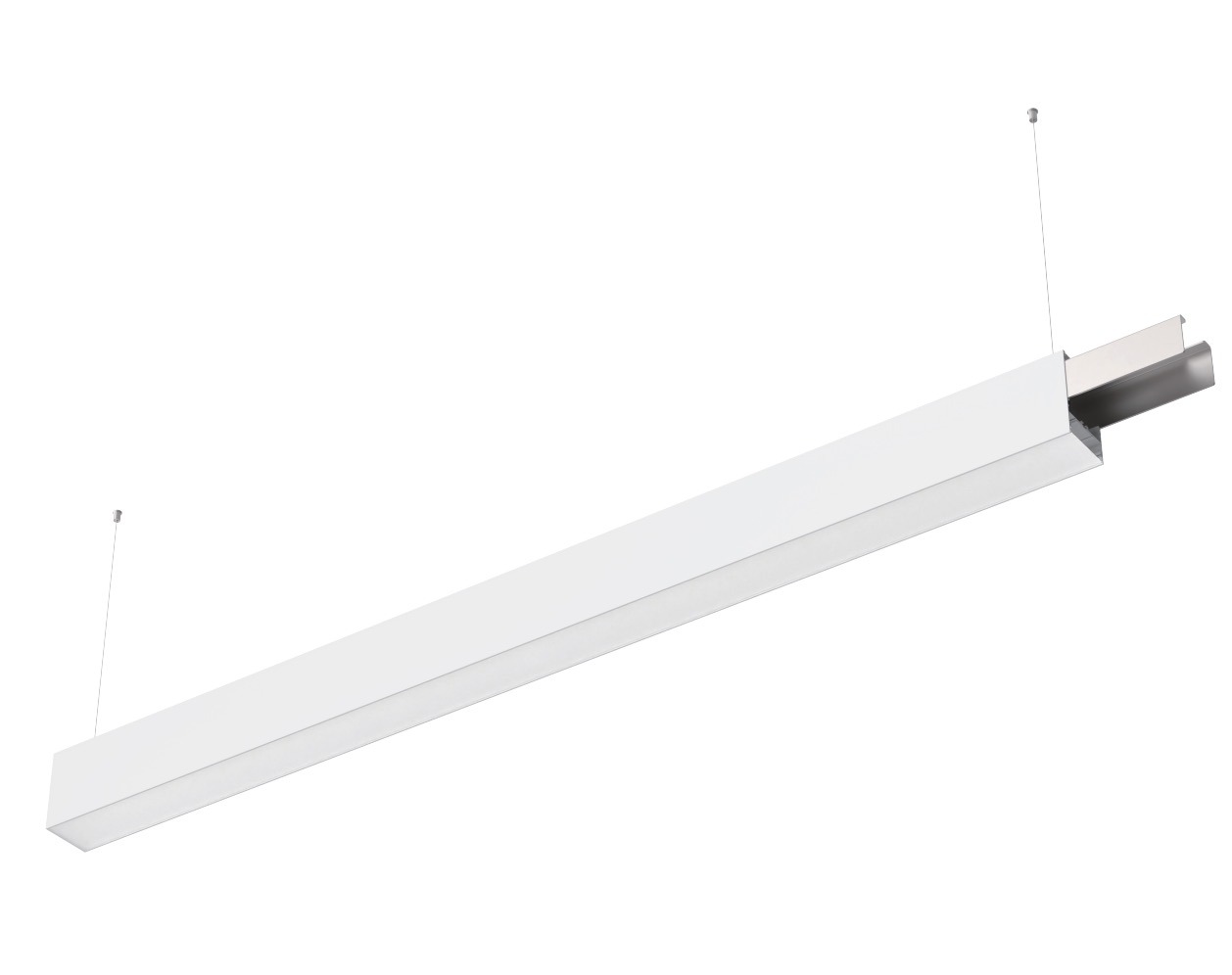

Lumin X5 ReaLine LED Linear Light
LM-9060-60
Illuminate your space with Lumin ReaLine X5 LED linear light, featuring bat-wing upward illumination for enhanced brightness. Perfect for shops, bars, offices, and schools.
Delivery
EXW
minimum order
20 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15-35Day
Quantity:

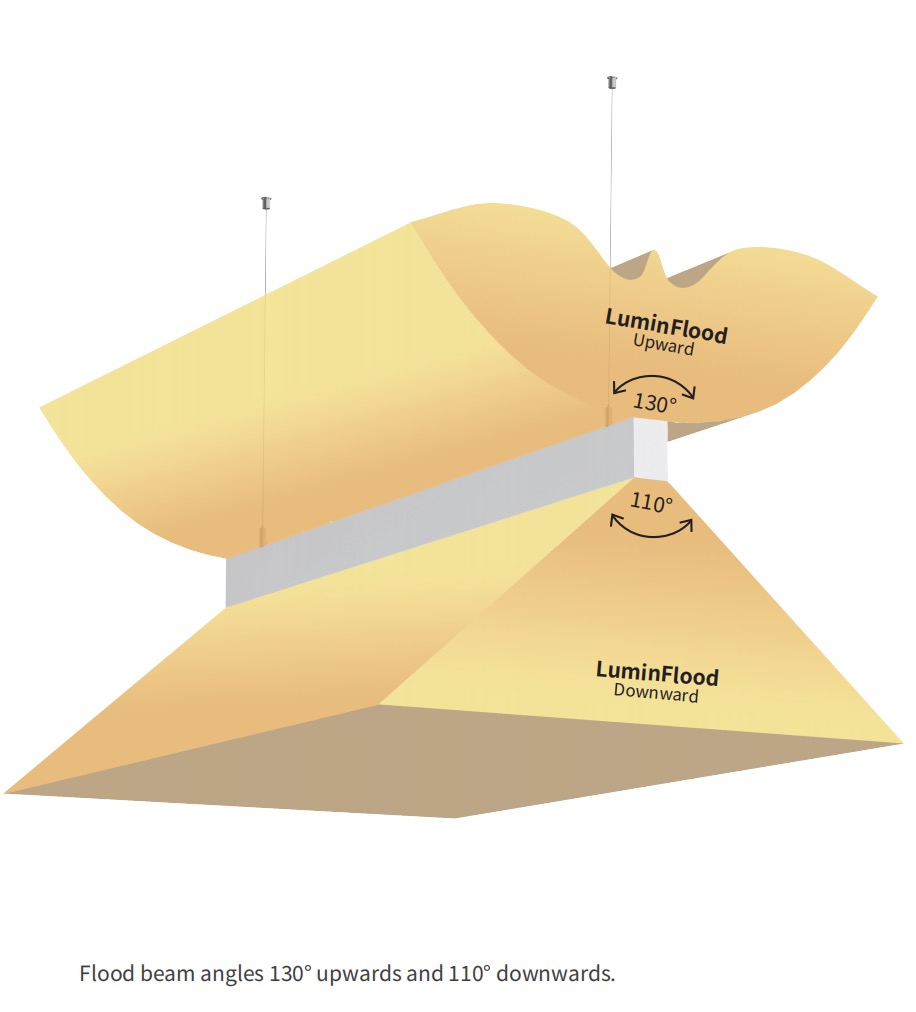

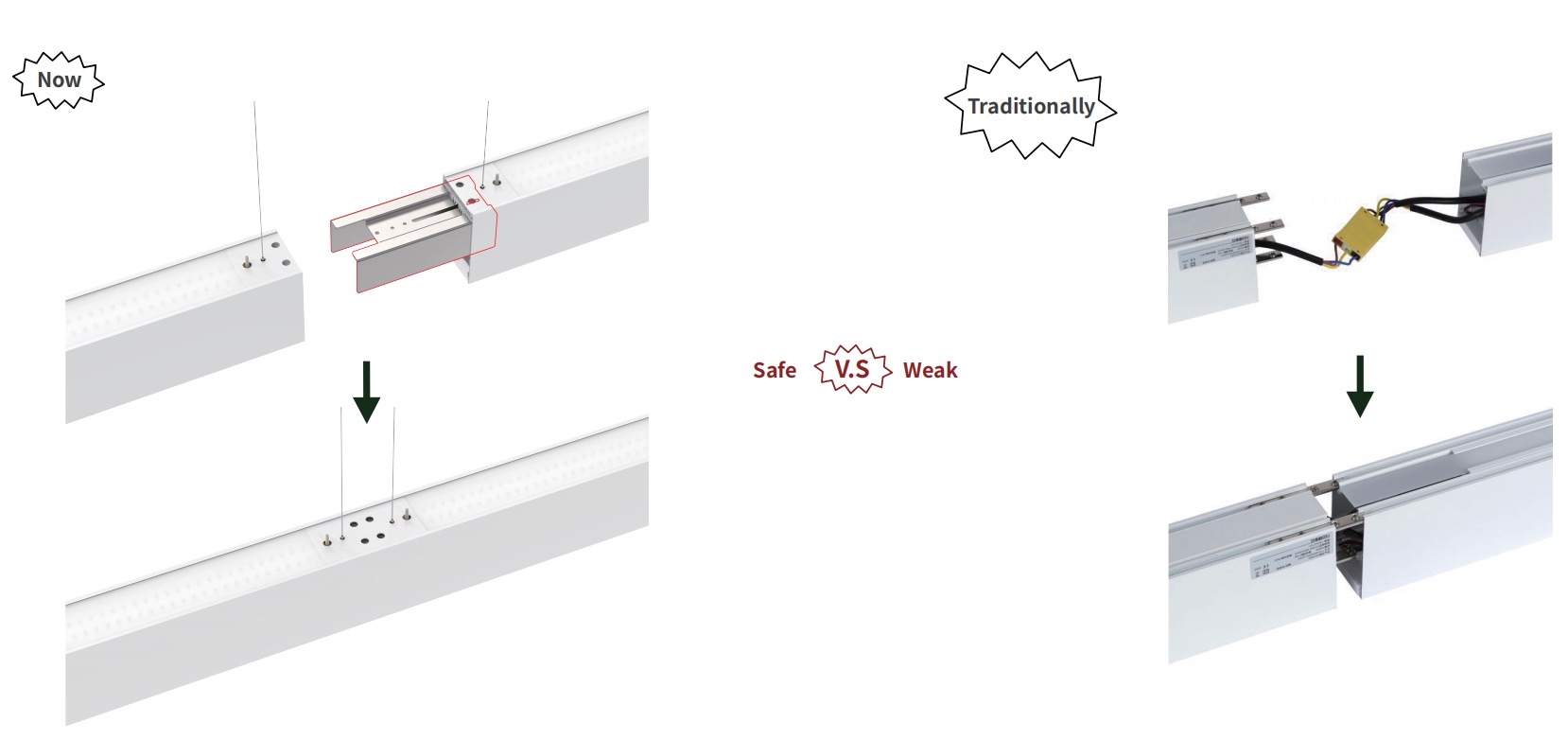

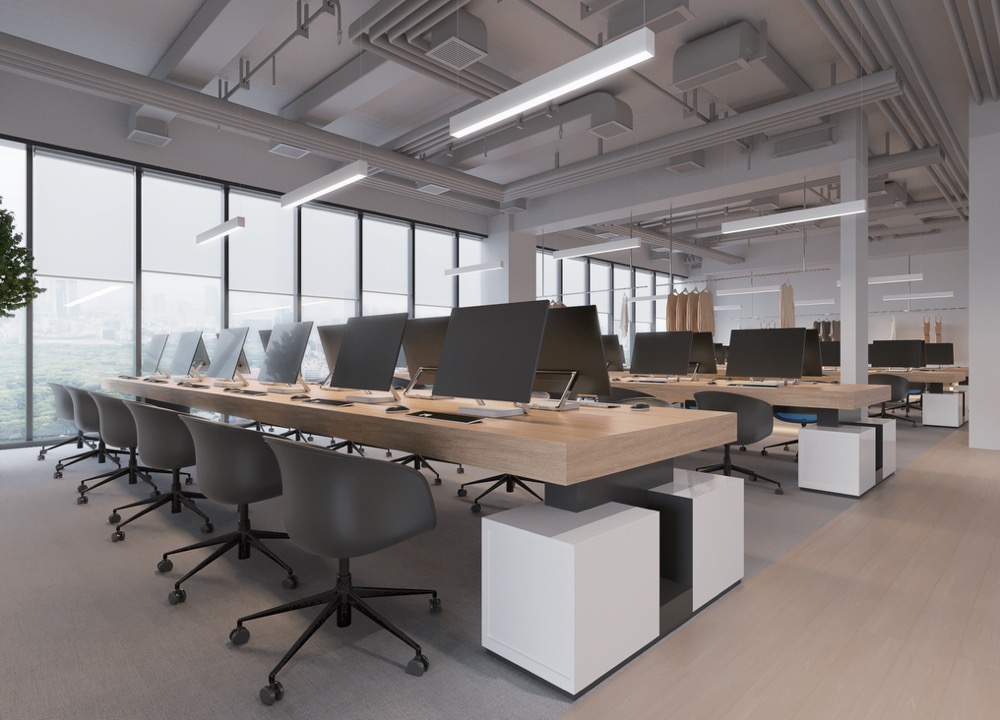

Elevate your space with Lumin ReaLine X5 LED linear lighting. With bat-wing upward illumination, this suspended linear light provides more brightness than traditional linear lights. The specially-designed connector ensures a solid and tight connection between two linear lights. Ideal for shops, bars, offices, and schools, this LED linear lighting solution offers a sleek and modern design that can enhance any space. Say goodbye to dimly-lit areas and hello to a well-lit environment with Lumin ReaLine X5.
General information | |
| CE& RoHS | YES |
| Efficiency | 110 lm/w |
| Control | DALI, 1-10V, Triac, On-off, Zigbee, TUYA, Casambi |
| LEDs type | SMD 2835 |
| Warranty | 5 year limited warranty |
| Working temperature | -25 to 45 degree |
| Relative humidity | 10% to 90% RH |
| Finish | White, black |

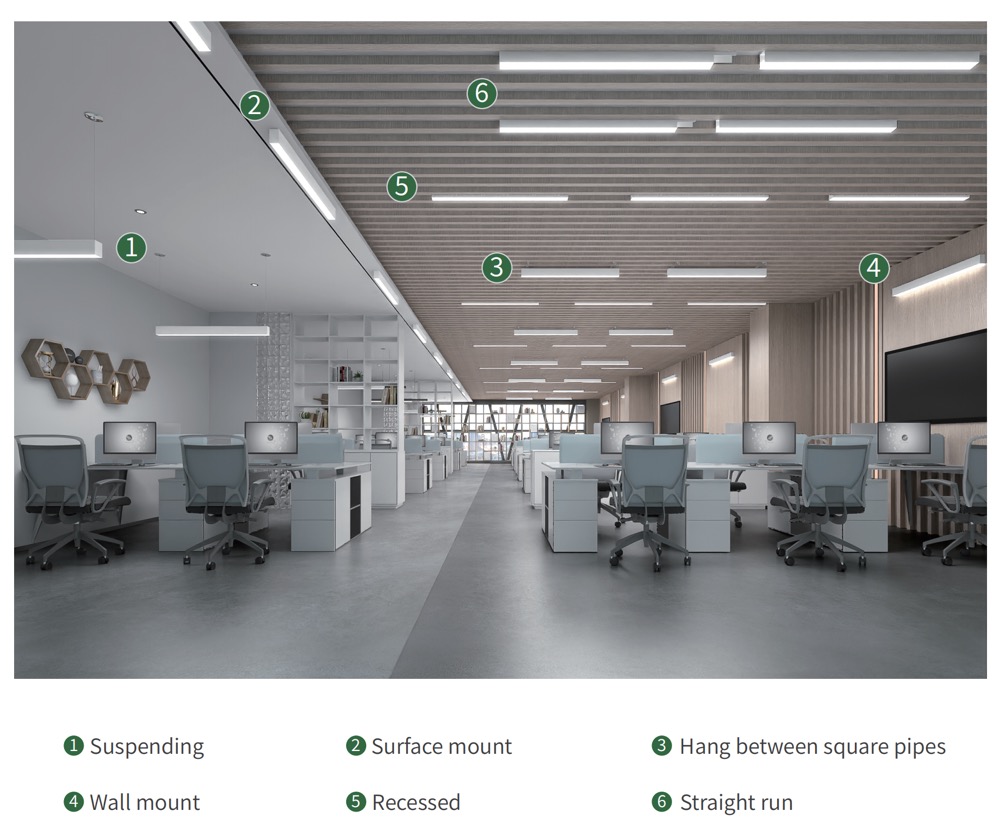

| Installation | Hanging, Track, Rod, Bridge |
| Dimensions | 1198*90*60 |
Construction | |
| Frame material | Aluminium alloy 6063+ zinc coatered iron |

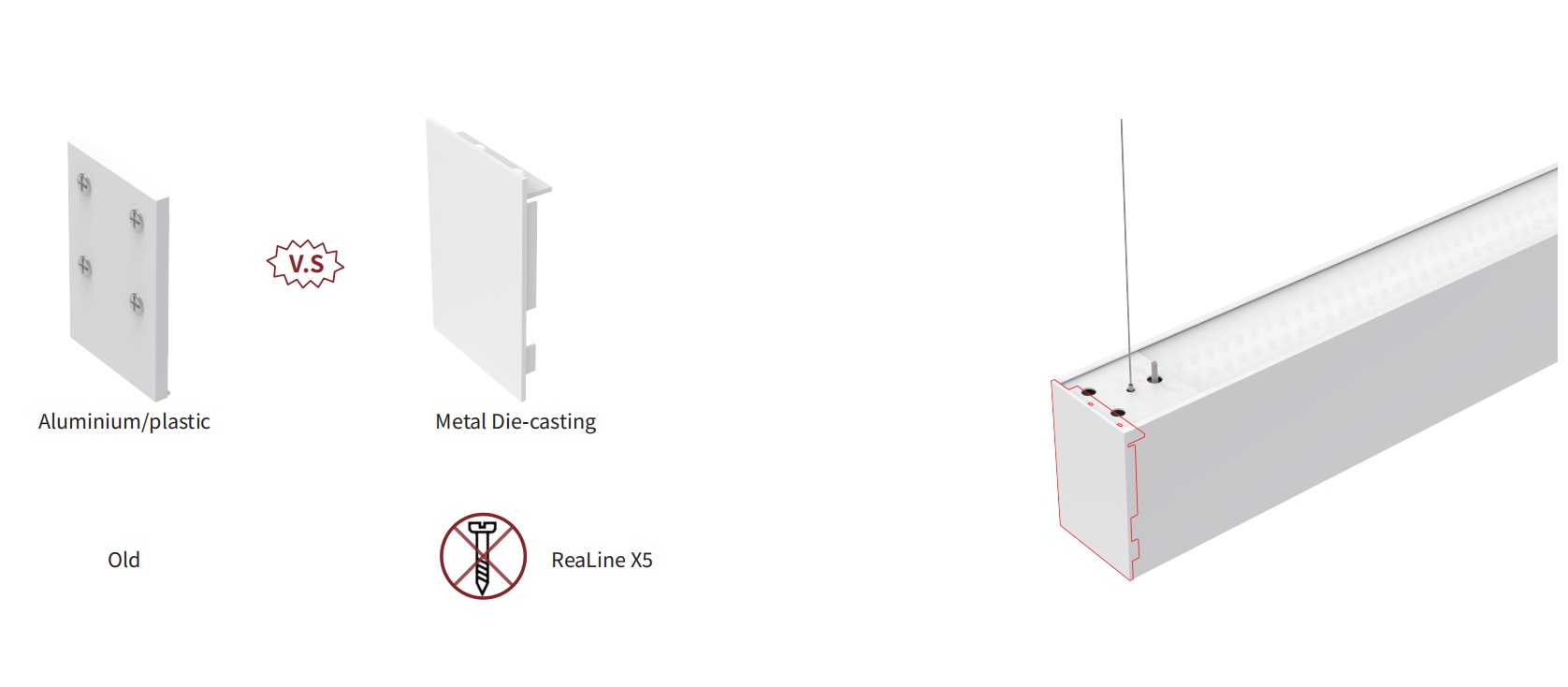

| End cap | Iron Zinc coatered, powdered white |
| Diffuser | PC |
Performance data | |

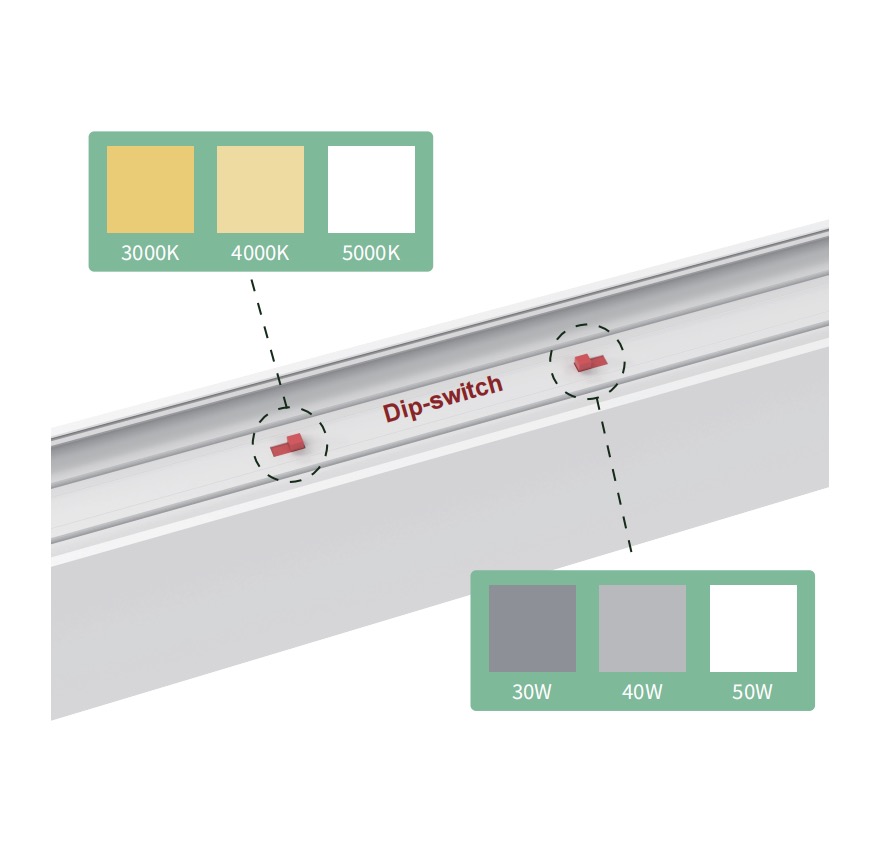

| Power. | 40W, 50W, 60W，80W, 100W |

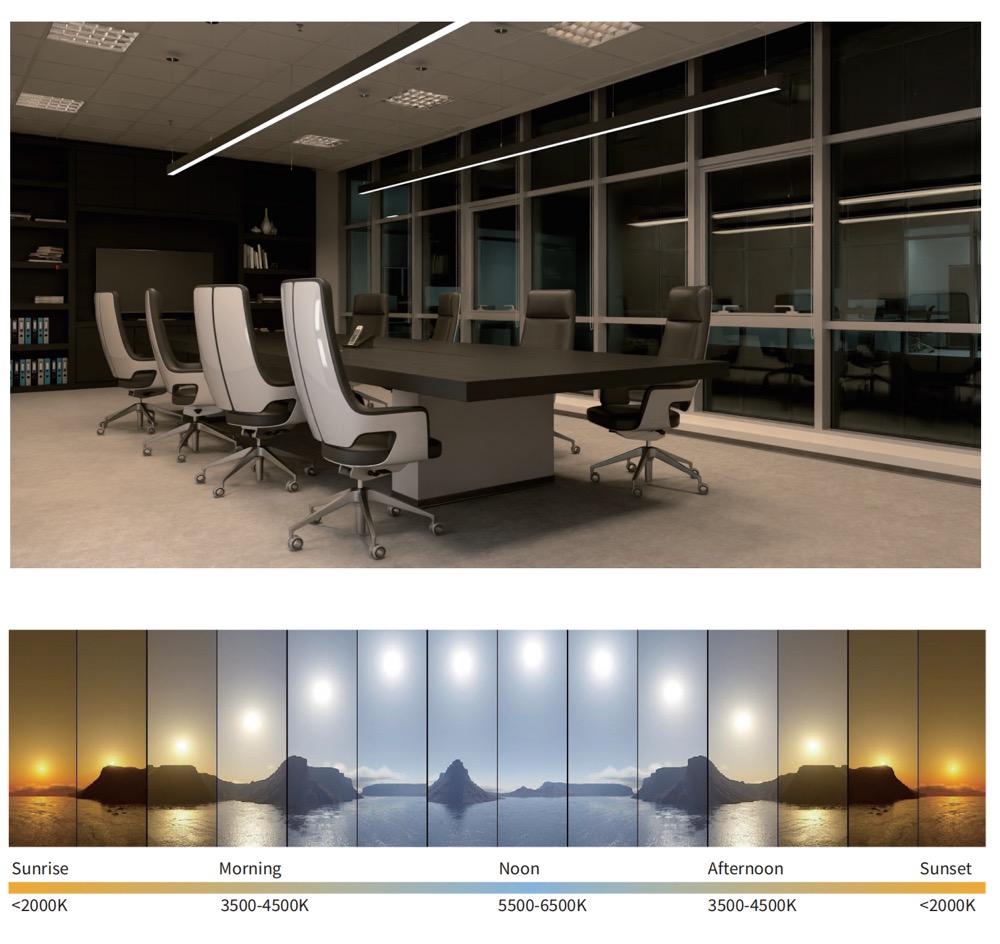

| CCT | 3000K, 4000K, 5000K, 6000K |
| CRI | Ra>80 , Ra>90, Ra98 |
| Beam angle | 42° lens |
| Initial chromaticity | SDCM<6 or 3 |
| UGR | 19 |
| Lifespan L80B20 @ degree | ≥ 50000 hrs |
Electrical | |
| Input voltage. | 220-240V ac，100-277Vac， 5060 Hz |
| Output voltage | DC 36V |
| Power factor | >0.9 |
| Ripple | < 10% |
| THD | ≤ 20% |
Approval & application | |
| Protection class IEC | Class II |
| Mech. impact protection code | IK05 |
| Ingress protection code | IP20 |
