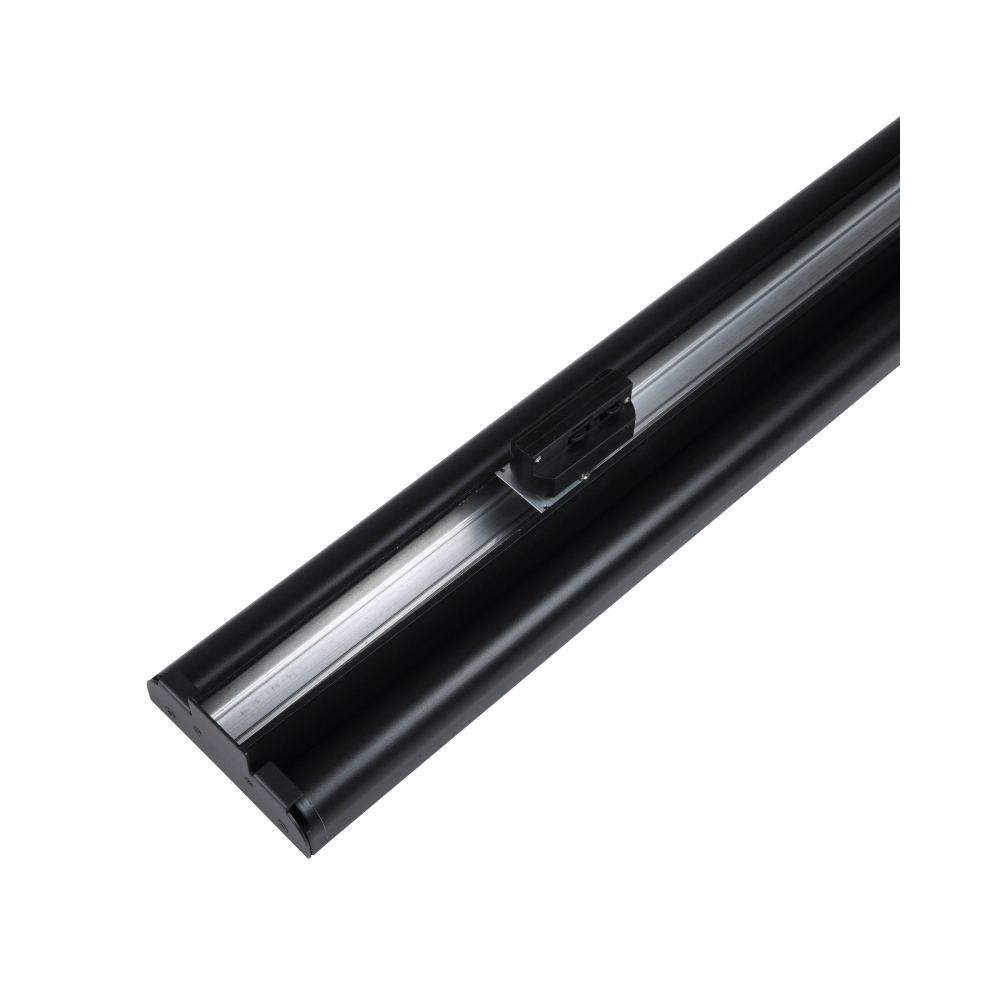

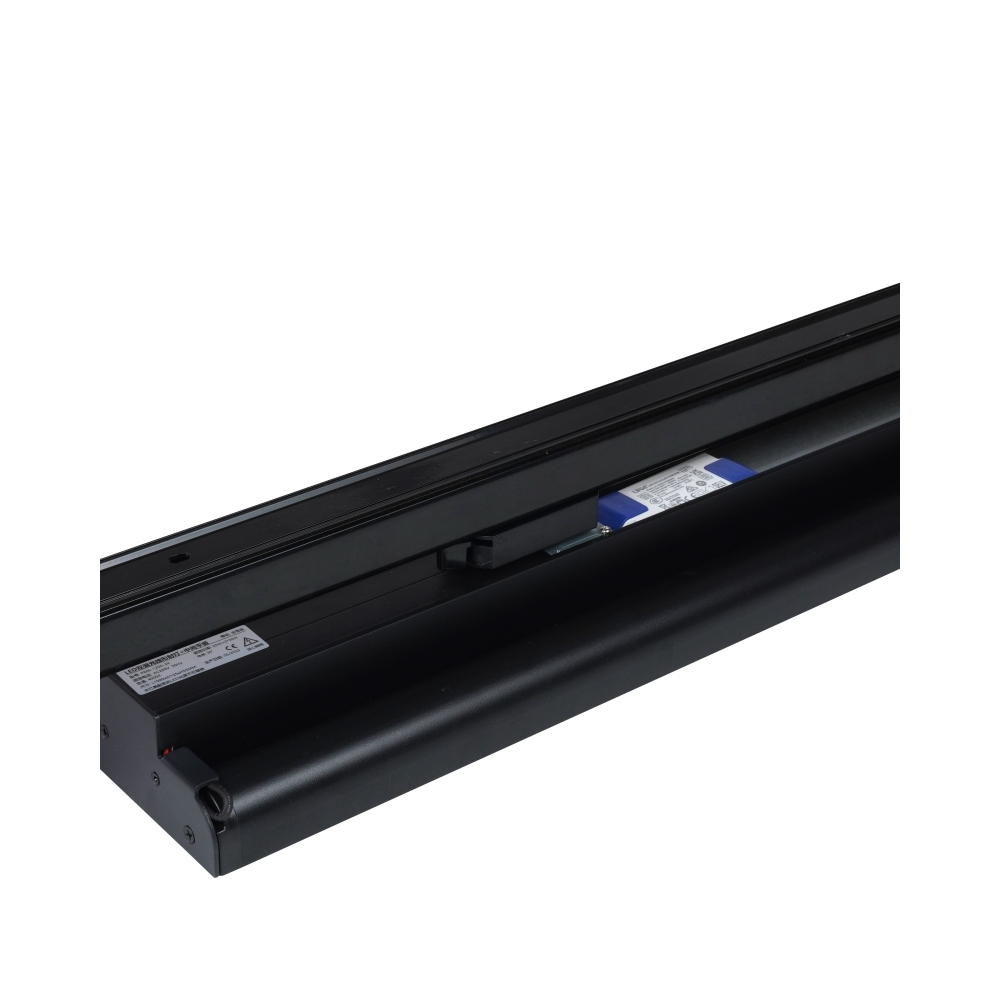

Lumin X3 FleLine LED Linear Lights

LM-T120060S/T
Illuminate any space with our versatile Lumin X3 LED Linear Light, perfect for various commercial settings.
Delivery
EXW
minimum order
20 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15-35Day
Quantity:
Contact Now

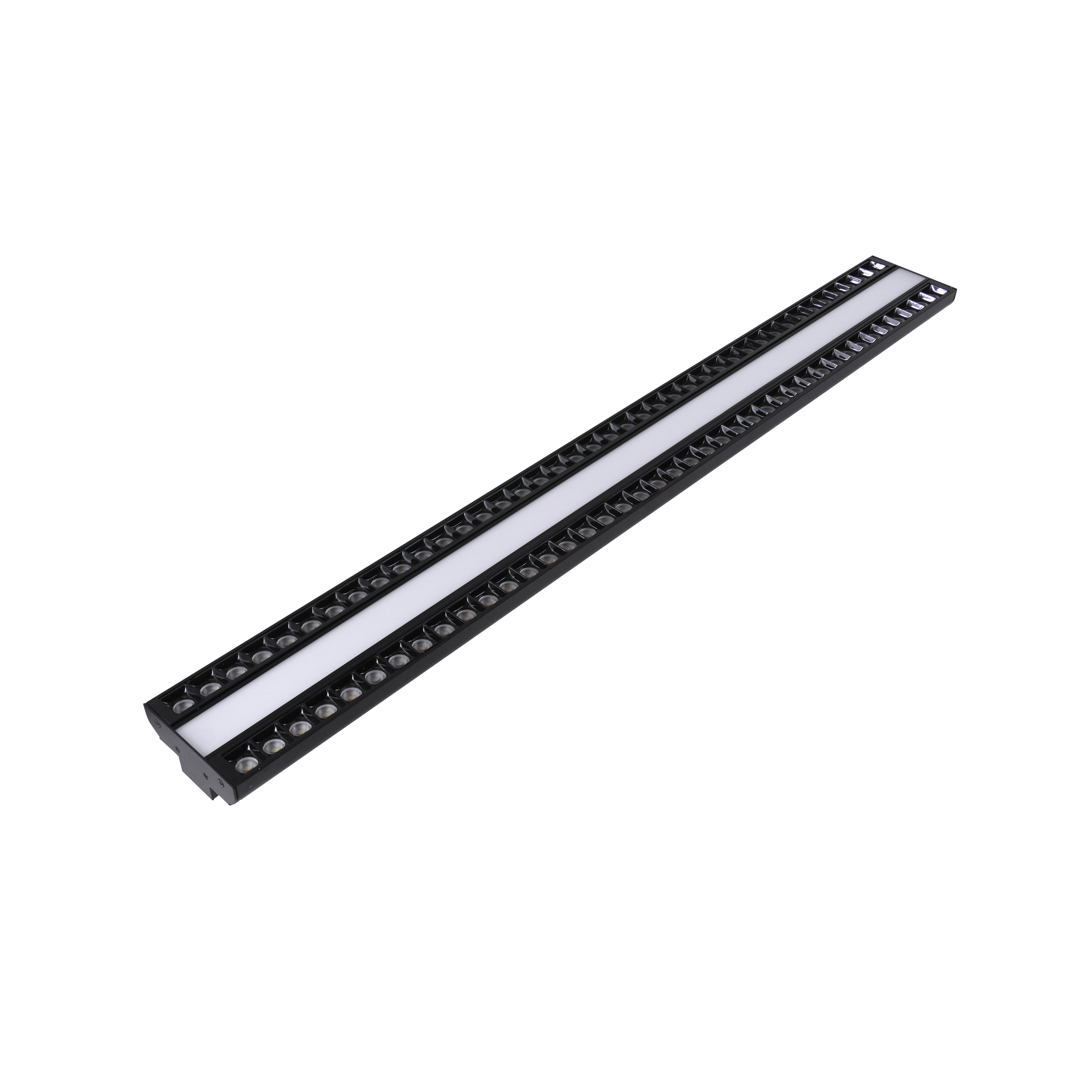

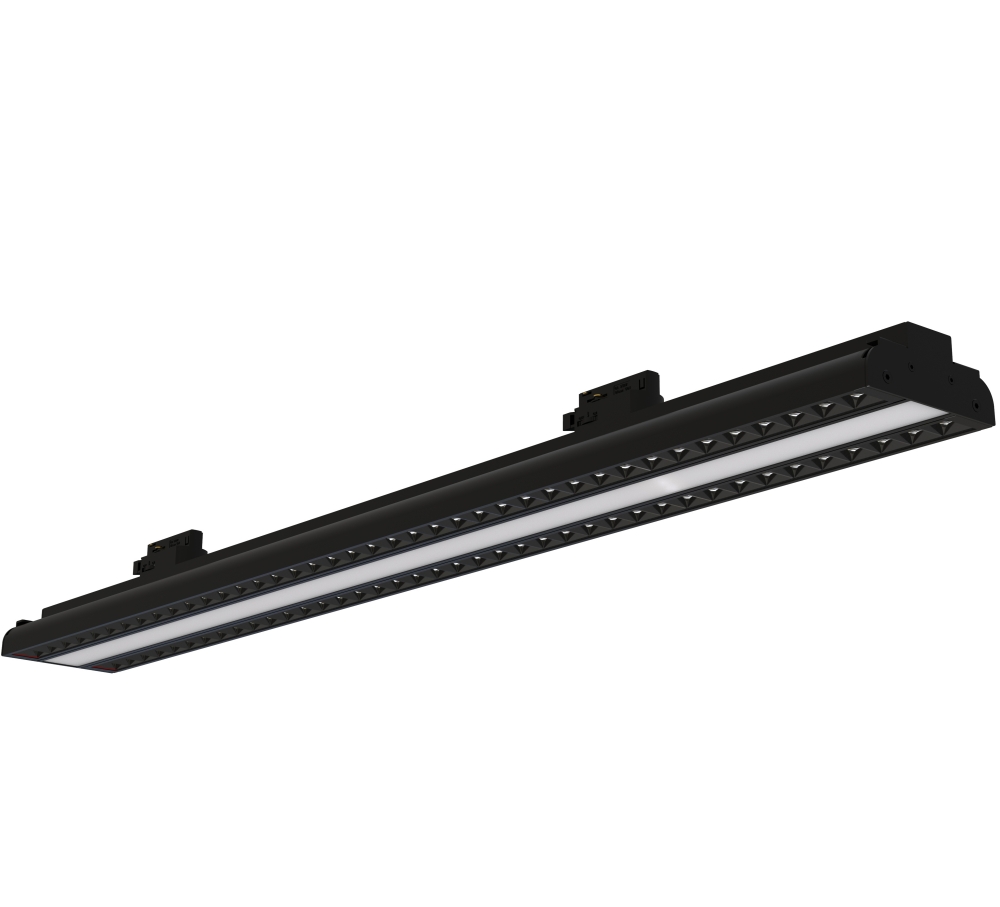

The Lumin X3 LED Linear Light is a sleek and modern lighting solution suitable for offices, workshops, warehouses, shops, and supermarkets. With adjustable optics, this fixture provides optimal lighting for different spaces. Available in 40W, 50W, 60W, and 80W options, this linear light offers bright and energy-efficient illumination. Whether suspended or recessed, the Lumin X3 is easy to install and requires minimal maintenance. Say goodbye to dull and flickering lights - upgrade to our reliable and stylish LED linear light today.

Features

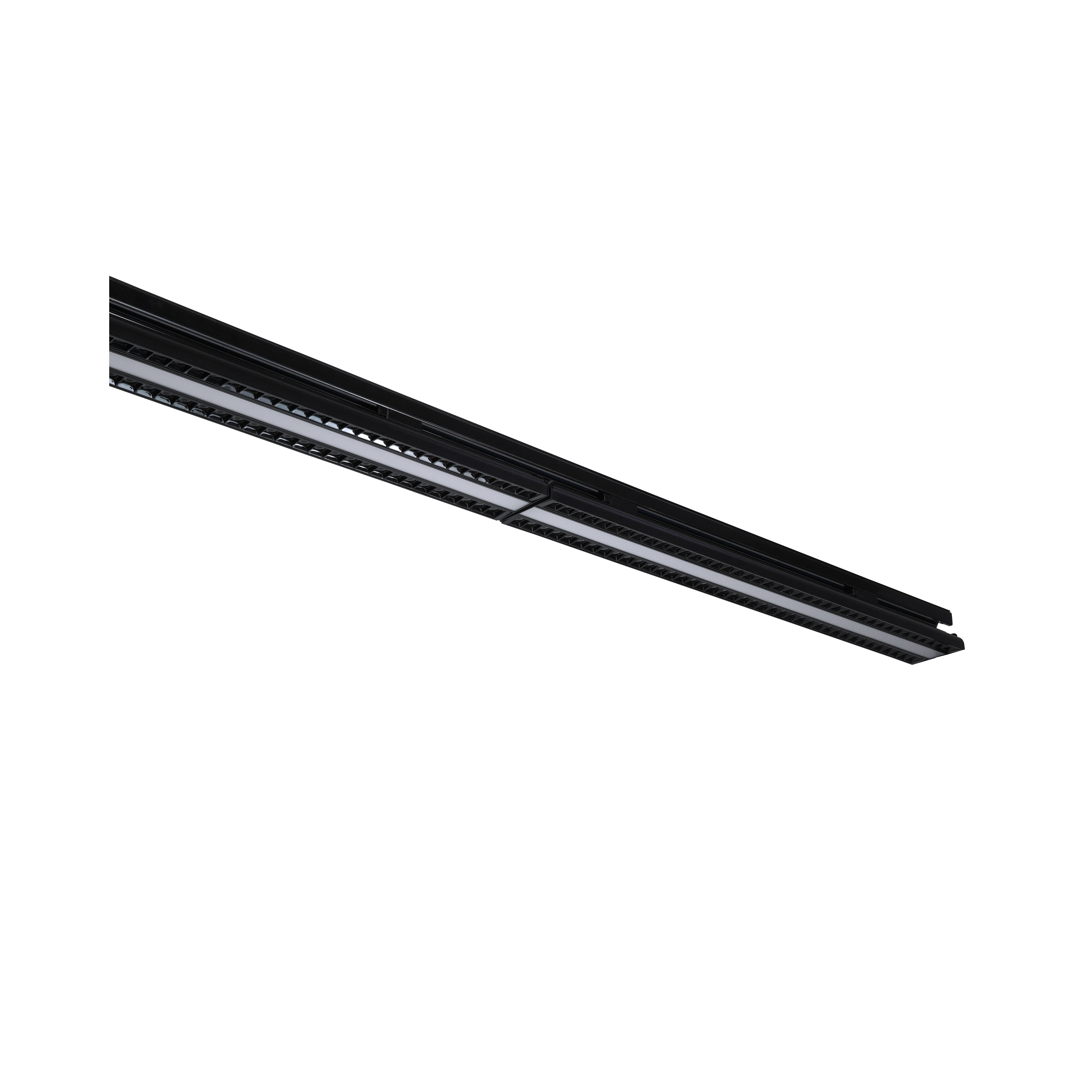

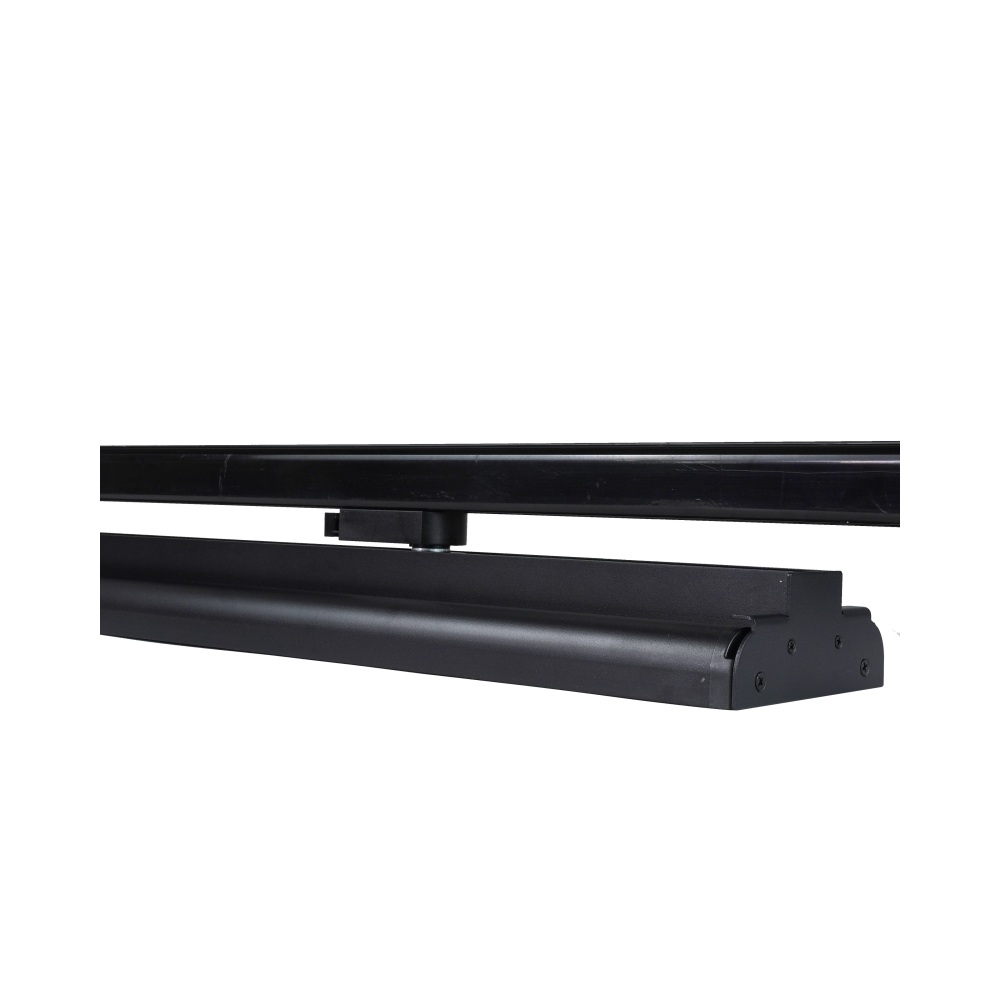

1. Multi-installation: Rod、hanging cable, Track adapter, bridge

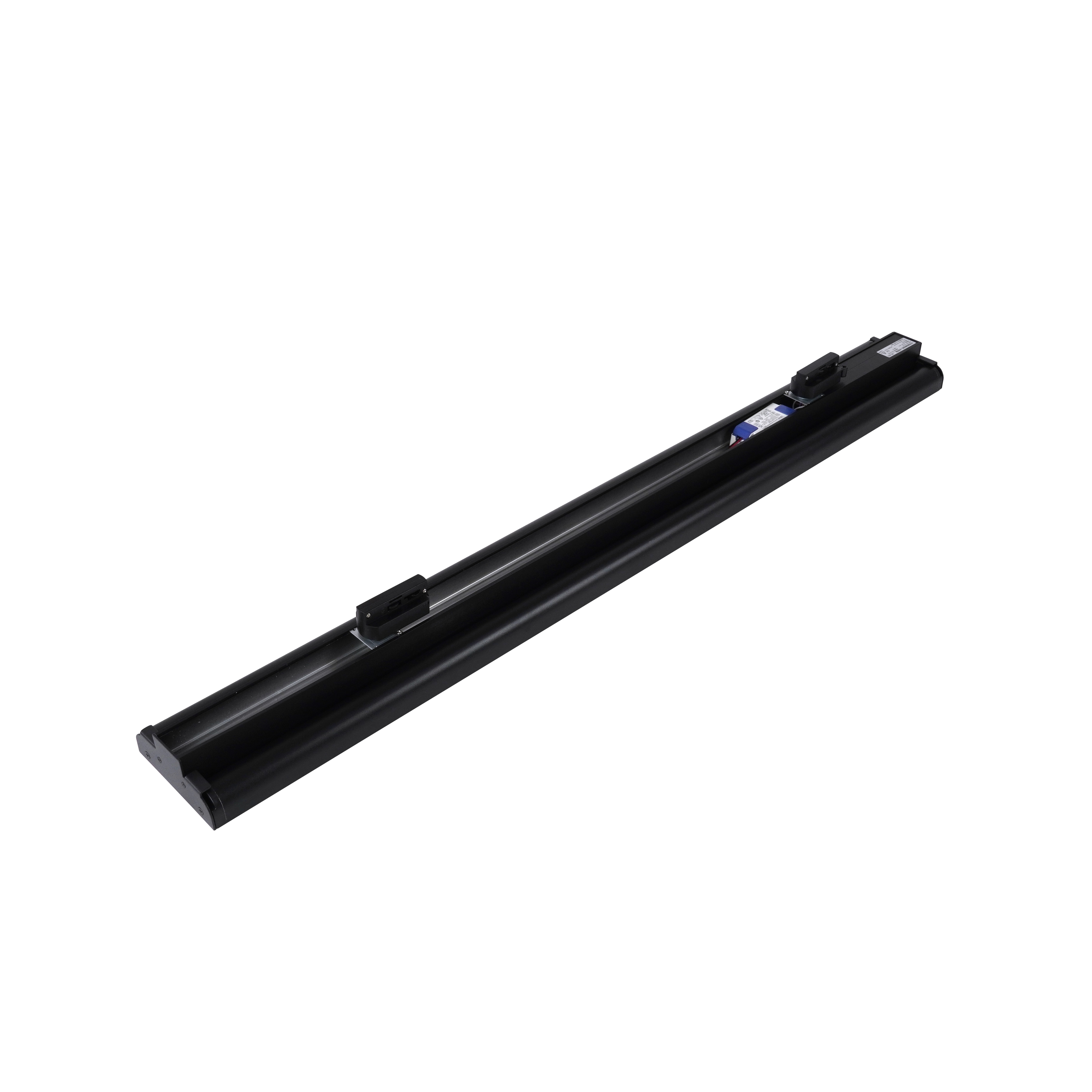

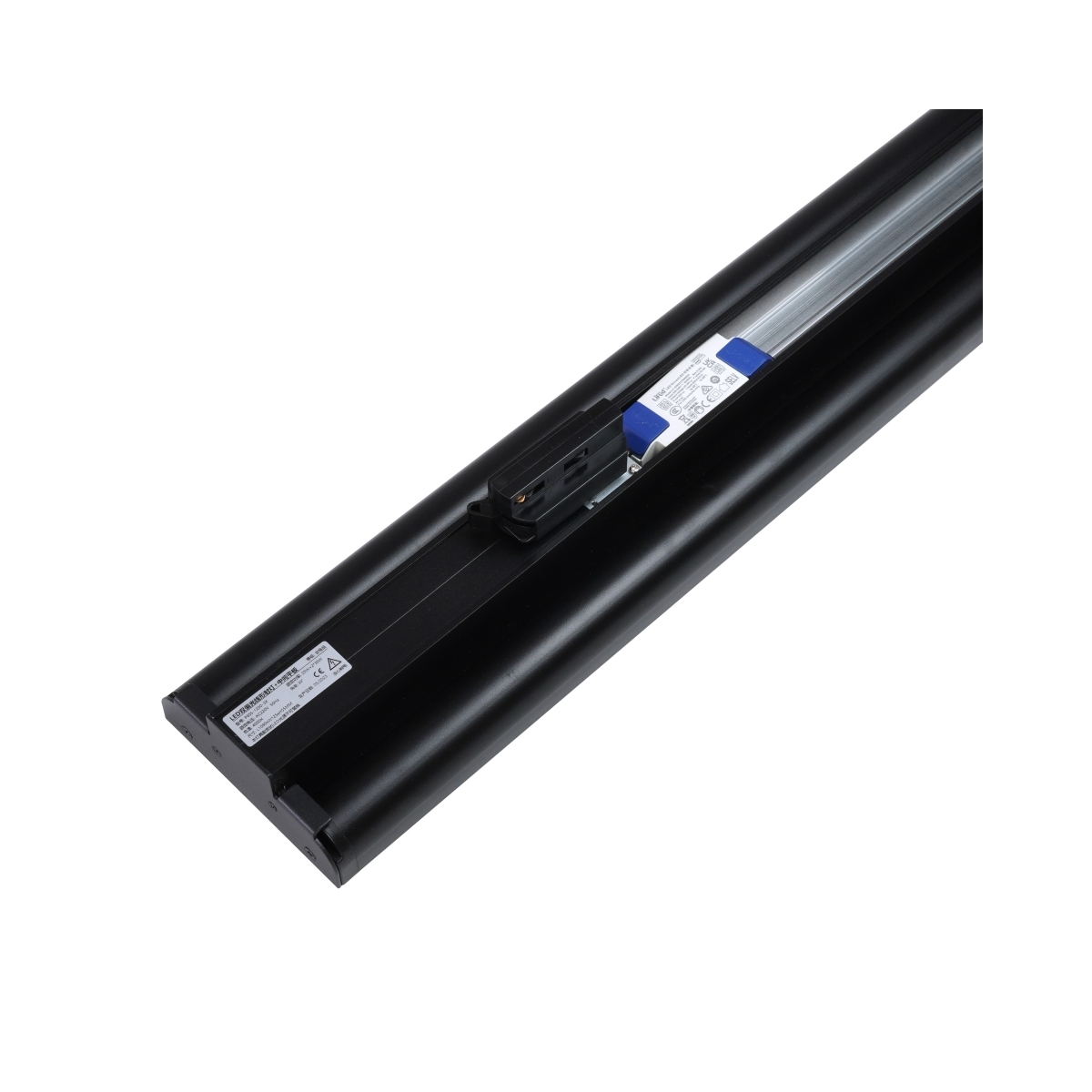

2. Easy to install driver and replacement at the back

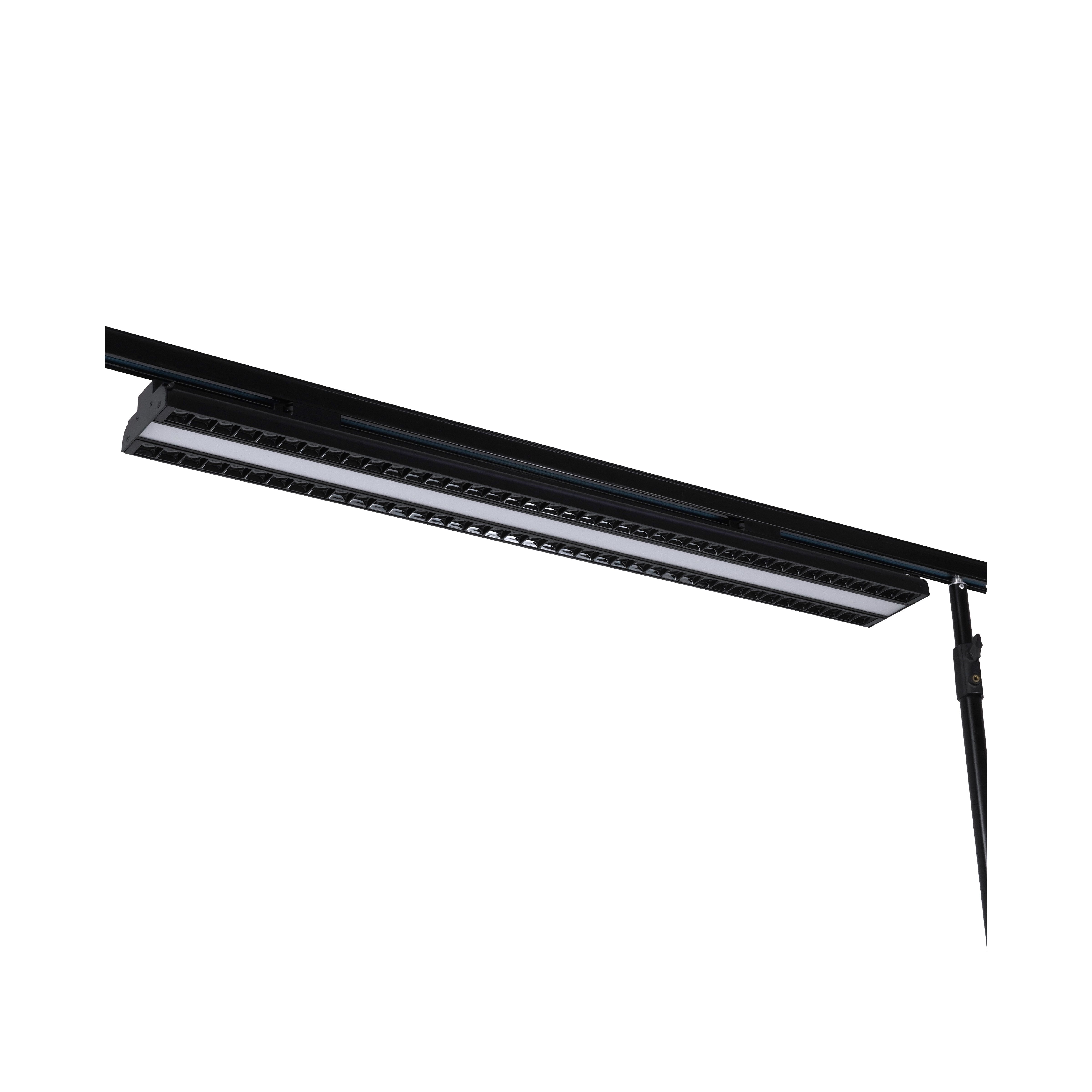

3. Rotatable dual-wing  linear light 120°
4. Optical reflective louver, UGR 19
5. Optional power: 100W, 80W, 60W, 50W, 40W
6. Optionnal optics:

(1)Dual wing-lit

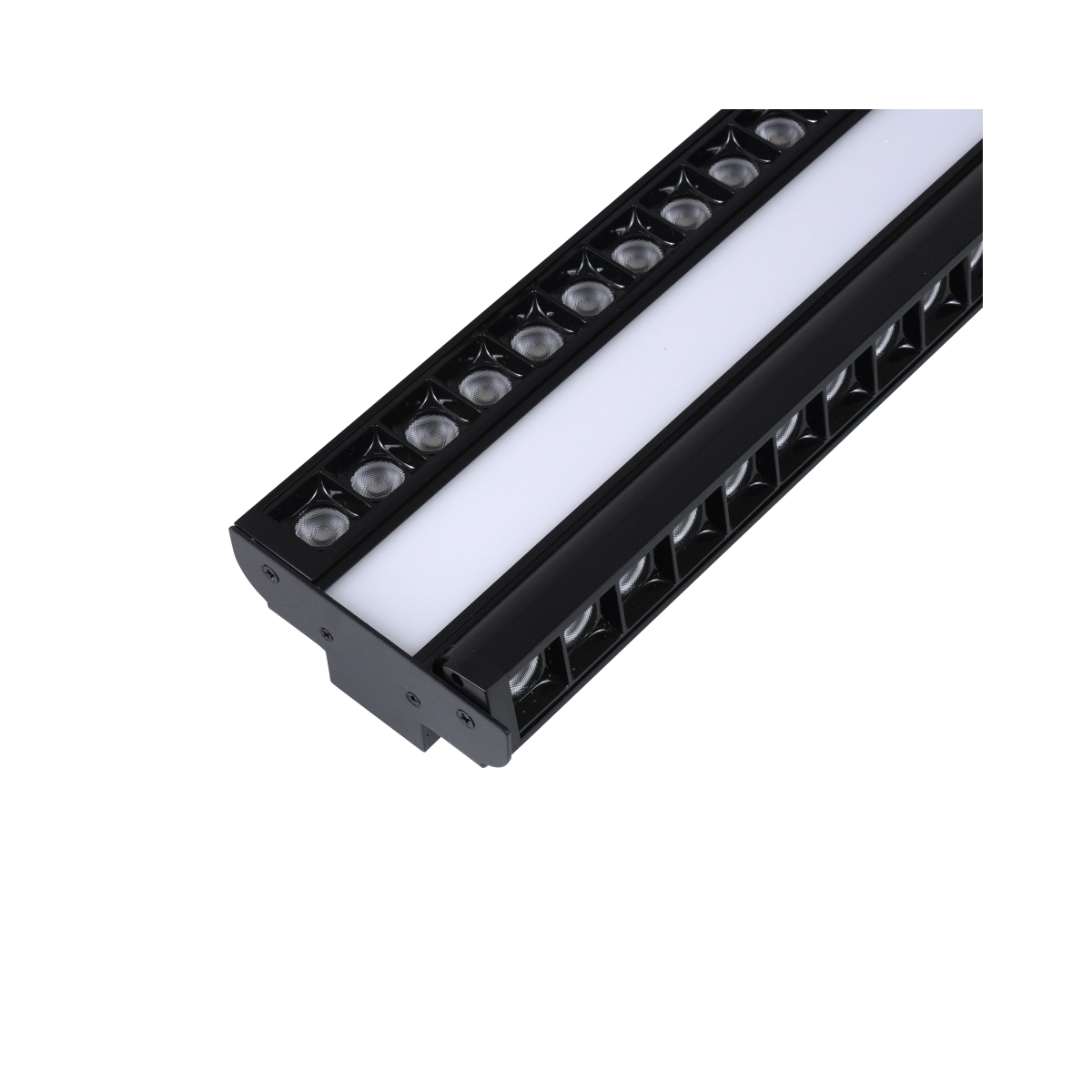

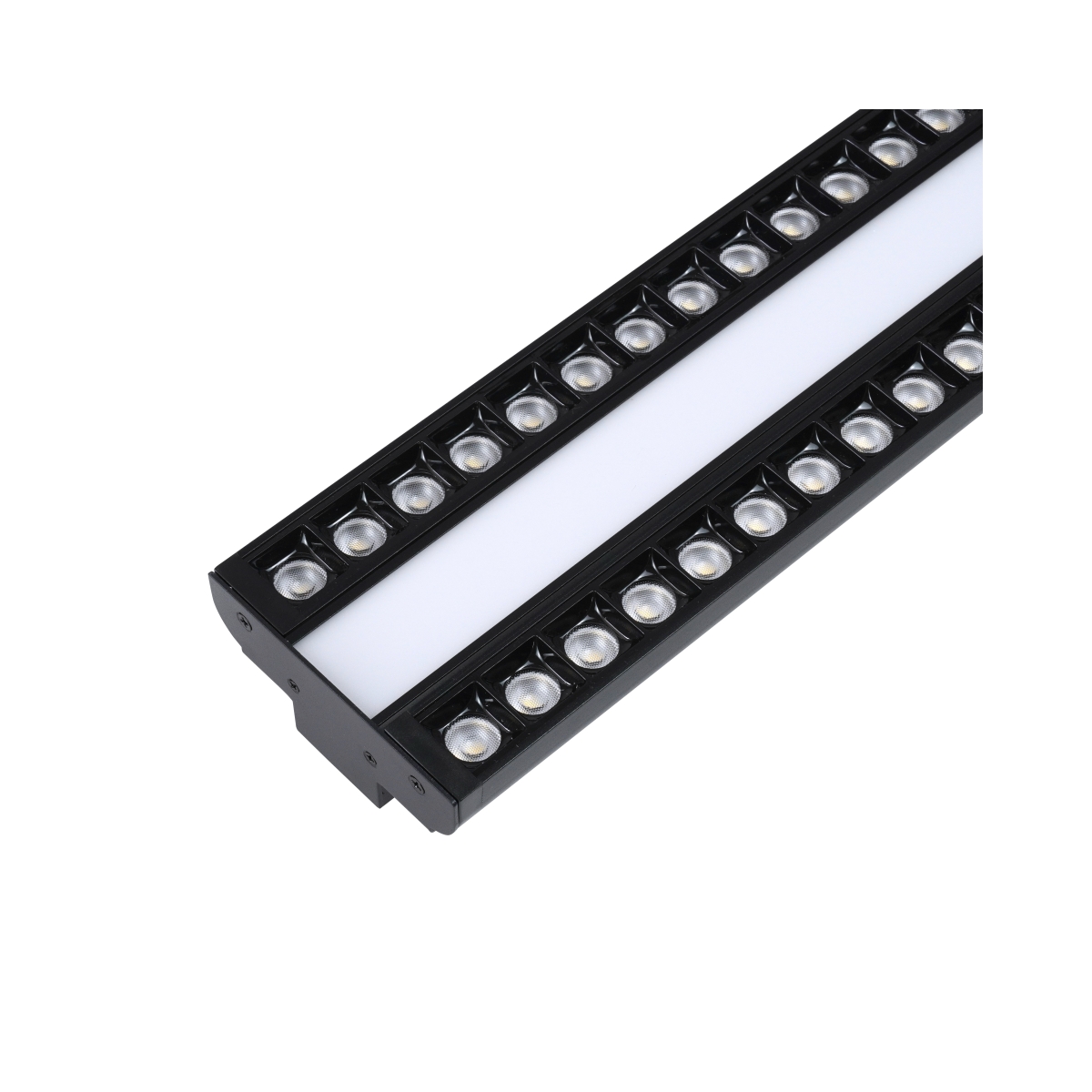

(2)Dual wing-lit + LED strip in the middle lit

General information

 CE& RoHS YES
 Efficiency 110 lm/w
 Control DALI, 1-10V, Triac, On-off, Zigbee, TUYA, Casambi
 LEDs type SMD 2835
 Warranty 5 year limited warranty
 Working temperature -25 to 45 degree
 Relative humidity  10% to 90% RH
 Finish  White, black
 Installation  Hanging, Track,  Rod, Bridge

 Construction

 Frame material              Aluminium alloy 6063+ zinc coatered iron
 End cap Iron Zinc coatered, powdered white
 Diffuser PC

 Performance data

 Power.     40W, 50W, 60W,80W, 100W
 CCT 3000K, 4000K, 5000K, 6000K
 CRI Ra>80 , Ra>90, Ra98
 Beam angle 42° lens
 Initial chromaticity SDCM<6 or 3
 UGR  19
 Lifespan L80B20 @ degree ≥ 50000 hrs

 Electrical

 Input voltage.               220-240V ac,100-277Vac, 5060 Hz
 Output voltage DC 36V
 Power factor >0.9
 Ripple  < 10%
 THD ≤ 20%

 Approval & application

 Protection class IEC              Class II
 Mech. impact protection code  IK05
 Ingress protection code IP20
