Lumin 45° Asymmetric Beam Skylight – Tunable White for Windowless Room

LM-XS-SKY

- 45° Asymmetric Optical Design: Its unique 45-degree tilted beam projects evenly distributed light across the entire space even when side-mounted, eliminating dark zones and glare in narrow corridors, windowless offices, and hospital MRI suites with limited ceiling access.

- Ultra-Slim Low-Profile Housing: Purpose-built for low-ceiling spaces, our compact skylight housings start at just 120mm height for 300×600mm and 300×1200mm models, and 180mm height for 600×600mm and 600×1200mm models, fitting seamlessly into shallow ceiling cavities.

- Flicker-Free Healthy Performance: Built with tier-1 Tridonic/Osram drivers, this skylight delivers 100% flicker-free illumination with RGO zero blue hazard certification and CRI 97 high color rendering, supporting circadian rhythm wellbeing for patients, staff and building occupants.

- Project-Ready Customization: Fully configurable with tunable white color temperature, DALI/0-10V dimming and custom dimensions to match healthcare, education, retail and industrial project needs. Free professional DIALux lighting layout design is provided for all project inquiries.

Quantity:

Contact Now

Download directory

Key Features

45° Asymmetric Optical Design – The unique 45-degree tilted beam projects evenly distributed light across the entire space even when side-mounted, eliminating dark zones and glare in narrow corridors, windowless offices, and hospital MRI suites with limited ceiling access. Unlike standard top-mounted skylights that require direct overhead installation, this design works where traditional fixtures cannot.

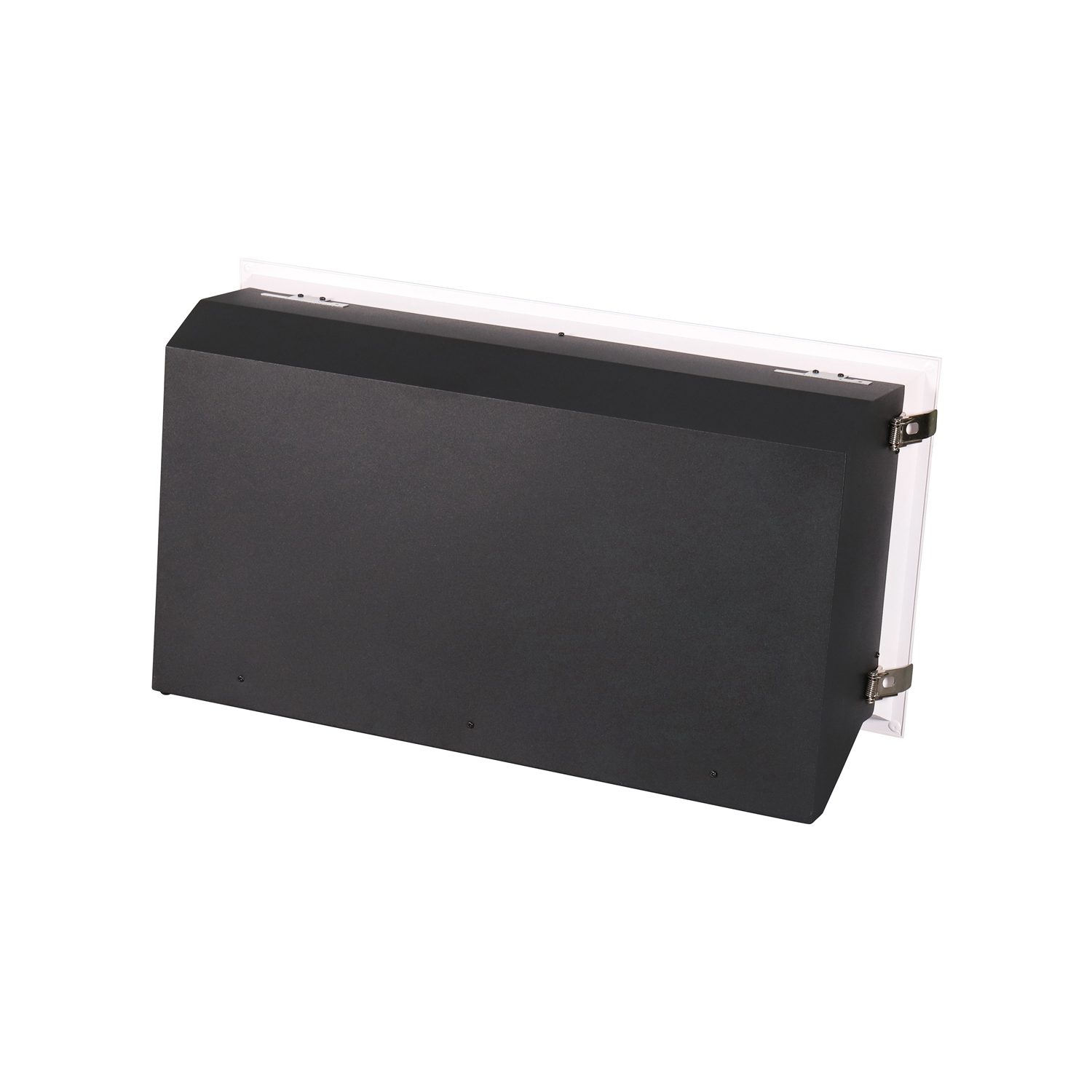

Ultra-Slim Low-Profile Housing – Purpose-built for low-ceiling spaces. Housing height starts at just 120mm for 300×600mm and 300×1200mm models, and 180mm for 600×600mm and 600×1200mm models. Fits seamlessly into shallow ceiling cavities where conventional skylights are too bulky.
Flicker-Free Healthy Performance – Built with tier-1 Tridonic/Osram drivers. 100% flicker-free illumination with RGO zero blue hazard certification and Ra95 high color rendering. Supports circadian rhythm wellbeing for patients, staff, and building occupants.
Project-Ready Customization – Fully configurable with tunable white 2000K-8000K, DALI/0-10V dimming, and custom dimensions. Free professional DIALux lighting layout design provided for all project inquiries.
Smart Multi-Protocol Control – Compatible with DALI DT8, Zigbee, 1-10V, Triac, Wi-Fi, Bluetooth, Casambi, Tuya, RF remote, and wall-mounted control panels. Adjust color temperature, brightness, and scenes via app or voice.

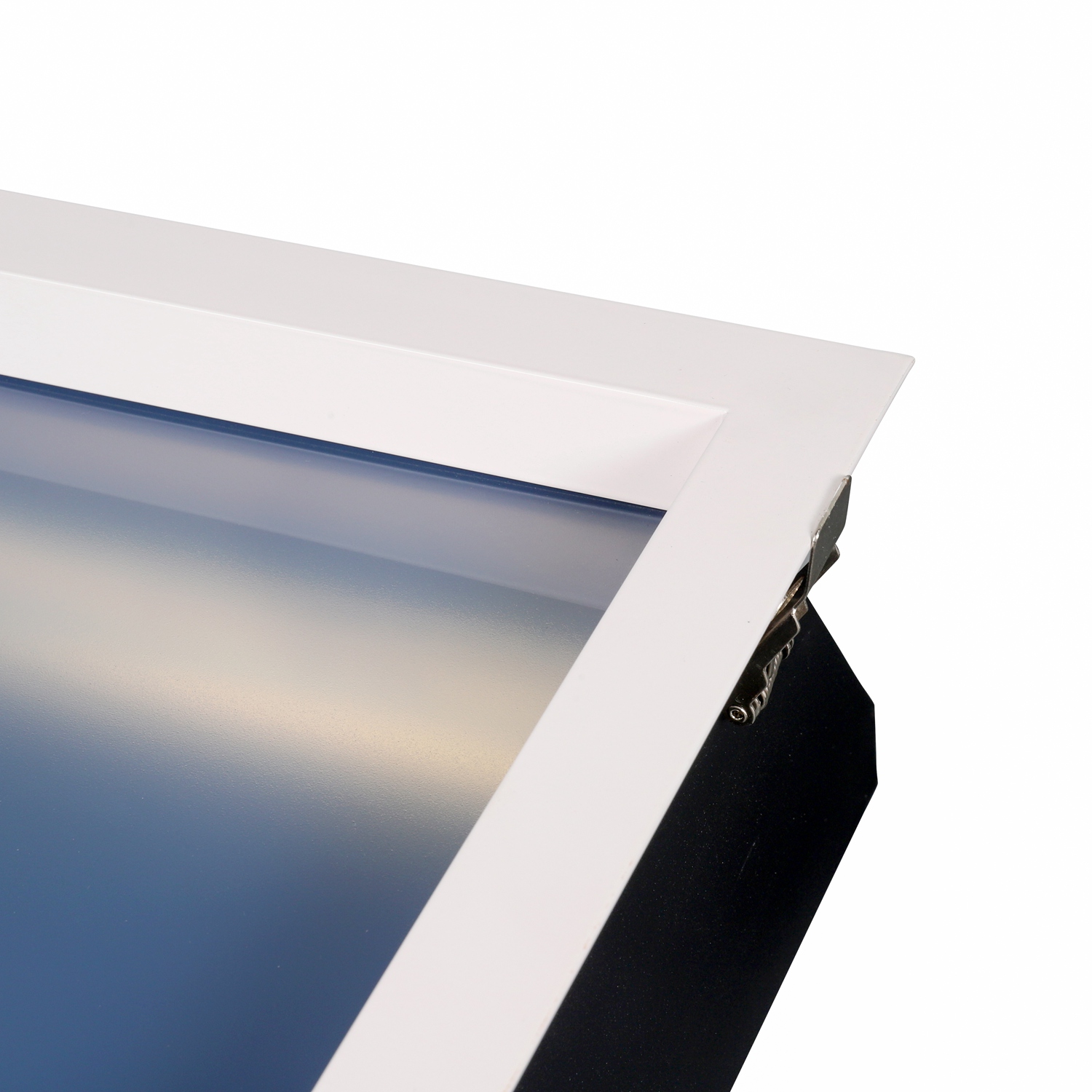

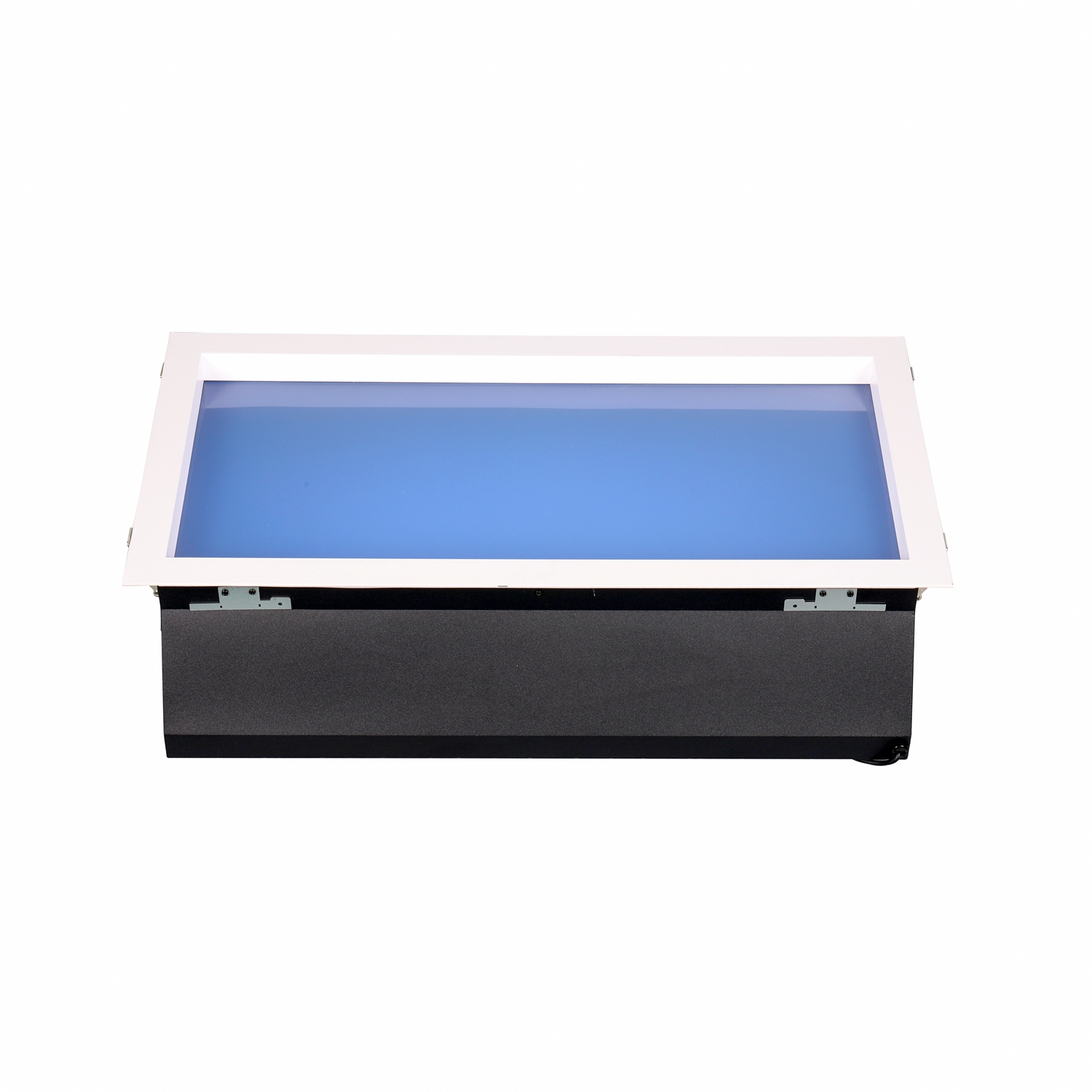

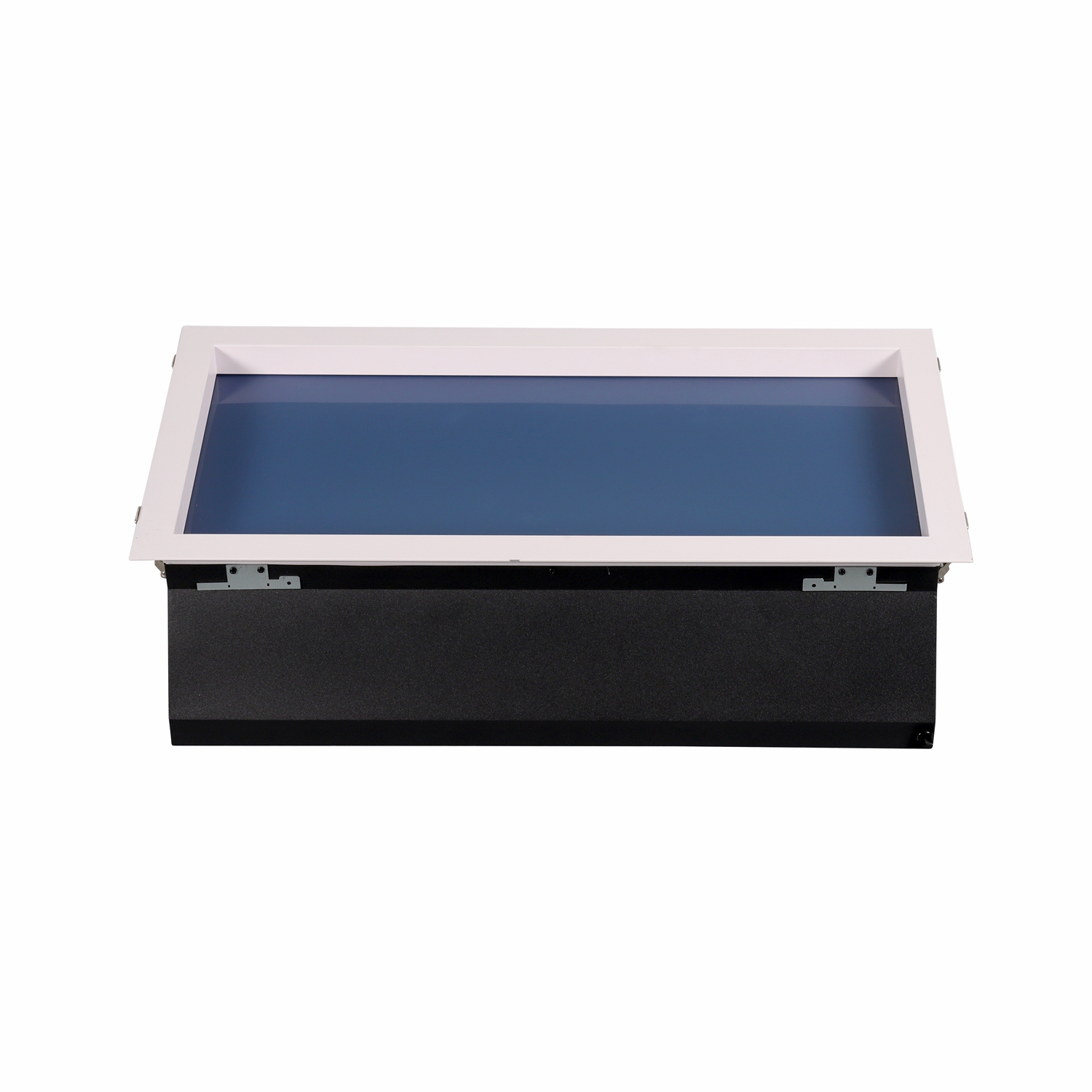

Robust and Safe Build – Iron, aluminium, and PMMA construction. White frame with black body. Recessed or hanging installation with safety cable. IP40 for indoor use.
Environmentally Friendly – No UV, IR, mercury, or glare. Operating temperature: -25°C to 55°C. Energy-efficient LED with low decay.

Full Product Description

No windows? No real sunlight?

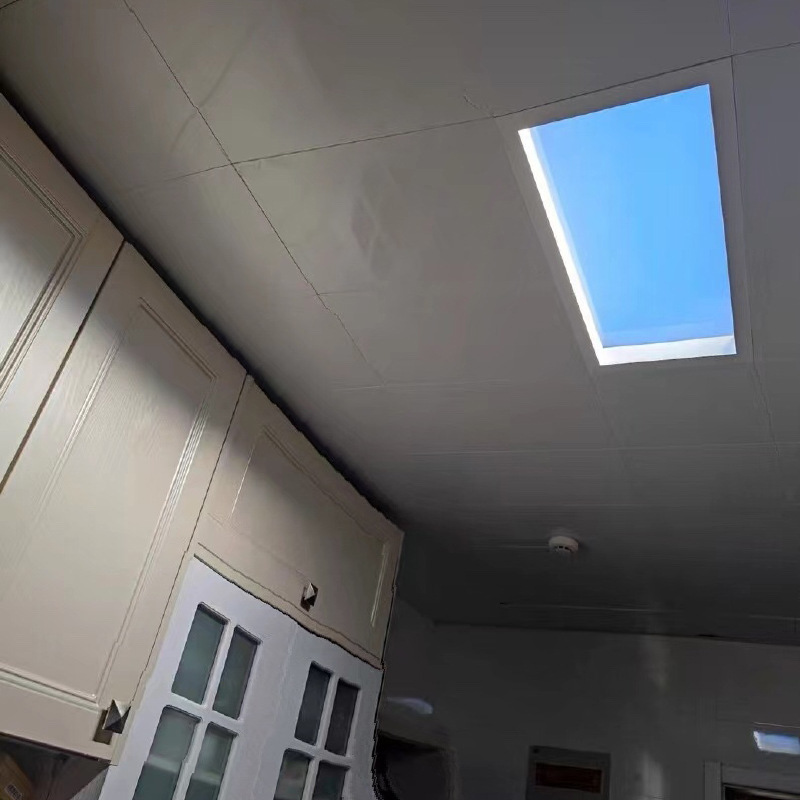

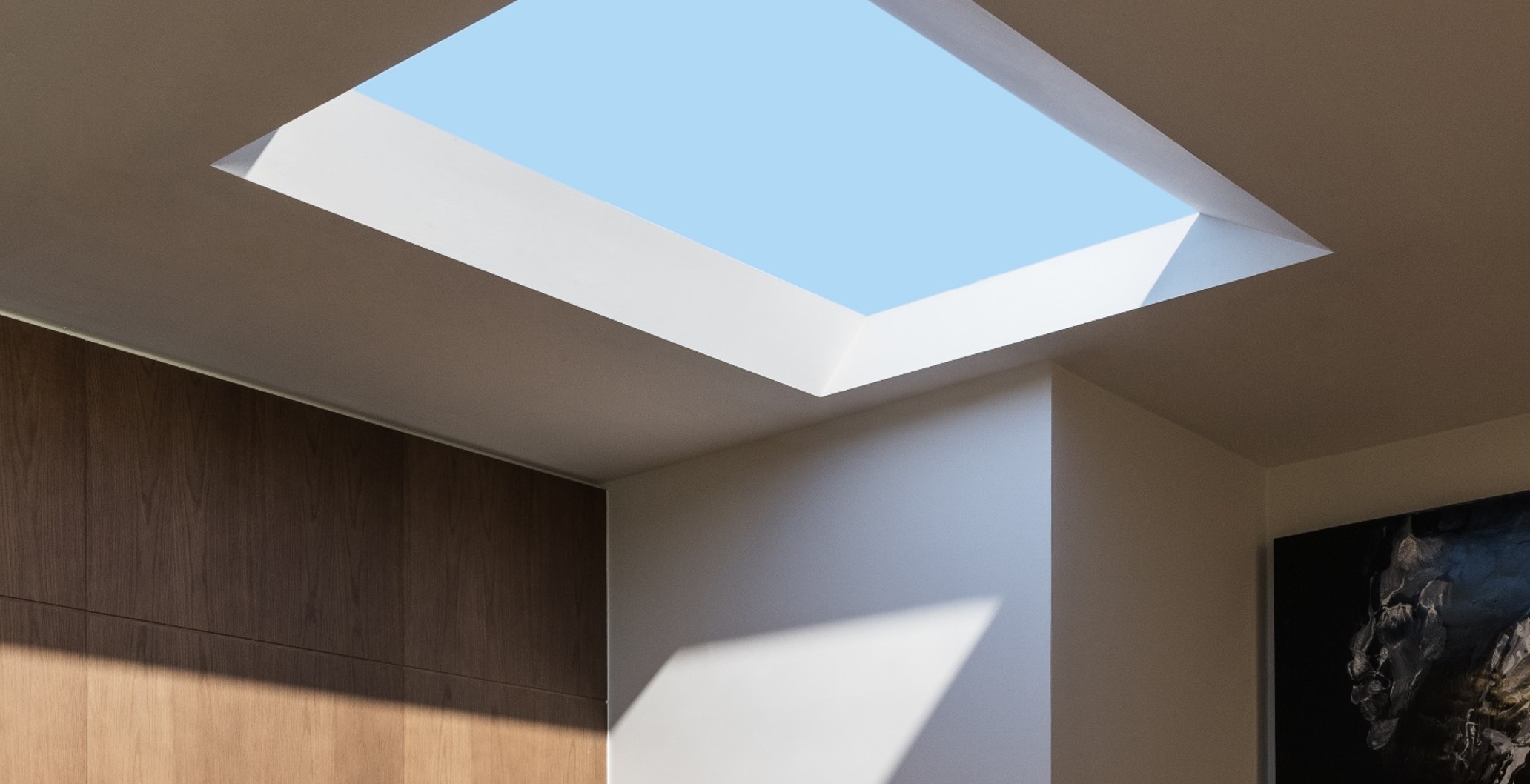

The Lumin 45° Slanted Sunlight Simulator brings a realistic sunbeam into any room, exactly like sunlight pouring through a skylight. Unlike flat LED panels, our patented 45° asymmetric beam creates slanted rays that cast natural shadows on your floor and walls.

45° Asymmetric Beam – True Slanted Sunlight

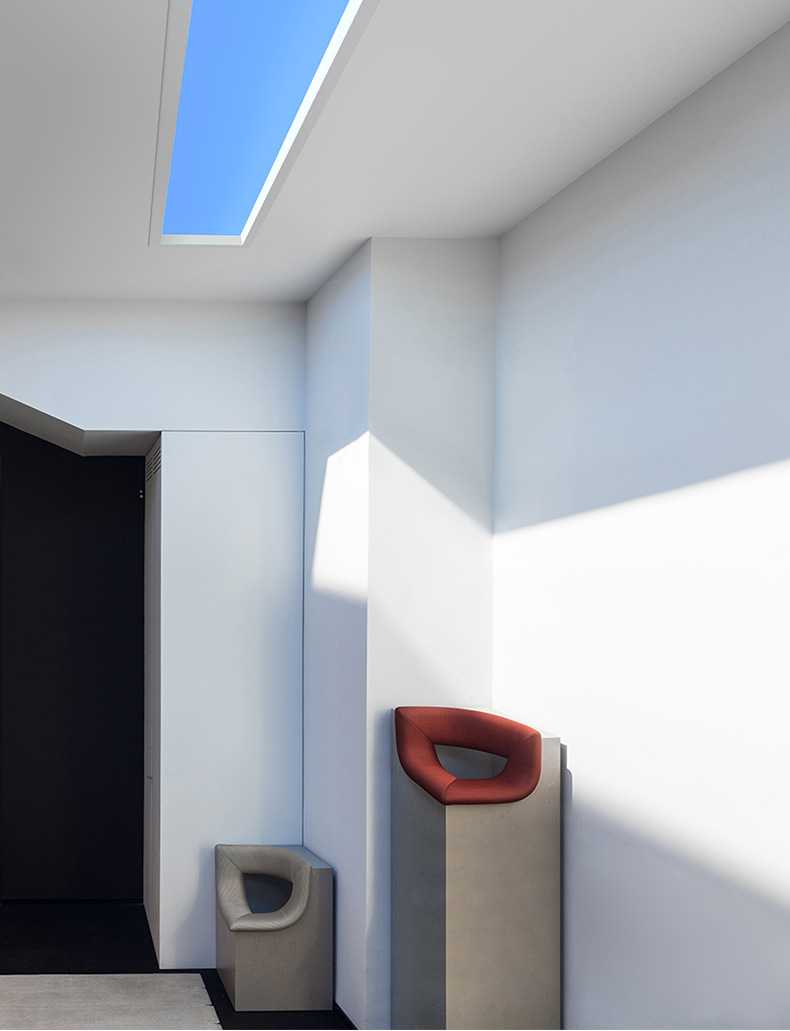

Unlike ordinary downlights or flat panels, the Lumin Blue Sky Light features a 45° asymmetric beam angle, simulating the natural angle of the sun shining through a window or skylight. This creates realistic slanted sun rays, natural shadow effects on floors and walls, and a sense of depth and spaciousness in any room.

Full-Spectrum Sunlight | Ra 95 | 2000K-8000K

High color rendering (Ra 95) delivers true-to-life colors. Tunable white light from 2000K (golden sunrise) to 8000K (clear blue sky) supports circadian rhythm and daily scenes. Dynamic circadian rhythm support is available via smart control.

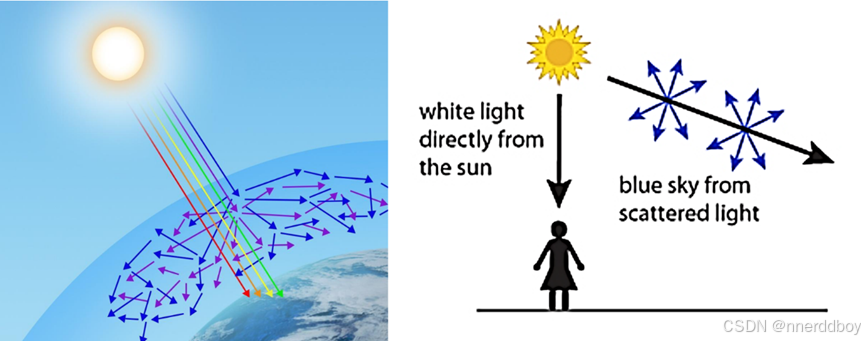

Rayleigh Scattering Technology

The fixture scatters short-wavelength blue light while letting warm sunlight pass through, producing a deep, infinite blue sky effect. Simulates the exact physics of a blue sky.

Smart Control – Your Sky, Your Way

Control your sky light with ease:
DALI DT8 (tunable white)
Tuya / WiFi / Bluetooth / Zigbee / Casambi
RF remote or wall-mounted panel
App control for timing, scene setting, and color temperature adjustment

Technical Specifications

Parameter	BSF3060	BSF6060	BSF30120	BSF60120	BSF14115
Power	50W	70W	100W	100W	100W
CRI	Ra 95	Ra 95	Ra 95	Ra 95	Ra 95
CCT	2000K-8000K	2000K-8000K	2000K-8000K	2000K-8000K	2000K-8000K
Beam Angle	Asymmetric 45°	Asymmetric 45°	Asymmetric 45°	Asymmetric 45°	Asymmetric 45°
Luminous Flux	2000 lm	3000 lm	4000 lm	5000 lm	4000 lm
Input Voltage	100-240V AC	100-240V AC	100-240V AC	100-240V AC	100-240V AC
IP Rating	IP40	IP40	IP40	IP40	IP40
Dimension	300×600×150mm	600×600×235mm	300×1200×150mm	600×1200×235mm	140×1150×112mm
Cutout Recessed	285×585mm	585×585mm	285×1185mm	585×1185mm	125×1135mm
Cutout Embedded	305×605mm	605×605mm	305×1205mm	605×1205mm	145×1155mm
Material	Iron + Aluminium + PMMA	Iron + Aluminium + PMMA	Iron + Aluminium + PMMA	Iron + Aluminium + PMMA	Iron + Aluminium + PMMA
Finish	White frame + black body	White frame + black body	White frame + black body	White frame + black body	White frame + black body
Mounting Location	45-60cm away from wall	45-60cm away from wall	45-60cm away from wall	45-60cm away from wall	45-60cm away from wall
Warranty	3 year limited	3 year limited	3 year limited	3 year limited	3 year limited

Control Protocols: DALI DT8, Zigbee, Casambi, Tuya, WiFi, Bluetooth, RF Remote, Wall-mounted control panel

Why Choose the Lumin 45° Asymmetric Beam Skylight?

Realistic Slanted Sunlight – Unlike ordinary downlights or flat panels, the 45° asymmetric beam simulates the natural angle of the sun shining through a window or skylight, creating realistic slanted sun rays and natural shadow effects.
Scientifically Validated for Healthcare – Clinical studies of artificial skylights in healthcare environments show measurable benefits: increased sleep duration (+18 minutes), reduced stress, improved mood, and enhanced circadian rhythm support. These systems help patients and staff in windowless settings maintain natural day-night cycles.
Circadian Rhythm Support – Tunable white from 2000K to 8000K supports human-centric lighting strategies. The color temperature can automatically change according to sunlight rhythm via app setup, helping building occupants maintain healthy circadian rhythms.
No UV, IR, Mercury, or Glare – Environmentally friendly with no harmful emissions. Operating temperature range: -25°C to 55°C.
Customizable for Every Project – Custom sizes, control types, and finishes (black, gold, etc.) available upon request.

Installation Methods

Recessed into ceiling – Flush mount for clean, integrated look
Embedded frame – Framed installation for finished ceiling appearance
Surface-mounted (inserted-in) – Direct mount for retrofit projects

Must be installed by a licensed electrician. Keep 45-60cm away from walls for best light projection effect.

FAQ

Q: What is a 45° asymmetric beam artificial skylight?
A: It is a specialized artificial skylight with a 45-degree tilted optical design that projects uniform light even when side-mounted. Unlike standard top-mounted skylights, it eliminates dark spots in narrow corridors, windowless rooms, and low-ceiling spaces where traditional recessed skylights cannot be installed.

Q: What ceiling types are compatible with this ultra-slim skylight?
A: Our low-profile skylights are compatible with most commercial ceiling systems, including standard T-bar grid ceilings, plasterboard ceilings, and mineral fiber ceilings. With a minimum housing height of just 120mm, they fit perfectly into shallow ceiling cavities and low-ceiling spaces.

Q: What dimming options are available?
A: We support multiple professional dimming systems for commercial projects: DALI DT8, 0-10V, Triac dimming, as well as smart wireless control like Bluetooth, WiFi, and 2.4G. Tunable white color temperature adjustment is available to match different scene requirements for healthcare, office, and education spaces.

Q: Is this skylight suitable for healthcare environments?
A: Yes. With RGO zero blue hazard certification, CRI 97 high color rendering, and flicker-free Tridionics/Osram drivers, this skylight is specifically designed for healthcare settings. It supports circadian rhythm wellbeing for patients, staff, and building occupants.

Q: What is the warranty period?
A: 3 year limited warranty for manufacturing defects. Free key components are provided for manufacturing defects. Not covered: misuse, wrong voltage, water damage, power surges, or unauthorized modifications.

Q: Do you provide DIALux lighting layout?
A: Yes. Free professional DIALux lighting layout design is provided for all project inquiries. Contact us with your floor plan and requirements.
