Lumin Seamless Sky Panel Matrix System for Large Ceiling Installations
Bring a Panoramic Sky to Large Spaces with Seamless Sky Panel Matrix
Large indoor spaces often suffer from a lack of natural daylight, resulting in a dull, enclosed atmosphere. The Lumin Seamless Sky Panel Matrix System solves this by allowing multiple frameless sky panels to be joined edge-to-edge without visible gaps, creating a continuous, panoramic blue sky ceiling. Whether you are designing a hotel lobby, an exhibition hall, a shopping mall, or an open-plan office, this modular system transforms expansive ceilings into a breathtaking artificial sky.
Unlike standard framed panels that create visual breaks, our frameless design ensures a seamless, uninterrupted sky image. The result is a stunning, immersive environment that reduces stress, improves mood, and elevates the architectural character of any large space.
Key Features

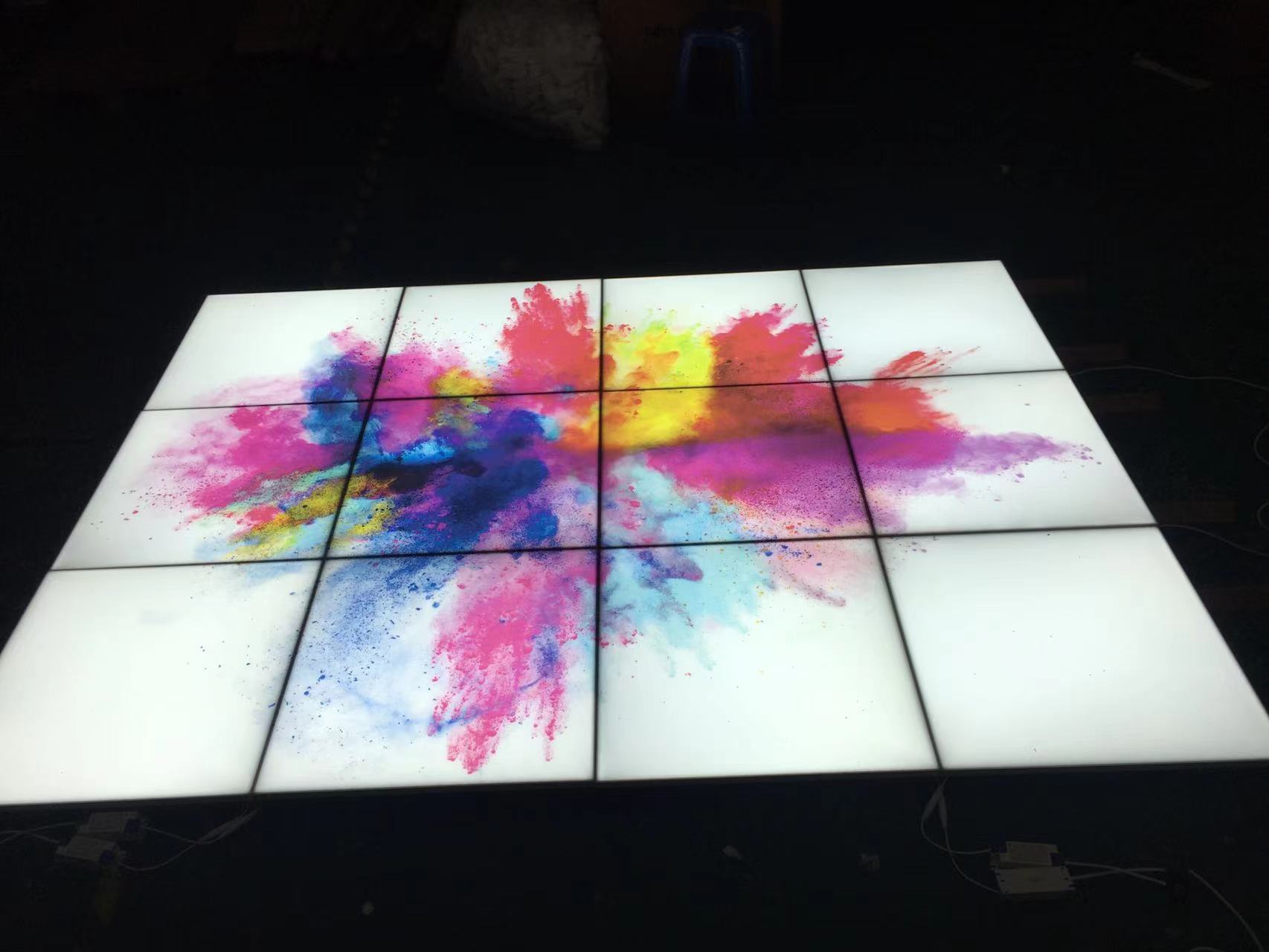

Seamless Splicing Technology – Precision edge-to-edge joinery eliminates visible gaps between panels. Multiple panels form a single, continuous sky image without dark lines or interruptions.
Panoramic Sky Effect – Combine panels in any configuration to create a large-scale, high-resolution sky ceiling. Available in 3x5 arrays, 4x4 grids, or custom layouts.
Modular & Scalable – Add or remove panels as needed. Standard panel sizes include 595×595mm, 1195×295mm, 620×620mm, and 295×295mm. Custom sizes available.
Frameless Design – No visible frame creates a clean, modern aesthetic. The sky image extends to the edge of each panel, ensuring a seamless visual experience.
Easy Maintenance – Panels are labeled A and B. Panel B can be disassembled separately for quick maintenance. When disassembling Panel A, simply remove 1-2 adjacent Panel B panels. No need to dismantle the entire ceiling.
Flicker-Free & Eye Comfortable – High-quality flicker-free driver ensures stable illumination without visible or invisible flicker. Reduces eye strain in large open areas.
Reliable & Certified – Produced in Lumin’s ISO9001 certified workshop. CE, RoHS, and UL certified. 5-year limited warranty for manufacturing defects.
Technical Specifications
| Parameter | LM-PW66A-36W-xxK-SKY | LM-PW1203A-36W-xxK-SKY | LM-PW6262A-36W-xxK-SKY | LM-PW33A-18W-xxK-SKY |
|---|---|---|---|---|
| Size (mm) | 595×595×18 | 1195×295×18 | 620×620×18 | 295×295×18 |
| Power | 40W (±2) | 40W (±2) | 40W (±2) | 18W (±2) |
| CCT | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| CRI | >80 | >80 | >80 | >80 |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Beam Angle | 120° | 120° | 120° | 120° |
| IP Rating | IP20 | IP20 | IP20 | IP20 |
| Driver | Flicker free | Flicker free | Flicker free | Flicker free |
| LGP | PMMA | PMMA | PMMA | PMMA |
Note: Panels are available in frameless design. Custom sky images and sizes are available upon request. Request Bulk Quote for Your Large Sky Ceiling Project

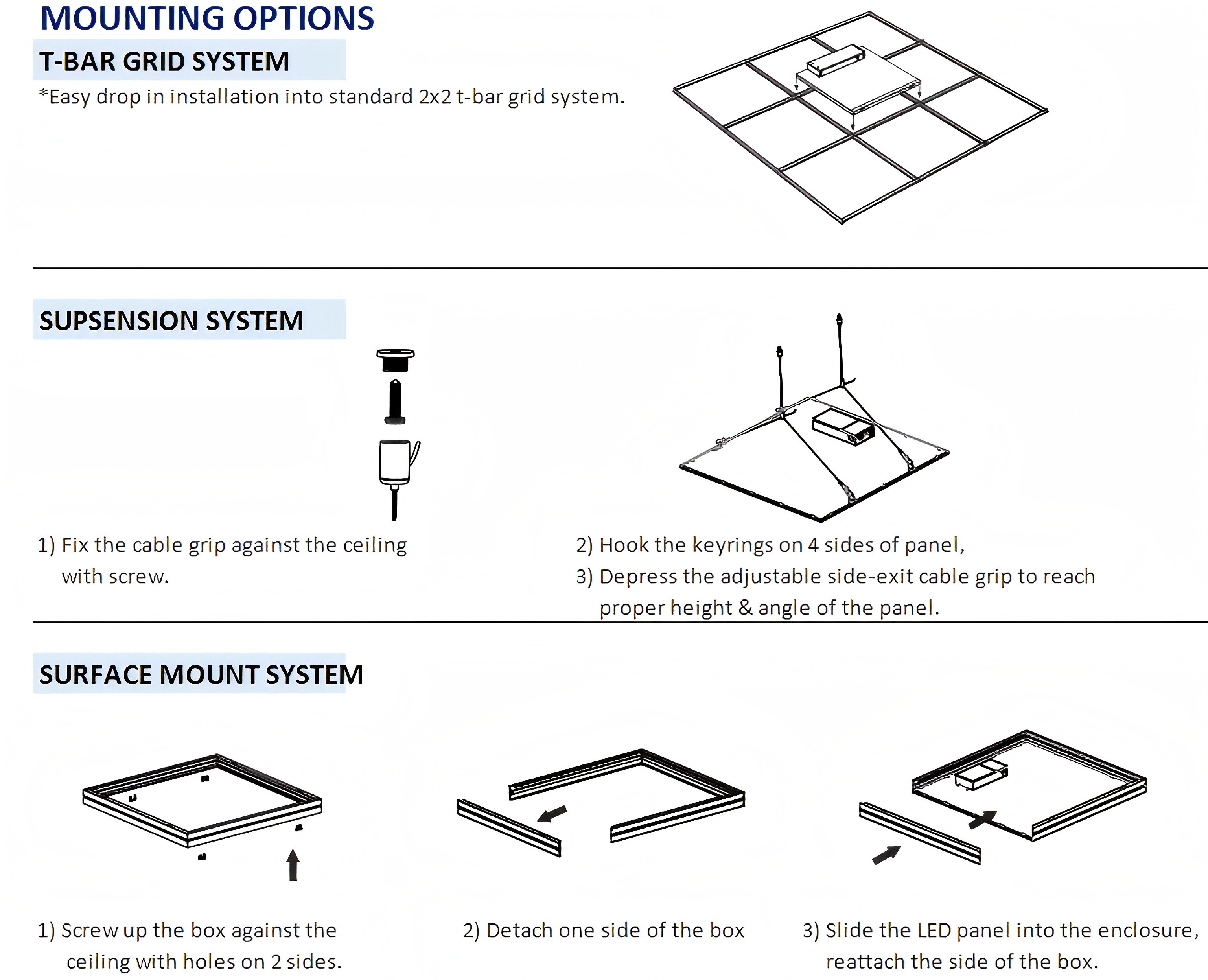

Installation Methods
Suspended Installation – Suspension kit with adjustable steel cables allows for flexible height and easy alignment. Ideal for open ceilings and high spaces.
Recessed Installation – Drop-in installation into standard T-bar grid ceilings for a flush, integrated look.
Surface Mount – Optional surface mount enclosure available for ceilings without grid.
Must be installed by a licensed electrician. Keep away from water and extreme heat (indoor use only). Chat with Our Lighting Engineer
Applications
| Space | Benefit |
|---|---|
| Hotel Lobbies | Creates a grand, welcoming atmosphere with a panoramic sky ceiling. |
| Exhibition Halls | Provides an immersive, natural backdrop for displays and events. |
| Shopping Malls | Adds visual openness and a refreshing sky effect to commercial spaces. |
| Open-Plan Offices | Reduces stress and improves employee wellbeing with biophilic design. |
| Conference Centers | Creates a calming, inspiring environment for meetings and presentations. |
| Airport Terminals | Brings natural light sensation to large, windowless waiting areas. |
| Museums and Galleries | Enhances exhibition spaces with a dynamic, realistic sky ceiling. |
Q: How many panels can be spliced together?

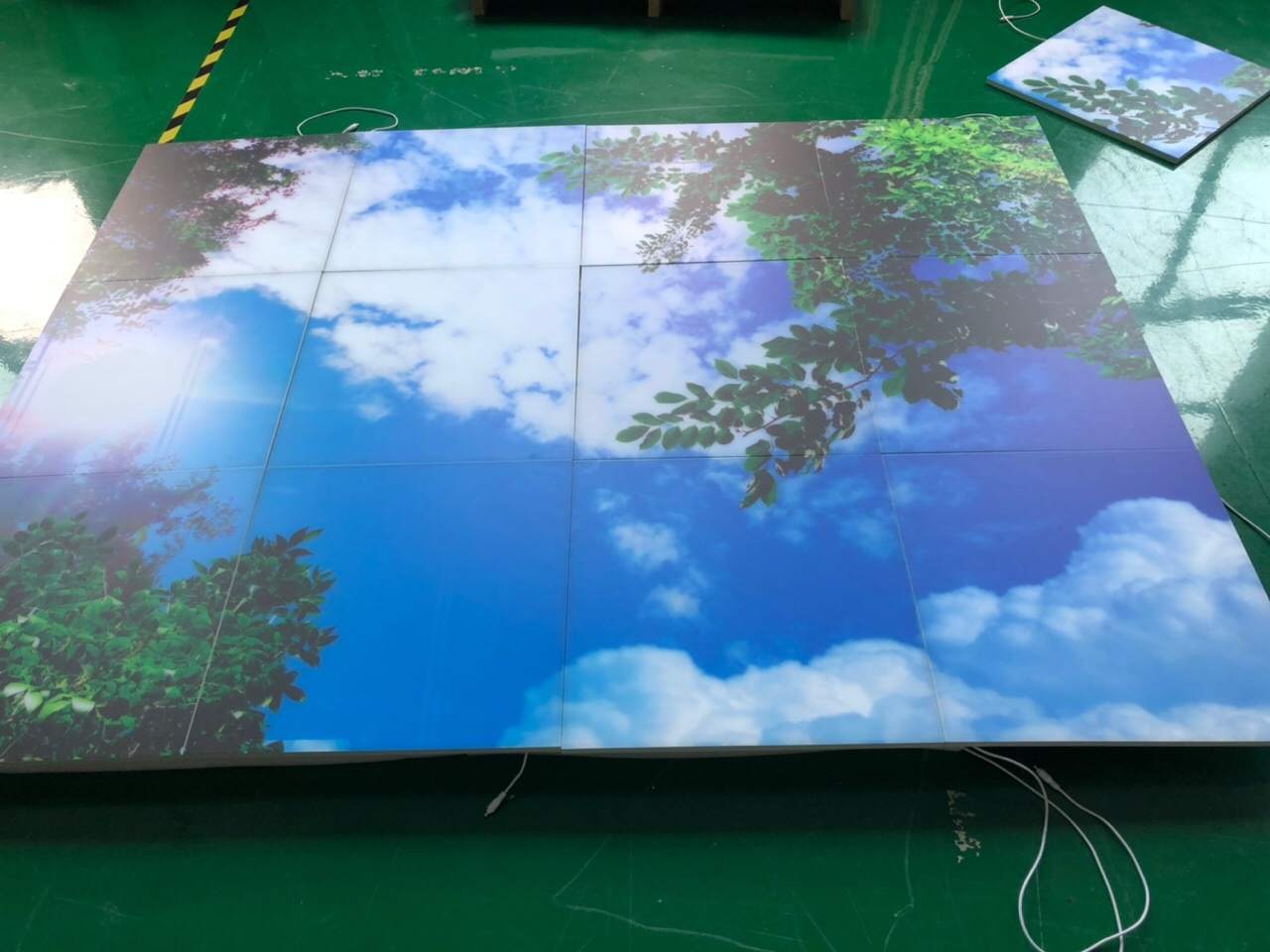

A: The system is modular and scalable. We have successfully installed arrays of 15 panels (3x5) and larger. Custom configurations are available.
Q: What is the difference between this matrix system and standard sky panels?
A: This system uses frameless panels designed for seamless edge-to-edge joining, creating a continuous sky image without visible gaps. Standard framed panels create visual breaks.
Q: Is maintenance difficult?
A: No. Panels are labeled A and B. Panel B can be removed separately for maintenance. To access Panel A, simply remove 1-2 adjacent Panel B panels. No need to dismantle the entire ceiling.
Q: What sizes are available?
A: Standard panel sizes include 595×595mm, 1195×295mm, 620×620mm, and 295×295mm. Custom sizes available upon request.
Q: What is the MOQ and lead time?
A: MOQ is 1 piece. Sample lead time is 5 to 7 working days. Bulk production is 15 to 25 working days.
Q: Do you provide IES files and test reports?
A: Yes. We provide IES files for DIALux and CE, RoHS, UL test reports. Contact us to request them.
Q: What is the warranty?
A: 5-year limited warranty for manufacturing defects.
Request Bulk Quote for Your Large Sky Ceiling Project
info@luminlight.com
WhatsApp: +86 15875556677
We will respond within 24 hours with pricing, IES files, and test reports.
