Model NO.
LM-LC75751240
Minimum order quantity:
1 piece
Quantity:
  • Place of Origin:guangdong
  • Color Temperature(CCT):6000K (Daylight Alert)
  • Lamp Luminous Efficiency(lm/w):100
  • Color Rendering Index(Ra):80
  • Lighting solutions service:Lighting and circuitry design, DIALux evo layout
  • Application:Office Building, Office
  • Lifespan (hours):50000
  • Working Time (hours):50000
  • Brand Name:lumin
  • Model Number:LM-LC75751240
  • Material:ALUM.+PC
  • Light Source:LED
  • Number of Lights:Other
  • Lamp Luminous Flux(lm):4000
  • Working Lifetime(Hour):50000
  • Beam Angle(°):120
  • Input Voltage(V):100-277
  • CRI (Ra>):80
  • Support Dimmer:Yes
  • Warranty(Year):3-Year
  • Design Style:Modern
  • Power:40W
  • CCT:3000K/4000K/6500K
  • Installation:suspended/Surface mounted
  • Size:1200x75x75mm
  • Power Factor:PF>0.95
  • Driver:Isolated Constant Current Driver
  • Type:Contemporary
Product Description







 Features

  (1) Can be connected as a straight line

  (2) L-shaped connection, T-shaped connection, and cross-type connection are available

  (3) As high as 100lm/W

  (4) No dark areas at splicing position

  (5) Flicker free

  (6) Optional dimming: 0-10V, PWM, resistors

  (7) Optional Length: 0.6 meters, 1.2 meters, 1.8 meters, and 2.4 meters

  (8) 5 year warranty



 Application



 Offices, workshops, shopping malls, schools, libraries, hospitals, hotels, retail outlets, living rooms, airports, entertainment     spaces, etc.



 Replacement



  Replace Fluorescent tube and grille lamp with fluorescent tubes, saving 70% energy.



 Parameter

Model No.:LM-LC75750620LM-LC75751240LM-LC75751860LM-LC75752480
Size600*75*75mm1200*75*75mm1800*75*75mm2400*75*75mm
Rated Power20W40W60W80W
Luminous Flux1800-2000LM3800-4100LM5700-6200LM7600-8200LM
Input VoltageAC100-277V
50~60Hz
AC100-277V
50~60Hz
AC100-277V
50~60Hz
AC100-277V
50~60Hz
CRI>80>80>80>80
CCT2800K-3300K
4000K-4500K
5500K-6500K
2800K-3300K
4000K-4500K
5500K-6500K
2800K-3300K
4000K-4500K
5500K-6500K
2800K-3300K
4000K-4500K
5500K-6500K
MaterialsAluminum & PC Cover
Beam Angle120°
LIFE TIME50000hours
WARRANTY5 years warranty
IP RATINGIP20
Package15.3kg/9pcs/Carton30.3kg/9pcs/Carton45.8kg/9pcs/Carton60.5kg/9pcs/Carton
Net weight1.7kg3.4kg5.1kg6.8kg




 Specifications



 Electrics

  (1) High efficiency power supply

  (2) Input Voltage: DC 36V

  (3) Power Factor: >0.9

  (4) Dimming solutions are customized



 Environmentally friendly

  (1) No glare, mercury, ultraviolet, infrared or other hazardous substances

  (2) Working Temperature: -25℃ to 55℃

  (3) Storage Temperature: -40 to +85 ℃

  (4) Storage Humidity: 10% to 80%

  (5) Operating Humidity: 10% to 80%



 Benefits

  (1) Longer lifetime than traditional light.
  (2) 80% Energy-saving over traditional light .

  (3) Minimum maintenance costs.

  (4) Quick and easy installation to minimize retrofit costs

  (5) Using aluminum alloy shell, with frosted poly cover, Have good heat dissipation ability and optical effects.

















Other Products you may interested in:



 Super LED Linear Light







Blue Sky Frameless Led Panel Light









Full Spectrum LED Grow Light 800W

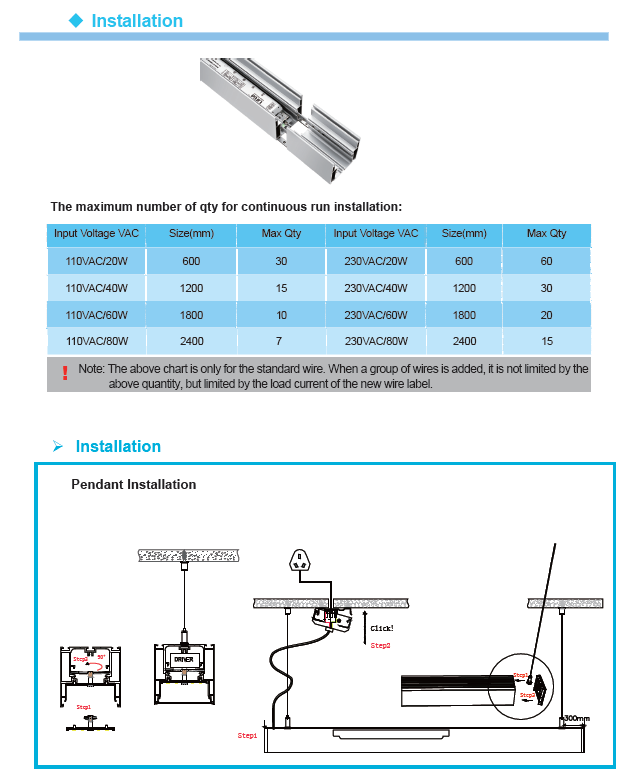

Installation

Installation Way:



Packaging & Shipping

Packaging:











 Shipping:



shipping ways:  Express like Fedex, DHL, UPS, TNT. Air flight, Sea flight







Our Services

(1) Your inquiry will be replied within 12 hours;
(2) Fast sample delivery: 3 days around.

(3) Best-trained and experienced sales staffs follow up with your inquiries and orders;

(4) OEM/ODM services: all can be customized;

(5) Distributor, agent, investor and more are welcome;

(6)  3 year limited warranty: spare parts can be offered along with orders.
