Lumin X1 SupLine LED Linear Trunking System
LM-6870

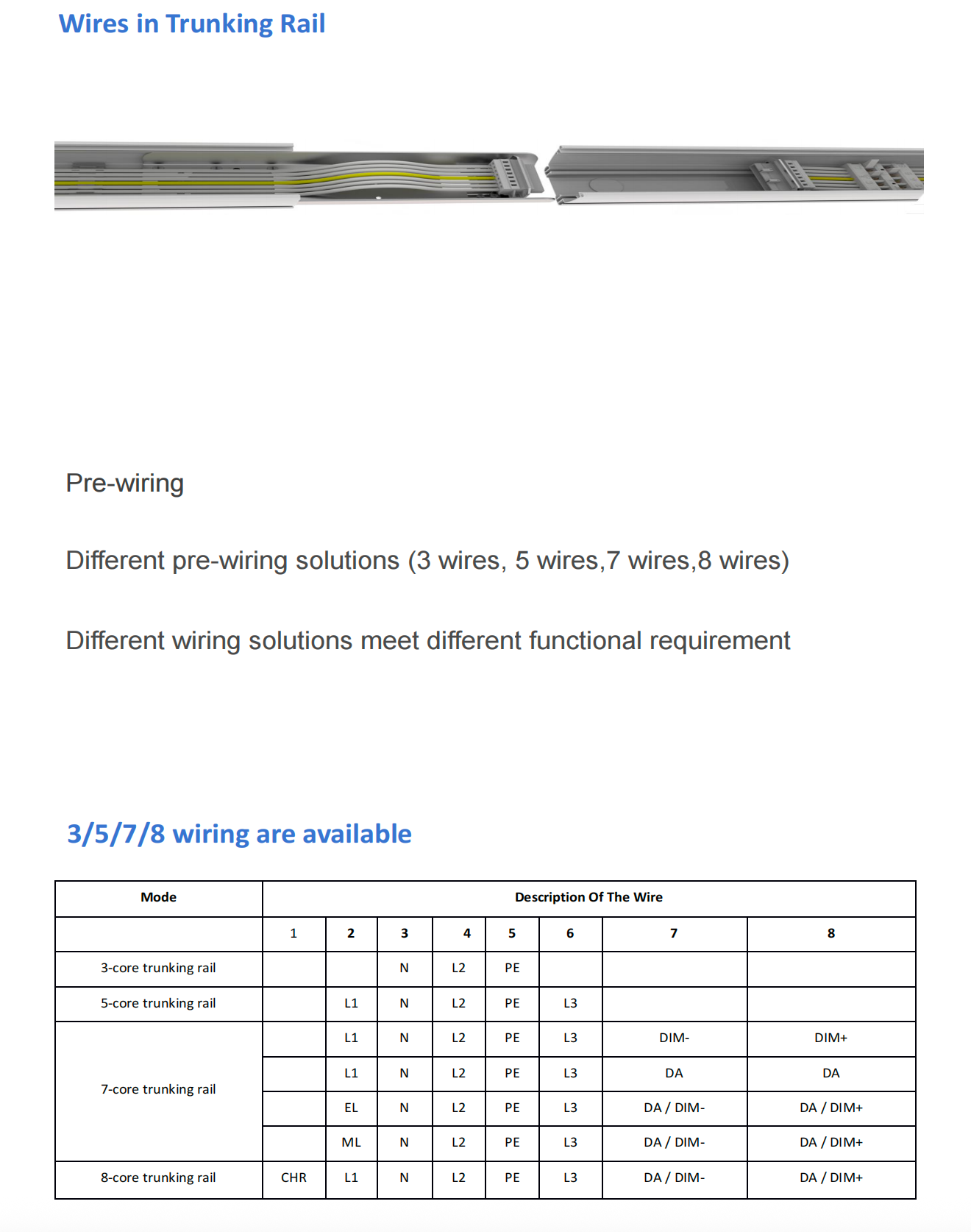

The advantage of SupLine is that it does not require additional wiring in the building space. Its track integrates multiple lines, including DALI dimming, emergency indicators, and sensors, which can be implemented on the lamp body.
In addition, the lamp body can be separated from the track, making maintenance and replacement very convenient and saving high labor costs.
SupLine is suitable for multiple application scenarios including supermarket lighting, warehouse lighting, factory lighting, and office lighting.
In addition, the lamp body can be separated from the track, making maintenance and replacement very convenient and saving high labor costs.
SupLine is suitable for multiple application scenarios including supermarket lighting, warehouse lighting, factory lighting, and office lighting.
Delivery
EXW
minimum order
20 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15-35Day
Quantity:
Lumin X1 SupLine LED Linear Trunking System is an energy-efficient, low maintenance alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations due to its low installation cost - everything in one box and installation is
tool-less. It saves both time and costs when updating lighting systems. Also, Lumin X1 SupLine LED Linear Trunking System is really good in terms of the low maintenance that’s typical for LED lighting and this also keeps costs low.
Benefits
· Cost-effective light-line solution for industrial, commercial and other applications
· Good quality of light with high lumen output to meet different requirements
· Easy to order and install, requiring less time, reducing packaging waste and complexity
· Flexible solutions
Applications
· Commercial
· Industrial
· Warehouse
· Other indoor lighting
tool-less. It saves both time and costs when updating lighting systems. Also, Lumin X1 SupLine LED Linear Trunking System is really good in terms of the low maintenance that’s typical for LED lighting and this also keeps costs low.
Benefits
· Cost-effective light-line solution for industrial, commercial and other applications
· Good quality of light with high lumen output to meet different requirements
· Easy to order and install, requiring less time, reducing packaging waste and complexity
· Flexible solutions
Applications
· Commercial
· Industrial
· Warehouse
· Other indoor lighting
General information | |
| CE& RoHS | YES |
| Efficiency | 150 lm/w |
| Control | DALI, 1-10V, Triac, On-off, Zigbee, Casambi |
| LEDs type | SMD 2835 |
| Warranty | 5 year limited warranty |
| Working temperature | -25 to 45 degree |
| Relative humidity | 10% to 90% RH |
| Finish | White |
| Installation | Hanging, Rod, Bridge (seamless connection) |
| Dimensions | 577/1150/1437*68*70mm |
Construction | |
| Frame material | Aluminium alloy 6063 |
| End cap | PC+ABS |
| Diffuser | PC |
Performance data | |
| Power. | 16/20/24/30W, 24/30/35/40W, 36/45/55/60W DIP |
| CCT | 3000K, 4000K, 5000K, 6000K |
| CRI | Ra>80 |
| Beam angle | 60°, 90°, 120° , asymmetrical lens |
| Initial chromaticity | SDCM<6 or 3 |
| UGR | <19 |
| Lifespan L80B20 @ degree | ≥ 50000 hrs |
Electrical | |
| Input voltage. | 220-240V ac，100-277Vac， 5060 Hz |
| Output voltage | DC 36V |
| Power factor | >0.9 |
| Ripple | < 10% |
| THD | ≤ 20% |
Approval & application | |
| Protection class IEC | Class II |
| Mech. impact protection code | IK05 |
| Ingress protection code | IP20 |
