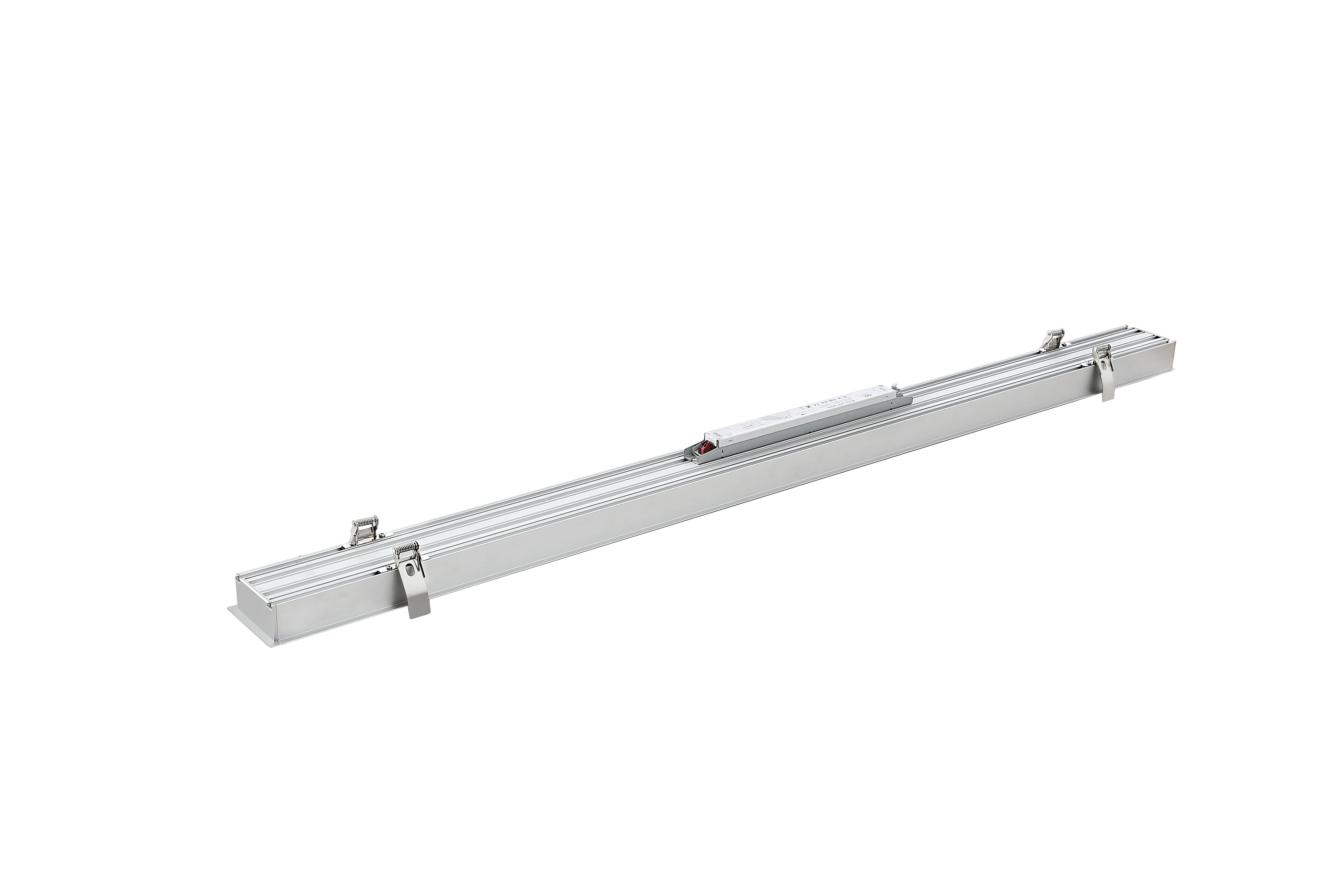

40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light
40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light

40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light

Model NO.
LR90351240
Minimum order quantity:
1 piece
Quantity:
  • Color Temperature(CCT):5000K (Daylight)
  • Warranty(Year):5-Year
  • Color Rendering Index(Ra):80
  • Support Dimmer:NO
  • Lighting solutions service:Lighting and circuitry design, DIALux evo layout, auto CAD layout, Project Installation
  • Lifespan (hours):50000
  • Working Time (hours):50000
  • Warranty(Years):5
  • Input Voltage(V):100~277
  • Lamp Luminous Efficiency(lm/w):100
  • CRI (Ra>):90
  • Working Temperature(℃):-25 - 55
  • Working Lifetime(Hour):50000
  • Lamp Body Material:Aluminum
  • IP Rating:Ip44
  • Certification:ce, EMC, LVD, RoHS
  • Place of Origin:Guangdong, China
  • Brand Name:lumin
  • Model Number:LR90351240
  • Application:Office
  • Light Source:LED
  • Product Name:1.2m linkable led recessed linear light
  • Length:1.2m 4ft
  • Power:40W
  • CCT:3000K-6500K
  • Cover:PC Diffused
  • LED Chip:2835 SMD Epistar
  • Power factor:0.95 THD<15%
  • Beam angle:120 Degree
  • Installation:Reccessed
  • Color:Silver/white/black
  • Luminous Efficacy(lm/w):100

40W Embedded Batten Light Fixture Architectural Recess Linear Led Strip Aluminum Profile Led Light






Specification of 1.2m 40W linear light led

ModelLM-LR90351240
Input voltageAC100-277V/AC220-240V
MaterialAluminium+PC cover
CCTWarm/Neutral/Cold white
InstallationHanging/Surface ceiling
Lamp colorWhite
Size1200*90*35mm
Warranty5 years



Product Description(Housing+Driver+PCB+LED+Heatsink)

Details on housing
Best Heat Dissipation Solution-- made from purified 6063 aluminium,its heat conductivity ratio is 206W/M.K,reducing heat from LEDs quickly,better than die-casting aluminium housing. Adopt PC Cover as mask,which have more than 85%  luminousness.


Product Details on Driver
Domestic well-known brand driver,Isolated LED driver designed for class I LED luminaires;high PF (PF>0.95@AC230V), high efficiency (up to 88%), low THD (≤20%); Surge protection: L-N: 2KV; L/N-GND: 4KV.Flicker-free is optional,3-5 years warranty.

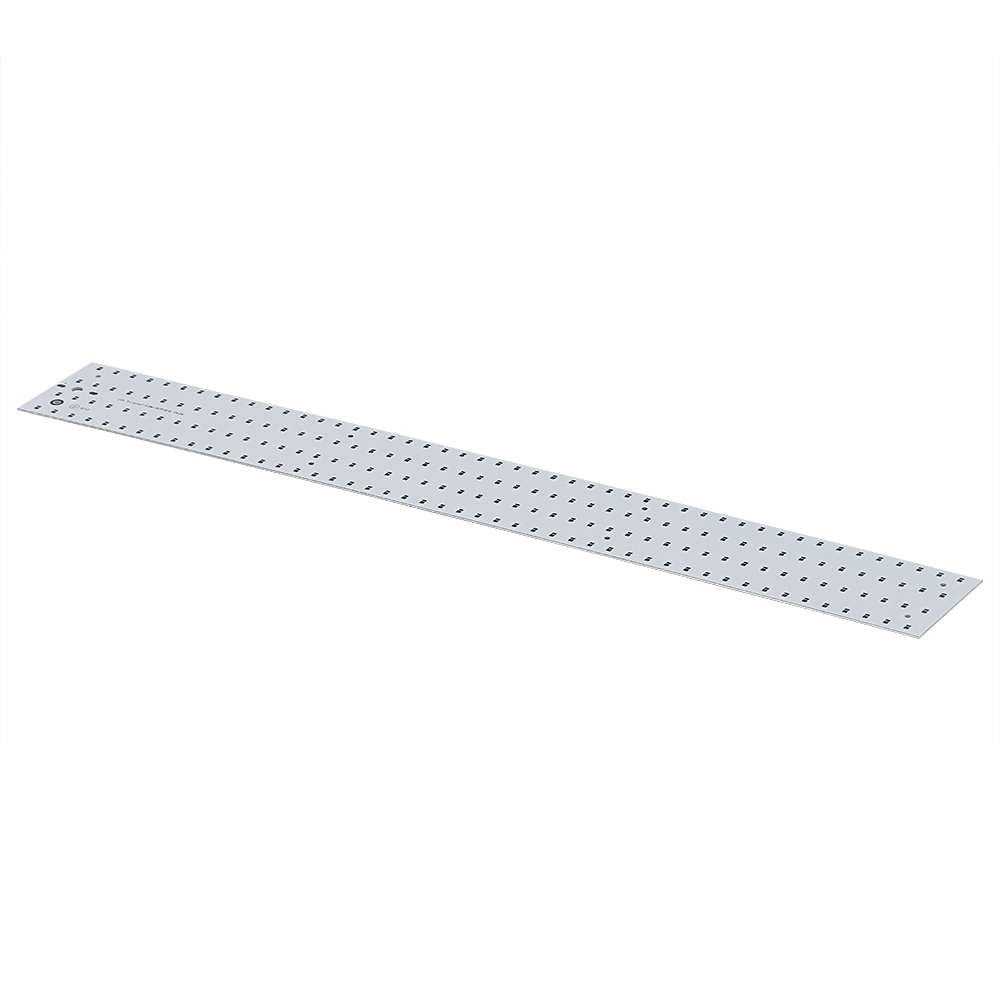

Product Details on MCPCB and LED Source
PCB: Adopt Aluminium PCB,which has better heat dissipation to lengthen the LED lifespan,Not use the cheap fiberglass board.

LED:Adopt HongLi brand,which have LM80 report

Product Details on heat sink
Aluminium heat sink to transmit the heat from MCPCB to aluminium housing,then spread the heat fast

Specification summary

           Model
LM-LR90350620
LM-LR90351240
LM-LR90351860
LM-LR90352480
LED Light Source
SMD2835
           SMD2835          SMD2835          SMD2835
Lamp Watt
20W
40W
60W
                80W
Input Voltage
AC85-265V
AC85-265V
AC85-265V
          AC85-265V



Installation

Application


Our Service

1. Inquiry will be replied within 12 hours.
2. Fast sample delivery: 1-3 days.

3. Best-trained and experienced sales staffs follow up with your inquiries and orders.

4. Powerful R&D team,new products will be launched every season.

5. 3-5 years warranty.Complaints will be solved within 24 hours by our profession team.

6. OEM/ODM services: all can be customized.



Company display


Lumin is a well-know lighting manufacturer in China since 2008. we are committed to developing, manufacturing, and popularizing LED lights, helping people with energy-saving, carbon emission reduction, and maintainable development. Nowadays, Lumin has already been successful in global market, providing quality LED lights and solutions to thousands of families, institutions, and communities worldwide

Quality is our culture. We pay more attention to quality control during production process by complying with ISO 9001 Quality System. And we emphasize to train workers to raise their awareness of quality.  All LED lights we are selling pass certifications of TUV, UL, CB,SAA, CE,RoHs. With the advantages of cost and performance, our global customers think highly of our products.

Customer is God. We believe that"the customer is always right". And Our sales team is very professional in our products and service. With their hard work and professionals  you can enjoy the best international purchasing experience.


HK Lighting Exhibition

FAQ

Q1: Which certificates does your LED Linear Light have?

A1 : CE,RoHS



Q2: What are your drivers and LED chip brand?

A2: Driver: LiFud/BOKE,ect. LED chip: Sanan,Samsung.



Q3: What are the LED Linear Light function?

A3: Non-dimmable,0-10V,DALI dimming.



Q4: How long does the linear light connect?

A4: 60M MAX.



Q5: What's the waterproof grade?

A5: IP65.


Q6: How to deal with the faulty?
A6: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 1%.
Secondly, during the guarantee period, we will send components or new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.



If want to know more details,welcome to contact us.
