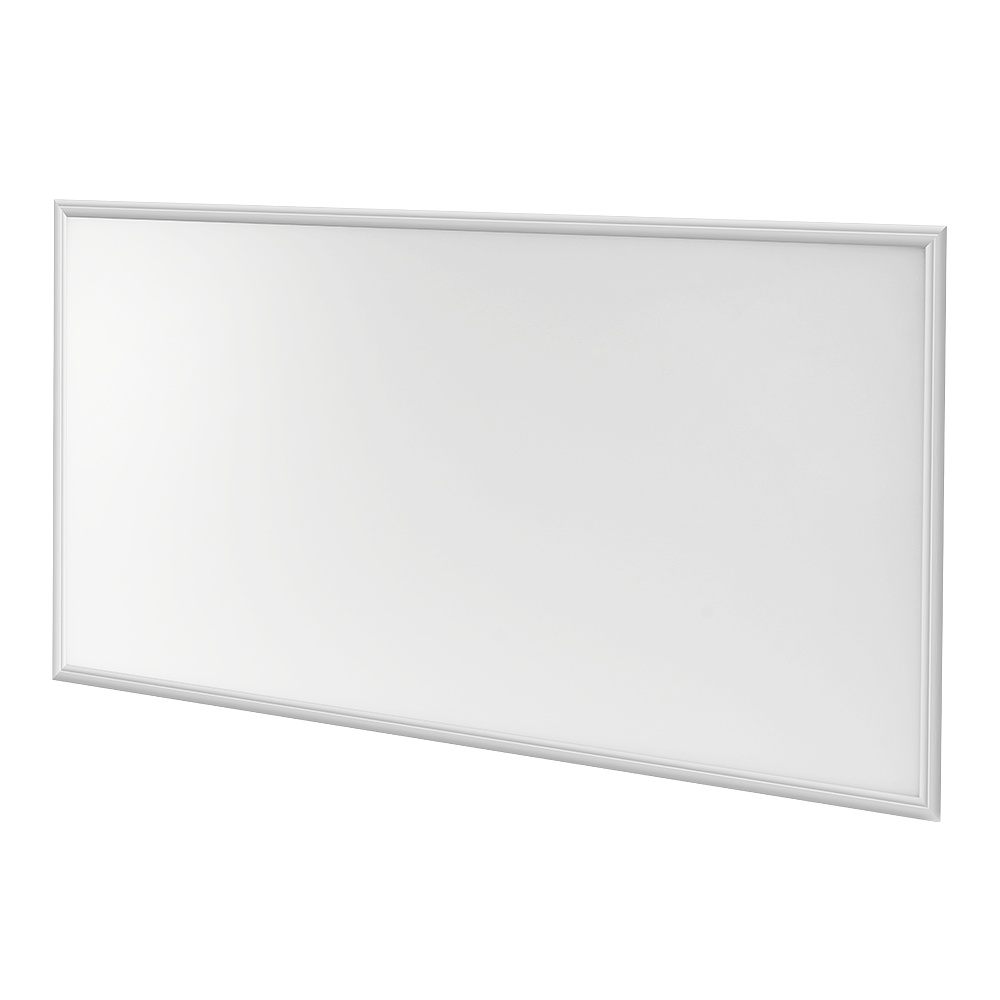

Lumin 130 lm/W 60W Ultra Thin LED Flat Panel Light 1195x595mm – Flicker-Free & UGR<20 for Office & School
Triple dimming, triple value: one panel, any building system.
Lumin’s 60W 1195x595mm ultra thin LED flat panel light is built for office, school, and hospital environments where visual comfort, long life, and low energy costs matter.
At 130 lm/W, this panel delivers 7800 lumens of clean, uniform light using just 60W of power (110° beam angle). Compared to a traditional 4x18W fluorescent troffer, you‘re looking at 60%+ energy savings, lower cooling costs, and zero mercury disposal headaches.
And unlike many budget panels, ours is UGR<20 certified – that means no reflective glare bouncing off computer monitors, no squinting in meeting rooms, and no student eye strain in classrooms. With a flicker-free driver (ripple <300mV), even your employees who are most sensitive to LED flicker won't complain.
For project managers and electrical contractors, the Triac + DALI + 0-10V triple-dimming support means this single panel works with almost any existing building control system – no surprise retrofit costs, no compatibility guesses.
We use Samsung/HONGLI LEDs, drive them at 30% of rated current, and mount them on an aluminium alloy 6063 frame for maximum heat dissipation. The result: 80000h lifespan (L80B30) and a 5-year warranty – one investment that lasts beyond a decade.
Installs in minutes: choose recessed (T-bar grid), surface-mounted (bracket), or suspended (cable) – we include all mounting options in the box. It fits both 1195x595mm metric ceilings and 2x4 ft imperial grids.
Ready to upgrade? Request a free sample or bulk quote today – our team responds within 24 hours.
| Parameter | Specification |
|---|---|
| Product Type | Ultra Thin LED Flat Panel Light |
| Model | LM-PL-16-60 |
| Size | 1195 x 595 x 10 mm (also fits 1200 x 600 mm / 2x4 ft grid) |
| Typical Power | 60W |
| Luminous Flux | 7800 lm |
| Luminous Efficacy | 130 lm/W |
| LED Brand | Samsung / HONGLI (LM-80 certified) |
| CCT Options | 3000K / 4000K / 5000K / 6500K |
| CRI | ≥82 |
| UGR | <20 (meets EN 12464-1 office/school standard) |
| Beam Angle | 110° or 90° |
| SDCM | <6 |
| Lifespan | 80000h L80B30 |
| Ripple | <300mV (flicker-free) |
| Dimming Protocols | Triac / DALI / 0-10V (3-in-1) |
| Input Voltage | 100-277V AC, 50/60 Hz |
| Power Factor | >0.9 |
| THD | <15% |
| Frame Material | Aluminium alloy 6063 |
| LGP | PMMA (3T or 2T) |
| Diffuser | PC/PS |
| IP Rating | IP20 (indoor use) |
| Certifications | CE, RoHS, LM80, EN62471 |
| Warranty | 5-year limited warranty |
| Mounting | Recessed / Surface / Suspended |

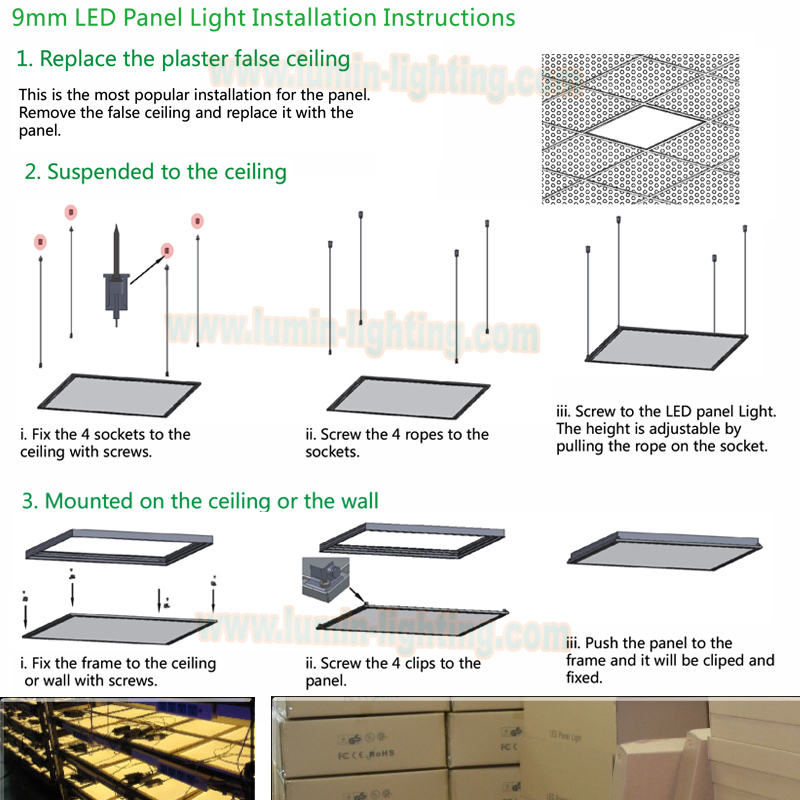

Installation Way:

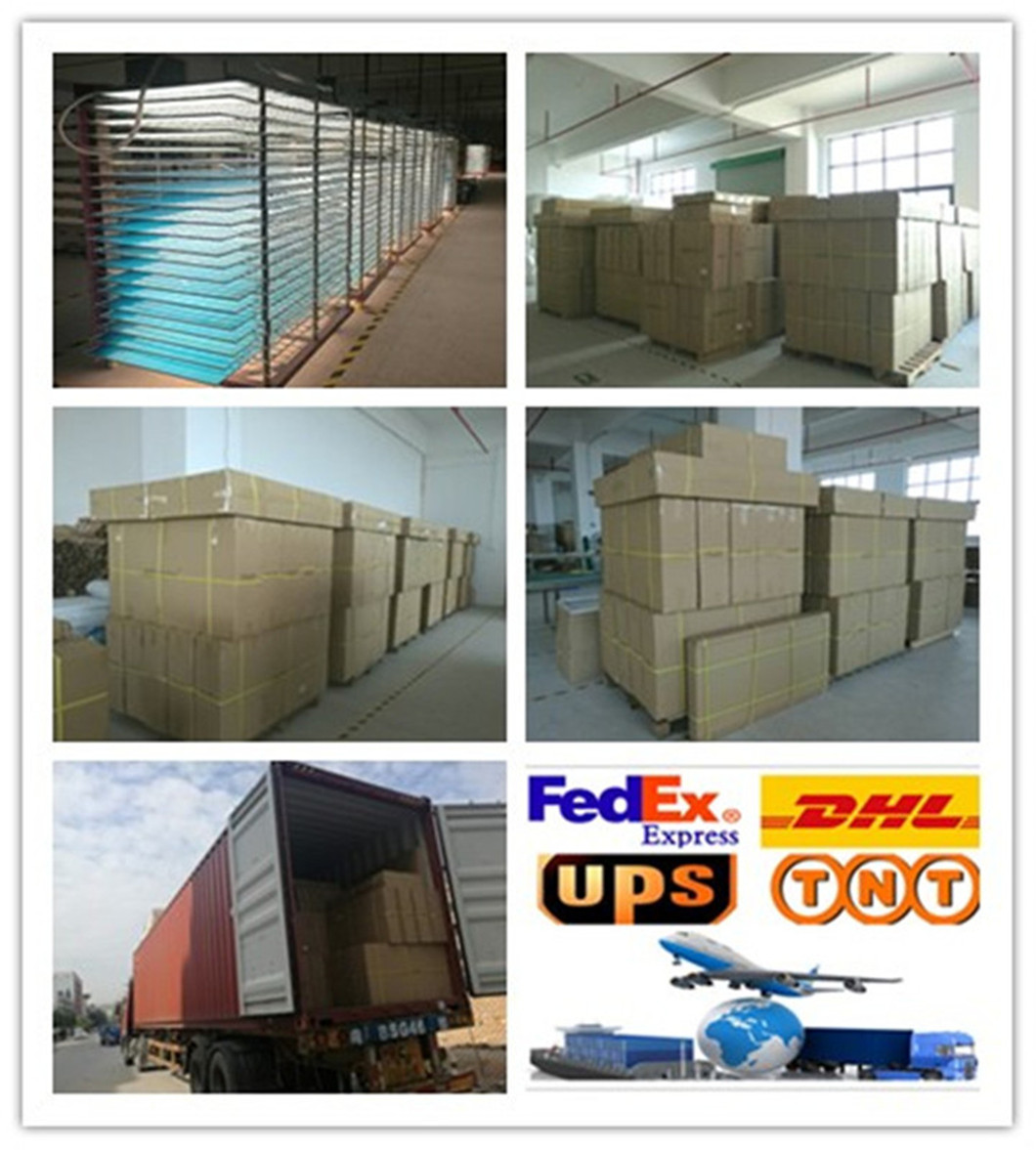

Packaging:
Shipping:
shipping ways: Express like Fedex, DHL, UPS, TNT. Air flight, Sea flight
(1) Your inquiry will be replied within 12 hours;
(2) Fast sample delivery: 3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders;
(4) OEM/ODM services: all can be customized;
(5) Distributor, agent, investor and more are welcome;
(6) 3 year limited warranty: spare parts can be offered along with orders.

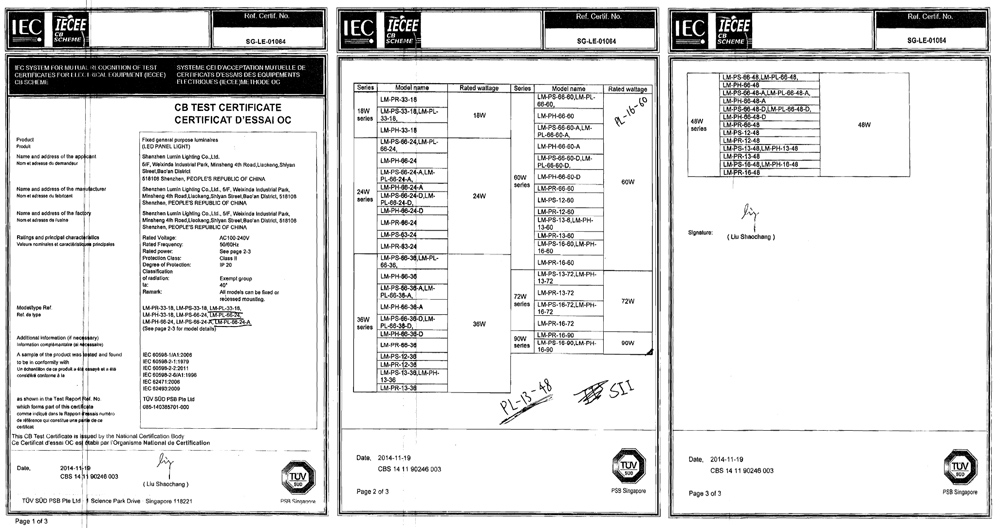

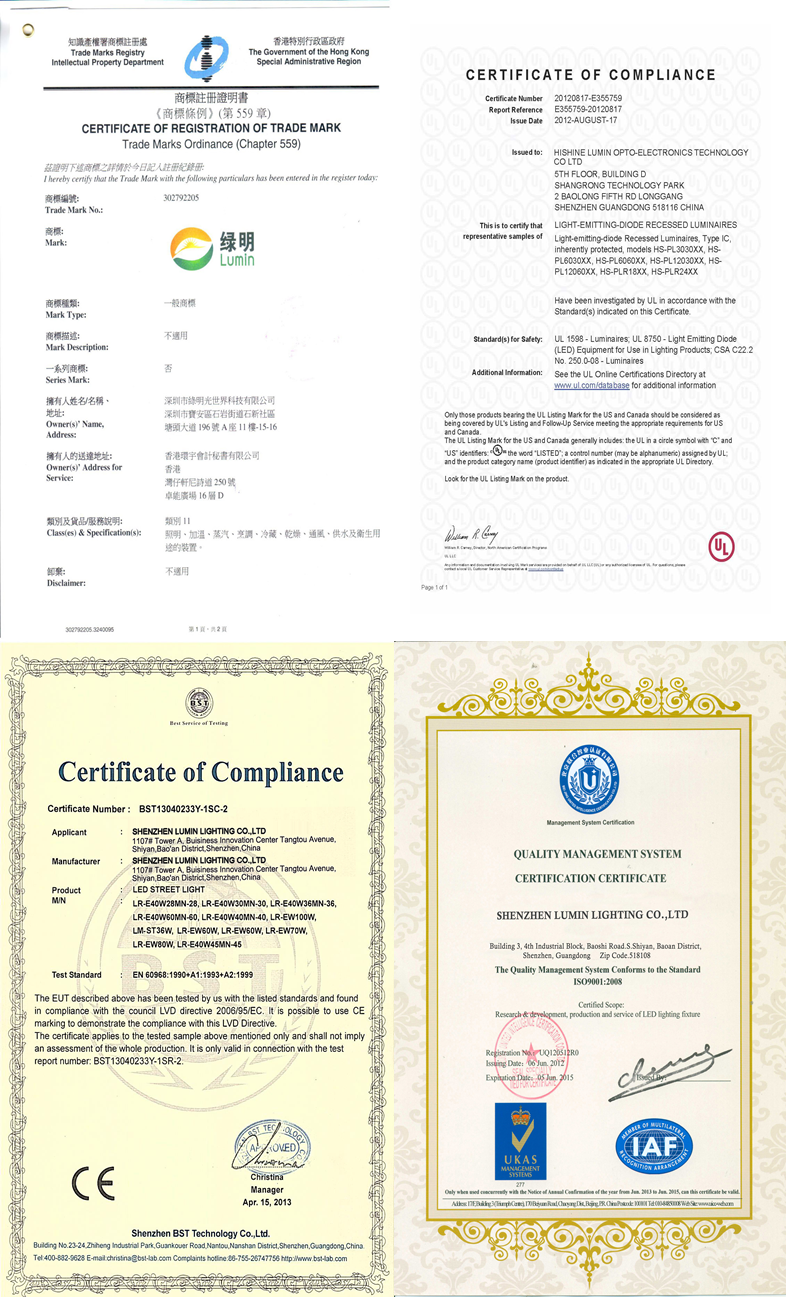

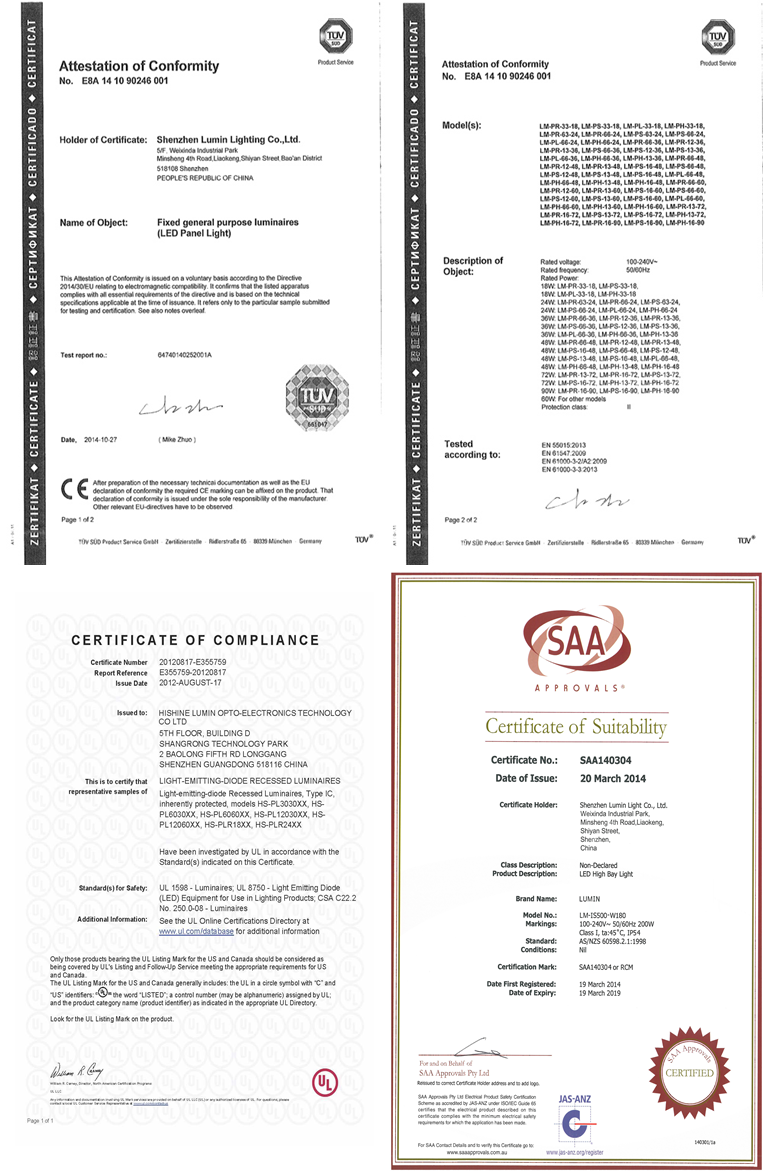

Certificatation
