How to Install an Artificial Skylight: Complete Guide for Different Ceiling Types (2026 Procurement Edition)

You've selected the artificial skylight product. The renderings are stunning — that deep blue sky, that angled "sunlight" — truly captivating. But when it comes to installation, questions start popping up:

• "My ceiling is gypsum board — can I install it?"

• "Do I need to remove the aluminum panels from my integrated ceiling?"

• "What if I don't have a dropped ceiling — just bare concrete?"

• "Do large fixtures need safety cables? Who installs them?"

These questions represent the final hurdle in procurement decisions — the product may be right, but improper installation can fail to deliver the desired effect or even create safety hazards.

This article approaches installation from a procurement decision perspective, providing a complete guide to three mainstream ceiling types, covering pre-installation preparation, step-by-step procedures, common mistakes to avoid, safety standards, and Lumin's full range of installation accessories and technical support.

---

Part 1: Pre-Installation Preparation — The "Invisible Process" That Determines Success

Many installation accidents and rework stem from inadequate preparation. The following four steps must be completed before any physical work begins.

1.1 Circuit Planning and Load Calculation

Linear lighting systems require stable power supply. Before installation, confirm:

• Whether the on-site supply voltage matches the fixture rating.（ Lumin artificial skylights support 100-240V AC wide voltage input, while some ultra-thin series use 36V DC low-voltage input, adapting to different project electrical environments.）

• Whether the total power falls within the circuit's capacity.

• Whether zone control is needed (3-wire/5-wire/7-wire multi-circuit systems).

For continuous splicing projects, calculate the total power and cable length in advance. Every circuit has limits on both load and length — exceeding these limits causes voltage drop, resulting in insufficient brightness or failure to illuminate at the far end. Lumin's supply capacity is 1,000 units per month, with a minimum order quantity of 4 units and fast sampling support. We recommend confirming electrical parameters with the supplier during the project planning phase.

Not sure if your project's electrical load can support the installation? Get Lumin's Installation Electrical Planning Sheet →

1.2 Ceiling Inspection and Measurement

Confirm the ceiling type and structure before installation:

• Gypsum board ceiling: Locate joist positions and spacing; avoid main joists.

• Integrated ceiling: Confirm joist direction; the long side of the fixture must align with the joists.

• Concrete slab: Check for embedded conduits in drilling areas.

• Key measurements:

• Distance from the first fixture to the wall: recommended 45cm to avoid wall shadows. The Illuminating Engineering Society (IES) Recommended Practice for Daylighting Buildings (IES RP-5-13) states that the ratio of skylight spacing to ceiling height must be reasonable to achieve uniform daylighting [1].

• Fixture spacing: typically 1.2-1.8 meters, based on space and illuminance requirements.

• Distance from power source to each fixture: no more than 1.8 meters to prevent voltage drop.

• Most of our artificial skylight panels are designed to fit standard 600×600mm T-bar drop ceilings, reducing installation time and project cost.

1.3 Tool Checklist

1.4 Safety First

The following safety steps must be performed before installation:

• Turn off the main power and verify with a voltage tester that circuits are de-energized.

• Ensure fixture grounding conductors are correctly connected. According to UL 1598 (North American luminaire safety standard), all LED luminaire wiring must be enclosed within the enclosure, and the housing must pass impact and flame resistance tests [2]. Lumin products are CE and UL certified and meet this standard.

• Use approved ladders or scaffolding for overhead work.

• At least two people are recommended for installation, especially for larger fixtures.

---

Part 2: Three Main Installation Methods Explained

Lumin's artificial skylight product line covers the Blue-Shadow Series, H50 Ultra-Thin Series, Sun-in Series, Circle Series, and Frame/Frameless Light Therapy Panel Series. Different series support different installation methods. The choice depends on ceiling type, ceiling height, and project requirements.

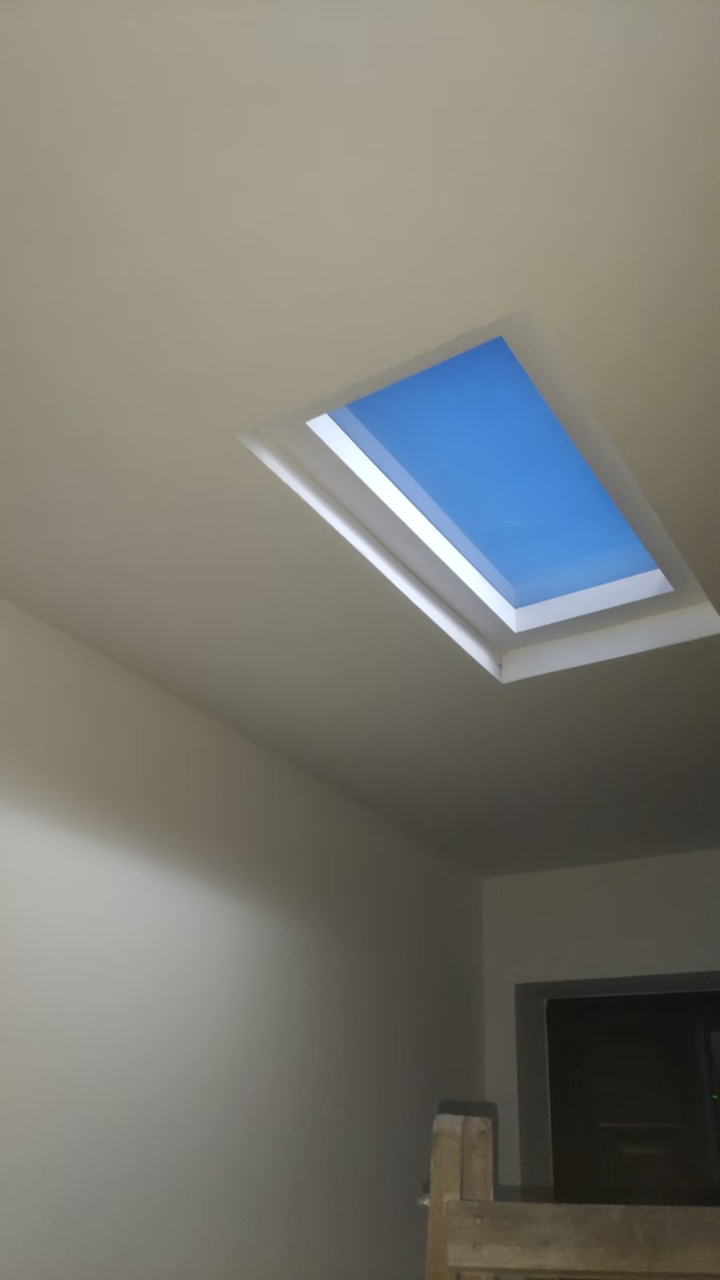

2.1 Method 1: Gypsum Board Ceiling — Recessed Installation

Best for: Gypsum board ceilings, standard suspended ceilings

Lumin's Blue-Shadow Series, H50 Ultra-Thin Series, and Frame/Frameless Series all support recessed installation.

Installation Steps:

1. Confirm the cutout location: Avoid joists and conduits. Use a pencil to trace the cutout outline on the ceiling. Before cutting, use a stud finder to confirm joist positions.

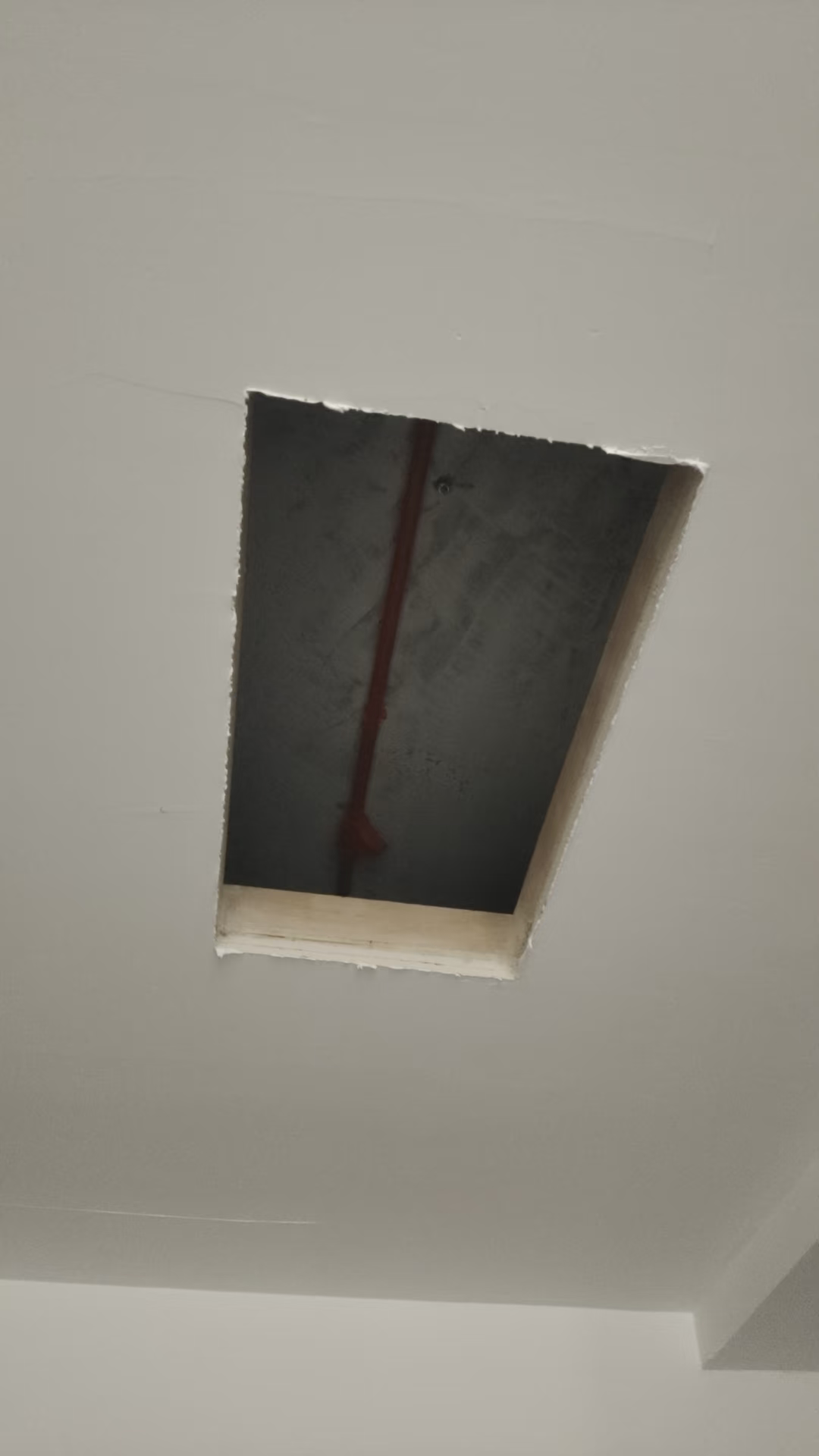

2. Cut the opening: Cut the gypsum board according to the cutout dimensions specified in the product datasheet. Reference cutout sizes for Lumin series:

1. Key technique: The cutout size must be precise — too large and the fixture won't stay in place; too small and it won't fit.

   3. Prepare the wiring: Leave a power cable near the opening, ensuring the cable is long enough for connection.

   4. Install the fixture: Push the fixture into the opening and secure it using spring clips or mounting brackets. For larger fixtures, safety cables are recommended to prevent falls.

   5. Trim the edges: Use gypsum board or decorative trim to make the fixture flush with the ceiling.

   6. Wiring and testing: Connect the power cables (ensure correct matching of live, neutral, and ground wires) and power on for testing.

   Key Reminder: For gypsum board installations, the position and cutout should be planned during the ceiling construction phase. The ceiling cavity should have at least 20cm of clearance for installation.

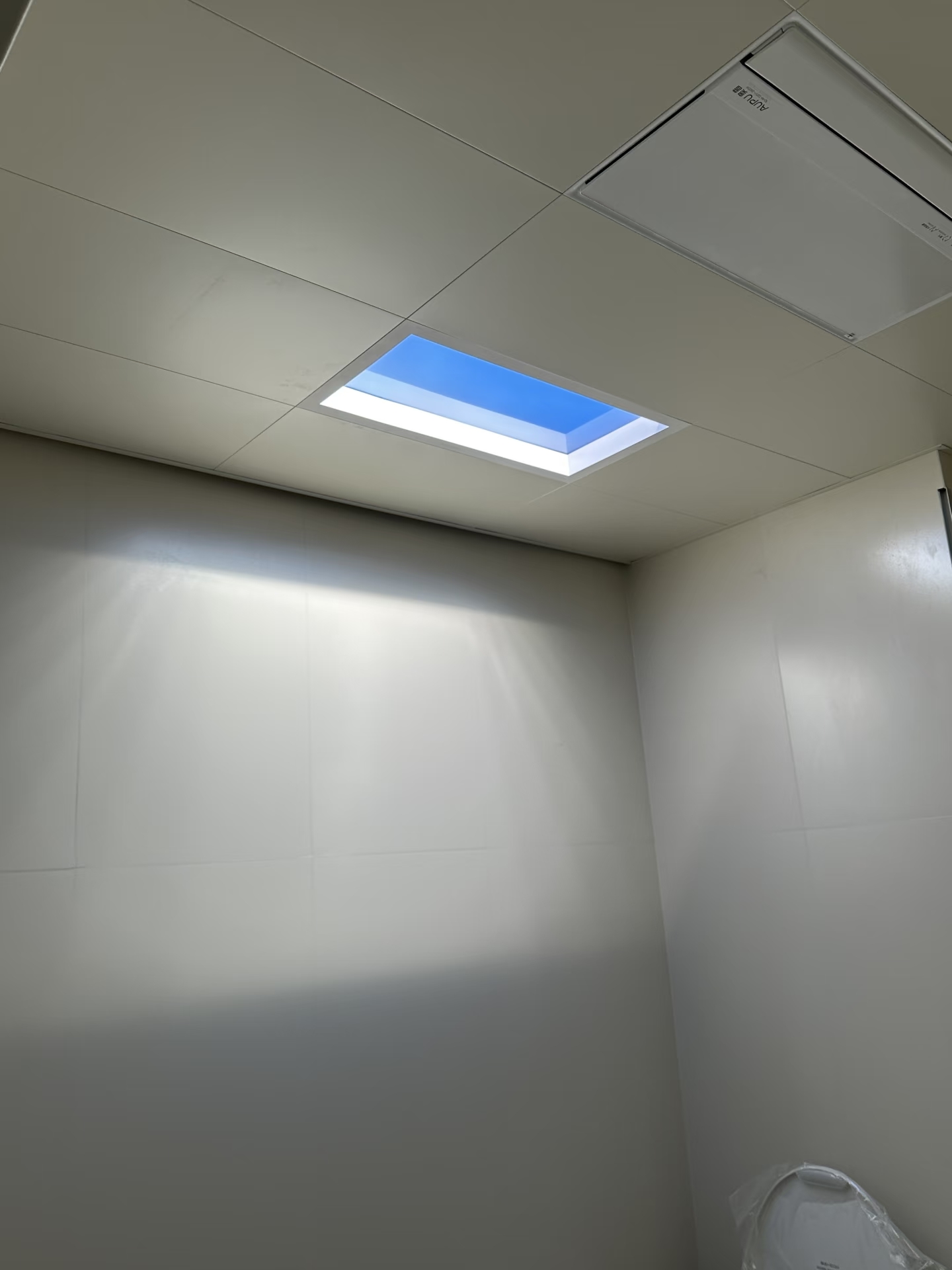

2.2 Method 2: Integrated Ceiling (Aluminum Panels) — Integrated Installation

Best for: Kitchens, bathrooms, and other integrated ceilings

Lumin's Blue-Shadow BSF3060/BSF6060, H50 TS3060/TS6060, and other 300×600mm products can directly replace one panel.

Installation Steps:

1. Check joist spacing: Lumin's 300×600mm sky lights match standard integrated ceiling joist spacing.

2. Remove one panel: Remove one 300×600mm aluminum panel at the installation location.

3. Place the fixture: Rest the sky light directly on the two lightweight steel joists.

4. Wiring: Connect the power cable above the ceiling.

5. Adjust and secure: Ensure the fixture is parallel to the joists.

6. Power on and test.

Key Reminder: Pay attention to joist direction — the fixture can only be mounted between two parallel joists, and the long side of the fixture must align with the joist direction. Also, ensure at least 20cm of clearance above the ceiling.

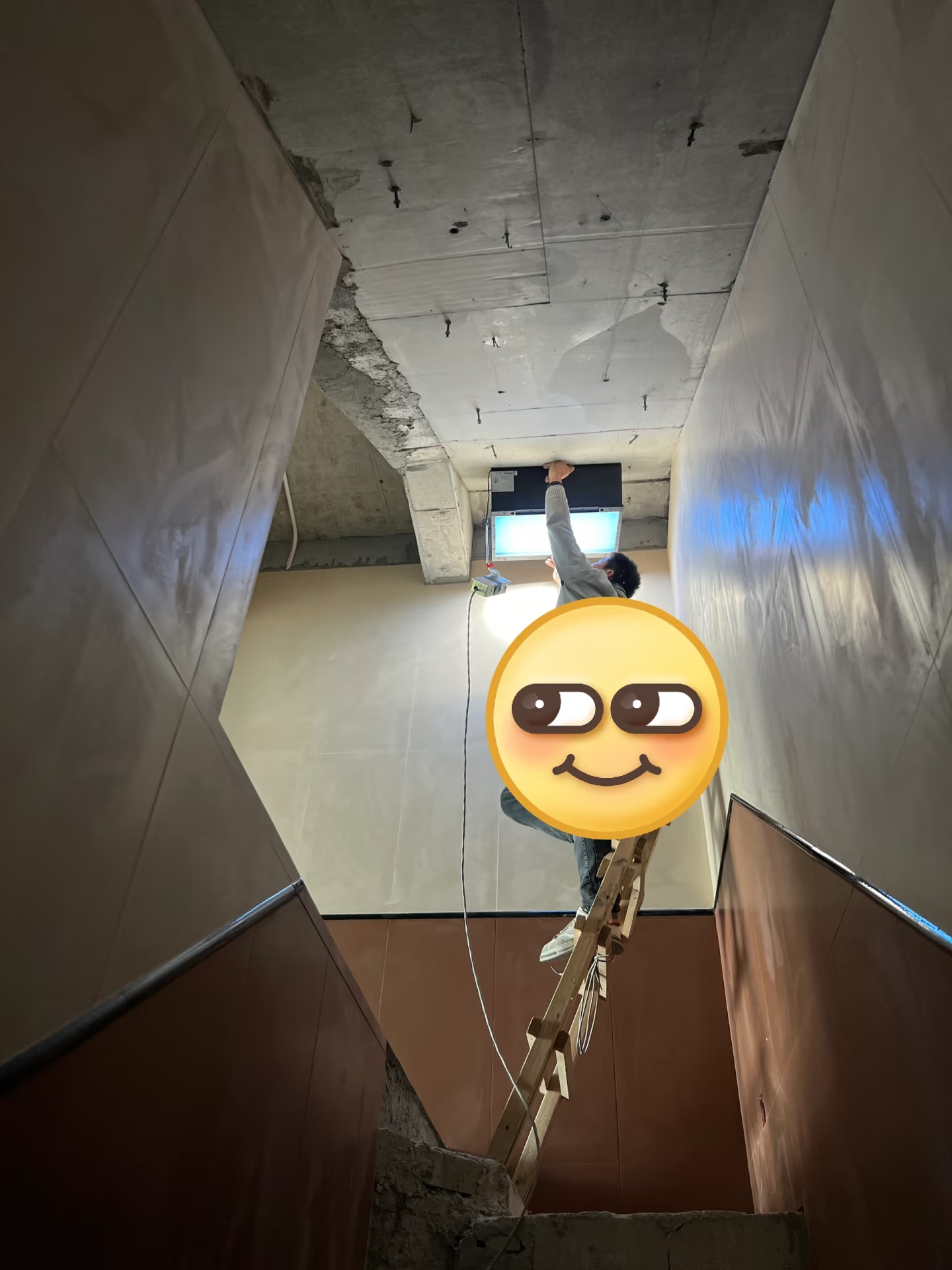

2.3 Method 3: Concrete Slab (No Dropped Ceiling) — Suspended Installation

Best for: Spaces without dropped ceilings, high ceilings

Lumin's Sun-in Series uses suspended installation, and the H50 Series also supports suspended mounting.

Installation Steps:

1. Drill and install expansion bolts: Mark four suspension points on the concrete ceiling, drill holes, and install expansion bolts.

2. Secure suspension cables: Attach the suspension cables to the expansion bolts and adjust the length of all four cables.

3. Connect the fixture: Attach the suspension cables to the fixture's mounting brackets. Use a level to adjust the fixture's horizontal position.

4. Wiring: Connect the power cables and properly insulate the connections.

5. Install safety cables: Safety cables must be installed connecting the fixture to the ceiling.

6. Power on and test.

Key Reminder: Suspended installation requires precise leveling. Large fixtures (such as the Sun-in R600, 50kg net weight) must be installed by professional teams.

Part 3: Continuous Splicing Installation Key Points

Continuous linear lighting systems are common in large commercial projects — multiple fixtures connected end-to-end to form a visually uninterrupted continuous light band.

Lumin's Frame/Frameless Light Therapy Panels support multi-fixture splicing, with a maximum customized size of 1.2*1.2/0.8*0.8m and combinations from 2 to 40 units.

Key Decisions Before Splicing:

Splicing Steps:

1. Align the fixtures: Bring the ends of two fixtures together and connect using a connecting bridge or dedicated connector.

2. Secure the connection: Tighten connector screws or clips.

3. Check flatness: Ensure no height difference or gap at the splice point.

4. Complete electrical connection: Internal wiring through the connector completes the circuit.

5. Install end caps: Attach end caps at both ends of the continuous run.

Common Issues and Solutions:

• Dark spots at splices: Connectors not aligned or fixture spacing too wide → realign and tighten

• Uneven spliced sections: Leveling not used during installation → a laser level is essential

• "Wavy" long runs: Use longer fixtures instead of shorter ones to reduce connection points

---

Part 4: Common Installation Mistakes and How to Avoid Them

---

Part 5: Lumin Installation Accessories and Technical Support

Lumin provides comprehensive accessory support for different installation scenarios:

• Integrated ceiling accessory kit: Includes suspension cables, brackets, decorative frames, safety cables, etc.

• Gypsum board ceiling accessories: Magnetic decorative frames for easy installation

• Suspended installation accessories: Bracket mounts, suspension cables, expansion bolts

Additionally, Lumin offers:

• Precise cutout dimensions and product dimensions for each model in the product datasheet

• Technical support team available for installation consultation

• Support for multi-fixture combinations, with maximum customized size up to 2.4×3.0m and combinations from 2 to 40 units

Need a custom installation plan for your project? Get Lumin Installation Technical Support →

---

Part 6: Summary

Installing an artificial skylight isn't complicated — choose the right method, measure accurately, and hire the right person. Get these three things right, and you're most of the way there.

The most important advice: Artificial skylight installation must be performed by a licensed electrician. This isn't a standard ceiling light — it involves electrical connections and load-bearing safety. Leave professional work to the professionals.

Want to know the specific installation requirements and accessory information for Lumin's full range? Download the full Lumin product catalog or Contact our technical support team.

---

FAQ

Q1: After cutting the opening for a gypsum board ceiling installation, what trim work is needed?

After cutting, use gypsum board or decorative trim to make the fixture flush with the ceiling. Some Lumin Blue-Shadow and H50 models come with magnetic decorative frames that attach directly without additional screws, greatly simplifying the trim process. If using standard gypsum board trim, joint compound and sanding are required after installation to ensure a flush surface.

Q2: What is the standard joist spacing for integrated ceilings? Can Lumin's 300×600mm products match directly?

Standard integrated ceiling joist spacing is typically 300mm or 600mm. Lumin's 300×600mm sky lights are designed to match this spacing. Installation requires only removing one 300×600mm aluminum panel and resting the fixture directly on the two parallel lightweight steel joists — no additional drilling or mounting hardware needed.

Q3: How many people are needed to install a large artificial skylight (e.g., Sun-in R600, 50kg net weight)?

The Sun-in R600 weighs 50kg and is a large suspended fixture. At least 3 people are recommended: 2 for lifting and positioning, 1 for wiring and securing. Safety cables must be used as secondary protection, and suspension point spacing should not exceed 3 meters. A professional team with electrical installation qualifications is recommended.

Q4: How do you ensure the fixture is level during suspended installation on a concrete ceiling?

Suspended installation requires high leveling precision. We recommend using a laser level: first mark four suspension points on the ceiling and ensure they are on the same horizontal plane; after installing suspension cables, use a level to check the four corners of the fixture and adjust cable lengths to calibrate. If the fixture is tilted, the blue sky visual effect will be significantly compromised.

Q5: Does Lumin's artificial skylight support multi-fixture splicing? What is the maximum size?

Yes. Lumin's Frame/Frameless Light Therapy Panels support multi-fixture splicing, with a maximum customized size of 1.2*1.2/0.8*0.8m and combinations from 2 to 40 units. When splicing, pay attention to heat source direction — the heat source side of Panel A must not lean against the heat source side of Panel B. Refer to the product datasheet for specific splicing direction requirements. Additionally, the Blue-Shadow Series continuous splicing installation can also achieve long-distance seamless light bands.

---

Conclusion

Installation is the final hurdle in an artificial skylight project and the key step that determines the final result. From pre-installation preparation to the three ceiling-type installation methods, from continuous splicing key points to safety standards, this article provides a complete procurement decision reference.

Key Takeaways:

• Gypsum board ceiling: Recessed installation, precise cutout, ≥20cm clearance

• Integrated ceiling: Integrated installation, matches joist spacing, most convenient

• Concrete slab: Suspended installation, level calibration, safety cables required

• Continuous splicing: Align heat source direction, use laser level, longer fixtures reduce connections

• Safety first: Licensed electrician, power off during work, safety cables for large fixtures

Lumin offers a complete product matrix from the Blue-Shadow Series and H50 Ultra-Thin Series to the Sun-in Series, covering installation needs from residential dark bathrooms to commercial lobbies.
